Warranty: | 2 Years; | Place of Origin: | Jiangsu, China; |
Package Preview: | ; | Rated current: | 16A; |
Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Pin: | Copper alloy + silver plating; |
Cable length: | 5m or customized; | Material: | Thermoplastic; |
Mechianical life: | 10000 times; | Packaging Detail: | 5pcs per carton; |

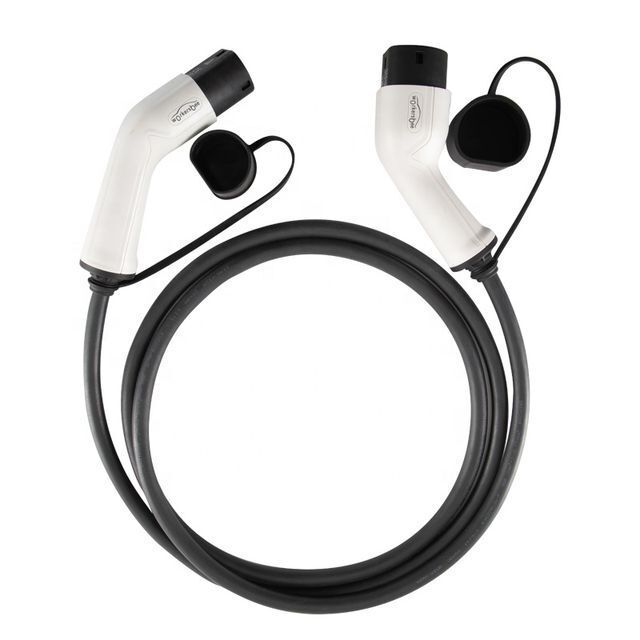

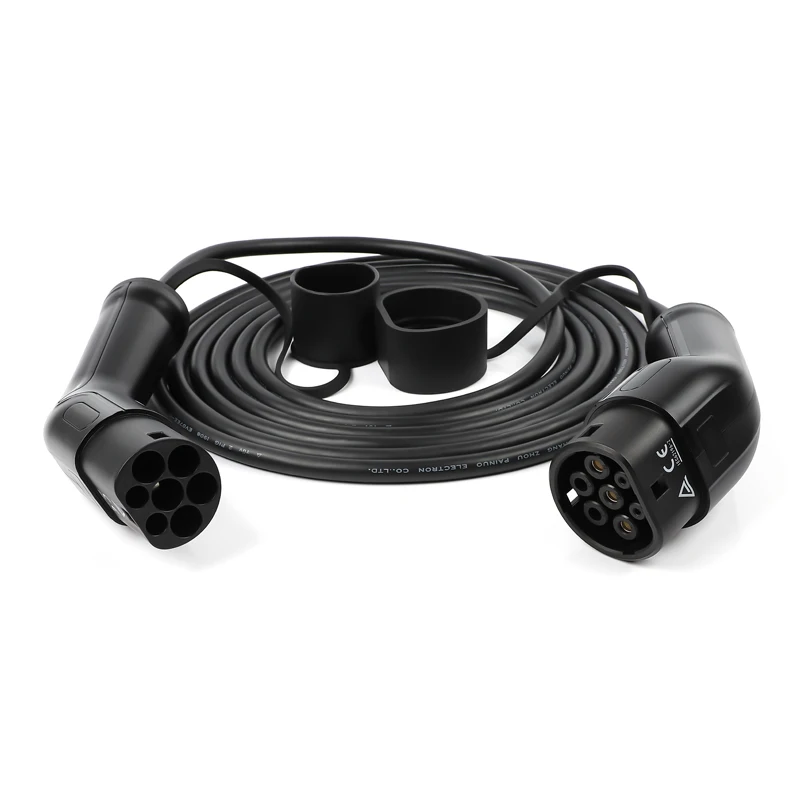

product name: | Mode 3 EV Charging Cable; | Port: | Shanghai; |
IP protection class: | IP 54; | Supply Ability: | 20000 Pieces per Month; |
Certifications: | CE TUV; | Package: | Standard cartons; |

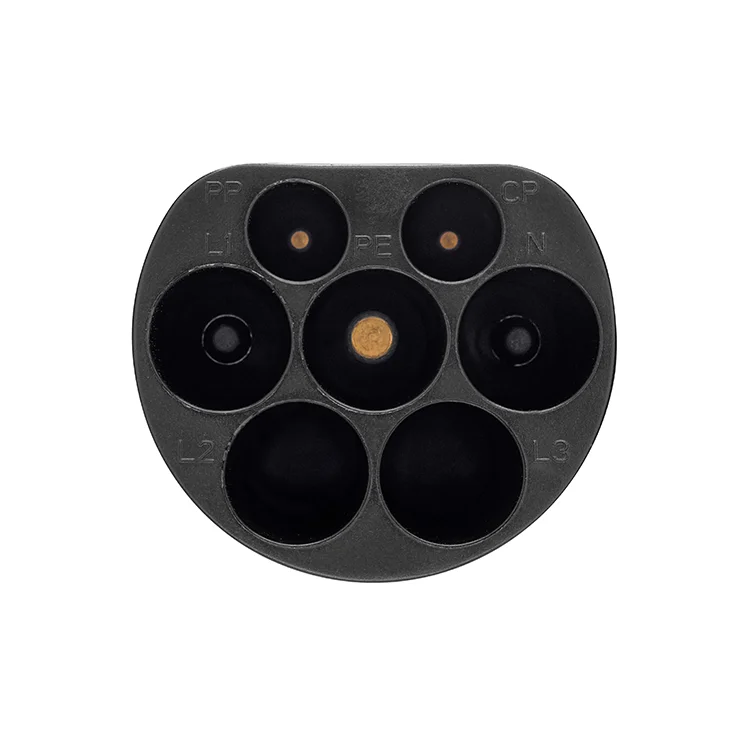

Plug for EV | IEC 62196 Type2 female | |
Plug for EVSE | IEC 62196 Type2 male | |
Input power | 1-phase, 220-250V/AC, 16A | |
Application standard | IEC 62196 Type2 | |
Plug shell material | Thermoplastic (flame retardant grade: UL94-0) | |
Operational temperature | -30 °C to +50 °C | |
Vandalism-proof | No | |
UV resistant | Yes | |
Certificate | CE, TUV | |
Cable length | 5m or customized | |
Terminal material | Copper alloy, silver plating | |
Terminal temperature rise | <50k | |
Withstand voltage | 2000V | |
Contact resistance | ≤0.5mΩ | |
Mechanical life | >10000 times of off-load plug in/out | |
Coupled insertion force | Between 45N and 100N | |
Withstandable impact | Dropping from a 1m height and running-over by a 2-ton vehicle | |
Warranty | 2 years |
