FT3403 economic lcd digital intelligent pid temperature controller

Supplier: Guangzhou Tmcon Electronic Technology Co., Ltd.
Region: Guangdong, China
Price: $15.80 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Control output:	Relay,SSR,TRIAC;	Power supply:	100~240VAC;
Product name:	Temperature Controller;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

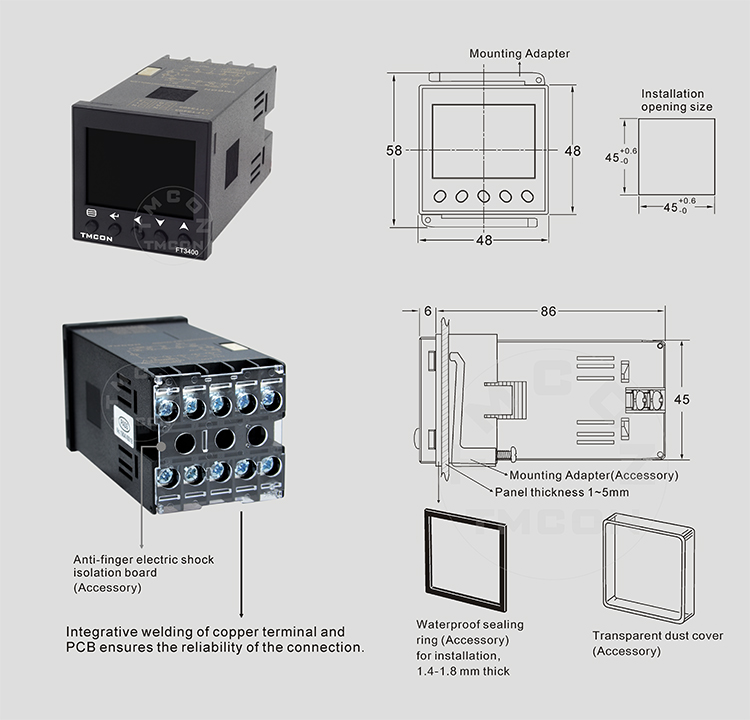

Place of Origin:	Guangdong, China;	size:	48*48;
Control mode:	FUZZY+PID, ON-OFF;	Model Number:	FT3403;
Brand Name:	TMCON;	Packaging Detail:	Packaging Details:TMCON standard carton Outer box size:440312258(80 piece);
Display mode:	LCD;	Port:	Guangzhou;
Input type:	Thermocouple(K, E, J, N), RTD(Pt100);	Supply Ability:	10000 Pieces per Month;

Product Description

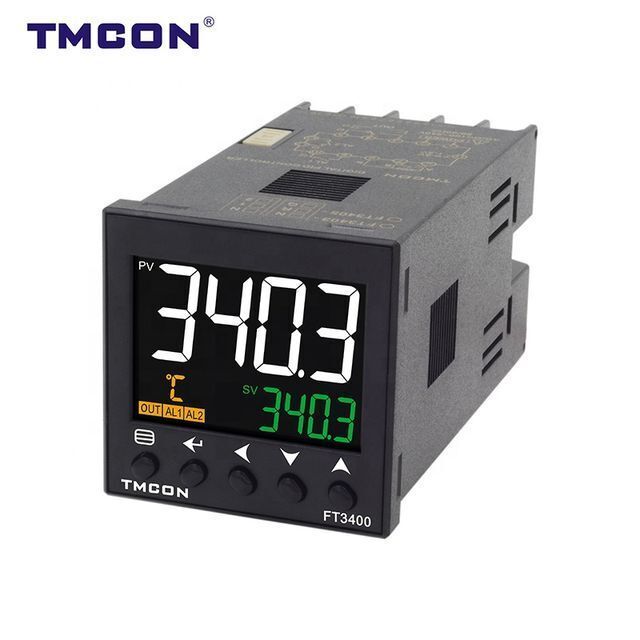

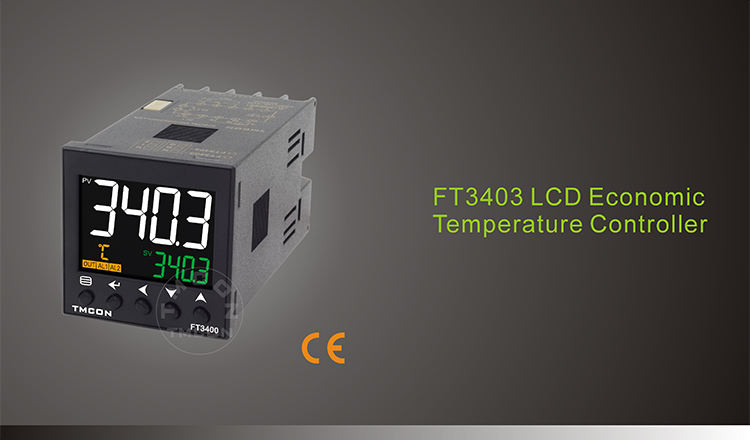

FT3403 LCD Display Economic PID Temperature Controller

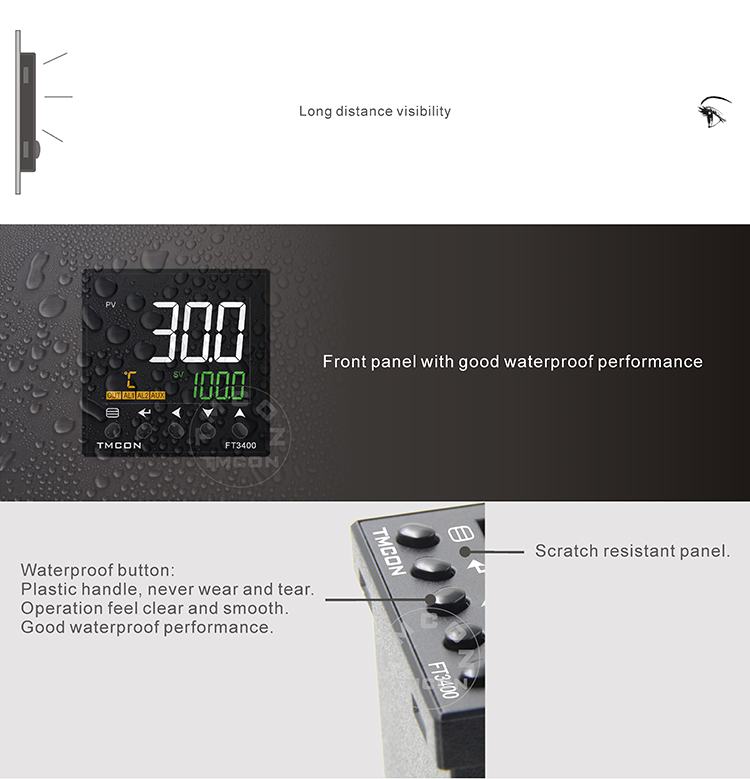

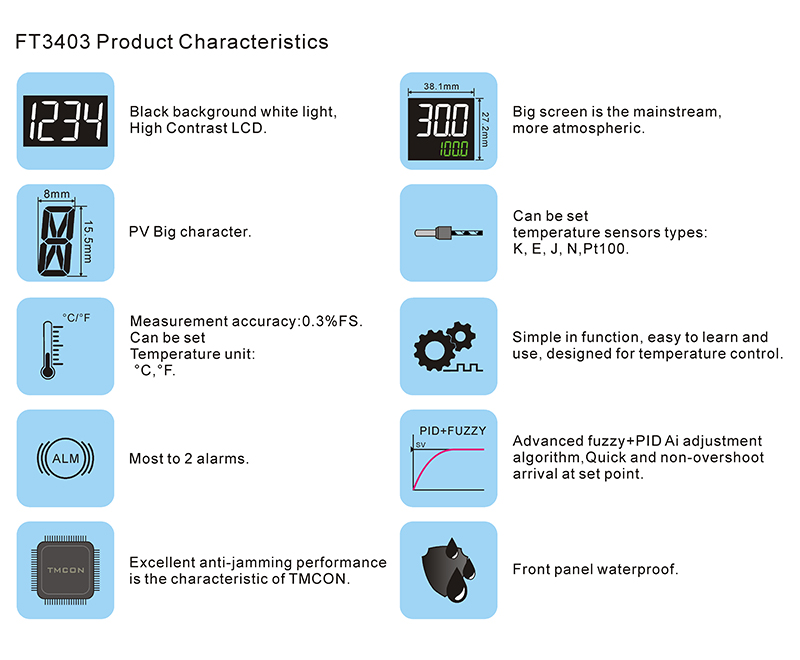

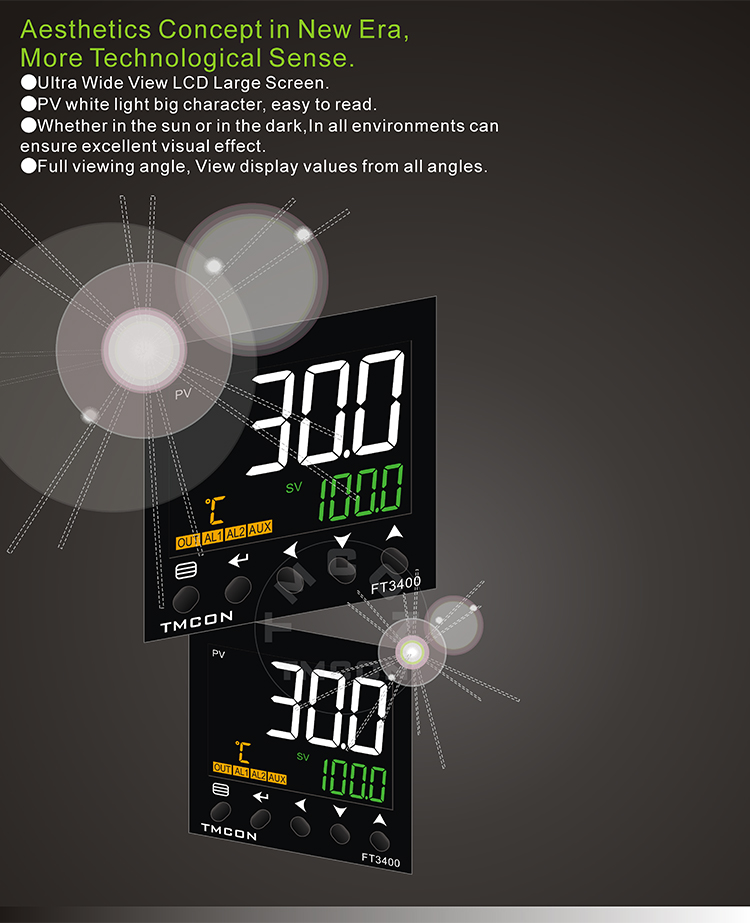

●DIN48×48mm, new generation of high-end controller, large window, high contrast LCD and easy to read white PV display,which improves the visibility of all angles and achieve long-distance visibility.
●Built-in waterproof sealing ring and externally mounted waterproof sealing ring make the front panel have good waterproof performance.
●Plastic handle waterproof button, the button operating surface strong, scratch-resistant and wear-resistant, operation feel clear and smooth.
●Economic type, simple operation,practical function,specially designed for temperature control.
●Common thermocouple and RTD input type can be selected through software parameter settings.

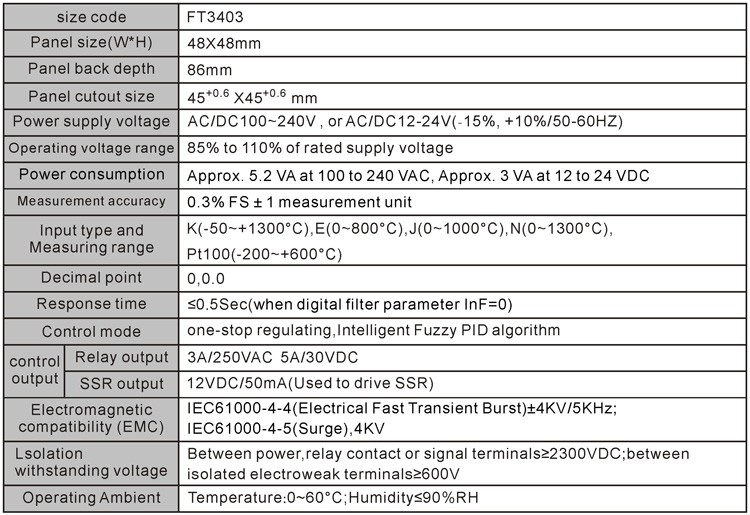

●Use digital calibration technology for input Measurement accuracy:0.3%FS,maximum resolution is 0.1°C.

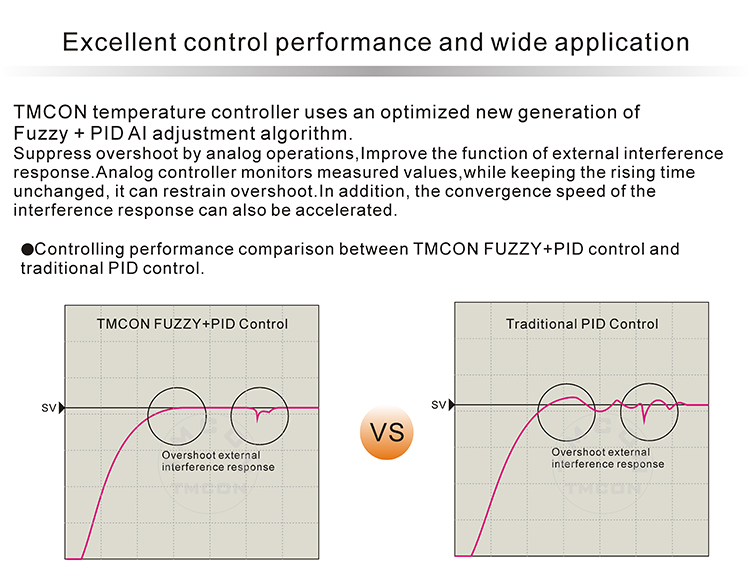

●Advanced "FUZZY+PID" ai intelligent control mode, no overshoot and with the function of auto tuning (AT) and self-adaptation.
●Can provide most two way alarm output, and can implement a variety of alarm methods.
●The °C or °F temperature unit can be selected via software parameter settings.
●High-efficiency and high-reliability switching power supply, global universal voltage range AC/DC100~240V or AC/DC12~24V.
●The anti-jamming performance meets the requirements of electromagnetic compatibility (EMC) under harsh industrial conditions.

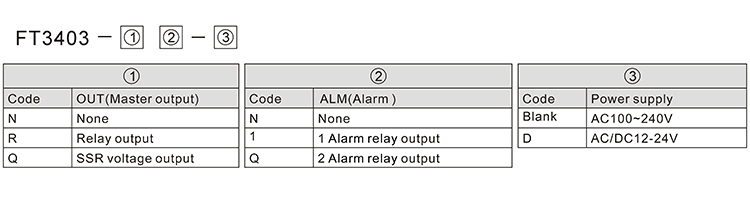

Model Code
