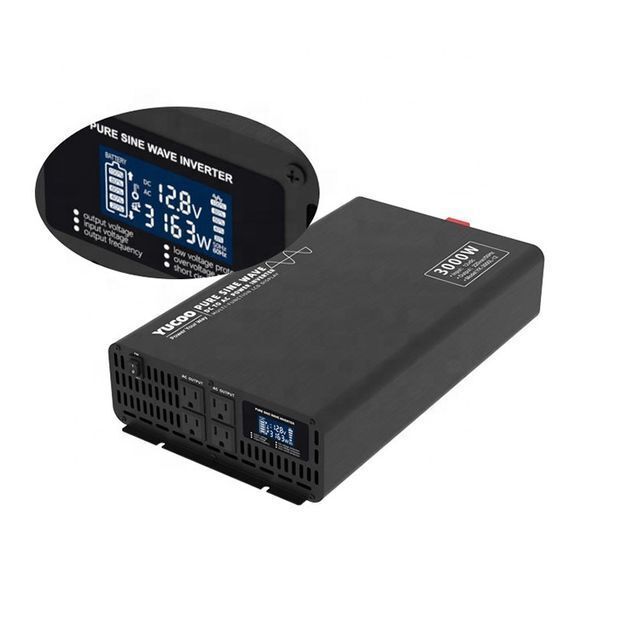

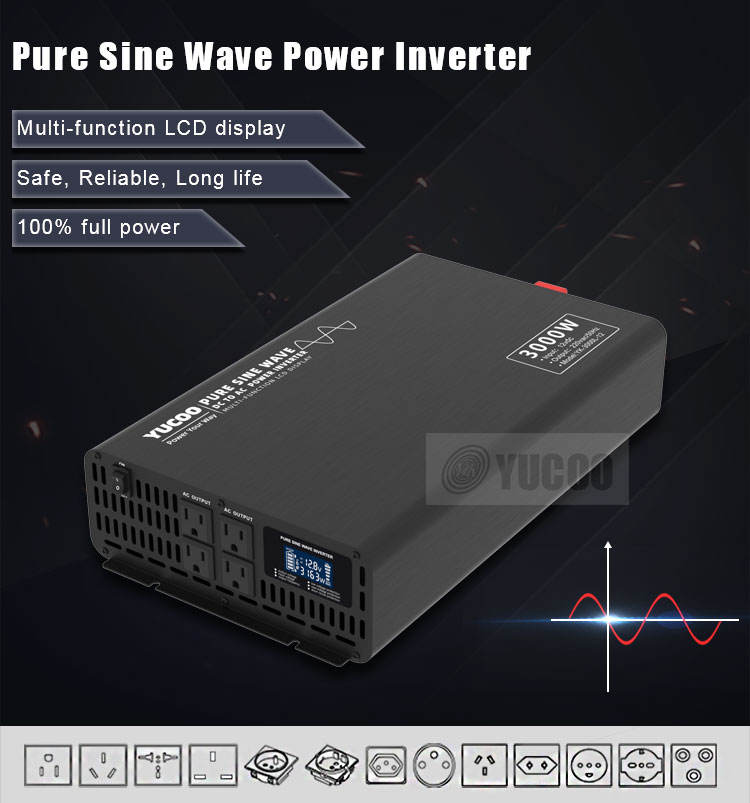

12Vdc 24Vdc 48Vdc 60Vdc 72Vdc to 110Vac 220Vac pure sine wave power inverter off grid

Supplier: Yucoo Network Equipment Co., Limited
Region: Guangdong, China
Contact: Ms Alisa Luo
Price: $59.00 /set
Min. Order: 1 set

Click here to contact

Product details

Cooling Method:	Intelligent temperature controlled air cooling;	Weight:	8.5kg;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Product Name:	3kw pure sine wave inverter;
Output Current:	13.6A;	Output Socket:	According request;
Waveform:	Pure Sine Wave Inverter;	Packaging Detail:	Neutral carton;
Size:	40024288mm;	Network:	R232;
Supply Ability:	5000 Sets per Month off grid pure sine wave inverter;	Type:	DC/AC Inverters;
Port:	Guangzhou / Shenzhen;	Model Number:	YK-3000L;
Material:	Aluminum;	Peak Power:	1.2KW/2KW/3KW/4KW/6KW/8KW/10KW;
Output Type:	Single;	Output Frequency:	50Hz or 60Hz±0.1%;
Certificate:	CE EMC;	Place of Origin:	Guangdong, China;
Brand Name:	YUCOO;	Customized support:	Communicable;
Conversion Efficiency:	≥90%;	Output Power:	600W/1KW/1.5KW/2KW/3KW/4KW/5KW;
Display:	LCD;	DC Input Voltage Range:	10-15Vdc/20-30Vdc/40-60Vdc/;

12Vdc 24Vdc 48Vdc 60Vdc 72Vdc to 110Vac 220Vac pure sine wave power inverter off grid

Product Description

Introduction of off grid pure sine wave inverter:

1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2. Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

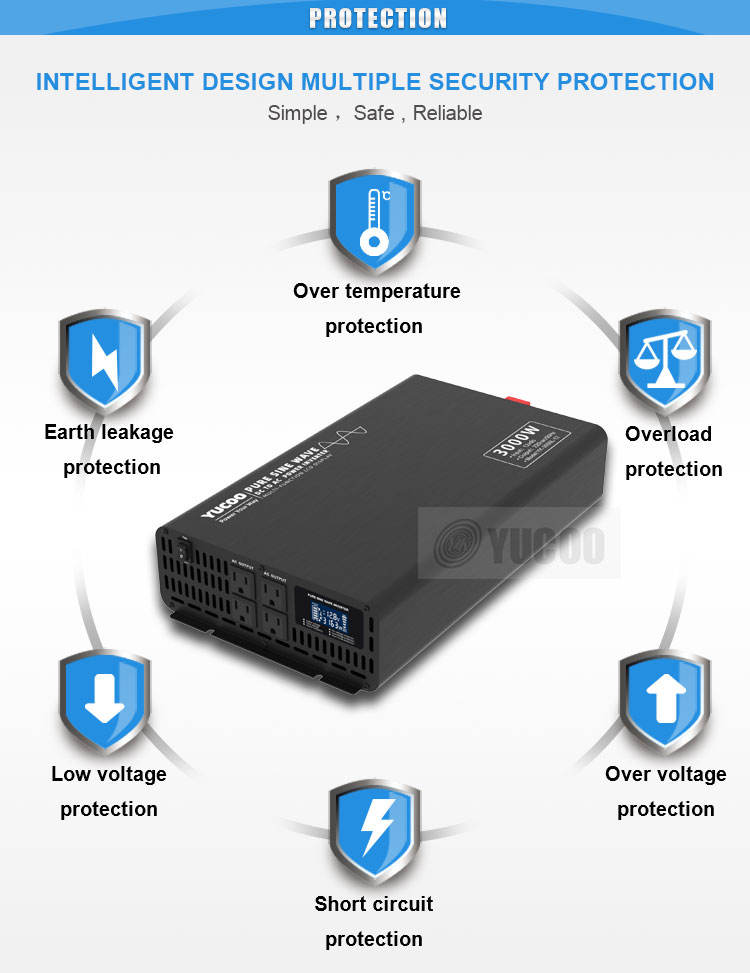

3. It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

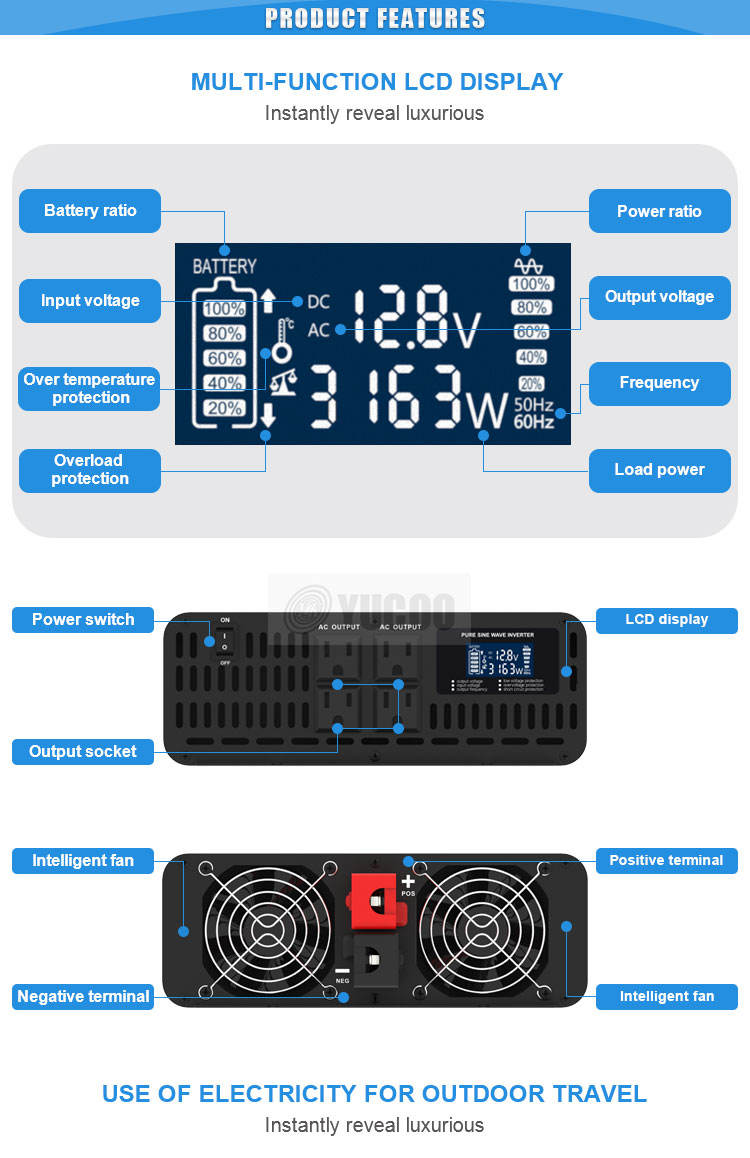

4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5. Stable performance, safe and reliable, long service life.

Specifications

Model	YK- 600L	YK- 1000L	YK- 1500L-24	YK- 2000L	YK- 3000L	YK- 4000L	YK- 5000L
Display	LCD Display
DC Input
Rate voltage	12Vdc/24Vdc48Vdc/60Vdc/72Vdc
Range voltage	10-15Vdc/20-30Vdc/40-60Vdc/50-75Vdc/
AC Output
Output Voltage	110Vac or 220vac±5%
Output Frequency	50Hz or 60Hz±0.1%
Wave	Pure Sine wave
Output Power	600W	1000W	1500W	2000W	3000W	4000W	5000W
Peak Power	1200W	2000W	3000W	4000W	6000W	8000W	10000W
Conversion Efficiency	≥90%
Protect function
Function-1	Input reverse connection protection: Fuse
Function-2	Input low voltage protection : 20Vdc±0.3V
Function-3	Recovery voltage : 24V(25.5V±0.3)
Function-4	Input high voltage protection: 30Vdc±0.3V
Function-5	Over temperature protect: 80°±5°
No-load current	0.3A	0.6A	0.7A	0.7A	1.0A	1.0A	1.0A
Over load protection	660±50W	1100±50W	1650±50W	2200±50W	3300±50W	4000±50W	5000±50W
Total Harmonic Distortion	≤3%
Working temperature	-5~+50℃
Storage temperature	-20~+70℃

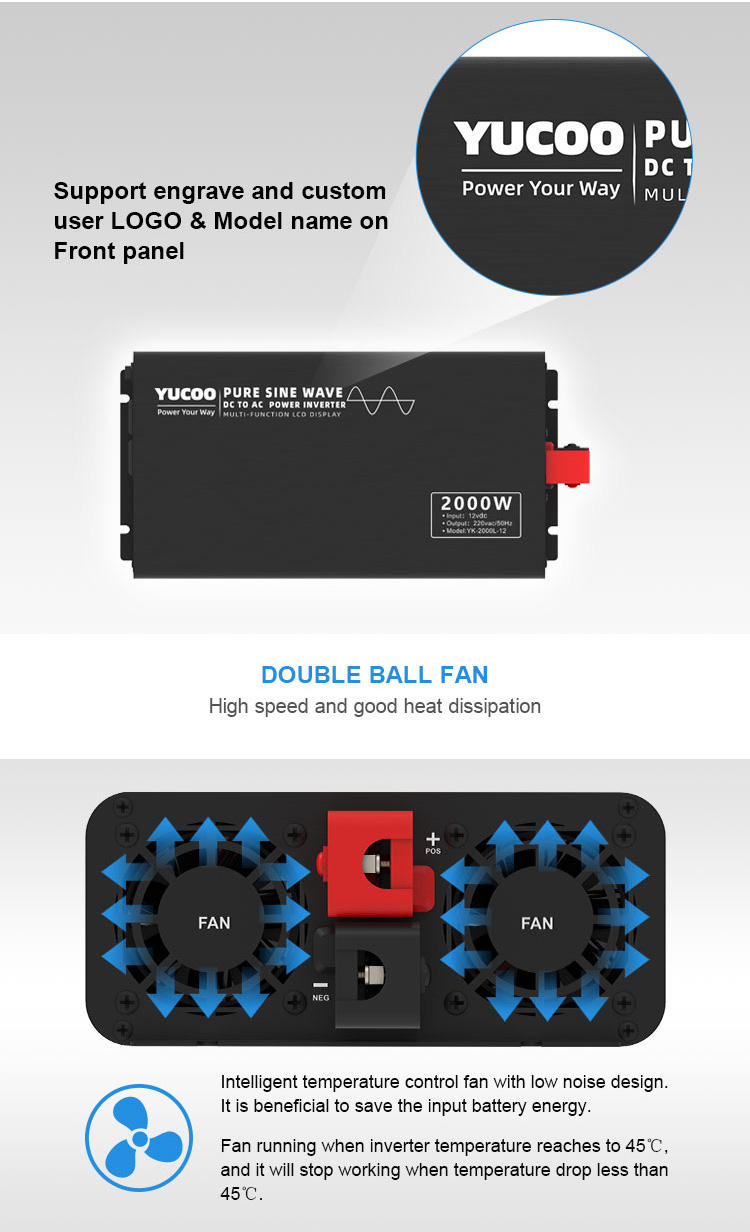

Cooling method	Intelligent temperature controlled air cooling
Mechanical properties
Input terminal	Terminal form
Output socket	According request
Housing material	Aluminum
Size(mm)	20017376	31017376	34017376	36017376	40024288	40024288	42024288
Weight (kg)	2.1	3.2	3.5	4.5	8.5	9.5	10.5
