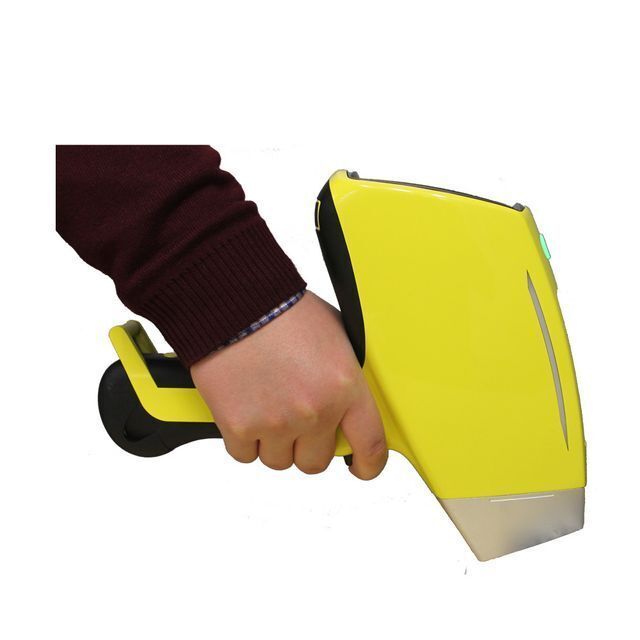

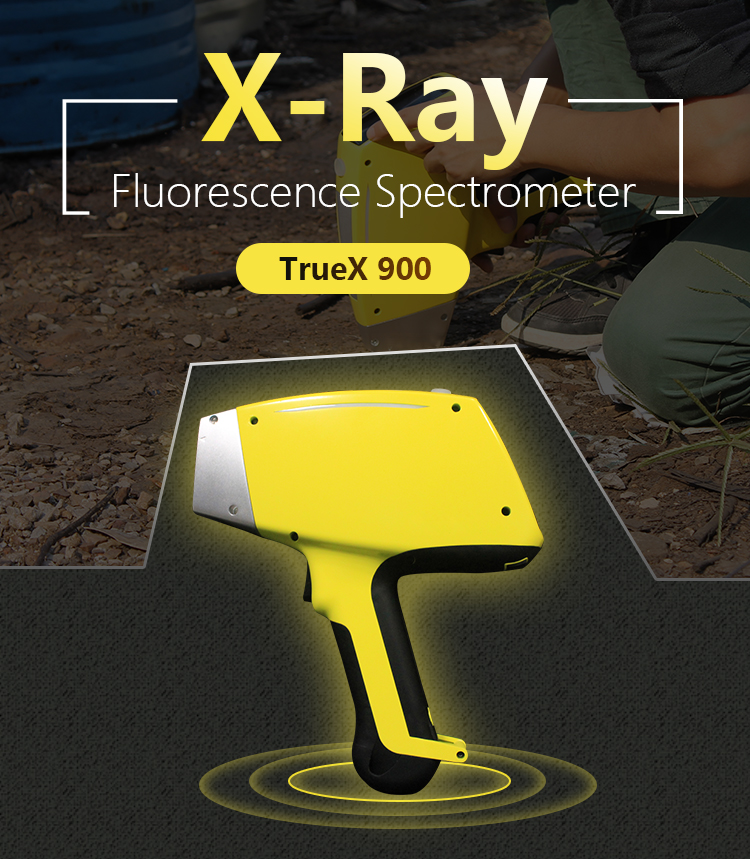

xrf handheld spectrometer analyzer metal spectrometer for sale

Supplier: Chongqing Drawell Instrument Co., Ltd.
Region: Chongqing, China
Contact: Ms Fiona Luo
Price: $12200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	Handheld Xrf Metal Analyzer;	CPU:	1GB;
Port:	Chongqing;	Supply Ability:	2000 Pieces per Month;
Focal Length:	0.2n;	Model Number:	TrueX-900;
Packaging Detail:	Standard Export packaging (Safe and pure English);	RAM:	1GB;
Size:	380x445x310(mm);	Wavelength Range:	190-900nm;
Weight:	15kg;	model:	TrueX-900;
Operating Humidity:	≤90%;	function:	mineral application;
Operating Temperature:	-20℃~+50℃;	application:	mineral application;
Sensor resolution:	solid, liquid, powder;	Place of Origin:	shanghai;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Brand Name:	Drawell;
Limit of Detection:	ppm;

Application Features 1. Excellent Performance TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way. 2. One-touch operation TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users. 3. Nondestructive testing (NDT) TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process. 4. Drawell analysis software Drawell analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet. 5. Scrap metal recycling and sorting Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site. 6. Application fields, safety and standards TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. TrueX is in compli

Application fields - Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site - Metal identification /scrap metal sorting - QA/QC management in metal production, processing, casting, etc - Medicine and biological medicine - Identification of positive materials, oil refining and petrochemical industry - Thermal power plant, hydroelectric power station, nuclear power plant - Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.

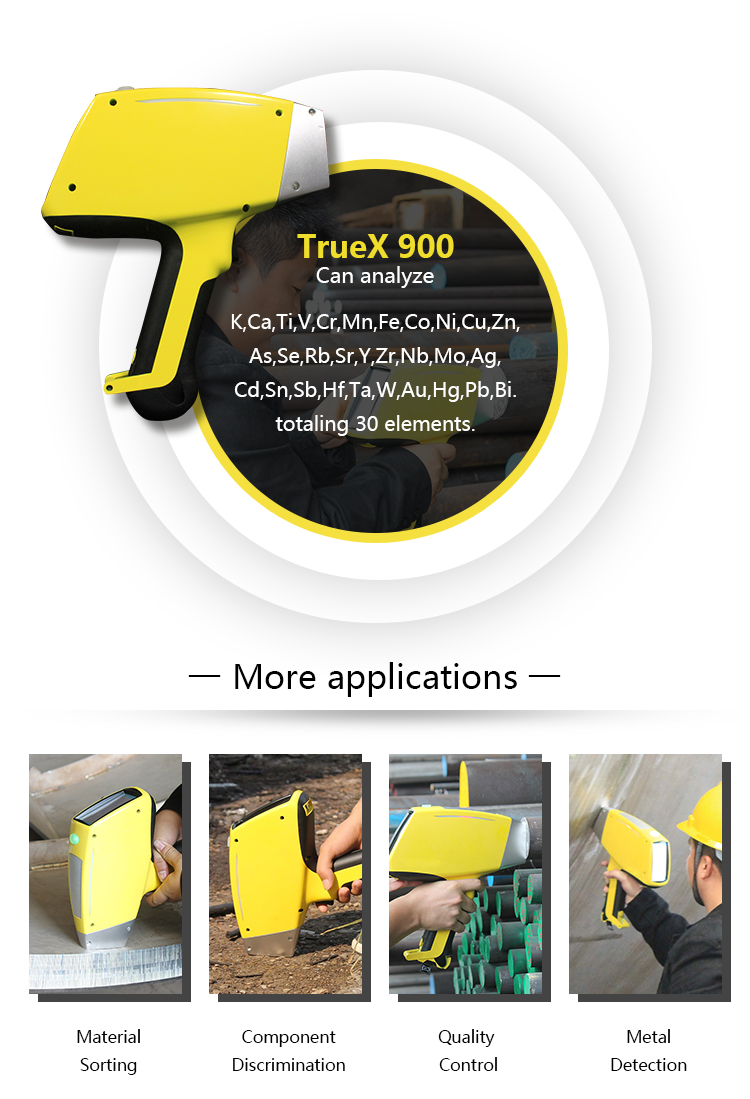

Elements to be Analyzed and Test Modes

Analysis mode	Analysis elements
TrueX 900	Standard configuration mode analysis range, such as special elements, can be added K,Ca,Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,As,Se,Rb,Sr,Y,Zr,Nb,Mo,Ag,Cd,Sn,Sb,Hf,Ta,W,Au,Hg,Pb,Bi.

Technical parameters and specifications

Weight	1.6Kg（with battery）.
Dimensions	254 x 79 x 280 mm（L x W x H）.
Excitation source	50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
Detector	BOOST Si-PIN detector
Range of detection	All elements between Mg and U.
Display system	Industrial resistive touch screen with screen size of 4.3". Proprietary operating system software and sound waves. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness.
Data processing	32GB memory USB, bluetooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number).
Heat dissipation	Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
Safety	Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase Drawell Safety Band；
Power supply system	Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.

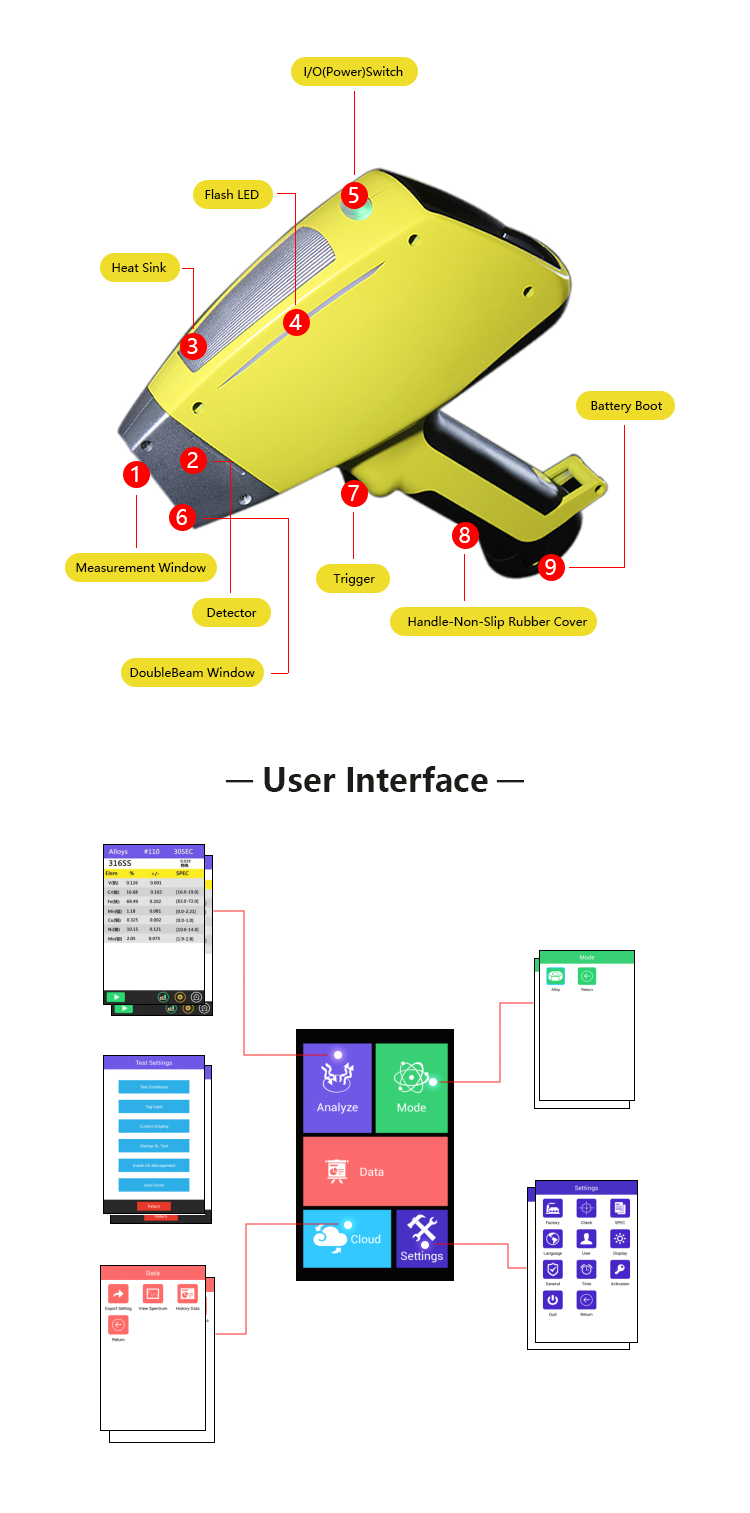

Products Description

Fast speed and simple operation

High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

High-performance X-ray Tube

Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

Durable body

Sealed shell, light weight, durable and sealed integrated design.

Product Series

Certifications

Company Profile

DRAWELL INTERNATIONAL TECHNOLOGY LIMITED

Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014. DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .

Exhibition

Logistics & payment

After Service

1． Quality warranty: Drawell commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine. 2． Technical training: Operating Manual of TrueX Handheld Spectrometers Maintenance Manual of TrueX Handheld Spectrometers 3． After-sale service Over the years, Drawell has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to. 1． services including a) Drawell shall provide after-sales service to all products it has sold worldwide. b) Drawell shall provide a one-year warranty for the spectrometer it has sold worldwide. c) Drawell shal provide one-year warranty for X-ray Tube (X-ray tube)and Detector (Detector). d) Drawell shall provide one-year renewal warranty for the replaced components in case there is any replacement of them during repair of machine. 2． The following physical damage is not covered by warranty. a) instrument is impacted by great force that the internal impact sensor changes from white to red; b) Detector is broken c) PDA is broken; d) Instrument body is broken; e) Loss of accessories f) Loss of components g) Water coming into instrument 3． In case the instrument is not able to operate, the customer can call after-sales service for help; we offer 3 types of repairs: a) Internet repair: if the customers are in foreign countries or remote areas, we can offer them first the INTERNET repair service. b) Phone repair: customers called over the phone to explain explicitly the problem and our technical staff will instruct them to solve the problem. c) On-site repair: in case the phone repair fails, our technical personnel will go to the site to repair the instrument within 72 hours after the problem is reported;

4． Out-of-warranty service:

upon expiry of the warranty period, all customers are still entitled to out-of-warranty service during the working life of the instrument.
