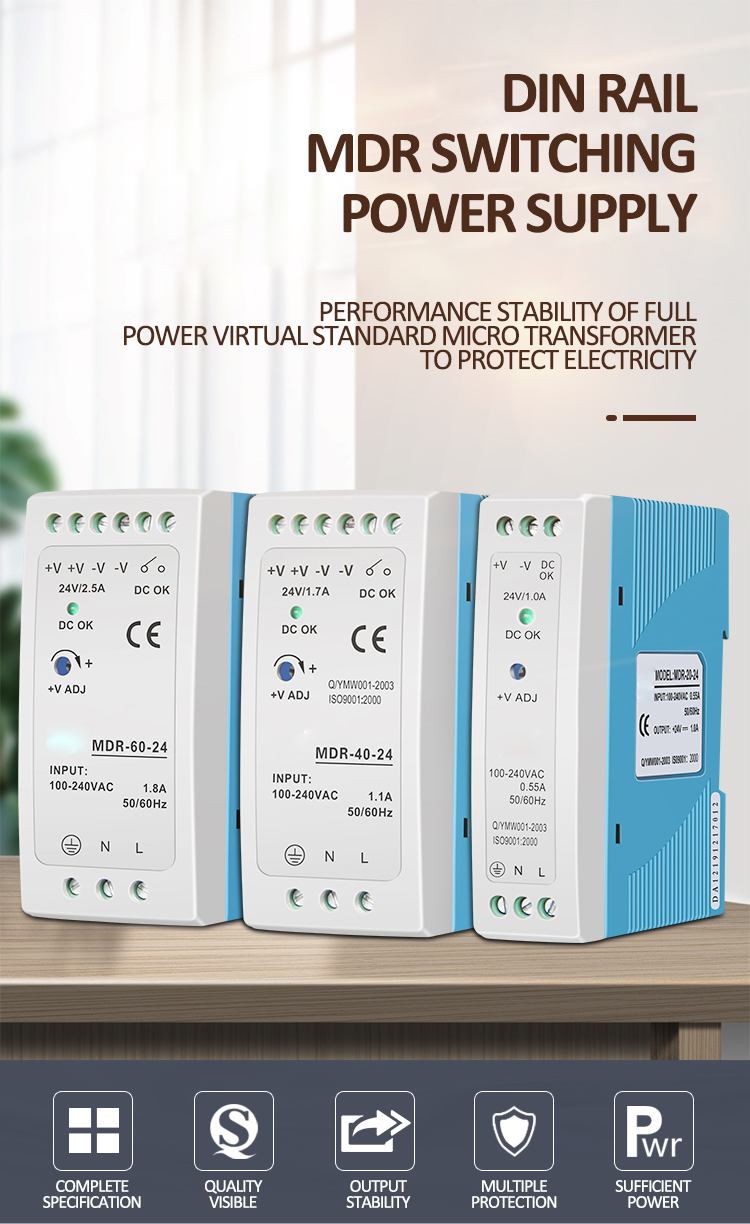

Save cost MDR-20-5 5V 20W din rail single outptut DC power supply

  • Supplier: Yueqing Winston Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Ms Tess Wong
  • Price: $10.77 / 11 - 499 pieces
    $9.83 / 500 - 999 pieces
    $9.11 / >=1000 pieces
  • Min. Order: 11 pieces
Click here to contact
Product details
OEM/ODM:Yes;Name:DC power supply;
Packaging Detail:Inner box and outer carton 90PCS/CTN CTN Size:45.5*31.5*23cm G.W.:18KGS;Output Power:20W;
Output Frequency:47-63HZ;Output Current:0-3A;
Weight:0.19KG;Input Voltage:85~264VAC,120~370VDC;
Size:22.5*90*100mm;Single gross weight:0.200 KG;
Feature:save cost;Warranty:2 years;
Output Type:Single;Brand Name:WINSTON/OEM;
Single package size:2X9X10 cm;Place of Origin:Other Country;
Selling Units:Single item;Model Number:MDR-20-5;
Output Voltage:5v;Package Preview:;
Payment:L/C,T/T,Western Union,MoneyGram,Paypal,Cash.;Package:Iner box and outer carton;
Other name:DC power supply 5V;Advantage:small valume;

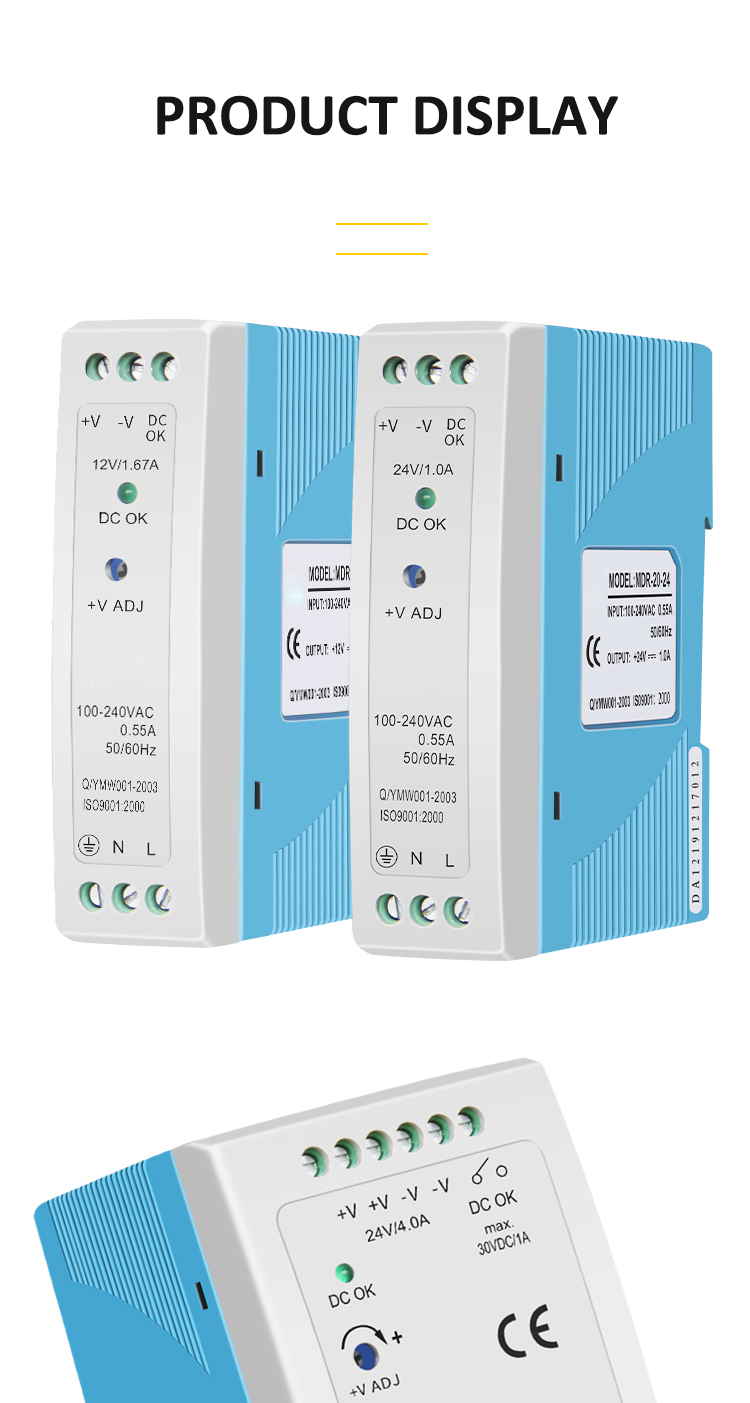

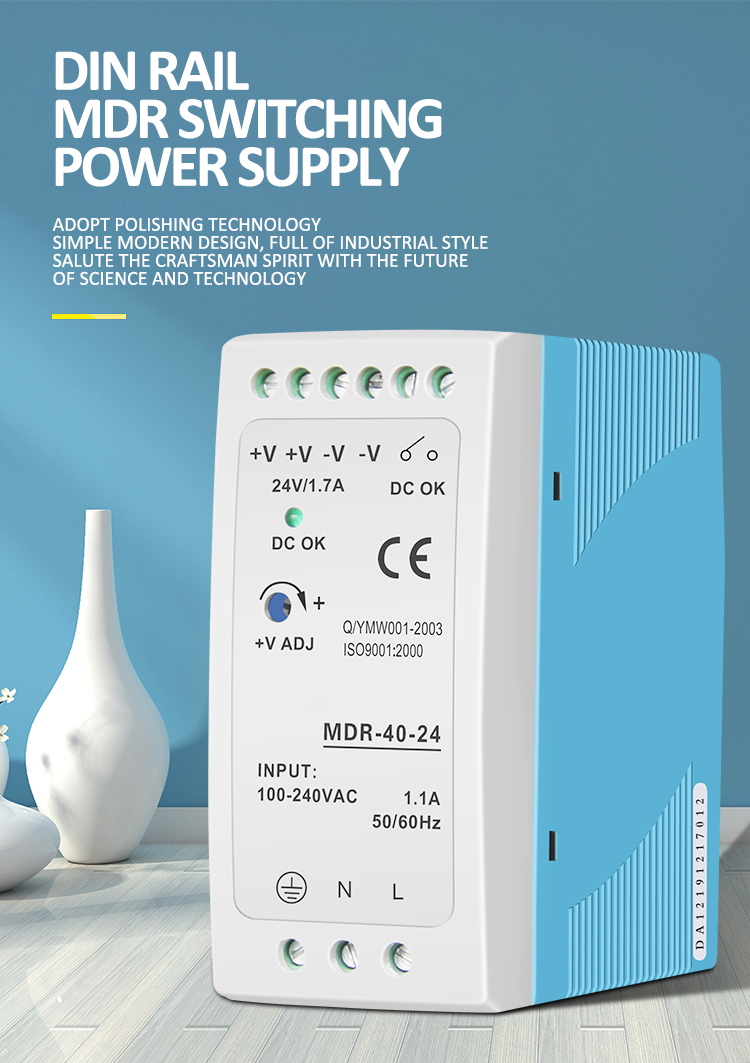

Save cost MDR-20-5  5V  20W din rail single outptut DC power supply

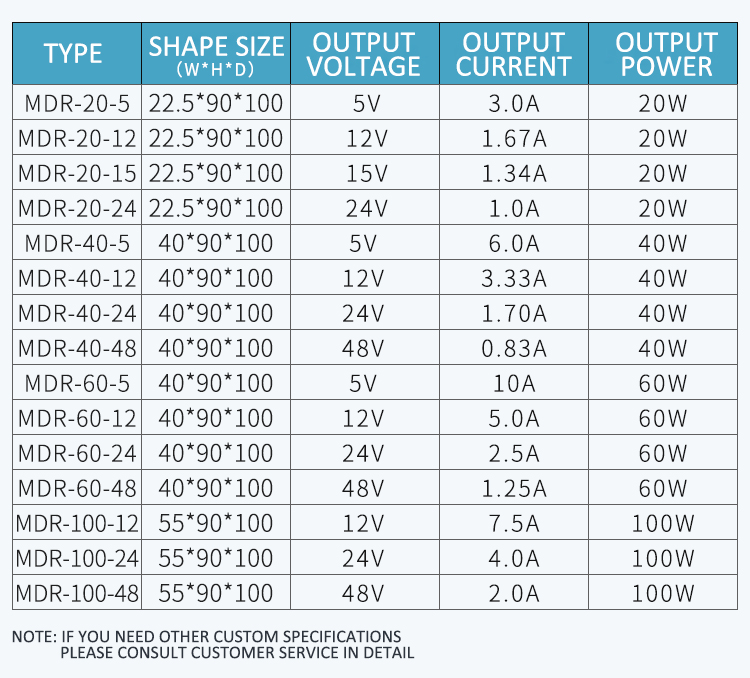

Technical parameter

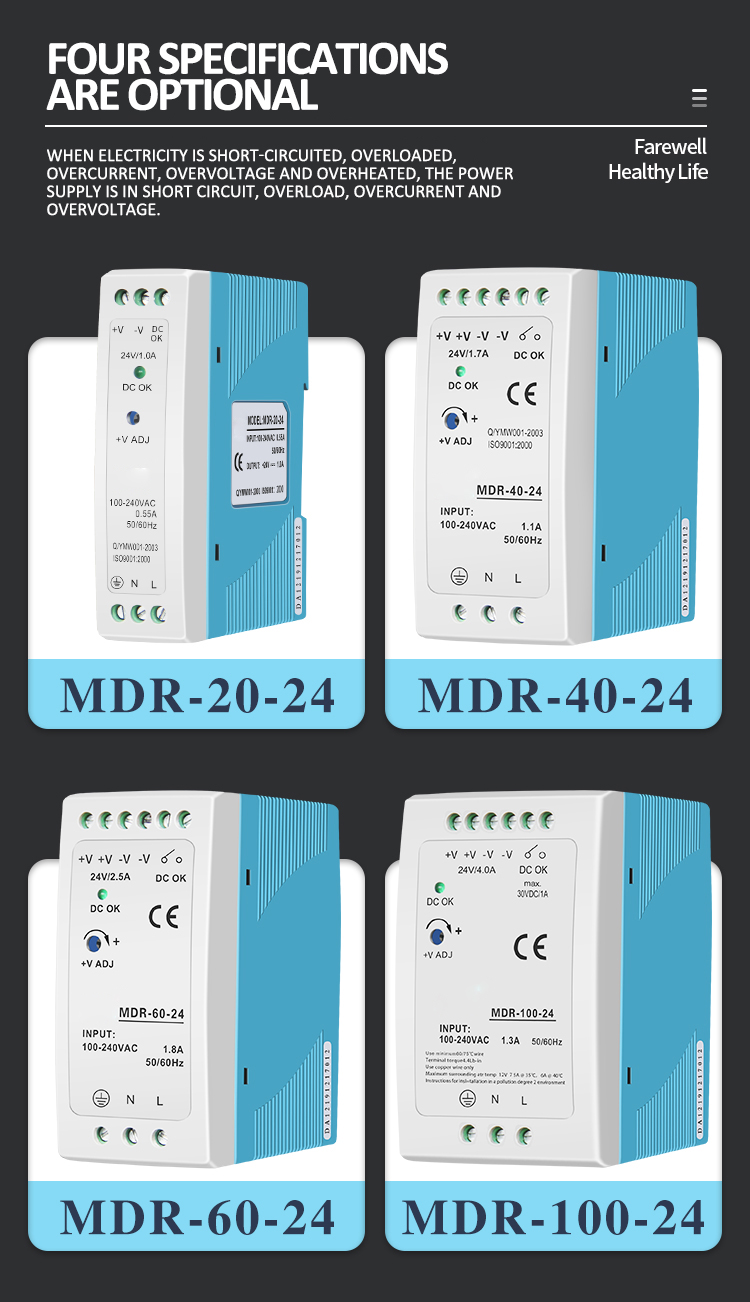

Model MDR-20-5 MDR-20-12 MDR-20-15 MDR-20-24
  DC voltage 5V 12V 15V 24V
output Current range 0~3A 0~1.67A 0~1.34A 0~1A
  Rated power 15W 20W 20W 24W
  Ripple&noise 80mvp-p 120mvp-p 120mvp-p 150mvp-p
  DCvoltage ADJ.range ±10% ±10% ±10% ±10%
  Voltage range 85~264VAC,120~370VDC   47-63Hz
  Efficiency 76% 80% 81% 84%
  Inrush current Cold start current 20A/115VAC, 40A/230VAC
  Over load 105%~160% cut off the output,automatic recovery
  Over voltage 120%-140% shut down O/P voltage, re-power on to recover
environment Working temperature -10°C~+50°C
safety Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
others Dimension 22.5*90*100mm (L*W*H)
Weight/packing 0.19kg/90pcs/18kg/45.5*31.5*23cm
note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

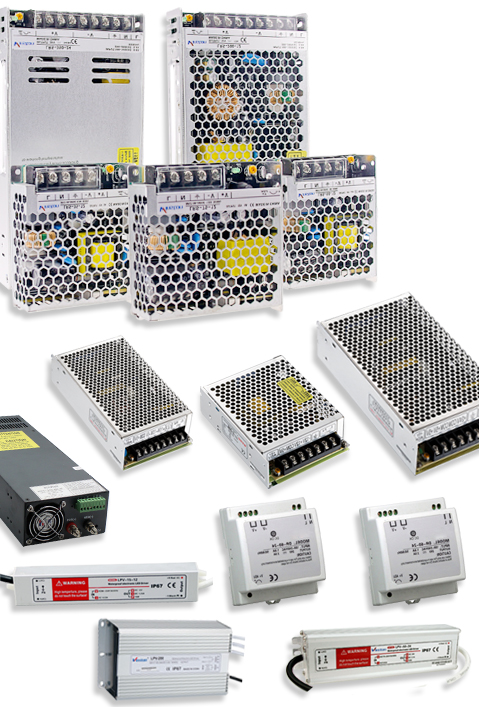

Other products

Single Output Type

S-15~120W  S-145W  S-150W   S-200W  S-201W  S-250W

S-350W  S-500W  S-600W  SCN-600W~1500W

Newest Type

LRS-35W  LRS-50W  LRS-75W LRS-100W  LRS-150W

LRS-200W  LRS-350W

MDR-10W  MDR-20W  MDR-40W  MDR-60W  MDR-100W

SC-35W

SD-50W  SD-100W SD-150W  SD-200W  SD-350W

Din Rain Type

DR-30W  DR-45W  DR-60W DR-75W  DR-120W  DRP-240W DRT-240W  LP-100~500W

Waterproof Type

LPV-15W  LPV-20W  LPV-30W  LPV-50W  LPV-60W

LPV-100W LPV-150W  LPV-200W  LPV-250W

Mini Type

MS-15~75W  MS-100W  MS-120W  MS-150W

High Efficiency Type

NES-15~35W  NES-50W  NES-75W

NES-100W  NES-150W  NES-200W  NES-350W

Multiple Type

D-30W  D-50W  D-60W  D-120W  T-30W

T-50W  T-60W  T-120W  Q-60W  Q-120W

PFC function type

SP-100W SP-150W  SP-200W  SP-320W  SP-500W

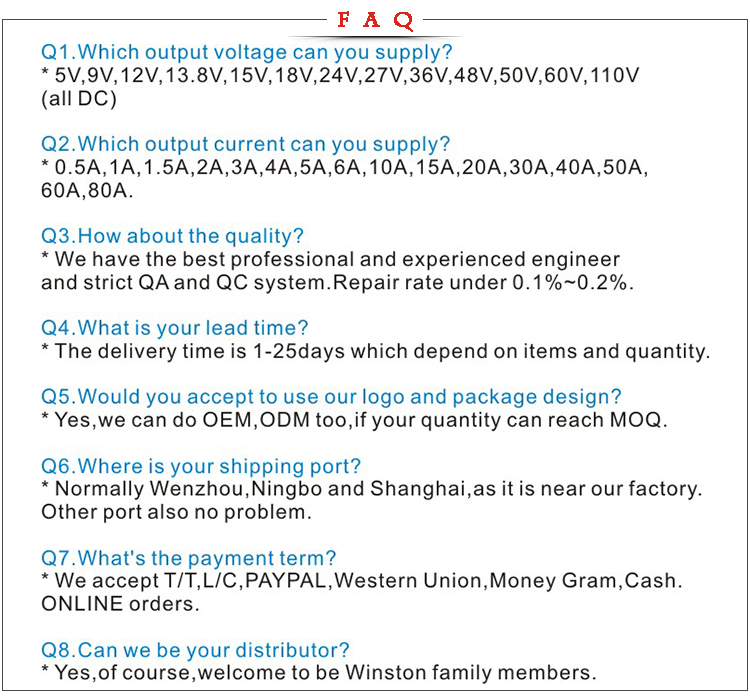

FAQ
