Electricity Type: | AC; | Port: | Ningbo/Shanghai; |
Guarantee period: | 18months; | Packaging Detail: | Export stardard carton box : 50 pcs / 47.5*27*24 cm; |
Model Number: | LC1-D32; | Brand Name: | Winston/ OEM; |
Main Circuit Rating Current: | 32A; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal,Cash; |
Application: | Motor Control; | Phase: | 3; |
Type: | AC Contractor; | Coil Voltage: | 24V~660VAC; |
Supply Ability: | 5000 Piece/Pieces per Week; | Product's Life: | 150000 time; |
Place of Origin: | Zhejiang China (Mainland); | Certificate: | CE; |
Frequency: | 50/60Hz; | Number of Pole: | 3; |
Main Circuit Rating Voltage: | 380v; |

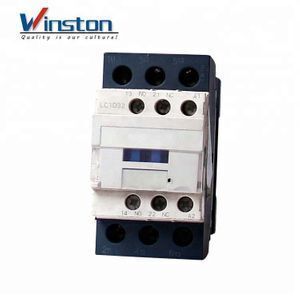

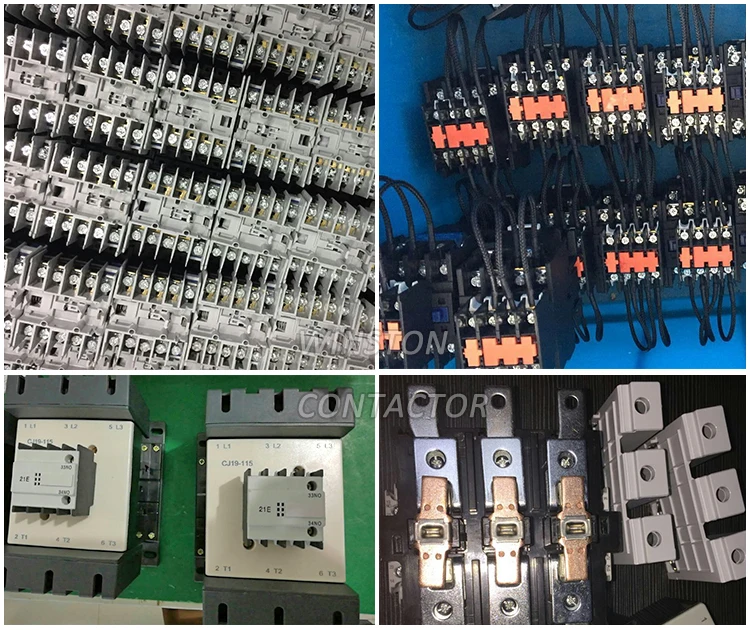

CJX2 ( LC1-D32 ) 32A 3P 220V 380V 440V 660V AC contactor
CJX2(LC1-D) series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 630A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.
Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
3P+NC |
Type | LC1-D115 | LC1-D150 | LC1-D170 | LC1-D205 | LC1-D245 | LC1-D300 | LC1-D410 | LC1-D475 | LC1-D630 | |
Rated workingcurrent (A) | AC3 | 115 | 150 | 170 | 205 | 245 | 300 | 410 | 475 | 630 |
AC4 | 52 | 60 | 75 | 85 | 105 | 117 | 138 | 147 | 180 | |
Standard powerratings of 3-phase motors 50/60Hz incategory AC-3 | 220/230V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 |
380/400V | 55 | 75 | 90 | 110 | 132 | 160 | 220 | 265 | 335 | |
415V | 59 | 80 | 100 | 110 | 132 | 180 | 220 | 280 | 375 | |
500V | 75 | 90 | 110 | 129 | 160 | 200 | 250 | 355 | 400 | |
660/690V | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 355 | 450 | |
Rated heat current (A) | 200 | 250 | 250 | 275 | 315 | 400 | 500 | 700 | 1000 | |
Electrical life | AC3 (x104) | 200 | 60 | 60 | 50 | 50 | 50 | 30 | 30 | 20 |
AC4 (x104) | 15 | 15 | 15 | 15 | 15 | 15 | 8 | 8 | 5 | |
Mechanical life (x104) | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 100 | 100 | 100 |
Standard Control Circuit Voltage
Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
