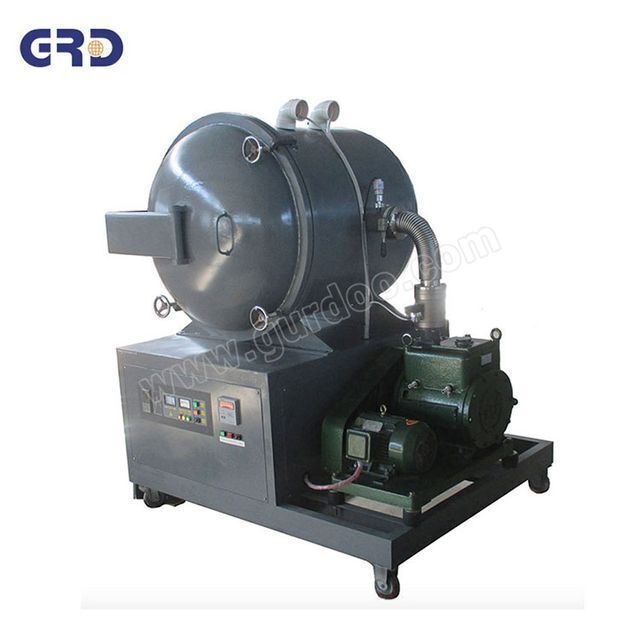

Industrial electric vacuum heat treatment furnace for glass annealing

Supplier: Henan Gurdoo Industry Co., Ltd.
Region: Henan, China
Contact: Ms Debbie Zhang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Energy & Mining;	Key Selling Points:	Accurate temperature control;
Dimension(LWH):	as request;	Heating Rate:	0-20 /min;
Other name:	annealing furnace;	Weight (T):	0.3 T;
Feature:	Environmentally Friendly;	Use:	Melting Glass;
Brand Name:	GRD;	Power Source:	Electric;
Video outgoing-inspection:	Provided;	Packaging Detail:	foam board inside, export plywood case outside;
Usage:	Heat Treatment Furnace;	Package Preview:	;
Temperature Accuracy:	+/-1℃;	Power (kW):	6;
Machinery Test Report:	Not Available;	Core Components:	PLC;
Type:	Resistance Furnace;	Port:	Qingdao, Tianjin, Shanghai;
Warranty of core components:	1 Year;	Showroom Location:	None;
Place of Origin:	Henan, China;	Voltage:	110V/220V/380V;
Marketing Type:	Hot Product 2021;	Warranty:	1 Year;
Vacuum system:	Vacuum Pump Units;	Payment Terms:	L/C,Western Union,T/T,MoneyGram;
Application:	Tempering;	Product name:	vacuum chamber furnace;
Supply Ability:	10000 Sets per Month;	Condition:	New;
Max temperature:	500C - 2300C (custom Made);

Product Description

Industrial electric vacuum heat treatment furnace for glass annealing

Technical data of vacuum heat treatment furnace
1. Excellent temperature uniformity		10~150mm
2. PID Programmable Temperature Controller		2500mm
3. 30 programmable segments
4. High-quality heating elements		5~100mm
5. High energy efficiency		2500mm
6. Safety interlock system
7. Overheat protection
8. Power failure protection

Application

Vacuum heat treatment furnace is widely used in the laboratory and manufacture of the field of pottery, chemical industry, metallurgy, and glass industries, new material developing, machinery, fire-proof material, architecture, special material and etc.

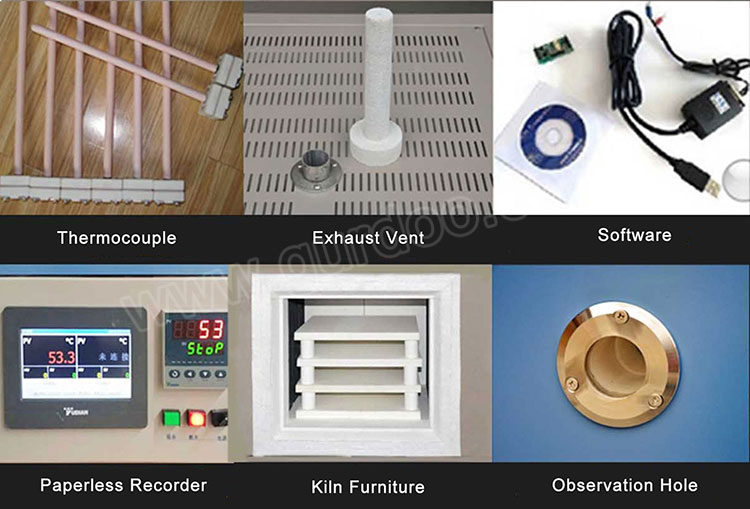

Detailed Images

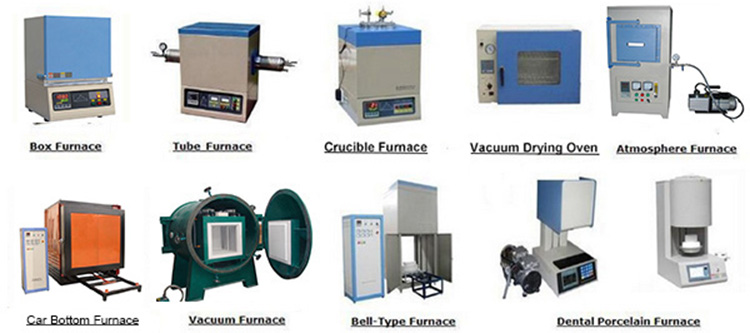

Our furnaces contain muffle furnace, laboratory furnace, box furnace, chamber furnace, crucible furnace, atmosphere furnace, bottom (top) Loading furnace, sintering furnace, dental furnace, etc;
Tube furnace, double (multi) zones tube furnace, multi-position rotary tube furnace, vertical tube furnace, etc.;
Vacuum furnace, vacuum brazing furnace, vacuum heat treatment furnace, etc.

Size Information

Item	vacuum heat treatment furnace
Max. temperature	1200℃ (<2hour)	1400℃ (<2hour)	1700℃ (<2hour)
Working temperature	1100℃	1300℃	1600℃
Vacuum degree	100Pa, 10Pa, 1Pa, 10-1pa, 10-3pa optional
Working atmosphere	Vacuum, Nitrogen, Argon etc. inert gas
Temperature accuracy	±1℃
Heating rate	0-20℃ /min
Thermocouple	K type	S type	B type
Heating element	Heating wire	SiC heating element	MoSi2 heating element
Furnace chamber	ceramic fiber board
Furnace structure	Double layer steel casing with dual cooling fan, surface temperature below 60C
Furnace door	Front-side open, power cutting off when furnace door open
Working voltage	110V, 220V, 240V or 380V, 50HZ or 60HZ
Stander chamber size (mm)	100x100x100 120x120x130 150x150x150 150x150x200 200x200x200 200x200x300 250x250x300 300x300x300 300x300x400 350x350x500 400x400x400 450x450x450 500x500x500 600x600x600 800x800x800 900x900x900 Note: the chamber size can be customized

Related Products

Packing&Shipping

Vacuum heat treatment furnace is packed in export standard plywood case outside, lined with sponge and foam inside.

The goods will be shipped by air, by sea, by railway or by express delivery/courier like DHL, FedEx, TNT, UPS, EMS and so on.

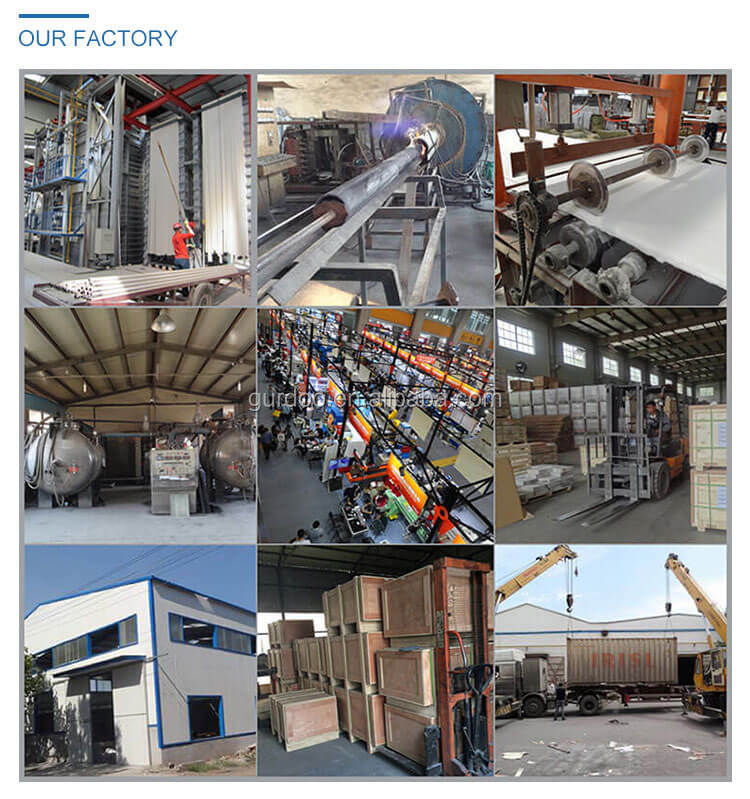

Company Introduction

Henan Gurdoo Industry Co.,Ltd. is founded by engineers who have more than 20 years’ experience in research and production.

Focusing on professional high temperature working field with 100% quality check and durable testing before shipment.

We have a well team-conscious. Assist you to gain competitive advantages are our major focus.

After Sales Service

Our advantages

1. Any inquiries will be replied professionally within 24hours.
2. Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4. Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.

FAQ

Q1. What information should we supply to get a quote?
Please offer the specification of vacuum heat treatment furnace, such as type, dimension, working temperature, quantity, application etc.

Q2. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.

Q3. What do you do on quality control?
For every batch, each step and finished products will be inspected when producing by QC department.

Q4. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
