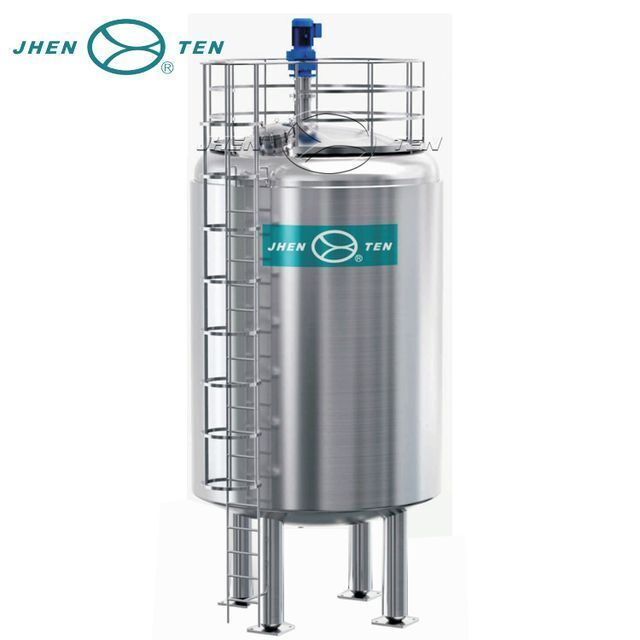

Stainless steel vertical water, milk, juice storage tank 100000 liter

Supplier: Zhejiang Jhen Ten Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henson Zeng
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Power:	Customized;	Warranty of core components:	1 Year;
Place of Origin:	Zhejiang, China;	Showroom Location:	None;
Certification:	ASME;	Applicable Industries:	Food & Beverage Factory,Other;
Payment Terms:	L/C,Western Union,D/P,T/T,MoneyGram;	Voltage:	Customized;
Packaging Detail:	Plywood Case;	Application:	pure water, injection water, liquid, food, milk, juice;
Core Components:	Engine,Motor,Pressure vessel,Pump,other;	Condition:	New;
Port:	ShangHai or Ningbo;	Brand Name:	JHENTEN;
Machinery Test Report:	Provided;	Marketing Type:	Hot Product 2019;
Processing Types:	Milk;	Supply Ability:	300 Sets per Month;
Processing:	Storage Tank;	Warranty:	1 Year;
Function:	storage;	Surface finish:	Electrical polish,Mirror polish,Sand polish ,Aicd washing,2B;
Video outgoing-inspection:	Provided;	Weight:	200 KG;
Dimension(LWH):	Customized;	Material:	SS316;

Stainless steel vertical water, milk, juice storage tank 100000 liter

Banner

Product Description

Feature

• There are varieties of volume from 600L-2000OL also it can bedesigned and customized according to the customers' requirements.

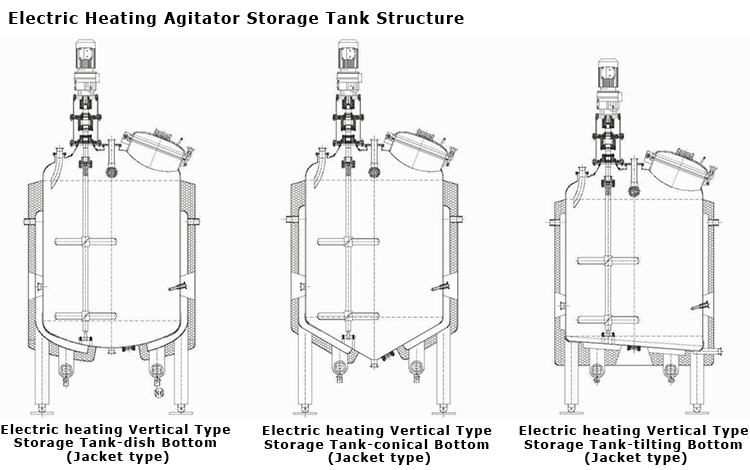

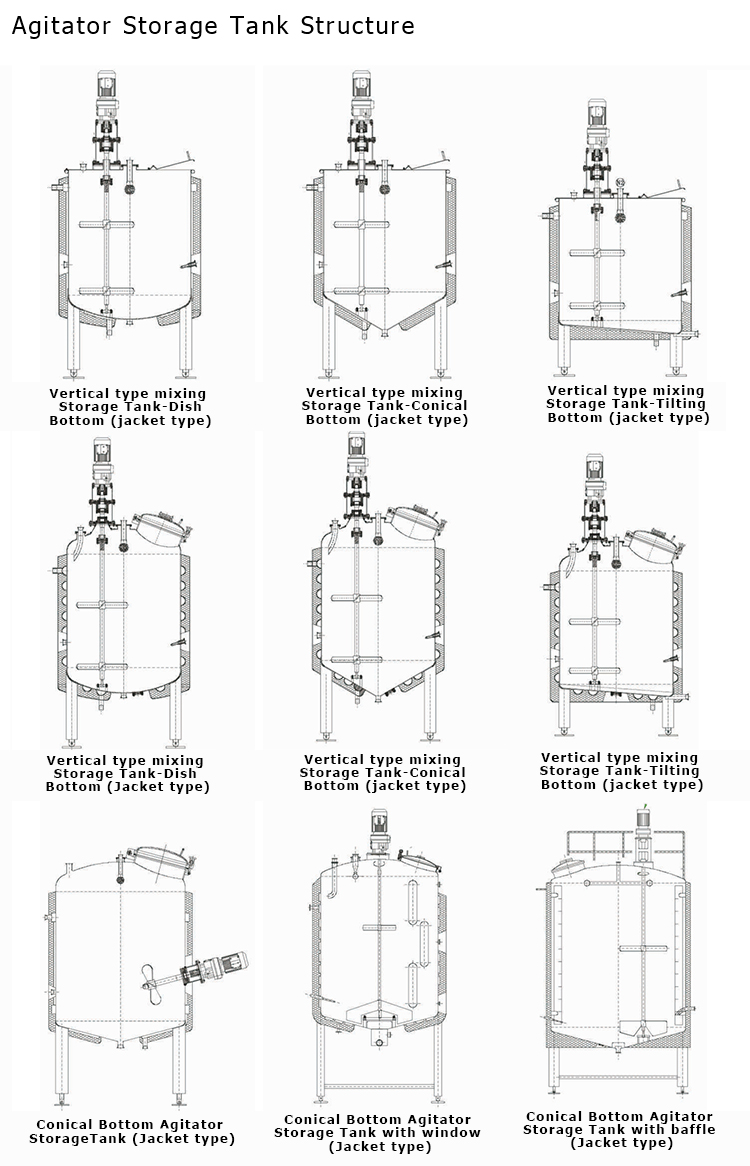

• Jacket can be put into steam (or hot water), and jacket is divided into coil jacket, full jacket and dimple jacket. Jacketed outside is covered with insulation layer, Insulation material is rock wool (keep warm) or PU (keep cold).
• Connector uses fast installation chuck (clamp). Inner tank uses SS304 or SS316L. The inner surface mirror polishing Ra≤0.28um-0.6 um. Outer surface can be polished, wiredrawn, sandblasted according to customer's requirement.

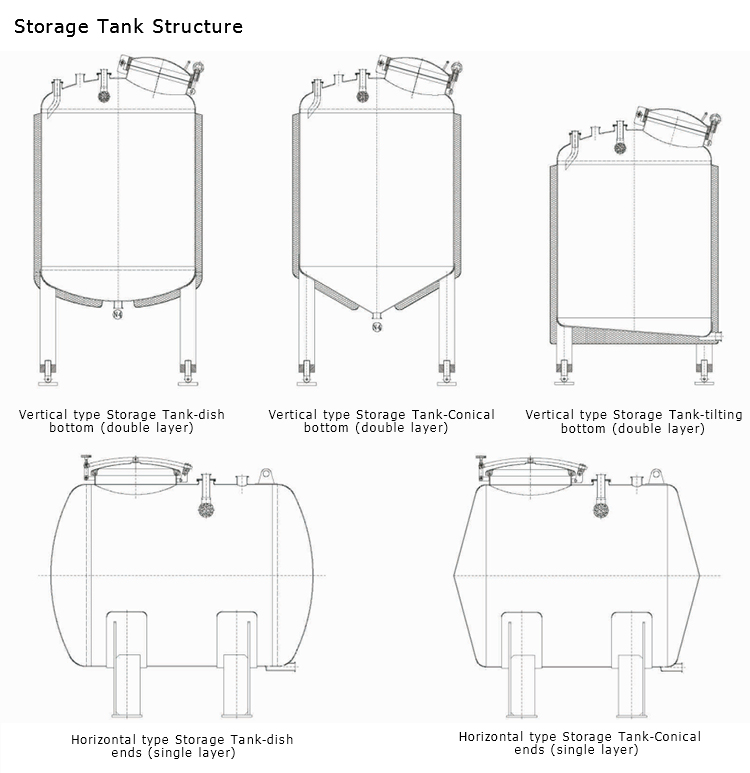

Tank Optional Configuration
• Storage Tank optional configuration: sterile air filter, thermometer (digitaldisplay type or dial), pressure gauge, sight glass, sanitary manhole, in-outlet, CIP universal rotating cleanign ball, liquid meter etc, Or configured according to customers requirements.

Design Parameter

• Suitable for the pharmaceutical industry of pure water storage, injection water storage, liquid storage, intermediate buffer, also applies to normal temperature and warming storage of the food, milk, juice etc.

Design Parameter
Design pressure	Tank body (ATM-1.0MPa)
Design pressure	Jacket (ATM-0.5MPa)
Design temperature	Tank body and Jacket (0℃~160℃)
Material
Liner	304, 316L
Jacket	304
Insulation	Rock wool or PU
Legs	304
Connection
In-outlet	Tri-clamp, Flange
Surface Finish
Finish type	Mechanical / electrolytic polishing, sand blasting, pickling
Polishing precision	Inner surface Ra≤0.4um
Polishing precision	Outside surface Ra≤0.6um

Normal Model And Main Technical Parameters

Model		JTRCG-600	JTRCG-1000	JTRCG-2000	JTRCG-3000	JTRCG-4000	JTRCG-5000
Effective volume(L)		600	1000	2000	3000	4000	5000
Tank	Diameter(mm)	Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
Tank	Height(mm)	900	1000	1500	1500	1800	1800
Mxing	Power(kw)	1.1	1.5	2.2	2.2	3	4
Mxing	RPM(r/min)	60(Paddle impeller)(Can adiust the desian according to the customers usage)

Model		JTRCG-6000	JTRCG-8000	JTRCG-10000	JTRCG-12000	JTRCG-15000	JTRCG-20000
Effective volume(L)		6000	8000	10000	12000	15000	20000
Tank	Diameter(mm)	Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
Tank	Height(mm)	2000	2200	2400	2500	2700	3000
Mxing	Power(kw)	4	5.5	7.5	7.5	11	11
Mxing	RPM(r/min)	60(Paddle impeller)(Can adiust the desian according to the customers usage)
