Disk Type Diatomaceous earth filter

Product details
Processing Types:Alcohol,pure water,juice,beer,wine,oil;Certification:ASME,CE,ISO9001;
Model Number:JTGPY;Brand Name:JHENTEN;
Place of Origin:Zhejiang China;Processing:Filter;
Dimension(L*W*H):custom;Applicable Industries:Manufacturing Plant,Food & Beverage Factory;
Packaging Detail:plywood case;Nominal pressure:ATM~1.0MPa;
Warranty:1 year;Payment Terms:L/C,T/T;
Voltage:220v;Condition:New;
Weight:custom;Supply Ability:10 Set/Sets per Month;
Power(W):custom;surface treatment:Electrical polish,Mirror polish,Sand polish ,Aicd washing,2B;
Port:shanghai or ningbo;After-sales Service Provided:Online support;
Material:SS304, SS316;

Disk Type Diatomaceous earth filter

Product Description

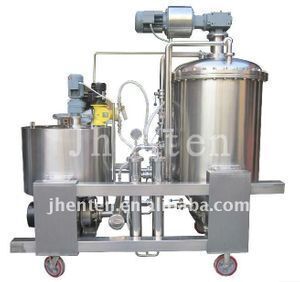

JT-700 Disk Type Diatomaceous earth filter
Diatomaceous earth filter is introduction international advanced technology, used Stainless Steel 304 or SS316L material, and used diatomaceous to be filter aid. This machine make us strided forward to advanced filter process from antiquated pulp filter process.
Diatomaceous earth filter has some features as good looks, easy operation, low cost filter, high efficiency, 99.8% clarity. If you operating properly, it even can filt colibacillus. It widely used in water treatment of white spirit, yellowwine, juice,beer ,tea ,red wine and so on .

Diatomaceous earth filter ‘sTechnical Parameters:

Max Operate Pressure:6barg

Filter Tank capacity:600L

Filter Area:0.3m3
Diatomaceous earth filter ‘sAdvantages:

4 wheels (2 swivel wheels)

With the frequincy converter the filtering speed can be changed.

o By adjusting the filtering speed, more filtration can be done.

o By adjusting the filtering speed, more filtration can be done with the same amount of cellulose and kieselguhr powder.

With the vibrating motor and the butterfly valve underneath the body of the filter, cleaning of the woven wires can be done easily.

The dirty powder can be spilled to the filters dirty powder tray.
If you have special requirement to the filter area, we can make the suitable model according to the technical requirement





Operating Conditions
Max. operating pressure0.6MPa
Max. operating temperture85℃
Material
Shell304, 316L
Filter disc etc304, 316L
Filtrate tube and plate etc304
O-ringEPDM, PTFE Viton, Silicone
Connection
Connection of shellFlange
InputFlange, Tri-clamp, Thread
Output
Surface Finish
Finish typeMechanical/electrolytic polishing, sand blasting
Polishing precision

0.4um Inner surface Ra≤0.6um
0.6um Outside surface Ra≤0.8um



Dimension Parameters

ModelJTGPY12G700JTGPY24G900
Filter area (m²)1224
Filter plate diameter (mm)700900
Quantity3542
Max handle (m³)612
In-outlet dimension (Inch)1.5"/2"/2.5"2"/2.5"/3"
Filter motor (kw)34
Mixing motor (kw)0.550.55
Shell dimension (mm)2300*1200*25002500*1400*2800

The above-mentioned data is the standard, it can customize according to customer's requirements. (Unmarked length unit is mm)



JTGPY Selection Table

Diatomite filtration Filter areaFilter plate diameterShell MaterialIn-outlet connectionO-ring
12G7004FE
12G=12m²700=Ø7004-304F=FlangeE=EPDM
24G=24m²900=Ø9006=316LK=Tri-clampP=PTFE
   L=Screw thread V=Viton
    S=Silicone
