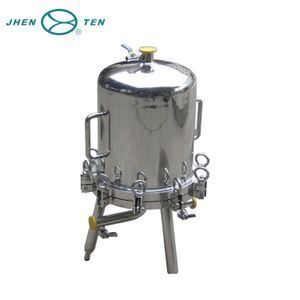

Lenticular Filter Housing (Depth Module ,Wine &beer filter)

Supplier: Zhejiang Jhen Ten Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Henson Zeng
Price: $200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core Components:	Pressure vessel;	Marketing Type:	Hot Product 2019;
Brand Name:	JHENTEN;	Machinery Test Report:	Provided;
Certification:	CE,ISO,SGS ,TUV;	Local Service Location:	United States;
After Warranty Service:	Video technical support,Online support;	Condition:	New;
Certifications:	CE,SGS,ISO 9001;	Video outgoing-inspection:	Provided;
Port:	ShangHai Or ningbo;	Supply Ability:	50 Set/Sets per Month;
Surface Finish:	Mirror Polish;	Material:	SUS304or SUS316L;
Dimension(LWH):	500X600X1200MM;	Processing:	Filter;
Showroom Location:	None;	Applicable Industries:	Manufacturing Plant;
Place of Origin:	Zhejiang China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Model Number:	12ZB1;	Packaging Detail:	Plywood Case;
Warranty:	2year;	Voltage:	380V/220V;
Weight:	70KG;	Processing Types:	Carbonated Beverage;
Power:	50HZ/60HZ;	Warranty of core components:	1 Year;

Lenticular Filter Housing (Depth Module ,Wine &beer filter)

Banner

Product Description

Lenticular Filter Housing Brief introduction

Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications.Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost.The surface finish totally arrive sanitary grade requirement.

Lenticular Filter housing Operating Parameters

Max Operate pressure: 1.0 MPa

Max Operate temperature: 110ºC

Industrial sure tolerance on weld : 0.85

Corrosion by acid 0 mm

Lenticular Filter housing Applications

Wine

Food &Beverage

Process Water

Pharmaceutical Liquids

Biotechnology & Laboratory

Medical &Medical Device

Chemical And Painting

Lenticular Filter Housing Models

Item	A MM	B MM	C MM	D MM	E MM	F mm
ZTDX-08DB1	890	470	350	280	250	300
ZTDX-08DB2	1160	740	620	280	250	300
ZTDX-08DB3	1460	1010	890	280	250	300
ZTDX-08DB4	1700	1280	1160	280	250	300
ZTDX-12DB1	930	510	350	280	350	400
ZTDX-12DB2	1200	780	620	280	350	400
ZTDX-12DB3	1470	1050	890	280	350	400
ZTDX-12DB4	1740	1320	1160	280	350	400
ZTDX-16DB1	950	530	350	280	450	500
ZTDX-16DB2	1220	800	620	280	450	500
ZTDX-16DB3	1490	1070	890	280	450	500
ZTDX-16DB4	1760	1340	1160	280	450	500
