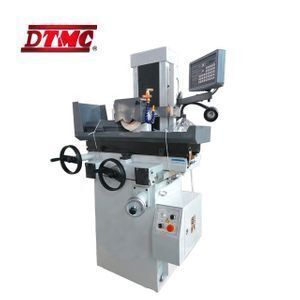

M618A Small manual type metal table surface grinding machine price

Supplier: Tengzhou Datong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Aileen Li
Price: $1990.00 /set
Min. Order: 1 set

Click here to contact

Product details

CNC or Not:	Normal;	Weight:	750kg;
Single gross weight:	750 KG;	Certification:	ISO9001 CE;
Motor power Cooling motor:	40w;	Max. Grinding Diameter:	460mm;
Brand Name:	DTMC;	Package Type:	package:Standard export package,custom suffocating free;
Single package size:	100X115X176 cm;	Power(W):	1.1kw;
Surface roughness:	Ra0.32;	Grinding wheel speed 60HZ:	3440r/min;
Condition:	New;	Dimension(LWH):	1550x1150x1590mm;
External size (L * w * h):	155011501590mm;	Place of Origin:	Shandong China (Mainland);
Delivery Detail:	0 days after payment;	Table size:	460*180;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	380v;
Max. travel of table (L * W):	500*190;	Selling Units:	Single item;
Grinding wheel speed 50HZ:	2850r/min;	Motor power Spindle motor:	1.1kw;
Max. Grinding Length:	500mm;	Package Preview:	https://sc01.alicdn.com/kf/HLB10aBwX5LxK1Rjy0Ffq6zYdVXay.jpg_640x640.jpg;
T -Slot number*width:	1*14;	Worktable size (L * W):	460*180mm;
Type:	Surface Grinding Machine;

DTMC

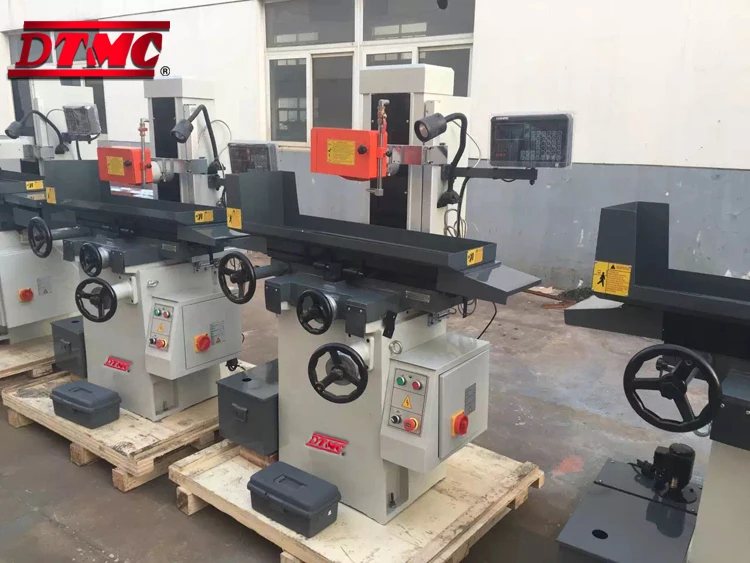

M618A Small manual type metal table surface grinding machine price

The main performance characteristics:

1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.

2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.

3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.

4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.

5. No vibration, low noise motor spindle.

6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.

Application:

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.

The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Surance grinder machine Main features:

1.Quality castings and Precision ball bearing supporting the spindle

2.Coolant system with nozzle and flow control valve

3.Cast iron machine body and stand for maximum rigidity and smooth operation

4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuck according to customer’s requirement.

5.Vertical dial graduations 0.01mm

6.Cross travel graduations 0.02mm

7.Manual one shot lubrication pump

8.Wheel balancing stand and arbor

9.Halogen work light

Product main technical parameters:

Specifications					Units	M618A
workbench	Worktable size (L * W)				mm	460×180
	Max. travel of table (L * W)				mm	500×190
	Table T slot (slot number x slot width)				mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	φ180×13×Φ31.75
	Distance spindle center line to working table				mm	335
	Grinding wheel speed			50HZ	r/min	2850
				60HZ	r/min	3440
The amount of feed	The vertical (up and down) feed handwheel feed			Handwheel per turn	mm	1.25
				Handwheel per lattice	mm	0.01
	Transverse (front and rear) feed handwheel feed			Handwheel per turn	mm	2.5
				Handwheel per lattice	mm	0.02
Motor power			Spindle motor		kw	1.1
			Cooling motor		W	40
working accuracy	The process surface of the base level of the parallel degree				mm	300:0.005
	Surface roughness				μm	Ra0.32
Machine weight		Net weight			kg	650
		Gross weight			kg	750
External size (L * w * h)					mm	1550x1150x1590
Packing size (L * w * h)					mm	1000x1150x1760

Standard accessories:

1. Tool box

2. Balancing stand balancing bar

3. Flange wrench

4. Screwdriver

5. Balancing screw

6. Open-end wrench

7. Inner hexagon spnner

8. Wheel dresser holder

9. Wheel dresser

10. Machine flange

11. Wheel flange

12. Chuck

Optional accessories:

1. Tilting permanent chuck

2. Demagnetizer

3. Overhead parallel dresser

4. Angle dresser

5. Radius dresser

6. Precision vice

7. Dust suction device

8. Digital readout system

9. Working light

10. Wheel flange
