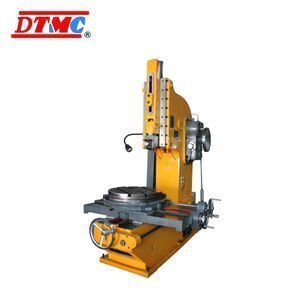

Good Quality Vertical Slotting Machine B5032 for Metal

Product details
Package Preview:https://sc01.alicdn.com/kf/Ha0fb7a83f3194a91aa5f894e1d4f0c86U.jpg_640x640.jpg,https://sc02.alicdn.com/kf/Hb79b5f35d8064cb3b0c7836ae7794ffcj.jpg_640x640.jpg;Brand Name:DTMC;
Table Diameter:630mm;Certification:CE ISO9001;
Warranty:1 Year;Max. stroke of RAM:340mm;
Single package size:226.1X149.5X224.5 cm;Single gross weight:3,000 KG;
Power(W):4kw;Ram maximum slotting length:320mm;
After-sales Service Provided:Online support,Video technical support;Key Selling Points:High Productivity;
Applicable Industries:Industry;Place of Origin:Shandong China;
Selling Units:Single item;Voltage:380V;
Product Name:Vertical Slotting Machine;Motor speed:960r/min;
Dimension(L*W*H):2261*1495*2245mm;After-sales Service Provided:Engineers available to service machinery overseas;
Weight:3000kg;Package Type:Standard export package,custom suffocating free;
Condition:New;COLOR:Customized;
DTMC



Good Quality Vertical Slotting Machine B5032 for Metal



Vertical slotting machine Main features:

1.    This machine is used for slotting the flat and formed surface keyways, etc.

2.    It is suitable for either single piece of small batch production

3.    The main transmission mechanism is used for converting the rotating motion of the crank gear into reciprocating motion of rain

4.    The worktable Is designed for longitudinal, cross and rotary feeding both automatically (only for D type model) and manually

5.    The feed is stopped automatically, when the worktable is in case of trouble



Vertical slotting machine Main features:

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.



Application:

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other  within the scope of etc. work matter,Enterprise suitable for single or small batch production.



Parameter:

Main Specification



Main Technology Data

Model B5020

Model B5032

Ram stroke

220mm

340mm

Max length of the ram slotting

200mm

320mm

Ram movement times

32.50.80.125 time min

20.32.50.80 time min

Tiltram

0-8°

0-8°

Table dia.

500mm

630mm

Vertical adjustment of ram distance

230mm

315mm

Head bearing surface to the bed from the front walls

485mm

600mm

Between the work surface to the lower carriage distance

320mm

490mm

Table max.longitudinal movement distance

500mm

630mm

Table max. lateral movement distance

500mm

560mm

Max. swivel table

360°

360mm

Table aspect motorized feed range

0.08-1.21

0.08-1.21

Table rotation feed range

0.052-0.783

0.052-0.783

Main motor

3kw

4kw

Motor speed (calulated value)

1430 r/min.

960 r/min.

Machine weight

2200 kg

3000 kg

Overal dimension

1916×1305×1995mm

2261×1495×2245mm



Working Accuracy

Name

Unit

Parameter

Flatness of machined surface on tested work piece

mm

0.015

Verticality of machined surface on tested work piece

mm

0.025

Verticality of machined side surface on tested work piece against base

mm

0.020



PACKING  LIST



Testing  oertificate



1



Operation  manual



1

TS2-5A

Inner  hexayen  spanner

12

1

GB6170-86

Hexagon  nuts  style  I  grades  A

M16

4

GB799-88

Eyelet  bolts

M16x400

4

GB97.1-85

Flain  washers-grade  A

16-140HV

4

S91-1

Double  end  panner

10x12

1

S91-2

Single  end spanner

19

1

S91-2

Ditto

24

1

S91-2

Ditto

30

1

S91-2

Ditto

36

1













Product show

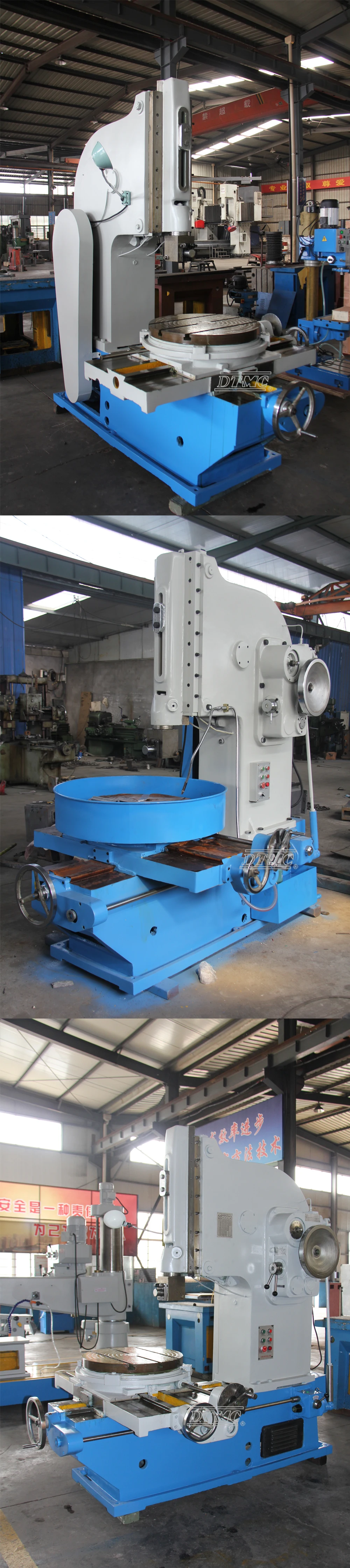

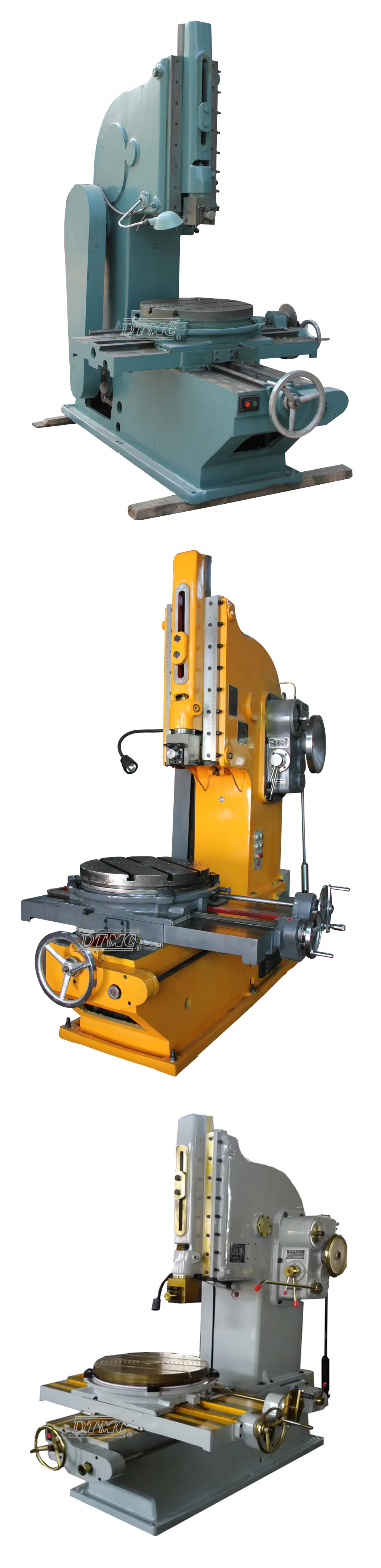

Products real shot

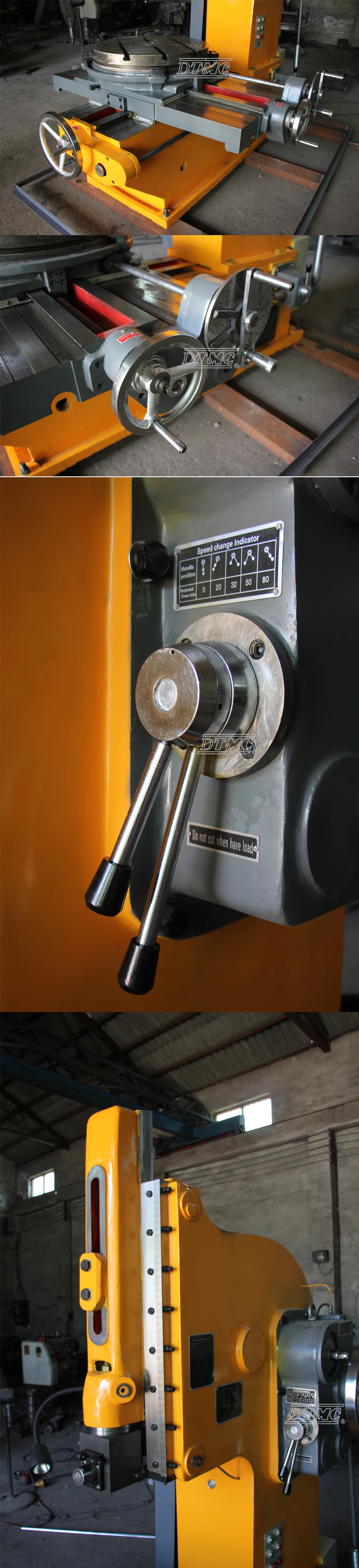

Detail image
