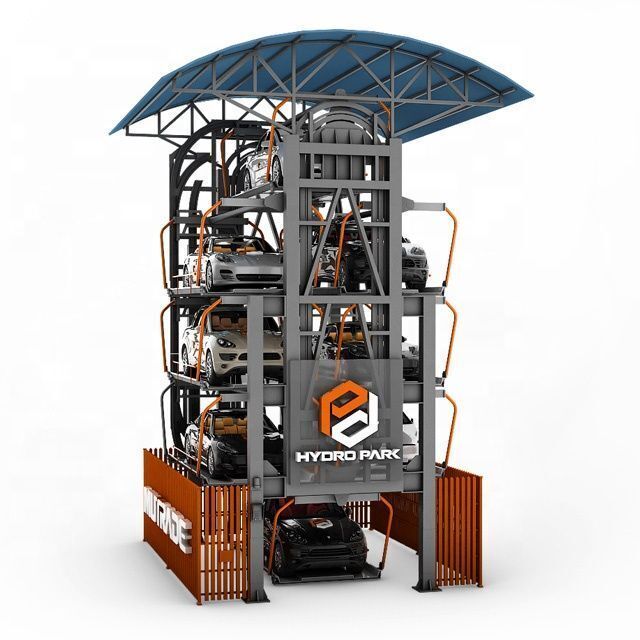

Robotic Carousel rotary parking system Mechanical Automatic car parking

Product details
Cover area (mm):W*D=5,500*6,500;Place of Origin:Shandong, China;
Port:Qingdao;Power supply:AC Three phases; 50/60hz;
Warranty:1 Years;Rated capacity (kg):1800kg/2300kg;
Operation:Button / IC Card (optional);Packaging Detail:The structures are packed with stretch film and iron packing frame. Other parts are packed with carton or wooden case.;
Color:Client's Requirements;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Package Preview:;Certification:TUV Rheinland;
Model Number:ARP;Supply Ability:1000 Units per Month;
Finishing:Powder coating;Brand Name:Hydro Park;
Operation Mode:Button;Type:Parking Lift;
Car size (mm):Sedans only; L*W*H=5300*2000*1550;Loading Capacity:1800kg/2300kg;
Product Name:ARP;

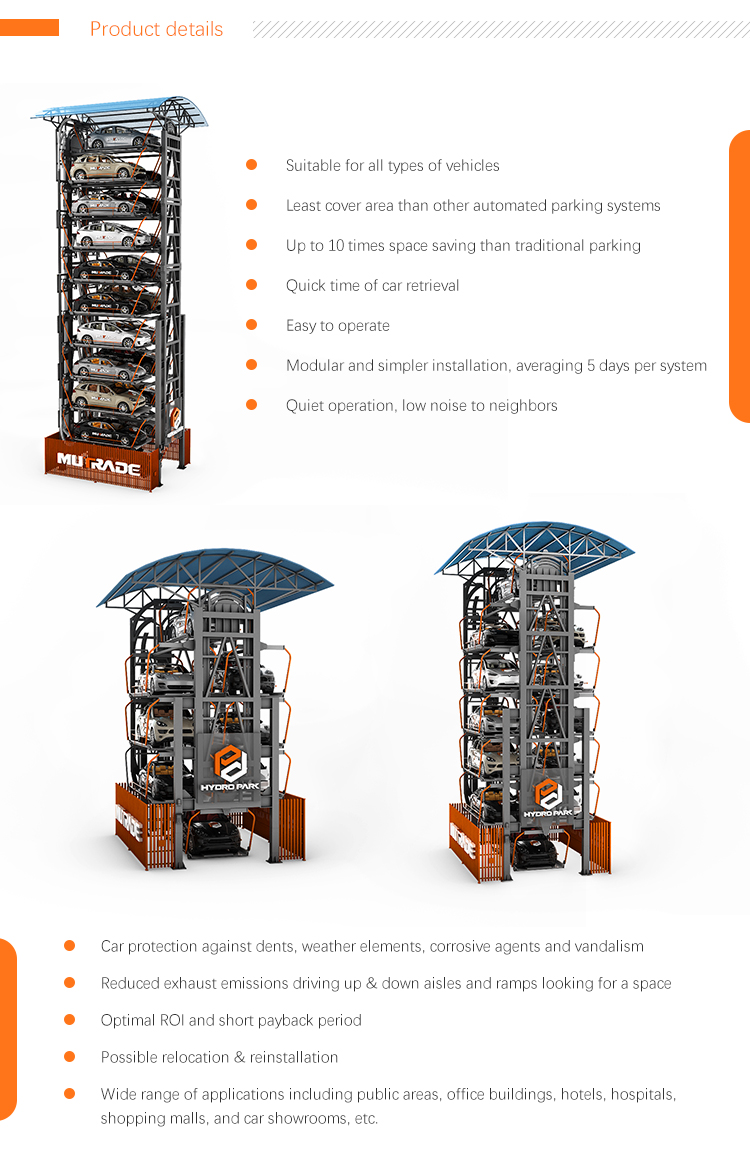

Product Display

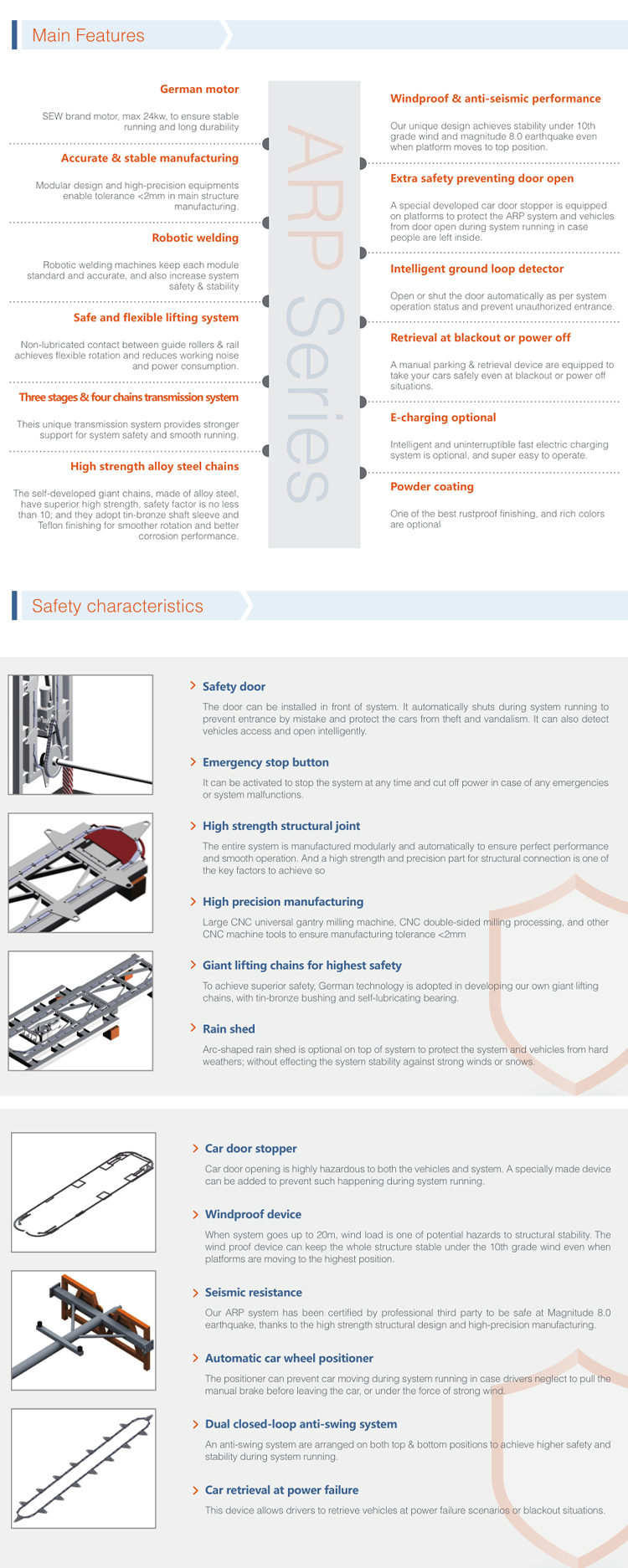

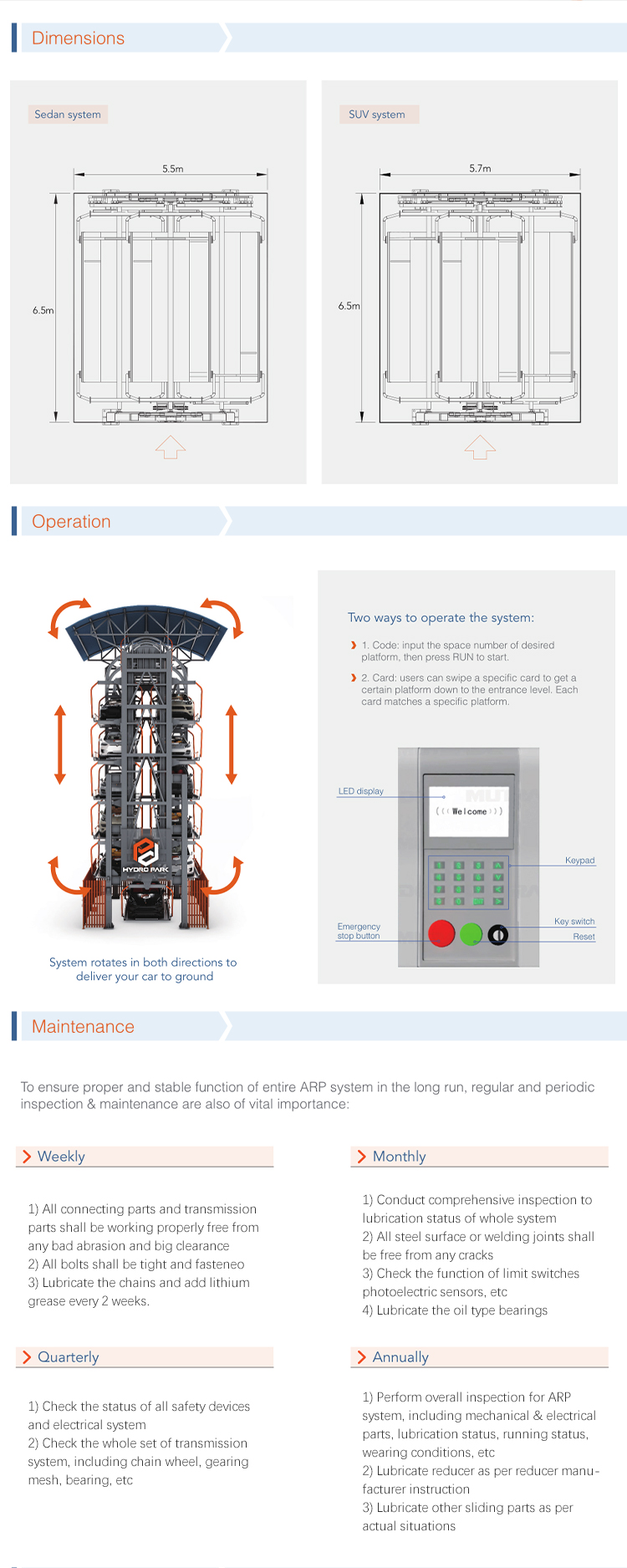

Details Images

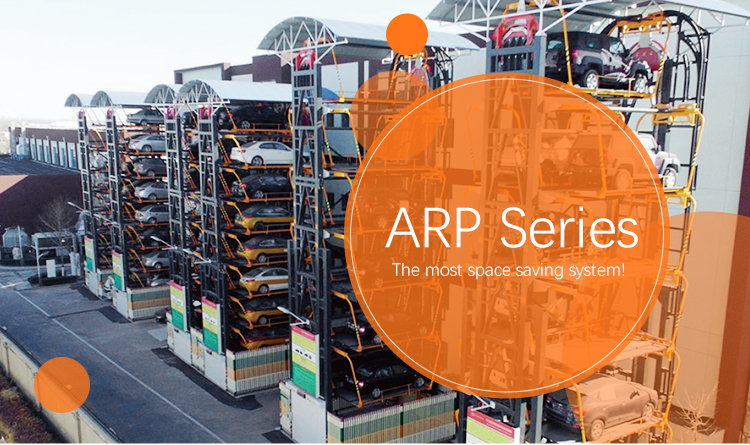

Project Reference
Model Number
ARP-8
ARP-10
ARP-12
ARP-16
ARP-20
Car spaces
8
10
12
16
20
Motor power (kw)
7.5
7.5
9.2
15
24
System height (mm)
9,920
11,760
13,600
17,300
20750
Max retrieve time (s)
100
120
140
160
140
Rated capacity (kg)
1800kg
Car size (mm)
Sedans only; L*W*H=5300*2000*1550
Cover area (mm)
W*D=5,500*6,500
Power supply
AC Three phases; 50/60hz
Operation
Button / IC Card (optional)
Finishing
Powder coating
Model Number
ARP-8S
ARP-10S
ARP-12S
ARP-16S
Car spaces
8
10
12
16
Motor power (kw)
9.2
9.2
15
24
System height (mm)
12,100
14,400
16,700
21,300
Max retrieve time (s)
130
150
160
145
Rated capacity (kg)
2300kg
Car size (mm)
SUVs allowed; L*W*H=5300*2100*2000
Cover area (mm)
W*D=5,700*6500
Operation
Button / IC Card (optional)
Power supply
AC Three phases; 50/60hz
Finishing
Powder coating

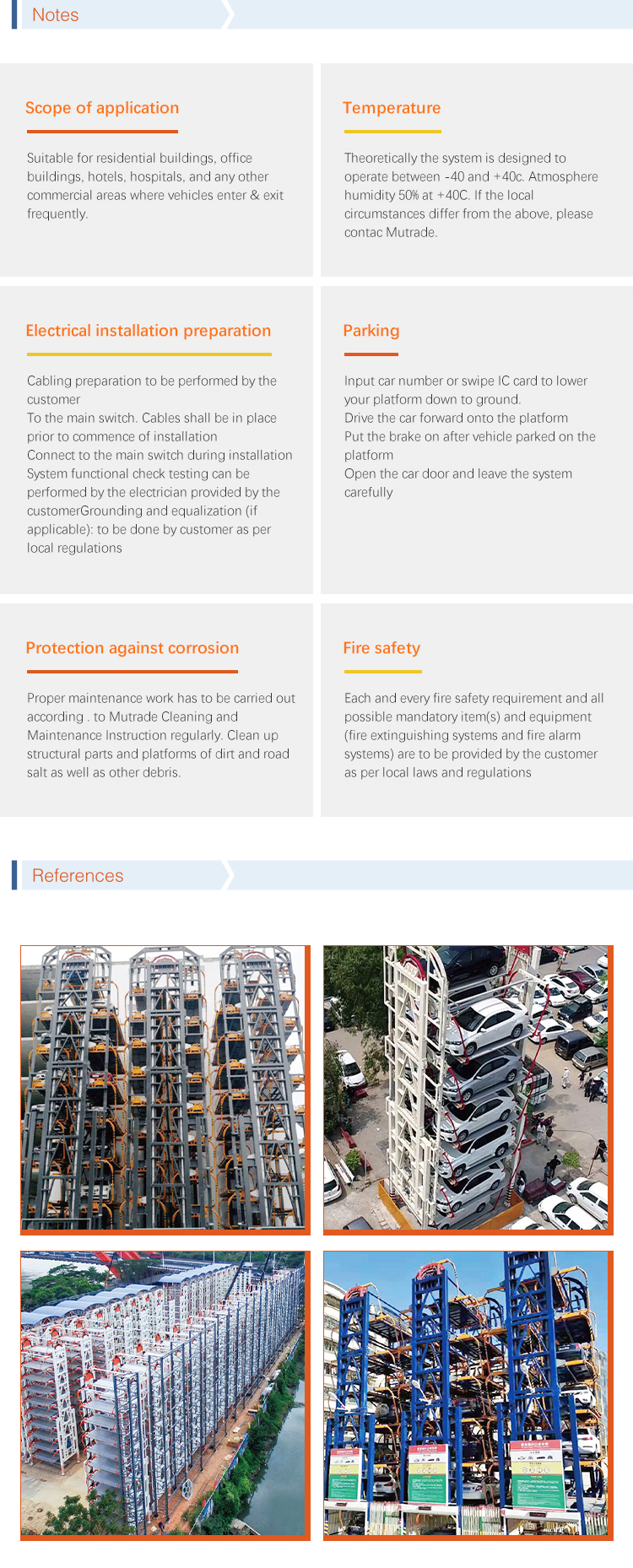

Project References
