Power (kW): | 20; | Weight (KG): | 1600 kg; |
Product name: | spiral nail making machine; | Type of marketing: | Hot product 2019; |
Applicable industries: | Production factory; | Welding System Power: | 20kw, 1000-2000A; |
Guarantee: | 1 year; | Nail diameter: | 1.9-4.5mm; |
Warranty service: | video technical support; | Basic components warranty: | 1 year; |
Country of origin: | China; | Preview of the package: | ; |
After sales service offered: | Engineers available to service overseas machinery; | Electricity supply: | 3 phase AC 380V 50-60HZ; |
Location of the exhibition hall: | Asnje; | Video inspection at the exit: | With one condition; |
Supply Ability: | 30 sets per month; | The power of the nail nutrition system: | 0.75 kw; |
Brand Name: | SSS; | Highlights: | Long service life; |
Payment terms: | L / C, T / T; | production: | ≤2500 pieces / minute; |
Condition: | New; | Packaging Details: | Machine for making plywood winding screws; |
Main ingredients: | PLC, Engine, Bearings, Engine, Gear; | Machinery test report: | With one condition; |
nail length: | 30-120 mm; | But you: | Shanghai; |
product description

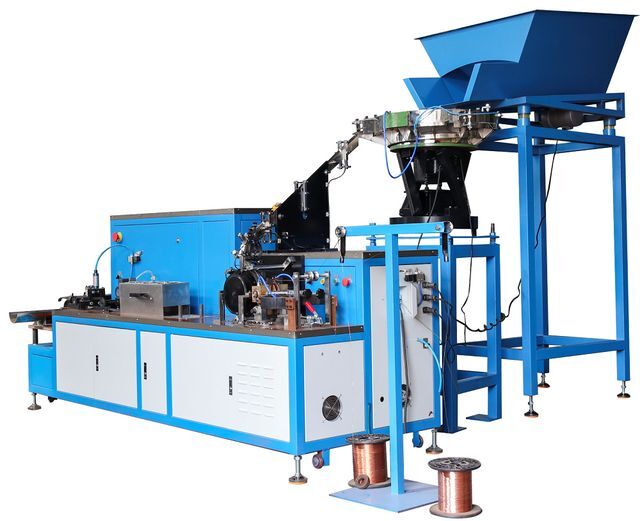

Machine for making nail with coil soldering iron

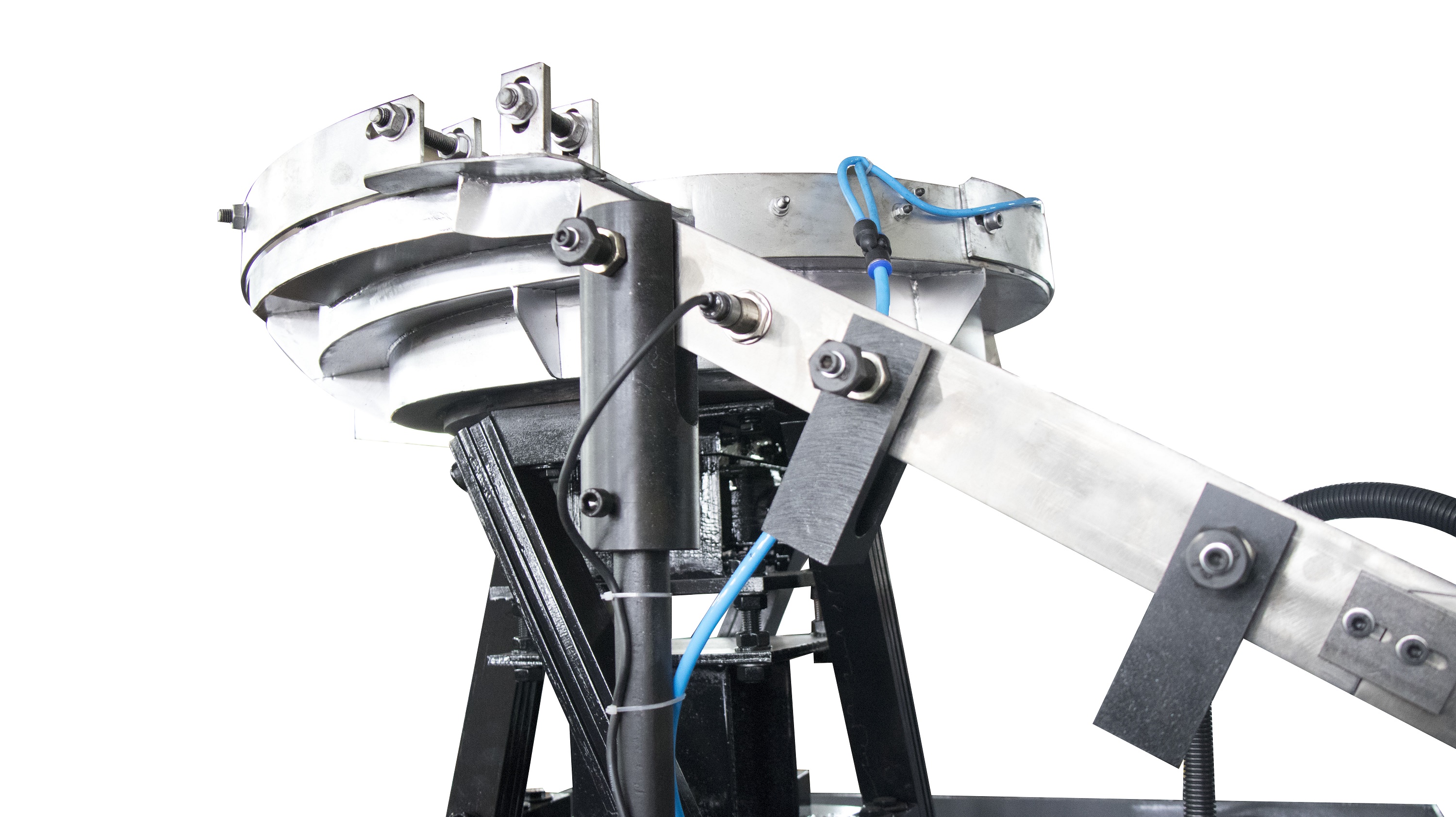

The principle of this machine is to place irregular nails on the vibrating disk. The vibrating disc will then place the nails in order and through the food nozzle on the welding part, then it will be automatically painted with rust oil, drying, counting and wrapping in a roll. This spiral nail making machine is a special kind of automatic welding device. The nails will be welded with two copper-clad wires at a certain angle, 15 ° to 16 °, then the welded nails are wound to a certain length according to the counter to be cut, forming a spiral shape with a tip. flat or cone tip.
pattern | JDJ-B |
Wire diameter. | 1.9 mm-4.5 mm |
The length of the nails | 30-120 mm |
Rated power | 8 KW |
Maximum power | 12 KW |
The power of nail nutrition | 0.75 KW |
Welding power | 20KW, 1000-2000A |
Electricity supply | 3-Phase AC 380V 50-60HZ |
Outside Put | 2500 pieces per minute |

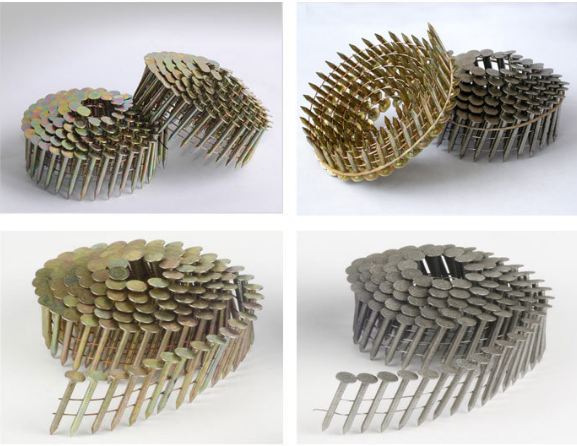

Spiral nail specification | angle: 15 ° / 16 ° quantity for rolls: 200-400 pieces / roll welding wires for coil nails: 0.6MM / 0.7MM / 0.8MM |
dimension | 3000X1500X1800MM |
Weight | 1600 kg |
Advantages of our machines:
1. High frequency welding can provide higher welding points and strong welding, without loose welding or lack of welding. 2. The smaller the welding spark, the safer. 3. Vibration plate with better quality, trouble-free feeding, no stuck nail, easy adjustment. 4. The body of the car with thicker and quality material. 5. Welding Electrical Parts: Germany Infineon Touch Screen: Taiwan WEINVIEW PLC, Frequency Converter: Janpan OMRON Switch Button: Germany Schneider
Machine for making nail with coil soldering iron
Machine for making nail with coil soldering iron
Detailed images
Machine for making nail with coil soldering iron

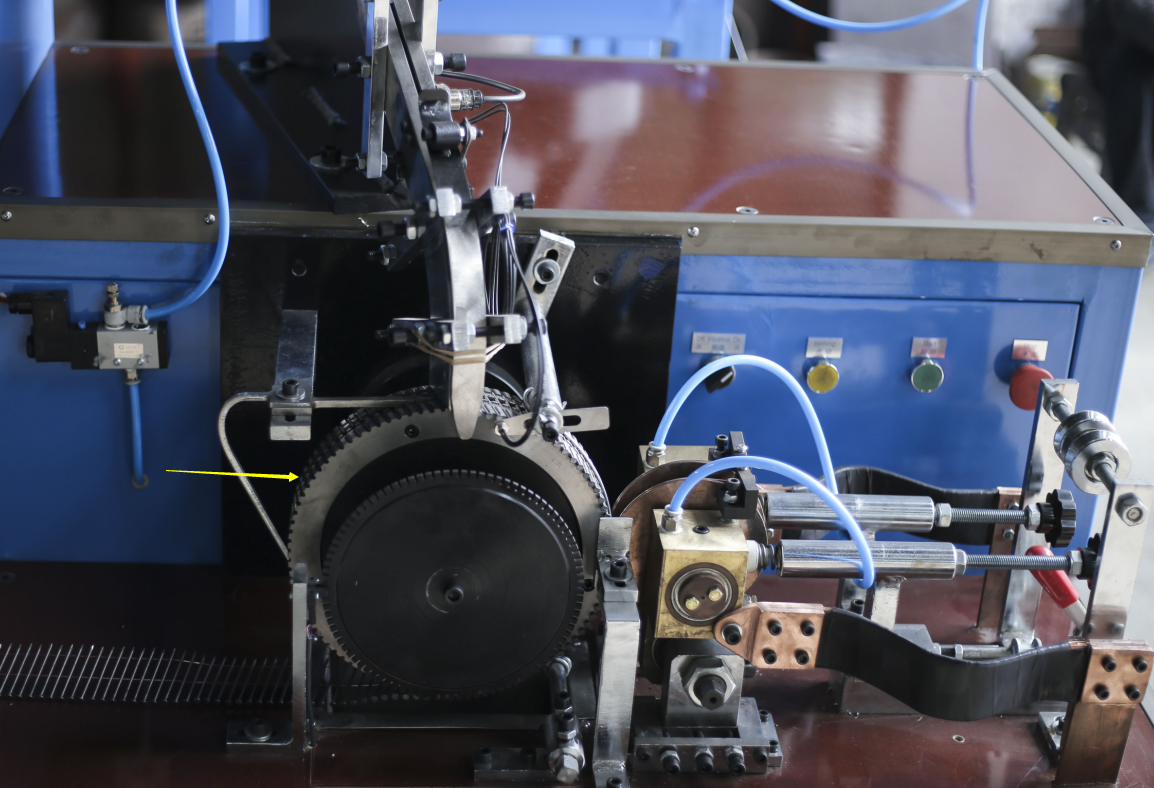

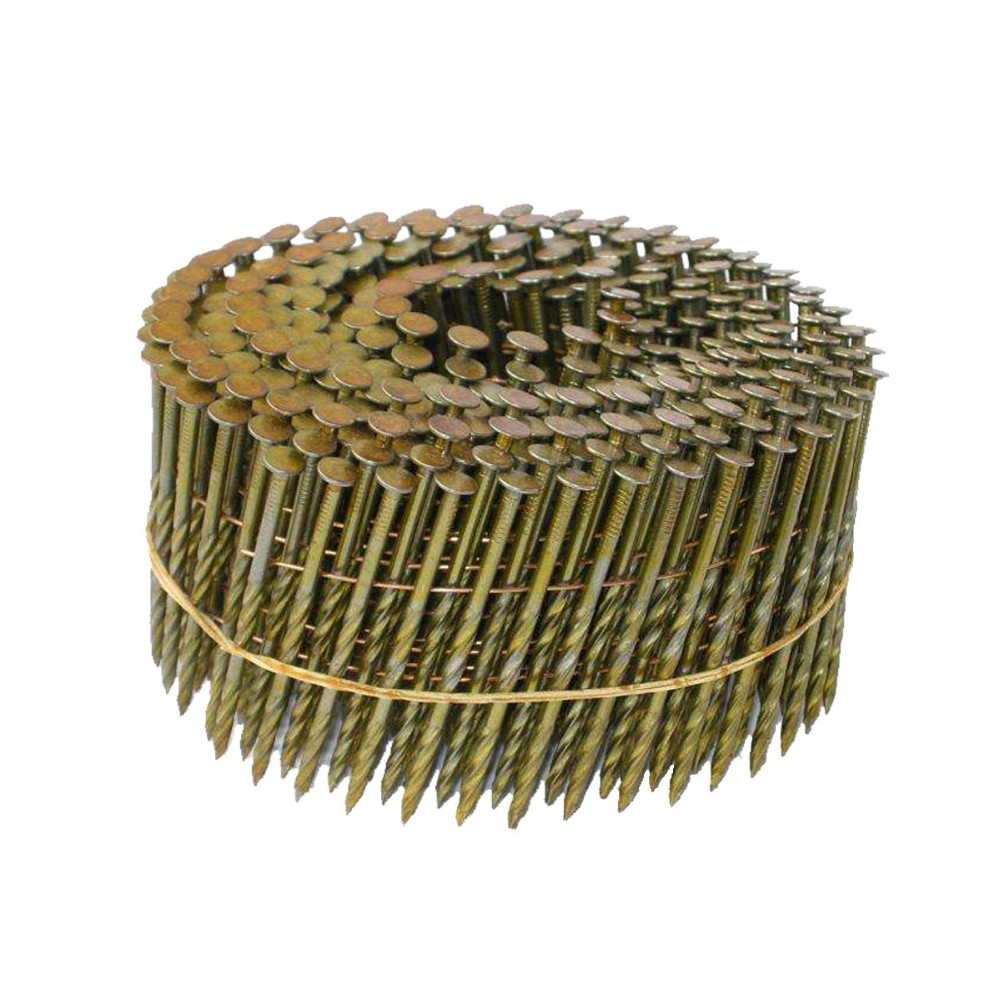

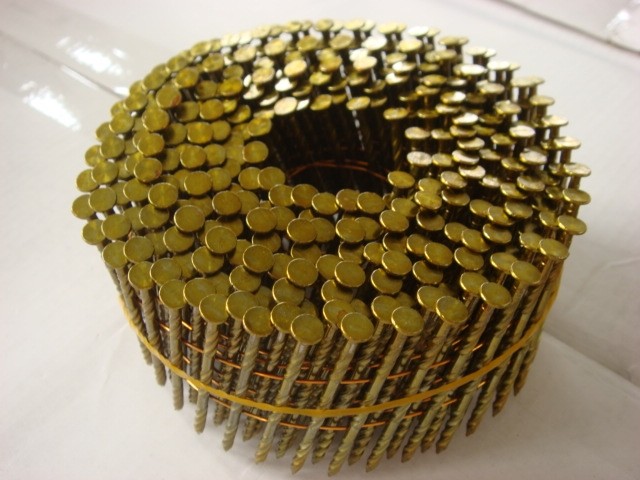

Spiral nail collection wheel
welding disk
Similar products

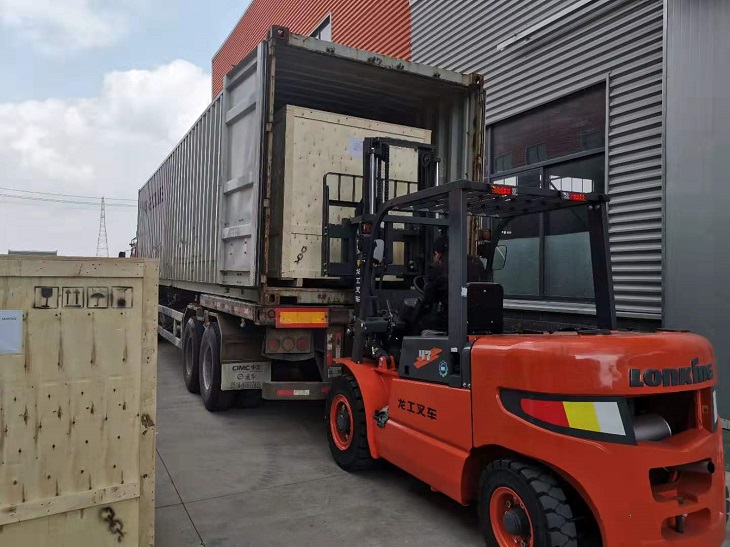

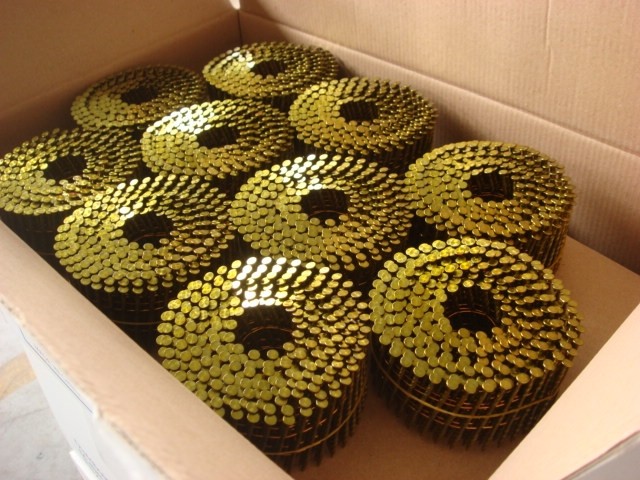

Packing and Transportation
Machine for making nail with coil soldering iron

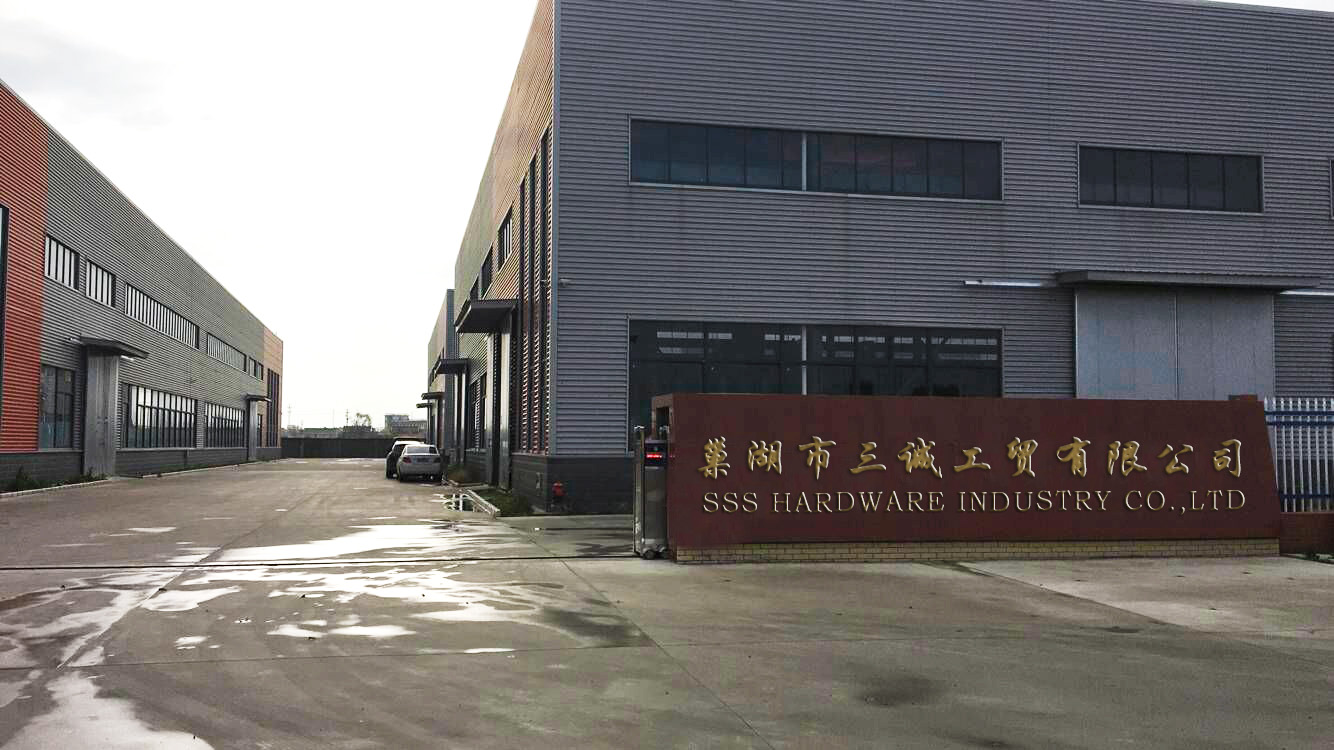

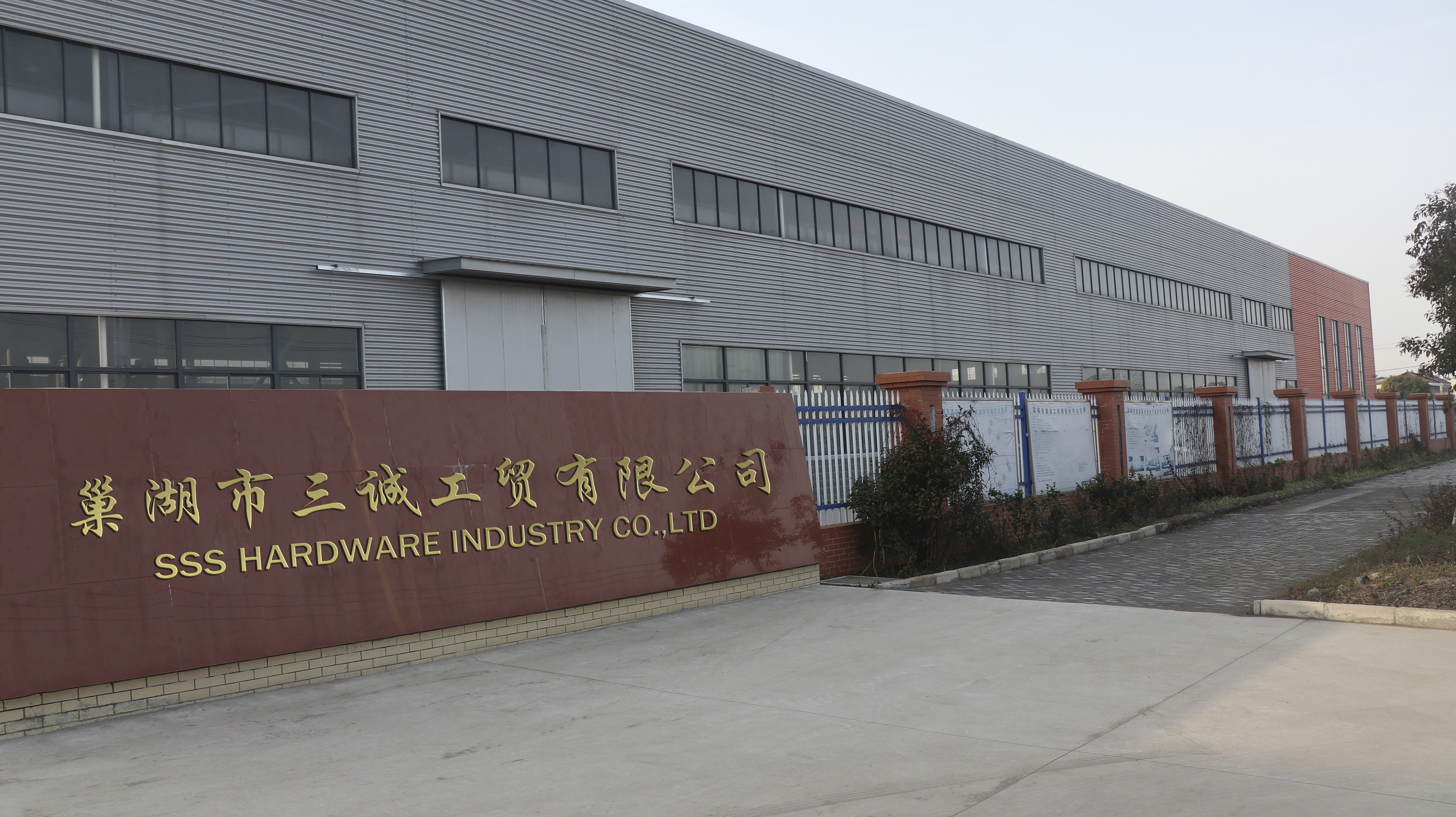

Company Presentation
