Automatic pipe cutting machines for hollow galvanized iron / carbon / stainless steel hollow tubes ss ms

Supplier: Foshan Panyang Machinery Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Carla Zeng
Price: $7742.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Foshan Jiujiang;	Warranty:	1 year;
Marketing Type:	Popular products in 2022;	brand:	LX;
Voltage:	380V;	Core Components Warranty:	1 year;
Main selling point:	automatic;	Origin:	Guangdong, China;
Showroom location:	South Korea;	Dimensions (LWH):	23606601700;
Mechanical test report:	if;	Health status:	new;
Cutting Thickness (mm):	6;	Video external inspection:	if;
Core components:	motor;	automation:	automatic;
payment terms:	Letter of credit, wire transfer;	Applicable industries:	metal pipe cutting;
Material/Metal Finishing:	Brass/Copper, Stainless Steel, Carbon Steel, Aluminum Alloy, Alloy, Aluminum;	Weight (kg):	750;
Blade size (mm):	355;	rated power:	3.3/4.0KW;

product description

Servo full round square ss ms iron galvanized/carbon/stainless steel bundle hollow tube automatic pipe cutting machine

Specification

Model	CS-330CNC-H	CS-355CNC-H	CS-400CNC-H
Main drive motor (KM)	YD100L-4/2 380v 3.3/4.0KW 50HZ (frequency conversion)	YD100L-4/2 380v 3.3/4.0KW 50HZ (frequency conversion)	YD100L-4/2 380v 2.4/3.7KW 50HZ (frequency conversion)
Blade Speed (RPM)	25/50 (stainless steel) 60/120 (standard)	25/50 (stainless steel) 60/120 (standard)	25/50 (stainless steel) 52/104 (standard)
Saw blade size	HSSφ250-φ300 φ325(special)	HSS φ250-φ350 φ400 (special)	HSSφ275-φ400φ450 (special)
Hydraulic oil storage (L)	2φ11PCD63	2φ11PCD63	2φ11PCD63
hydraulic system	25-35	25-35	25-35
Hydraulic oil storage (L)	90	90	100
Net weight/kg)	600	750	800
Machine size(LxWxH)(mm)	20401700650	23601700660	300011002100
Cutting ability	Outer diameter 90MM	Outer diameter 110MM	Outer diameter 140MM

Servo full round square ss ms iron galvanized/carbon/stainless steel bundle hollow tube automatic pipe cutting machine

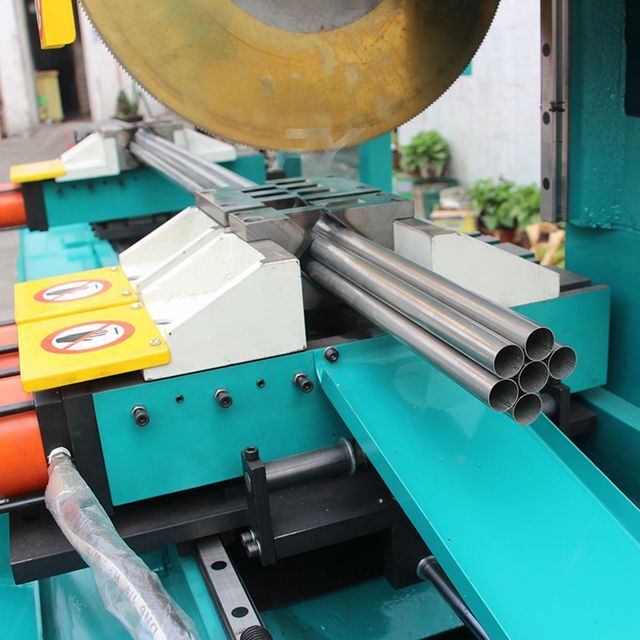

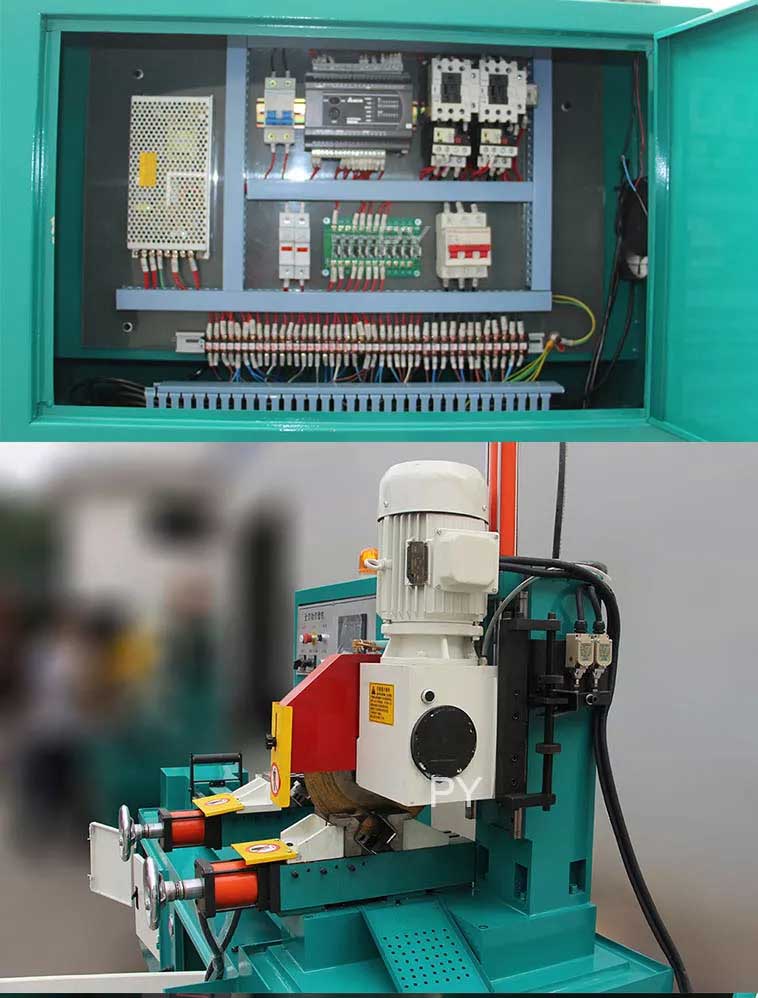

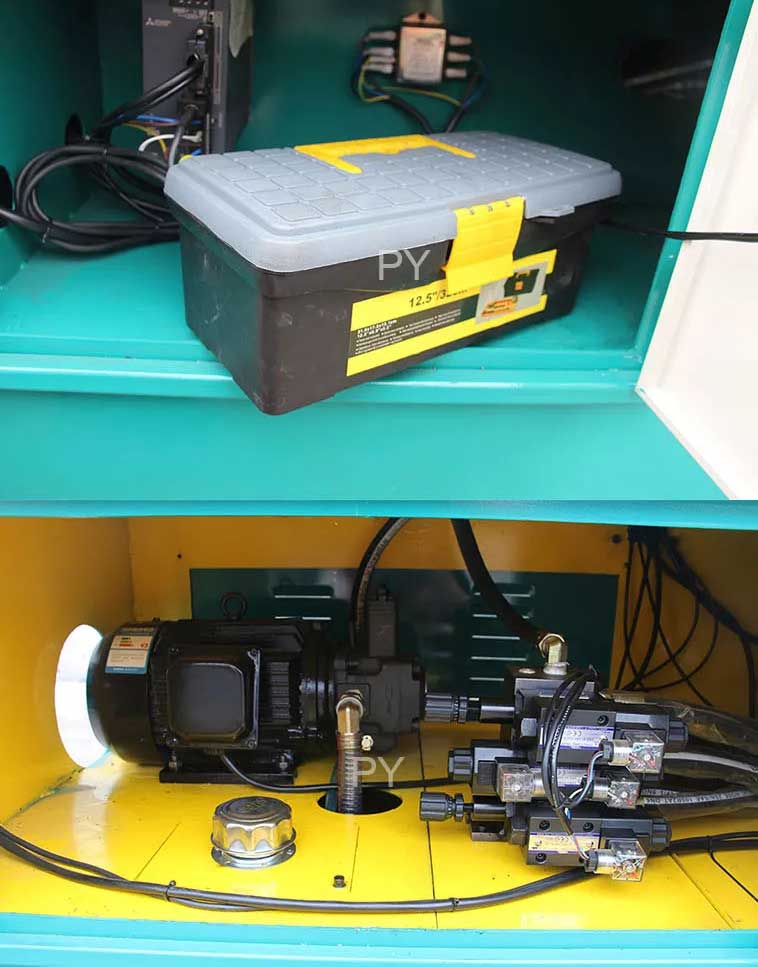

Servo metal circular sawing machine is a large-scale sawing machine controlled by man-machine interface with servo fixed-length automatic feeding hydraulic vertical feeding. The machine adopts PLC controller, touch screen, AC, servo motor, C5-level ball screw for fixed-length feeding, and can also set 5 different cutting lengths, the number of continuous and uninterrupted cutting operations, and the length error is within the range of ±0.2mm. Each moving part is automatically lubricated and lubricated, thereby extending the service life of the machine. The machine system has automatic detection identification and alarm functions, user-friendly real-time monitoring of equipment operating status, and timely troubleshooting of equipment failures. This machine is an ideal multipurpose heavy duty saw. The main engine adopts hydraulic vertical turbine box, which has a large cutting range. Small and medium-sized pipes can be sawed with multiple branches at one time.

Packaging and Delivery

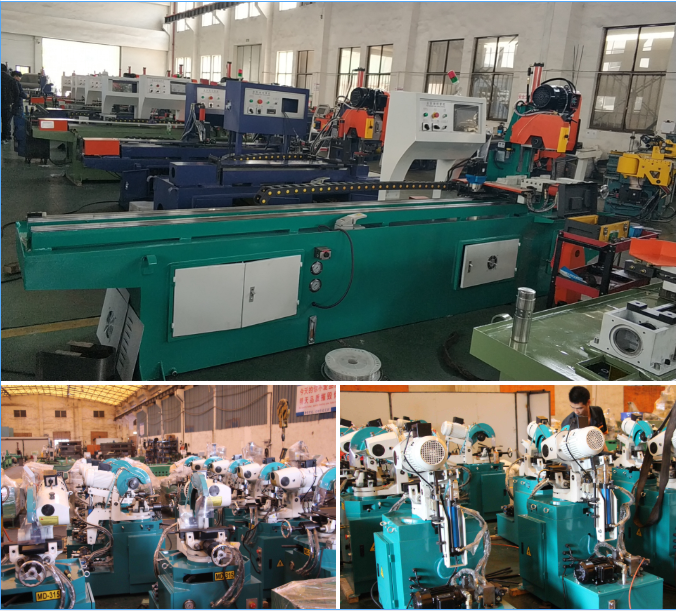

Company Profile
