product name: | PWM Solar Charge Controller | Protective function: | Overcharge and overdischarge overload short circuit protection |
Maximum photovoltaic power: | 1500W | Warranty: | 1 year |
port: | Guangzhou, Shenzhen, Hong Kong | USB: | 2 USB |
Payment method: | Charge in the sun | Discharge stopped: | 11.3V/22.6V |
place of origin; place of origin: | Guangdong, China | brand: | Demuda |
Float Charge Voltage: | 15V/30V | payment terms: | L/C, Western Union, T/T, MoneyGram, Paypal |
Working hours (hours): | 24 hours | type: | PWM |
size: | 13.3*7*3.5cm | Operating temperature: | -35~+60℃ |
Packaging Preview: | | Supply capacity: | 100,000 pieces per month |
Packaging Details: | 1. Standard carton 2. Customer design 3. Box + bubble bag | application: | Charger Controller, Solar Workstation, Lighting Controller, Voltage Controller, Solar System Controller |
Certificate: | ROHS,CE,ISO9001,ISO14001 | Maximum PV Voltage: | 50V |
Disconnect reconnect: | 13V/26V | type of battery: | Lead acid battery charger |
model: | YJSS-01 | | |
Product Description

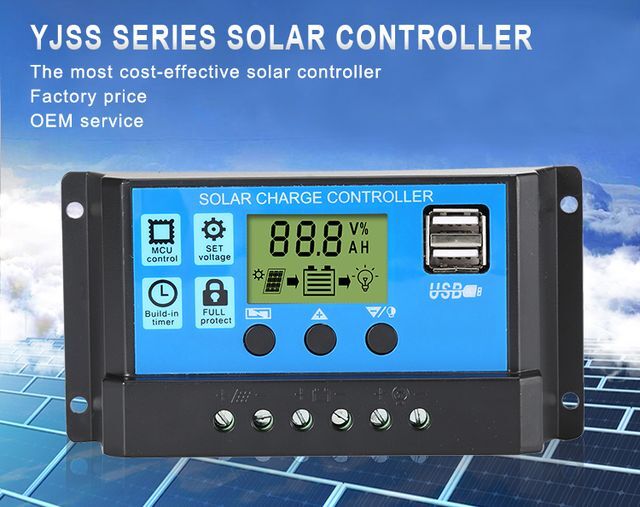

PWM solar charge controller 12V/24V 10A 20A 30A 40A 50A 60A available
1【Widely Compatible】The solar charger controller is automatically compatible with 12V or 24V systems and is suitable for lead-acid batteries. Dual USB 5V output ports support phones, tablets or other devices that require 5V.

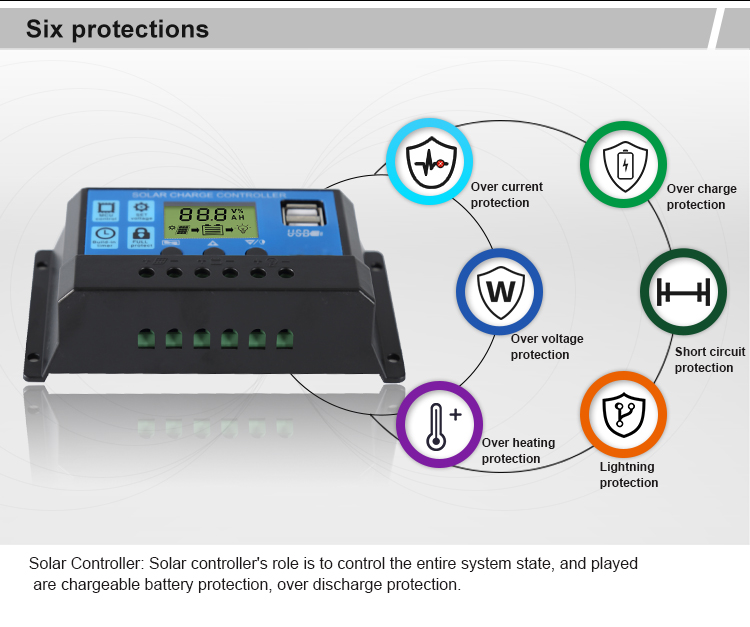

2【Reliable Protection】Solar charging regulators provide overcurrent protection, short circuit protection, reverse polarity protection, low voltage and overcharge protection, and are reliable protectors of your equipment.
3【smart controller】The built-in industrial microcontroller automatically manages, memorizes various parameters set by the user, and the data will not be lost when the battery is exhausted.

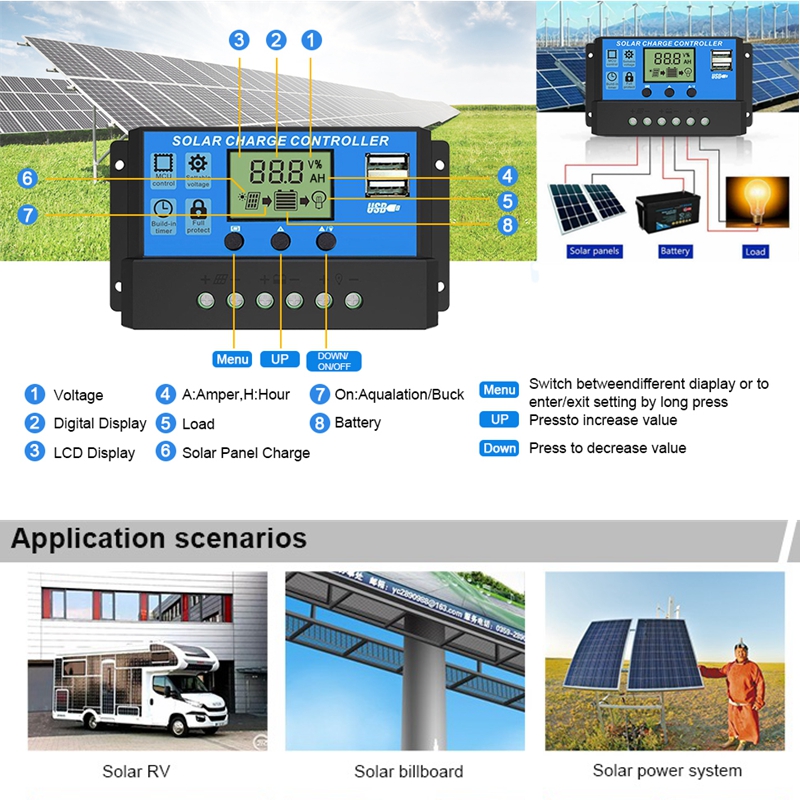

4【Digital LCD Display】Intuitive LCD display, status and data at a glance, switchable mode and parameter configuration, suitable for home, industry, business, etc.
5【Easy to use】The charge controller should be connected to the battery first, then the solar panel, and finally the load! You can change settings with a simple one-touch operation.

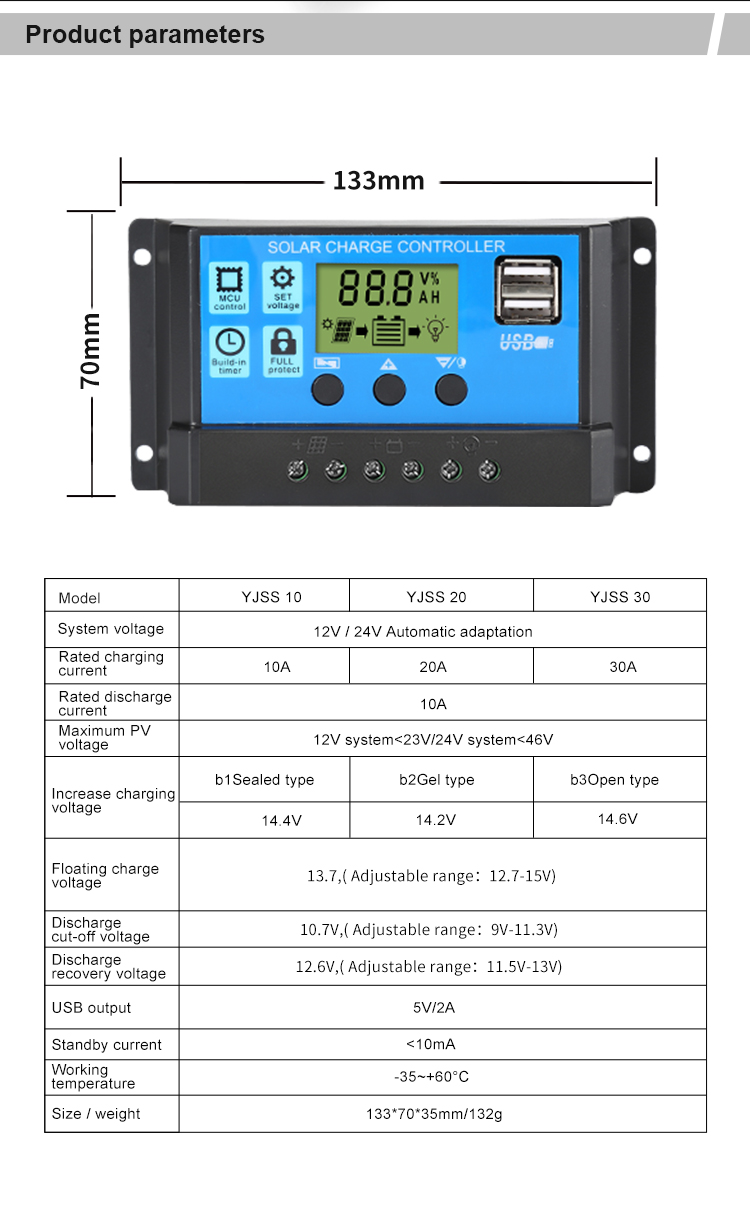

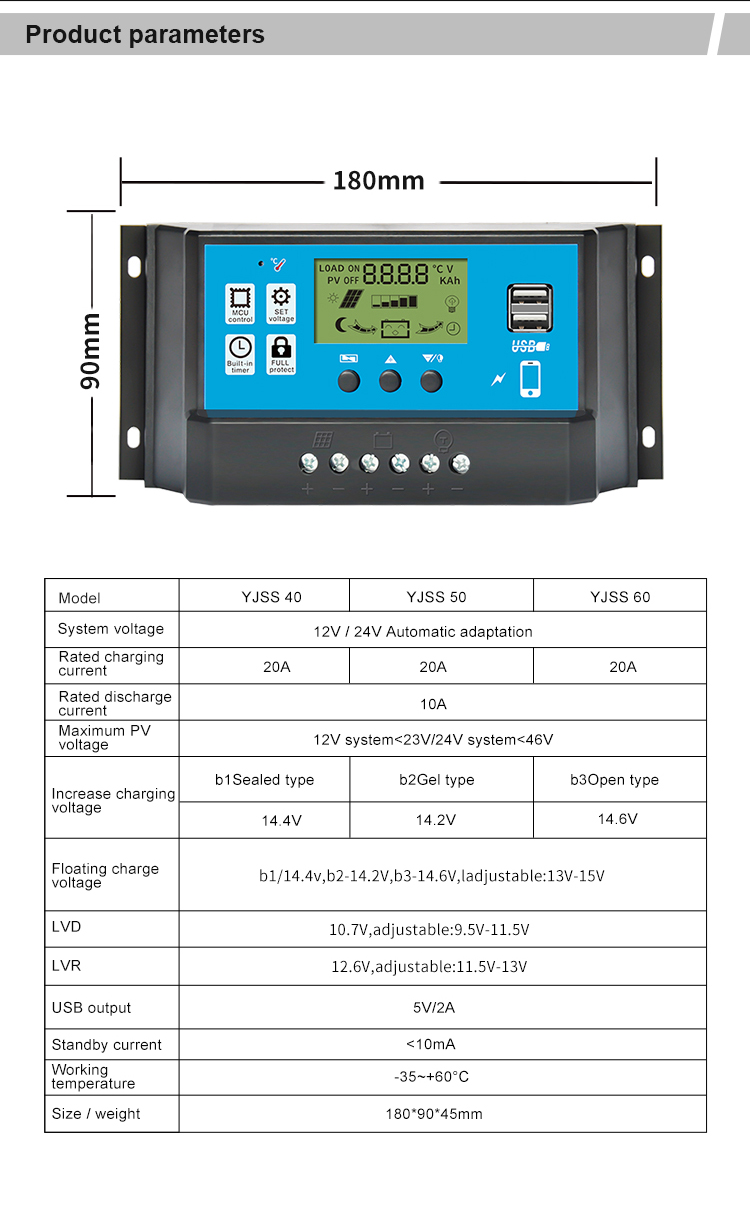

Specification

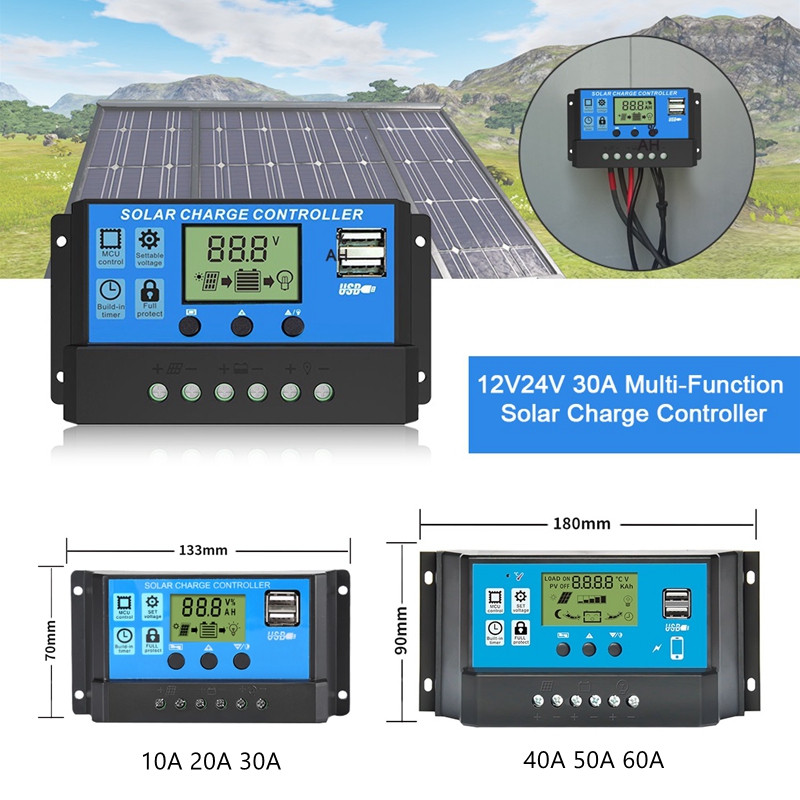

thing | size | weight |
YJSS - 10A 12A/24V | 133*70*35mm | 0.15KG |
YJSS - 20A 12A/24V | 133*70*35mm | 0.16KG |
YJSS - 30A 12A/24V | 133*70*35mm | 0.16KG |
YJSS-40A 12A/24V | 182*45*90mm | 0.38KG |
YJSS - 50A 12A/24V | 182*45*90mm | 0.38KG |
YJSS - 60A 12A/24V | 182*45*90mm | 0.38KG |
* This regulator is suitable for lead-acid batteries: OPEN, AGM, GEL.Not for use with NiMH, Li-Ion or other batteries.
* Charge conditioners are only suitable for conditioning solar modules.Do not use DC power or other power sources as a charging power source.
unusual phenomenon | reason | solution |
Sunny but not charging | PV panel open circuit or reverse connection | reconnect |
Loading icon does not open | Incorrect mode setting/low battery | reset/charge |
Loading icon flashes slowly | overload | reduce load power |
Loading icon flashes quickly | Short circuit protection | auto reconnect |
shutdown | Battery level too low reverse | Check battery/connection |

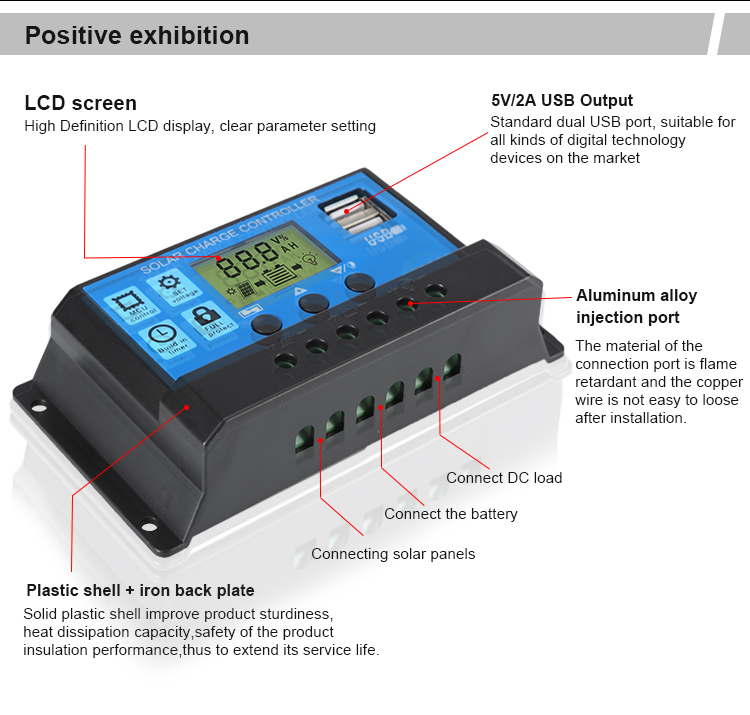

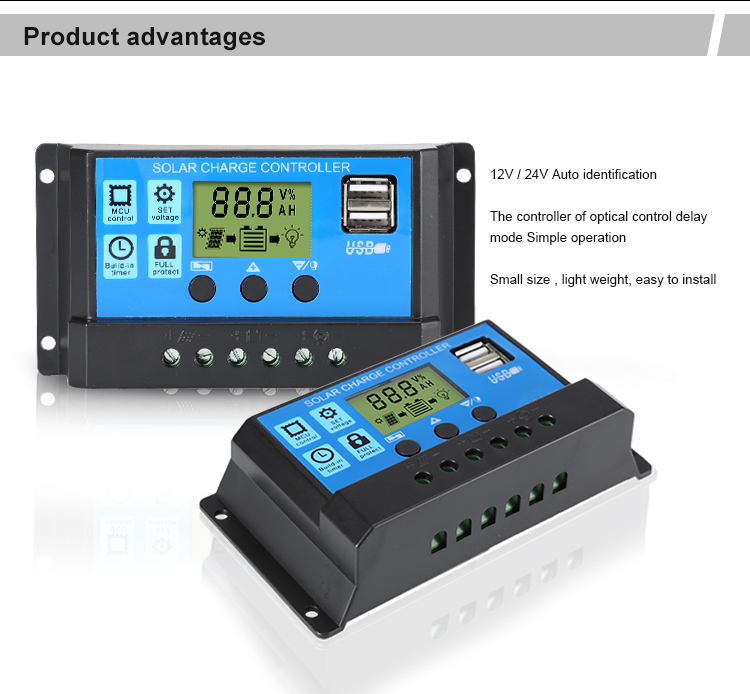

advantage
1. Dual USB sockets.
2. Aluminum alloy oil filling port.
3. Plastic shell + iron back plate.
4.12V/24V self-adaptive, small size, easy to operate.
5.LCD, programming parameters. Data memory function.

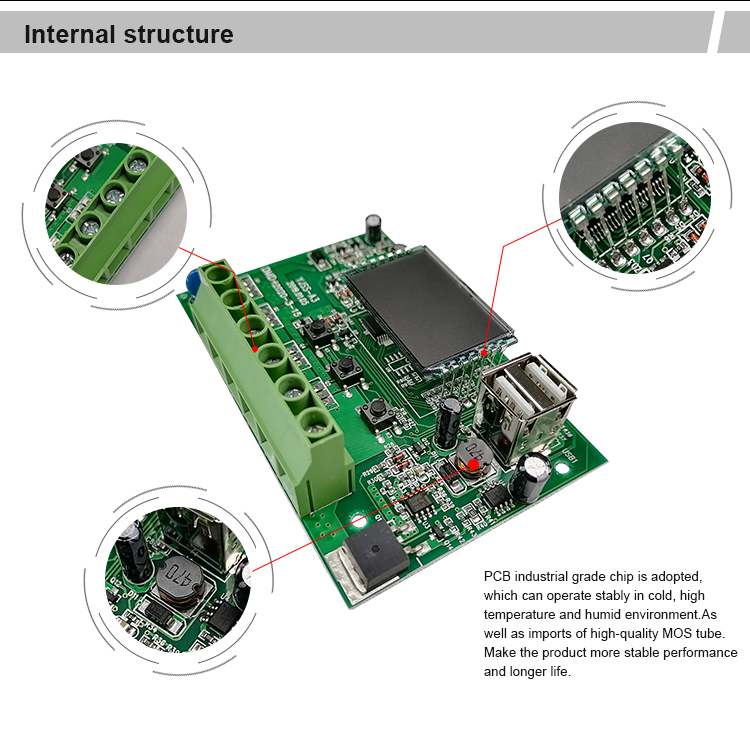

6. Adopt PCB industrial grade chip to adapt to harsh environment.
usage notice

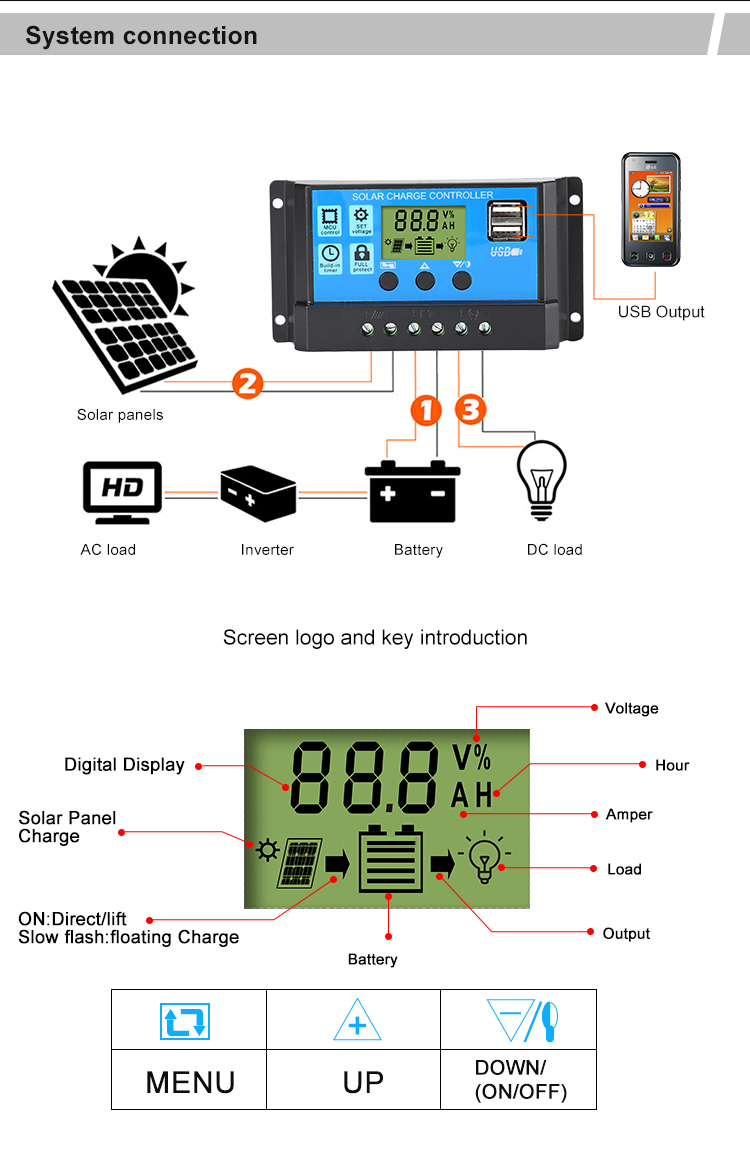

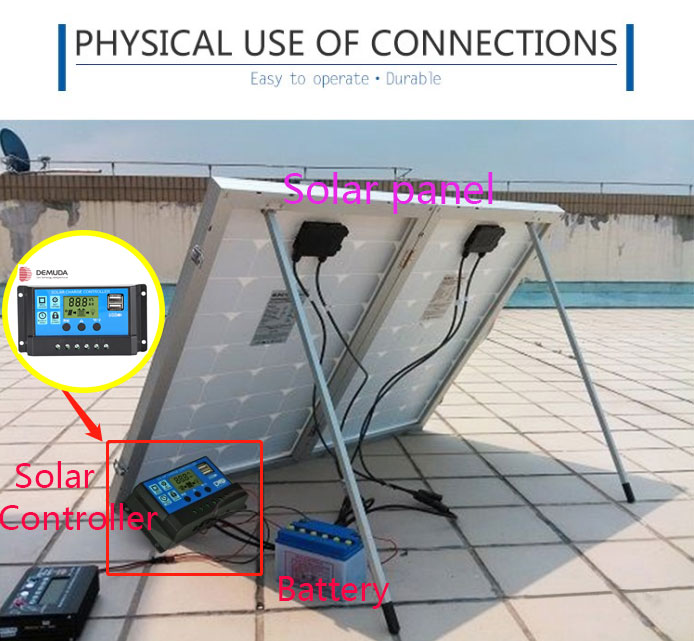

1.Connect the positive and negative poles of the battery to the controller as shown in the figure, the controller will
Automatic detection of battery voltage.
2.After the load is closed, connect the positive and negative poles of the load to the controller, as shown in the figure.
Be careful not to reverse the connection, turn on the load after connecting.
3.Connect the solar panel to the controller as shown.
4.Wire removal standard: first remove the solar panel, then remove the battery, and finally remove the load.

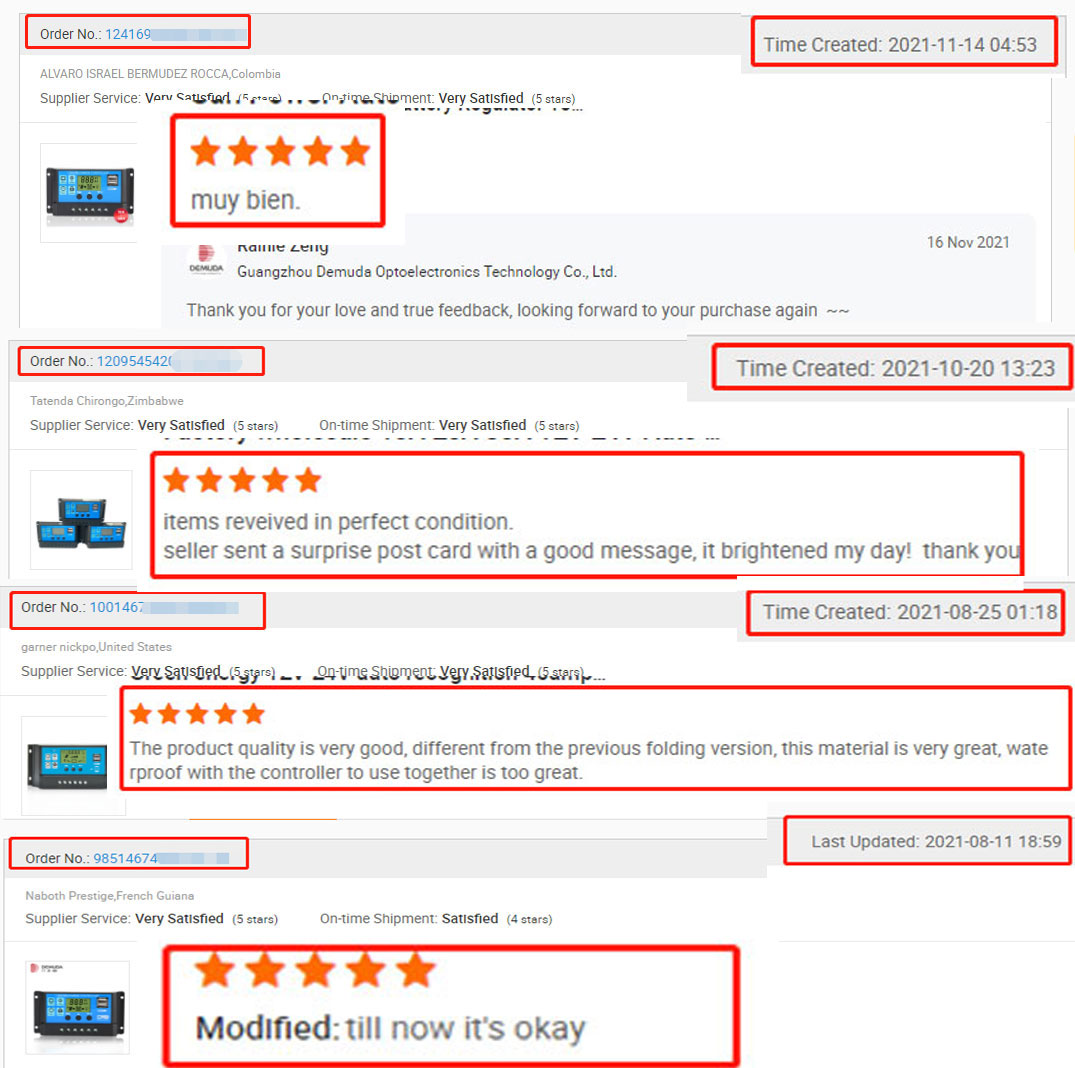

customer feedback
