Packaging Details: | nude | Packaging Preview: | |
Sprinkler width: | Sprinkling width>14m | port: | Shanghai Port |
Chassis brand: | Dongfeng | taxi: | single |
Drive Wheel: | 4X2 | Tank Material: | Carbon steel. Stainless steel |
Health status: | new | horsepower: | 150 - 250 hp |
Engine capacity: | 4-6L | Titanium tires: | 7.00-16R |
brand: | Dongfeng | Type of gasoline: | diesel engine |
Fuel tank capacity: | 8001-10000L, 15001-30000L | Wheelbase: | 3800(mm) |
After-sales service provided: | Engineers can repair machinery overseas | product name: | sprinkler |
Drive Type: | 4x2 | place of origin; place of origin: | Hubei, China |
Supply capacity: | 1000 units per month | payment terms: | L/C,D/P,T/T |
Transmission type: | manual | Storage: | water |
Dimensions (L x W x H) (mm): | 7000 x 2120 x 2600 | Gross vehicle weight: | 8495 |

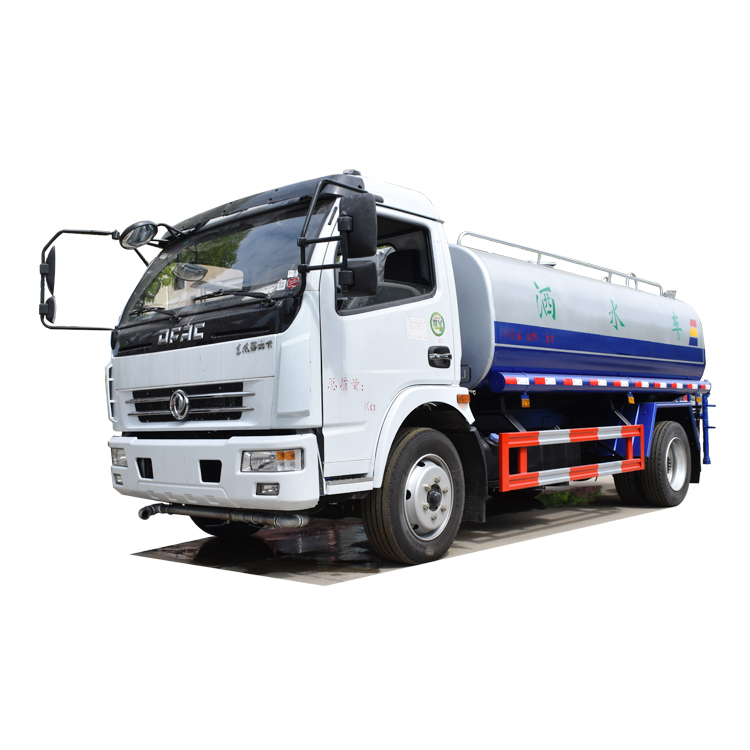

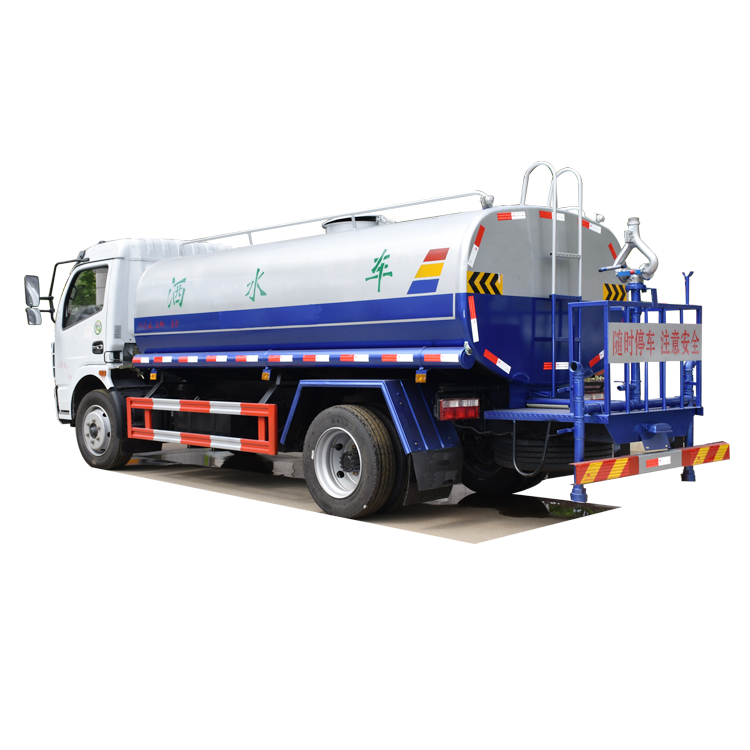

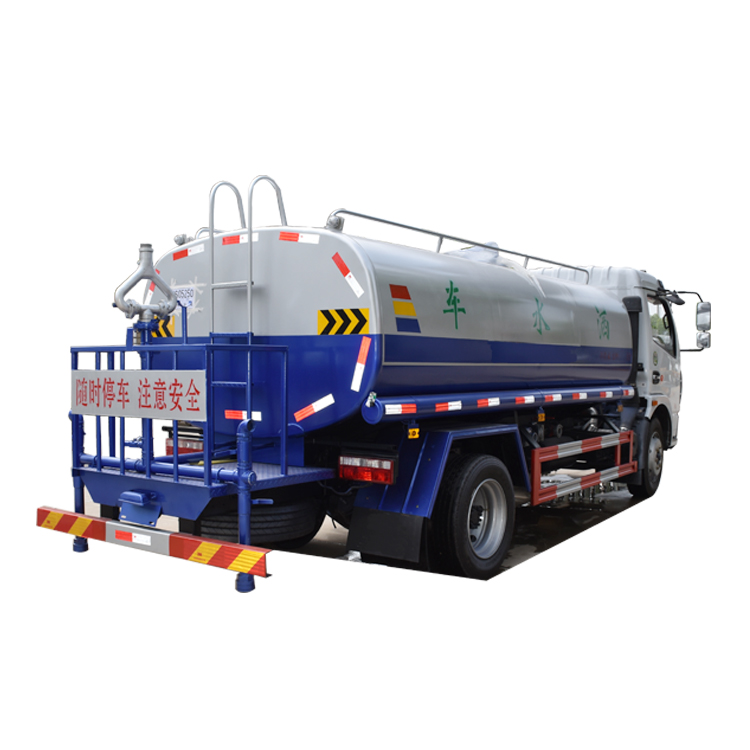

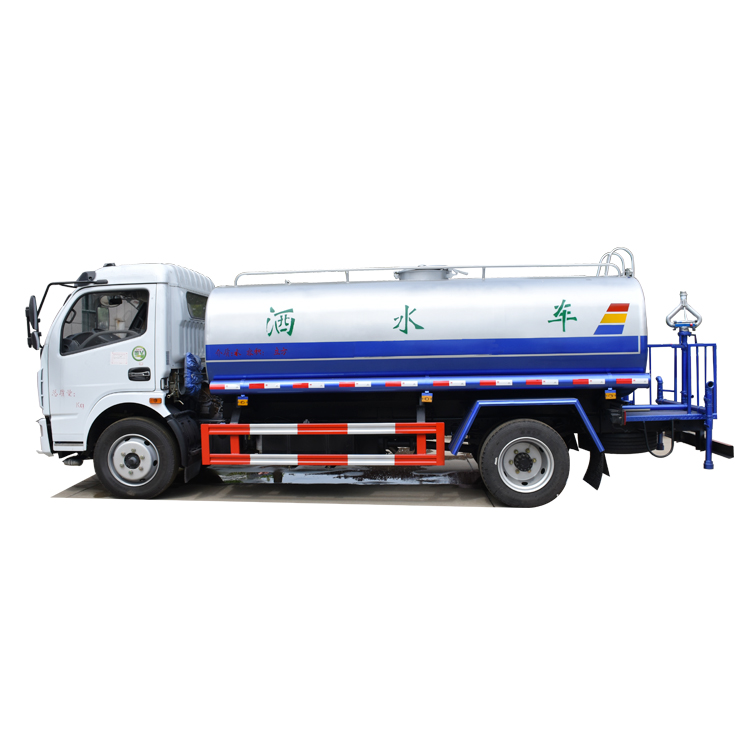

DF Sprinkler / Sprinkler DLK Specifications | ||||||
thing | Specification | thing | Specification | |||
general | ||||||
truck name | Sprinkler / Sprinkler | Dimensions (mm) | 7000×2120×2600 | |||
truck brand | Dongfeng | Gross weight/curb weight (kg) | 8495 / 3800 | |||
truck model | DFA1080SJ11D3 | Approach/Departure Angle (°) | 20 / 10 | |||
maximum. Speed (km/h) | 90 | Front/rear overhang(mm) | 1210 / 1990 | |||
chassis | ||||||
Chassis brand | Dongfeng | Chassis model | DFA1080SJ11D3 | |||
Wheelbase(mm) | 3950 | leaf spring | 8/10+7; 11/9+7 | |||
Traction system | 4×2 | number of axles | 2 | |||
Cab capacity | 1+1 | Front/rear axle load (kg) | 3390 / 5105 | |||
spread | manual | Front/rear track(mm) | 1770 / 1586 1831 / 1640 | |||
tire model | 7.50-16 12PR; 8.25-16 14PR; 7.50R16 12PR; 8.25R16 14PR | Number of tires | 6 | |||
engine (motor) | ||||||
Card | Dongfeng | fuel type | diesel engine | |||
Model | CY4102-CE4B | Displacement (ml) | 3856 | |||
maximum. Power (kW/hp) | 100 / 136 | Emission Standards | Euro 4 | |||
cylinder stator | 4. All cylinders are vertically arranged in a straight line | Maximum torque (Nm) | 420 | |||
Number of valves per cylinder | 4 | Maximum torque speed (rpm) | 1300-1500 | |||
Bore diameter × stroke (mm) | 102×118 | Motor rated speed (rmp) | 2800 | |||
Minimum fuel consumption rate at full load (g/KW.h) | ≤200 | Intake form | Intermediate cooling, water cooling | |||
Compression ratio | 17:1 | 1 meter noise | ≤114dB | |||
Motor net weight (kg) | 430 | ABS | Yes | |||
equipment | ||||||
Fuel tank capacity (L) | 8000-9200 | Tank material | 4-6mm carbon/stainless steel | |||
Pump flow (m³/h) | 60 | Watering width (m) | ≥14 | |||
Vertical suction (m) | ≥6 | Water cannon coverage (meters) | ≥23 | |||
Startup time (minutes) | <5 | Pump head (m) | 45 | |||
Inlet diameter (mm) | 40 | |||||
Comment: 1. Equipped with high-power self-priming water pump, which has the characteristics of high water suction pressure and fast water absorption speed. 2. Equipped with front, rear, side nozzles and high-level nozzles, and the rear working platform. 3. The water cannon installed on the working platform can rotate 360 degrees, and the water flow can be adjusted to Various types of rain. There are straight, heavy rain, moderate rain, drizzle, etc., and the maximum range can reach 30m. 4. Equipped with fire joints, flow valves, filters and water level gauges. 5. According to customer requirements, it can also be equipped with cranes, high working platforms and spraying machines. 6. Mainly used for flushing urban roads, watering and greening of trees, green belts, lawns and construction dust website. It is also used for functions such as drinking water delivery and fire protection. | ||||||
notes: 1. Any part can be customized according to customer needs. 2. 12 months vehicle warranty 3. We can support your original spare parts. Additionally, we can assist via email or phone over the next few days. if When necessary, our field engineers can seek technical assistance. |
