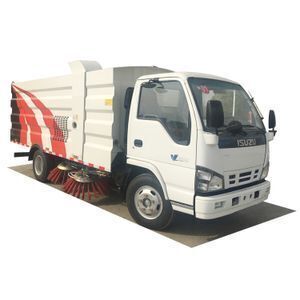

6 wheel Popular ISUZ-U Euro 5 emission standard road sweeper truck for sale

Supplier: Hubei Xindongri Special Vehicle Co., Ltd.
Region: Hubei, China
Contact: Mr Eric Shen
Price: $26000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Supply Ability:	500 Unit/Units per Month;	Payment Terms:	L/C,T/T;
Fuel Type:	Diesel;	Wheelbase(mm):	3360 Mm;
Chassis brand:	Isuzu;	Drive form:	4x2;
Product name:	Road Sweeper Truck;	Weight:	6961kg;
Certification:	ISO9001;	Condiction:	New;
Emission Standard:	Euro 5;	COLOR:	Customer Requirements;
Condition:	New;	Packaging Detail:	waxed;
Tank Capacity:	5.5cbm;	Brand Name:	ISUZU;
Port:	Shanghai port;	Warranty:	1 Year;
Dimension(LWH):	5760 x 1990 x 2420mm;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Farms,Retail,Food Shop,Food & Beverage Shops,city;
After Warranty Service:	Video technical support,Online support;	Local Service Location:	Thailand,Uzbekistan;
Showroom Location:	Pakistan;	After-sales Service Provided:	Video technical support,Online support;
Transmission:	Manual;	Place of Origin:	Hubei China;

Product Description

Specification of QL Road Sweeper
Item	Specification	Item	Specification
General
Truck Name	QL Road Sweeper	Overall Dimension (mm)	5760×1990×2420
Truck Model	NKR77LLNACJAY	Wheel Base (mm)	3360
Traction System	4 x 2	Gross Weight (kg)	6961
Cab Capacity	1+1	Curb Weight (kg)	5025
Transmission	manual	Front Wheel Tread (mm)	1504
Chassis Brand	QL	Rear Wheel Tread (mm)	1425
Tyre Model	7.50-15; 7.50R15; 7.00-16; 7.00R16	Approach Angle (°)	24
Quantity of Tyre	6	Departure Angle (°)	16
Quantity of Axles	2	Front Overhang (mm)	1015
Max Speed (km/h)	100	Rear Overhang (mm)	1525
Chassis
Chassis Model	QL1070A6HAY	Leaf Spring	8/6+5
Engine (Motor)
Brand	QL	Type of Fuel	Diesel
Model	4KH1-TC	Displacement (ml)	2999
Max. Power (kw/hp)	98	Emission Standard	Euro 5
Cylinder Stator	4, all cylinders arranged vertically in line	Max Torque (N.m)	280
Quantity of Valves Per Cylinder	2	Maximum Torque Speed (rpm)	*
Cylinder Diameter × Stroke (mm)	95.4 x 104.9	Motor Rated Rotating Speed (rmp)	*
Full Load Minimum Fuel Consumption Rate (g/kW.h)	*	Air Intake Form	inter-cooling, water-cooling
Compression Ratio	18.3 : 1	Noise From 1 Meter	*
Motor Net Weight (kg)	255	ABS	yes
Equipments
Water tank capacity (cbm)	1.5	Max. suction particle (mm)	120mm
Dustbin tank capacity (cbm)	4.0	Min. clearance of suction nozzle (mm)	200mm
Cleaning capacity (m2/h)	9000-60000	Max. Unloading angle	45°
Sweep width (mm)	3200	Unloading height (mm)	970
Cleaning speed (km/h)	3-20	Brooms	2 sets at each side
sweeping efficiency	≥96%	Sucking disc	1 set in the middle
The maximum water flow (L/min)	21	Unilateral water flow (L/min)	11.7
High pressure cleaning system	High-pressure plunger pump	Application	road, street, highway, airport etc.
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit
