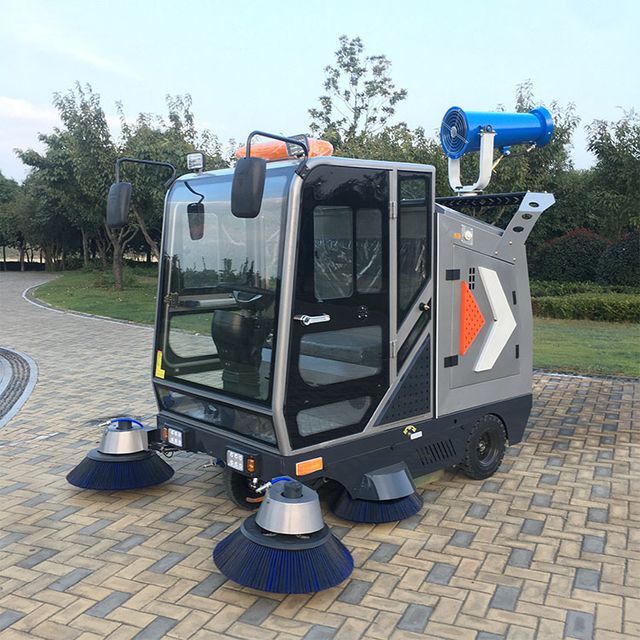

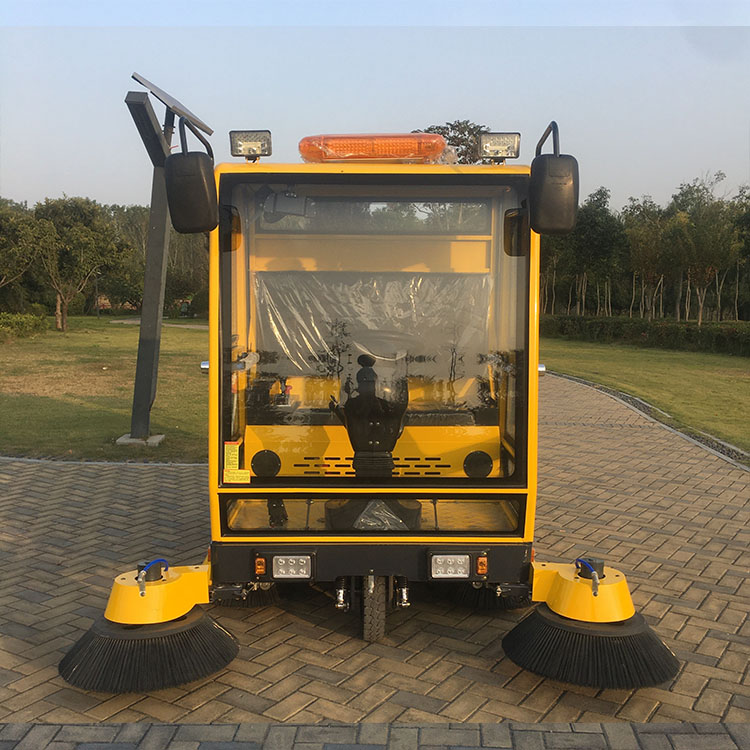

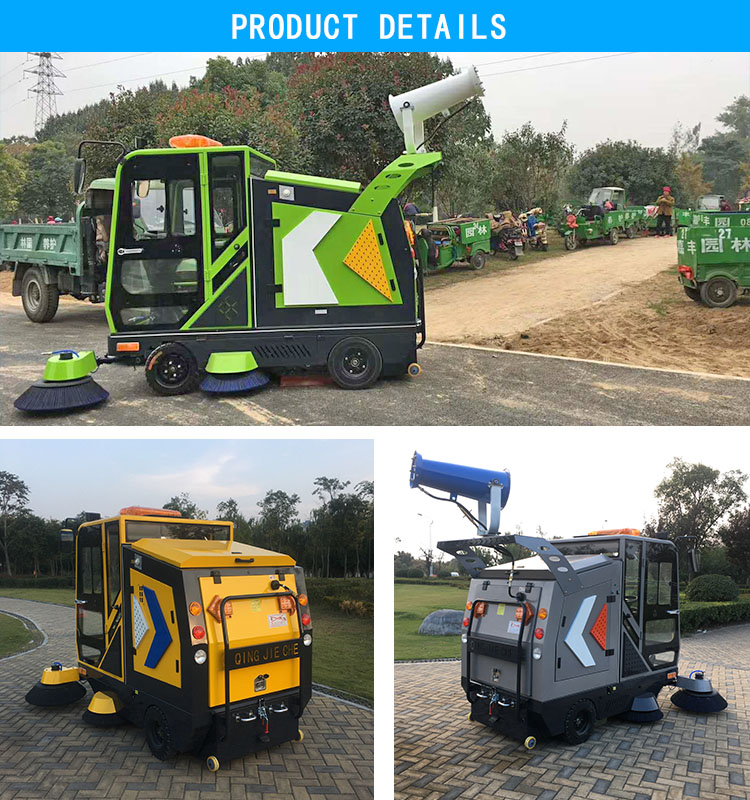

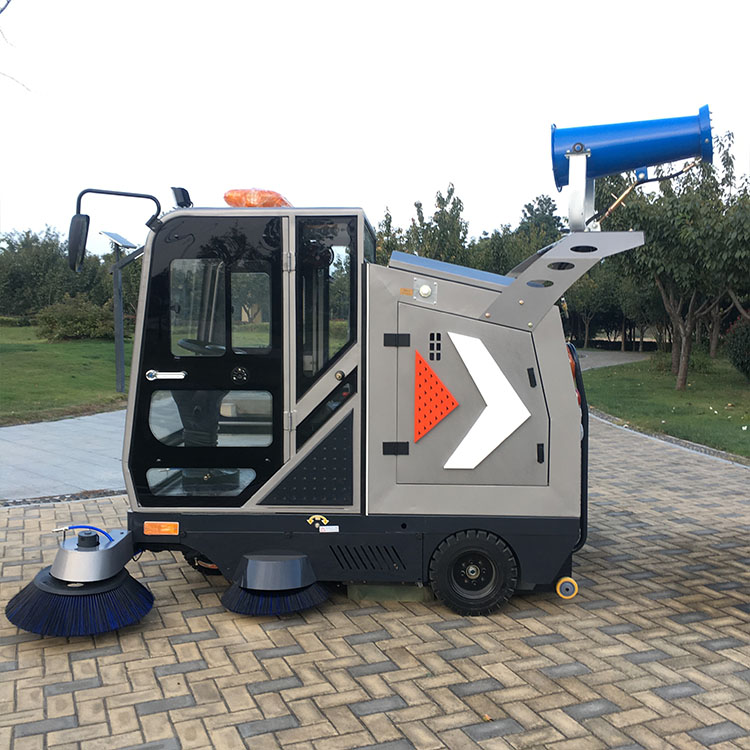

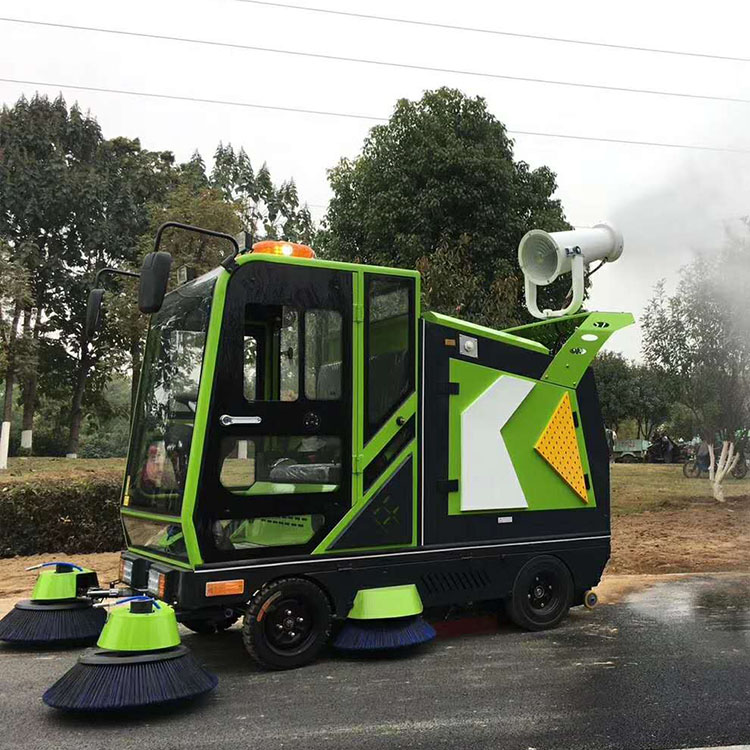

Outdoor Electric Drive Sweeper Sweeper Electric Sweeper

  • Supplier: Shandong Aolai Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr Xi Tengfei
  • Price: $2450.00 / 1 - 4 sets
    $2400.00 / 5 - 49 sets
    $2050.00 / >=50 sets
  • Min. Order: 1 set
Product details
Packaging Preview:Health status:new
Travel motor:3000WTrash can capacity:240L
Packaging Details:1. Packing in wooden boxes and iron frames suitable for transportation 2. Wrap in tarpaulins; 3. Whole cabinet 4. Add wooden pallets. 5. According to customer requirements.operating hours:6-8 hours
Mechanical test report:ifSupply capacity:100 sets per day
Core components:PLC, engine, gear, pumppayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
port:China Ningbo QingdaoMarketing Type:New Products 2021
weight:1000 kgbrand:proud
Main brush width:800mmShowroom location:Egypt, United Kingdom, Philippines, Thailand, Kyrgyzstan, Uzbekistan, Japan
place of origin; place of origin:Shandong ChinaSweeping width:2300mm
Work efficiency:15000-20000/hourVideo external inspection:if
Core Components Warranty:1 yearRoller brush motor:1000W
Side brush motor:4*150Woperating hours:6-8H
Warranty:1 yearbattery capacity:48V200A
Applicable industries:Hotels, Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Farms, Home Use, Construction Works, OthersDimensions (L*W*H):2750*2300*2000mm
Outdoor Electric Drive Sweeper Sweeper Electric Sweeper
The sweeper is an all-in-one garbage sweeper that integrates cleaning and vacuuming. It has the advantages of high working efficiency, low cleaning cost, good cleaning effect, high safety performance and high economic return rate. Has been widely used in large, medium and small urban roads. cleaning job.
Product Description
Advantages of sweeper structural parts: 1. High-quality carbon structural steel thickened chassis (2.5mm thick cold plate), which can effectively ensure the rigidity of the whole machine; 2. The surface of metal structural parts is sprayed with plastic coating, which will never rust; 3. Aluminum alloy The cab effectively reduces the curb weight and prolongs the cruising range; 4. The cover plate is made of aluminum; 5. The integrated brushless motor intelligent controller is adopted, the parameters can be set, and the performance is more reliable; 6. Equipped with a 2.8kw high-power drive motor, Axle drive, stronger climbing ability; 7. Honglida high-quality variable speed gearbox, stable transmission and low noise; 8. Equipped with medium and large electric push rods, DC motors and other high-quality accessories; 9. The whole vehicle adopts imported NSK bearings and imported transmission belts 11. Equipped with brand maintenance-free colloidal high-capacity deep cycle battery and intelligent pulse charger; 12. Configurations such as panoramic cab, side window, sunroof, fan, etc., make the operation field wider and driving easier Comfortable.

Outdoor Electric Drive Sweeper Sweeper Electric Sweeper
Product Specifications
Cleaning width: 2300mm
Battery capacity: 48V200A
Working time: 6-8 hours
Main brush width: 800mm
Working efficiency: 15000-20000/h
Working hours: 6-8H
Trash can capacity: 240L
Travel motor: 3000W
Roller brush motor: 1000W
Side brush motor: 4*150W
Side brush diameter: front 700*2, rear 600*2
Walking speed: 0-12km/h
Vacuum filter side: 10m²
Water tank: 400kg large capacity water tank
Power supply: 48V
Walking speed: 0-12km/h
Battery capacity: 48V120Ah-200Ah {optional}
Weight: 1000KG
Size: 2750*2300*2000mm
Sweeping area of ​​single tank: 80,000 M²
Continuous washing time: 30m
Outdoor Electric Drive Sweeper Sweeper Electric Sweeper

The use of any machine requires frequent maintenance. Routine machine maintenance is very important for professional machines, otherwise its service life will be affected. As the most popular cleaning equipment at the moment, the automatic washing machine is no exception. Water-based machines such as battery-operated scrubbers, in particular, require simple maintenance on a daily basis or after cleaning tasks. Precautions for automatic sweepers: 1. Empty and clean the recycling bin. During the working process of the machine, it will absorb a large amount of water mixture containing sludge, which is easy to accumulate in the water tank and emit an unpleasant smell. Therefore, it is necessary to clean the water tank with running water. 2. Remember to empty the clean water tank of the automatic washing machine. Especially in daily cleaning operations, let alone, otherwise standing water will become a source of bacteria. It will also cause water leakage due to misoperation, resulting in unnecessary losses (such as burning the motor). 3. Check whether the squeegee of the battery scrubber cleans the suction filter. If one of the scraper bar and suction filter is blocked, the drying effect will be reduced. You will need to wash the rubber strip and filter under running water. 4. Check the wear of the brush plate and scraper of the automatic hand-push scrubber once a week. If the ground friction is high, the strong pressure on the ground can damage these fittings or cause them to wear out faster. Under normal circumstances, the brush plate can be replaced after 50 hours of use. Conversely, after 30 hours of use, the absorbent tape should be replaced or inverted (when all four sides of the tape are still usable)
