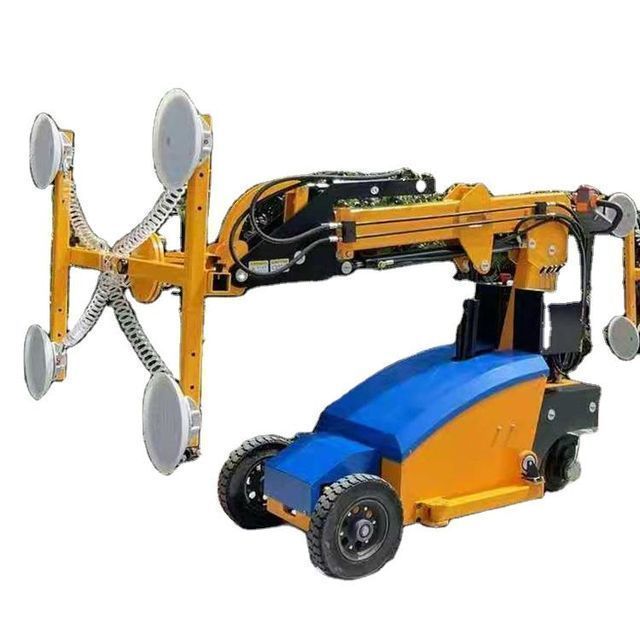

600KG Lifting Robot 8 Pump Vacuum Glass Lifting Robot AL-600 Glass Lifting Machinery with Battery for Sheet Metal

Supplier: Shandong Aolai Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Xi Tengfei
Price: $3380.00 / 1 - 4 sets
$3100.00 / 5 - 9 sets
$2800.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

strength:	2200W	Supply capacity:	100 sets per day
place of origin; place of origin:	Shandong China	Marketing Type:	New Products 2020
Vertical stroke (mm):	4.2M	Video external inspection:	if
Function:	glass installation	Dimensions (LWH):	28008101745mm
Key words:	vacuum suction cup	brand:	proud
Key words:	Electric glass manipulator	Applicable industries:	Building material stores, mechanical repair shops, manufacturing plants, construction works
Warranty:	1 year	port:	Qingdao, China
Payload:	600kg	payment terms:	L/C,Western Union,T/T
Mechanical test report:	if	Packaging Preview:
axis:	6 axes	Showroom location:	Canada, USA, France, Peru, Indonesia
thing:	Industrial Robot Arm	weight:	600 kg
usage:	Multipurpose use	Packaging Details:	1. The coil is wrapped by 8 steel strips; 2. It is wrapped with a waterproof cloth; 3. It is wrapped by 8 steel strips; 4. A wooden pallet is added. 5. According to customer requirements.
type:	telescope	product name:	Glass installation robot
Weight (kg):	1200 kg	Core components:	Bearings, Gearboxes, Motors, Pressure Vessels, Pumps
Health status:	new	application:	Glass Handling and Installation
Horizontal stroke (mm):	4.2M	Core Components Warranty:	1 year

600KG Lifting Robot 8 Pump Vacuum Glass Lifting Robot AL-600 Glass Lifting Machinery with Battery for Sheet Metal

Glass installation robot

Product display

Glass installation robot

Main features of the glass installation manipulator
Using negative pressure vacuum circuit, negative pressure digital display. compared to traditional instruments
display, the sensitivity is improved. The display is more accurate and intuitive, and the glass suction is guaranteed
To a certain extent.
Equipped with low pressure alarm, negative pressure automatic replenishment, vacuum digital display
Pressure and battery gauges, allowing you to more clearly monitor the health of your equipment
Ultra-high sensitivity, including pinholes of 1/10 the size of the air leakage, can be visually displayed on the digital display.
Digital display built into operating electrical cabinet to better protect equipment from harsh engineering
environment and accidental damage. Suitable for on-site construction and installation of outdoor engineering glass

Product Details

Glass installation robot

Product Specifications

Glass installation robot	/					RYGCPD
Rated load capacity	Kilogram	300	350	400	500	600
Manual rotation	.	360	360	360	360	360
Lifting height	mm	3500	3500	3500	3500	3500
manipulate	/			walkie-talkie type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
charger	V/A	24/12	24/12	24/15	24/18	24/18
motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
lift motor	V/W	24/2000	24/2000	24/2000	24/2200	24/2200
overall width	mm	810	810	810	810	810
Overall length	mm	2660	2660	2660	2800	2800
drive wheel size	mm	250*80	250*80	250*80	300*100	300*100
Pad diameter	mm	300	300	300	300	300
glass size	mm	3660*2440	3660*2440	3660*2440	3660*244	3660*2440
