Origin: | Jiangsu, China | Payload: | 7 kg |
product name: | 6-axis robotic arm | Core components: | Engines, bearings, gearboxes, motors, gears |
Energy source: | 3KVA | Dimensions (L*W*H): | 444.5mm*350mm |
Packaging Details: | Fireproof board | Supply capacity: | 50 sets per month |
Marketing Type: | normal product | Weight (kg): | 55 kg |
Repeatability: | ±0.03mm | Health status: | new |
Key words: | automatic robot | Warranty: | 1 year |
Robot type: | 6-axis multi-joint robot | Applicable industries: | Clothing Stores, Building Materials Stores, Machinery Repair Shops, Retail Stores, Printing Shops, Construction, Energy and Mining |
Package preview: | Function: | Grinding, assembly, painting | |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | net weight: | 55KG |
technology: | Robot Controller Technology | weight: | 55 kg |
strength: | 3KVA | Core component warranty: | 1 year |
Video shipment inspection: | if | port: | Shanghai, Ningbo, Xiamen, Shenzhen, Guangzhou, |
Mechanical test report: | if | Arm length: | 700mm |
Showroom location: | not any | brand: | Borunte |
Model | thing | arm | wrist | arm length(mm) | Carrying capacity(kg) | ||||||||
J1 | J2 | J3 | J4 | J5 | J6 | ||||||||

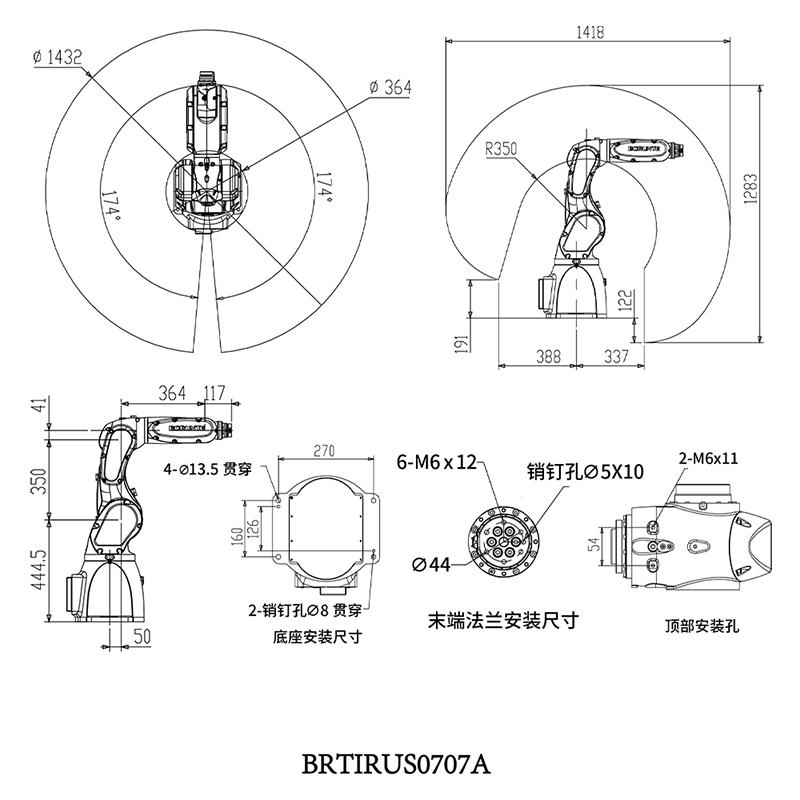

BRTIRUS0707A | Arm length | 444.5 | 350 | 364 | 117 | 700 | 7 | ||||||
Range (#°) | ±174° | -125°/+85° | -60°/+175° | ±180° | ±120° | ±360° | |||||||
Maximum speed | 220.8°/sec | 270°/sec | 375°/sec | 308°/sec | 300°/sec | 342°/sec |
