AR4 6DOF robotic arm desktop robotic arm with motor controller ROS open source 2KG load

Supplier: Shenzhen Tianzhongtian Trading Co., Ltd.
Region: Guangdong, China
Contact: Ms Song Song
Price: $1644.00 / 1 - 1 sets
$1605.00 / 2 - 4 sets
$1578.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Case weight:	12.3 lbs (5.6 kg)	weight:	28 kg, 28 kg
Warranty:	1 year	Core component warranty:	1 year
Mechanical test report:	not available	Weight (kg):	28
Carrying capacity:	4.2 lbs (1.9 kg)	Single pack size:	62X42X50 cm
Video outbound inspection:	not available	Gross weight per piece:	28.000 kg
Marketing Type:	normal product	product name:	robotic arm
Applicable industries:	robotic arm	brand:	tezzet
Showroom location:	not any	Sales unit:	Item
Robot weight (aluminum):	27 lbs (12.25 kg)	Origin:	Guangdong, China
Maximum power consumption:	8.25A (198W)	Package Size:	624250cm
Health status:	new	Arm length:	24.75 inches (62.9 cm)
Repeatability:	2 mm	Global Accuracy:	1mm
Packaging Details:	Packing list: - 1 x Assembled robot arm	Core components:	other

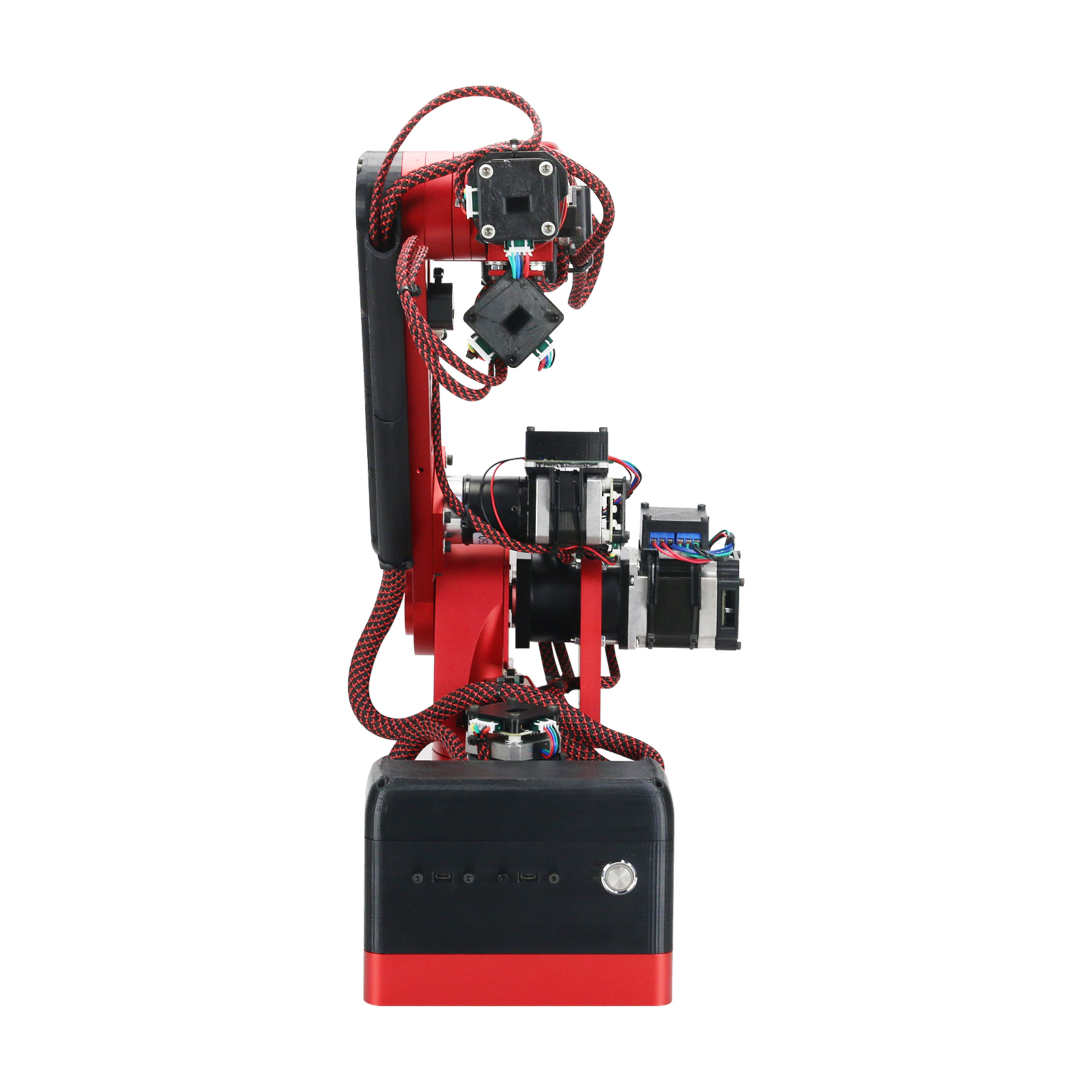

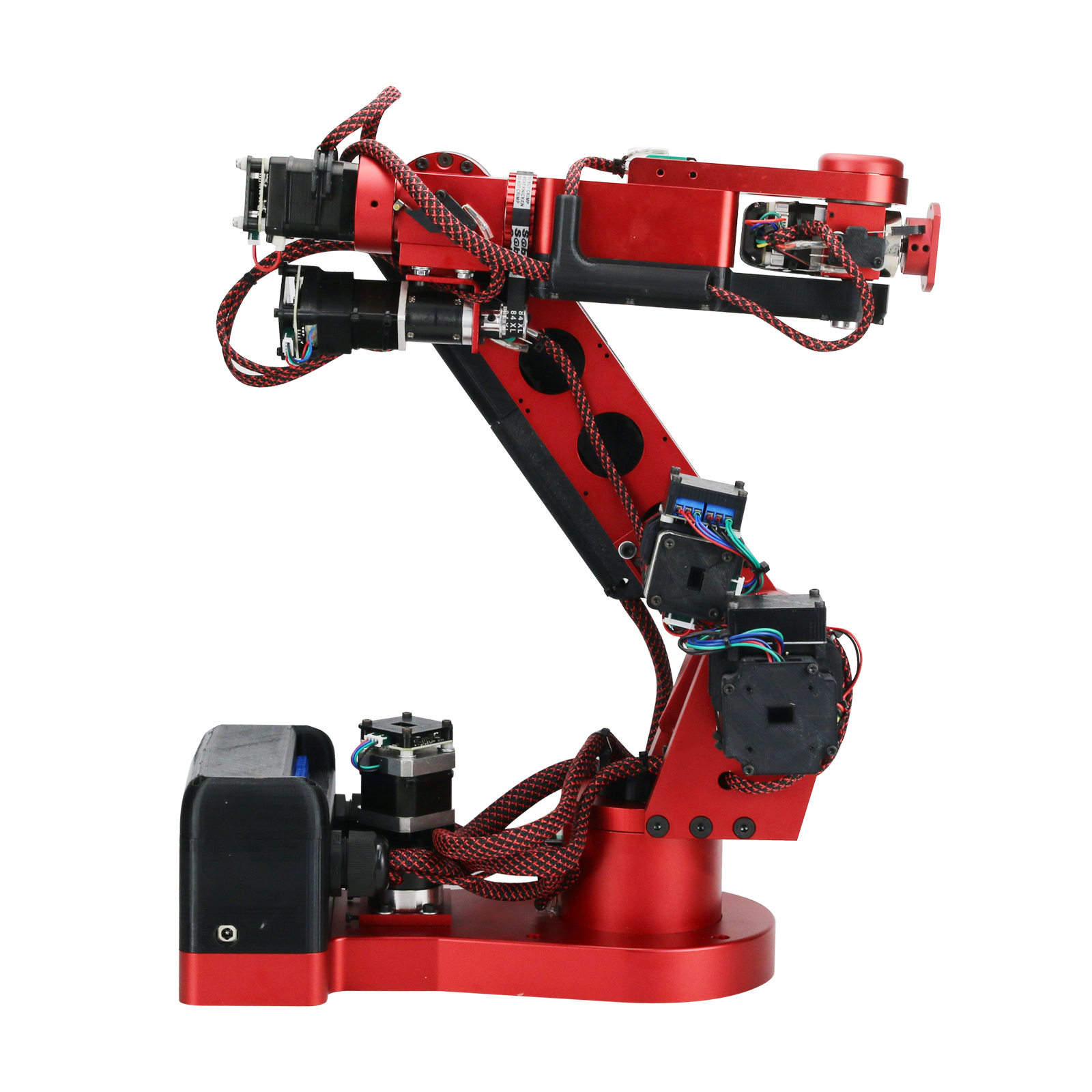

AR4 6DOF robotic arm desktop robotic arm with motor controller ROS open source 2KG load

Product Description

describe:
Compared with AR3, the structure of AR4 has been improved. Its contact switch is not easy to damage. arm's software is more convenient to use, and its embedded board performance is better.

Specification:

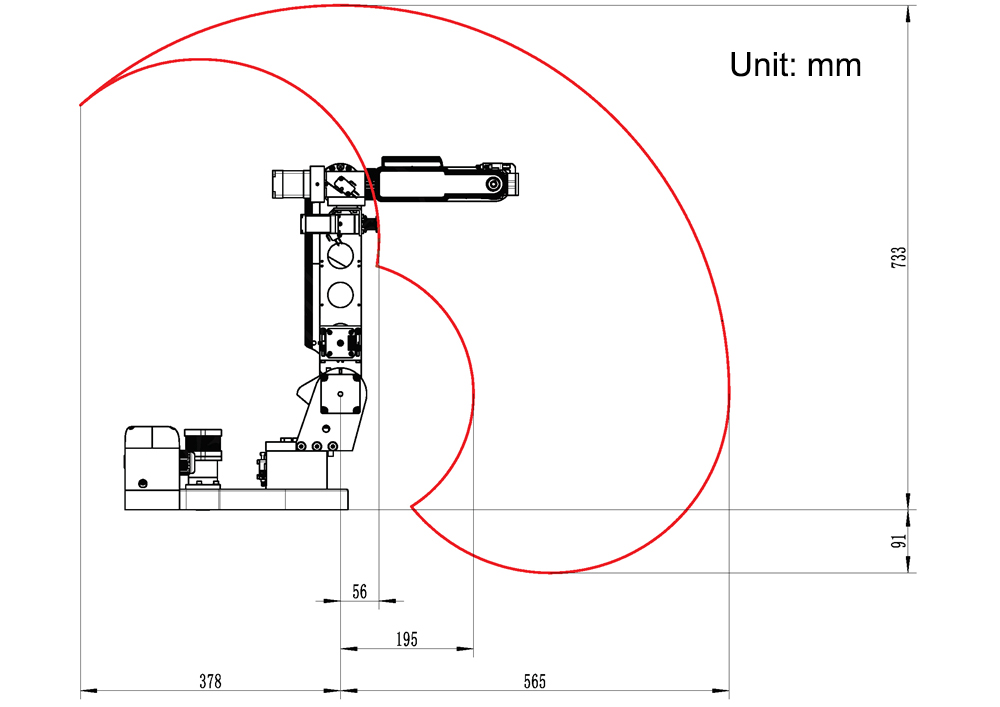

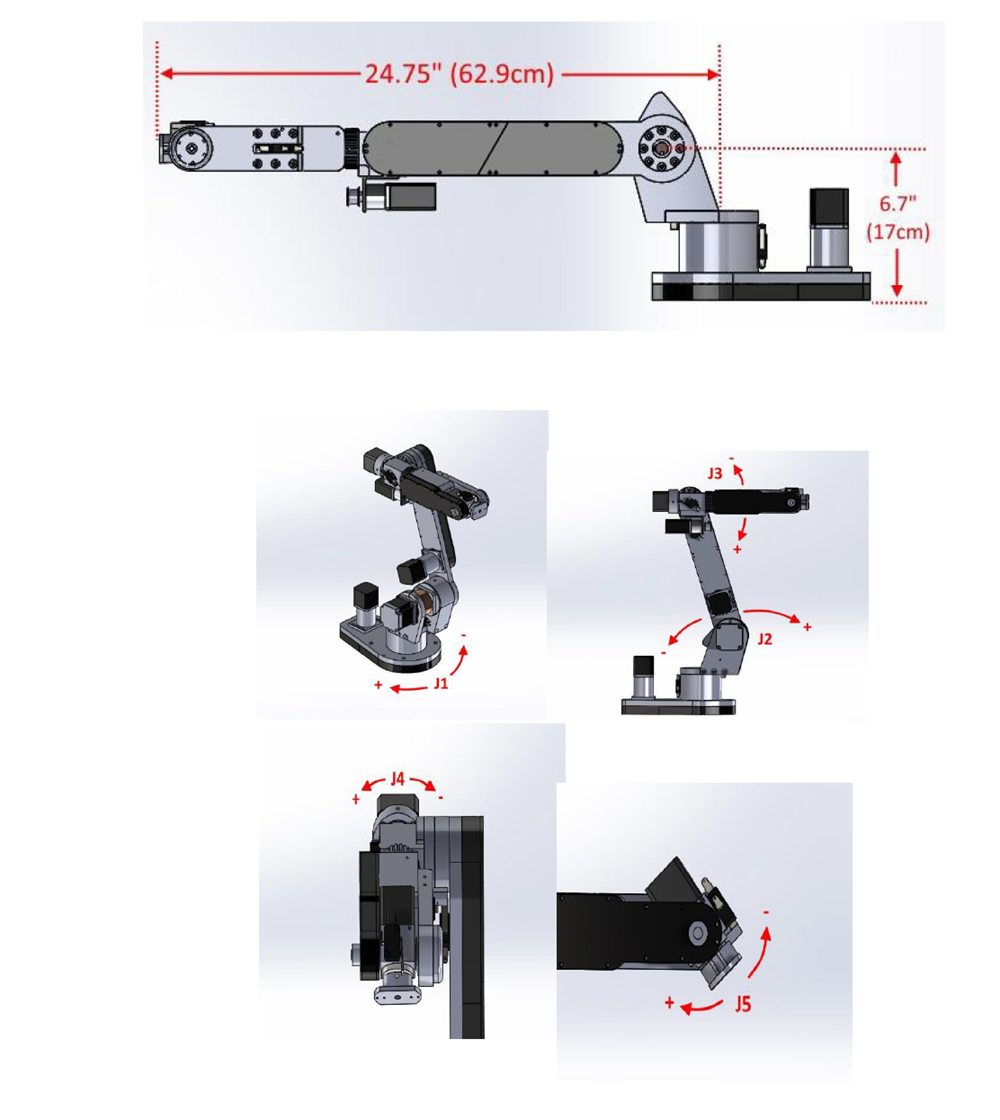

- Arm Length: 24.75" (62.9cm)
- Load Capacity: 4.2 lbs (1.9 kg)
- Global accuracy: 1mm
- Repeatability: 2mm
- Robot weight (aluminum): 27 lbs (12.25 kg)
- Case weight: 12.3 lbs (5.6 kg)
- Maximum power consumption: 8.25A (198W)

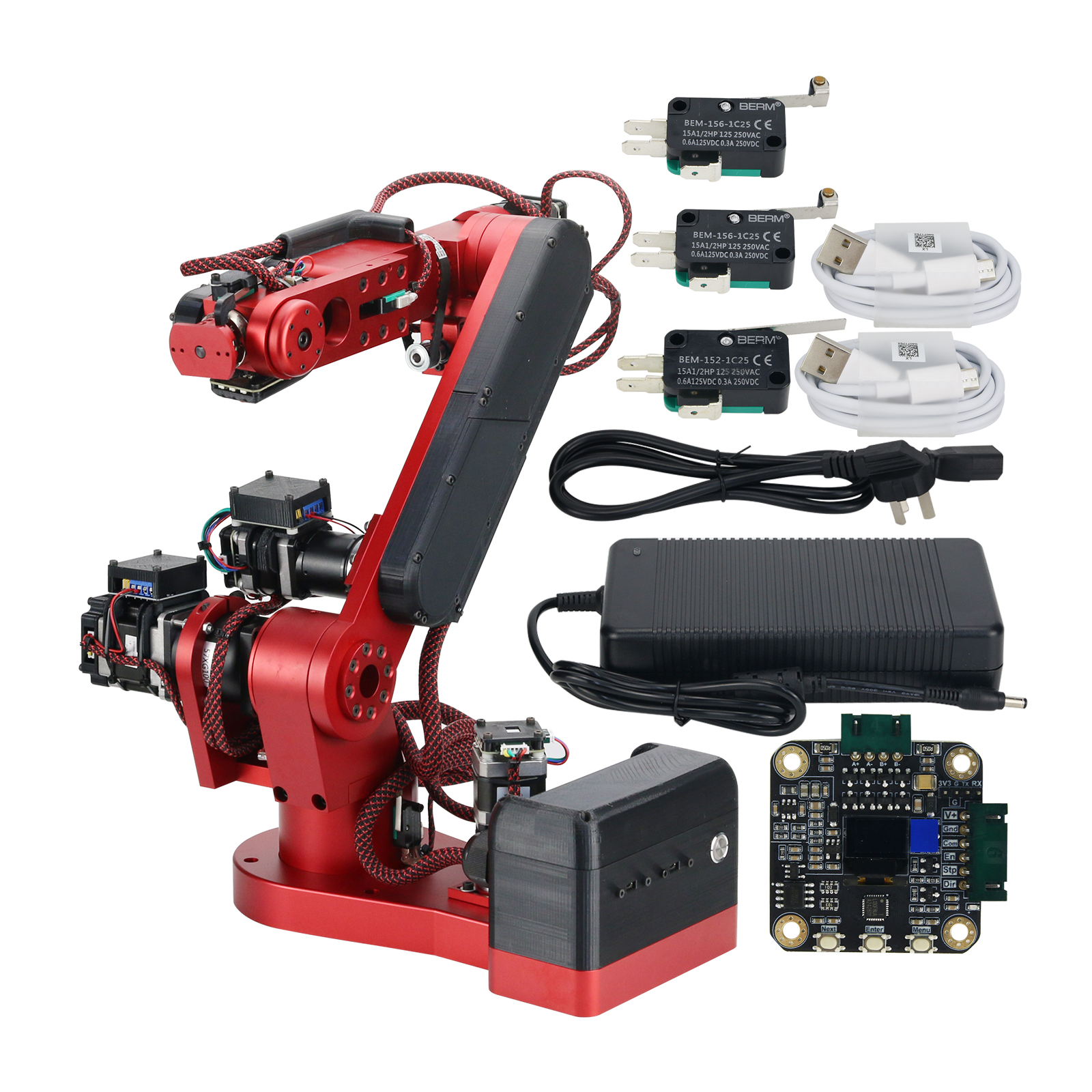

Package Included:
- 1 x Assembled robotic arm

notes:
- Comes assembled and ready to use.

Packaging and Shipping

packaging and shipping

pack: Usually we use standard paper packaging to export to all over the world.

Shipping:

1. By express: DHL, UPS, FEDEX, TNT are the main express we currently cooperate with.

2. By China small parcel, usually cost saving for customers. But there is a risk of losing the package for small parcels in China. NOTE: We can only refund the cost of the item if we return the package. If we do not receive the package, sorry we cannot refund.

3. Air freight: transport from Shenzhen Airport to the airport of the customer's destination city.

4. By sea: Ship from Shenzhen seaport.
