USB-6210 OEM DAQ USB 779675-01 16 Input 16Bit 250KS/s NI Multifunction I/O Data Acquisition Card

USB-6210 OEM DAQ USB 779675-01 16 Input 16Bit 250KS/s NI Multifunction I/O Data Acquisition Card

describe:
USB-6210 is a USB bus-powered M series multi-function data acquisition module. It also maintains high accuracy at high sampling rates. The module provides 16 analog inputs; 250kS/s single-channel sampling rate; 4 digital input lines; 4 digital output lines; each channel has 4 programmable input ranges (±0.2 V - ±10 V); digital trigger ; 2 counters/timers.

The USB-6210 is designed for mobile applications and space-constrained applications. Its plug-and-play installation minimizes configuration and setup time, while its direct connection to screw terminals reduces cost and simplifies signal connections. USB bus powered, users do not need to carry additional external power supply.

The module also features NI's new Signal Streaming technology, which enables DMA-like bidirectional high-speed data stream operations on the USB bus.

feature:
- 16 analog inputs (16 bit, 250kS/s)
- 4 digital inputs; 4 digital outputs; two 32-bit counters
- USB bus powered for mobile flexibility; built-in signal connection
- Plug and play USB for automatic detection and configuration
- Compatible with Measurement Studio for LabVIEW, LabWindows/CVI, and Visual Studio.NET software
- Driver software for NI-DAQmx and interactive data logging software for NI LabVIEW SignalExpress

Product software:
NI-DAQmx drivers and measurement services software provide easy-to-use configuration and programming interfaces, while features such as the DAQ Assistant help reduce development time. NI M Series devices are not compatible with NI-DAQ (legacy) legacy drivers.

Every M Series data acquisition device includes a copy of NI LabVIEW SignalExpress, allowing you to quickly acquire, analyze, and display data without programming. In addition to your copy of LabVIEW SignalExpress, M Series data acquisition devices are compatible with the following NI application software versions (or later), LabVIEW 7.1, LabWindows/CVI 7.x, or Measurement Studio 7.x software. NI's M Series data acquisition devices are compatible with Visual Studio .NET, C/C++, and Visual Basic 6 tools.

parameter:
General Specifications:
- Product: USB-6210
- Product series: Multifunction DAQ
- Bus type: USB
- Product number: 780103-01; 779675-01
- OS/Target: Available for Linux, Mac OS and Windows
- Data Acquisition Product Family: M-Series
- Measurement type: Voltage
Isolation Type: None
- RoHS Compliant: Yes
- USB powered: bus powered

Analog input:
- Number of channels: 16 and 8
- Single-ended channels: 16
Differential channels: 8
- Resolution: 16 bit
- Sampling rate: 250kS/s
- Maximum analog input voltage: 10 V
- Large voltage range: -10 V to 10 V
- Accuracy over wide voltage range: 2.69 mV
- Sensitivity over wide voltage range: 91.6 μV
- Small voltage range: -200 mV to 200 mV
- Accuracy in small voltage range: 0.088 mV
- Sensitivity in small voltage range: 4.8 μV
- Number of ranges: 4
- Simultaneous sampling: No
- Onboard storage: 4095 samples

Analog output:
- Number of channels: 0

Digital input and output:
- bidirectional channel: 0
Input channels only: 4
Output channels only: 4
- Time: Software
- Logic level: TTL
- Input current: sink current and source current
- Output current: drain current and source current
Programmable Input Filter: No
- Supports programmable power-up states: Yes
- Single channel current drive capability: 16 mA
- Total current drive capability: 50 mA
- Watchdog Timer: No
- Support handshake I/O : no
Support Mode I/O: No
- Large input range: 0V-5.25V
- Large output range: 0V-3.8V

Counter/Timer:
- Number of counters/timers: 2
buffer operation: yes
Troubleshooting: Yes
GPS sync: no
- Wide range: 0 V-5.25 V
- Large signal source frequency: 80 MHz
Pulse Generation: Yes
- Resolution: 32 bit
- Time base stability: 50 ppm
- Logic level: TTL

Physical standard:
- Length: 16.9cm/6.7in
- Width: 9.4cm/3.7in
- Height: 3.1cm/1.2in
- I/O connector: screw terminal

Timing/triggering/synchronization:
- Trigger: Number

Package Included:
- 1 x Data Acquisition Card

notes:
- Non-original product, manufactured in China by an affiliated factory.

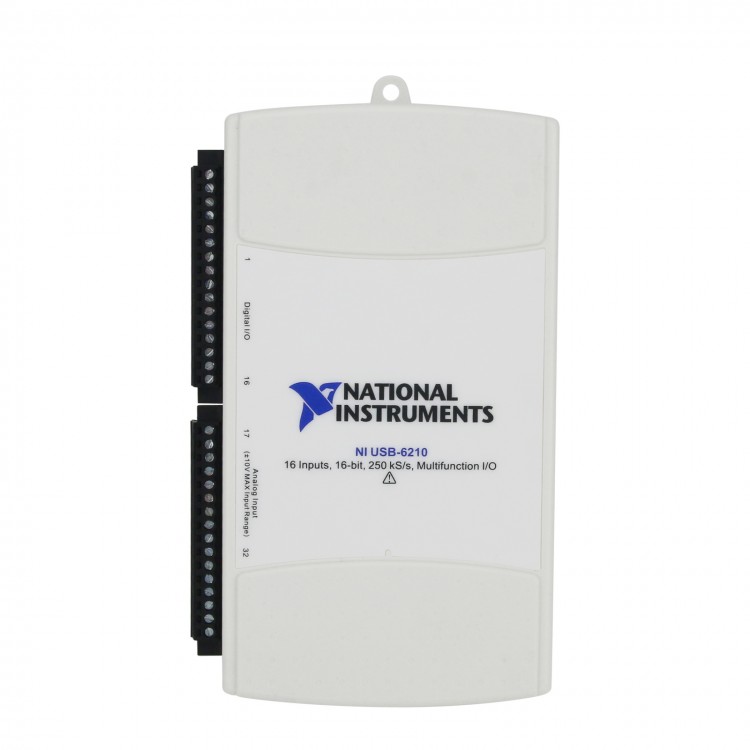

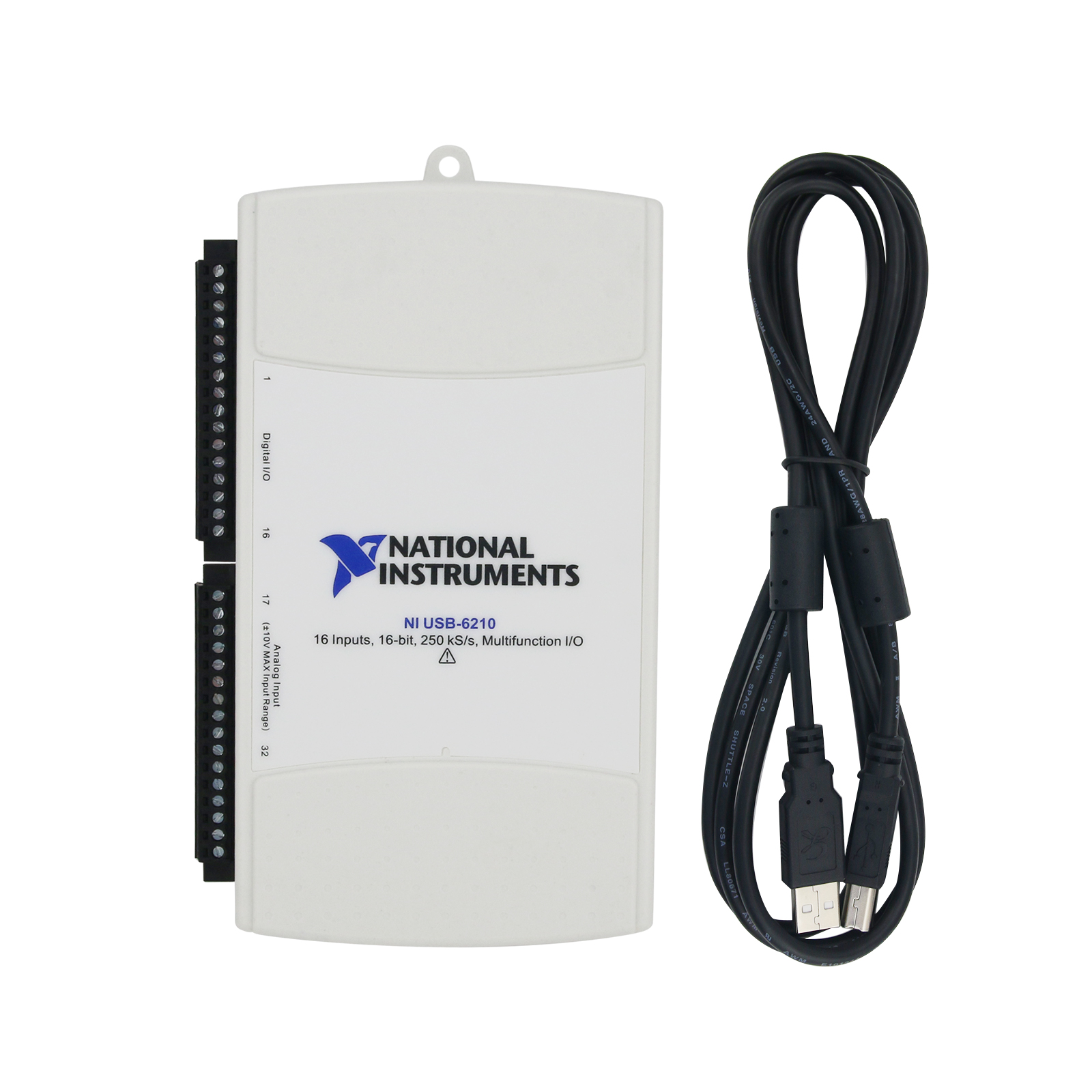

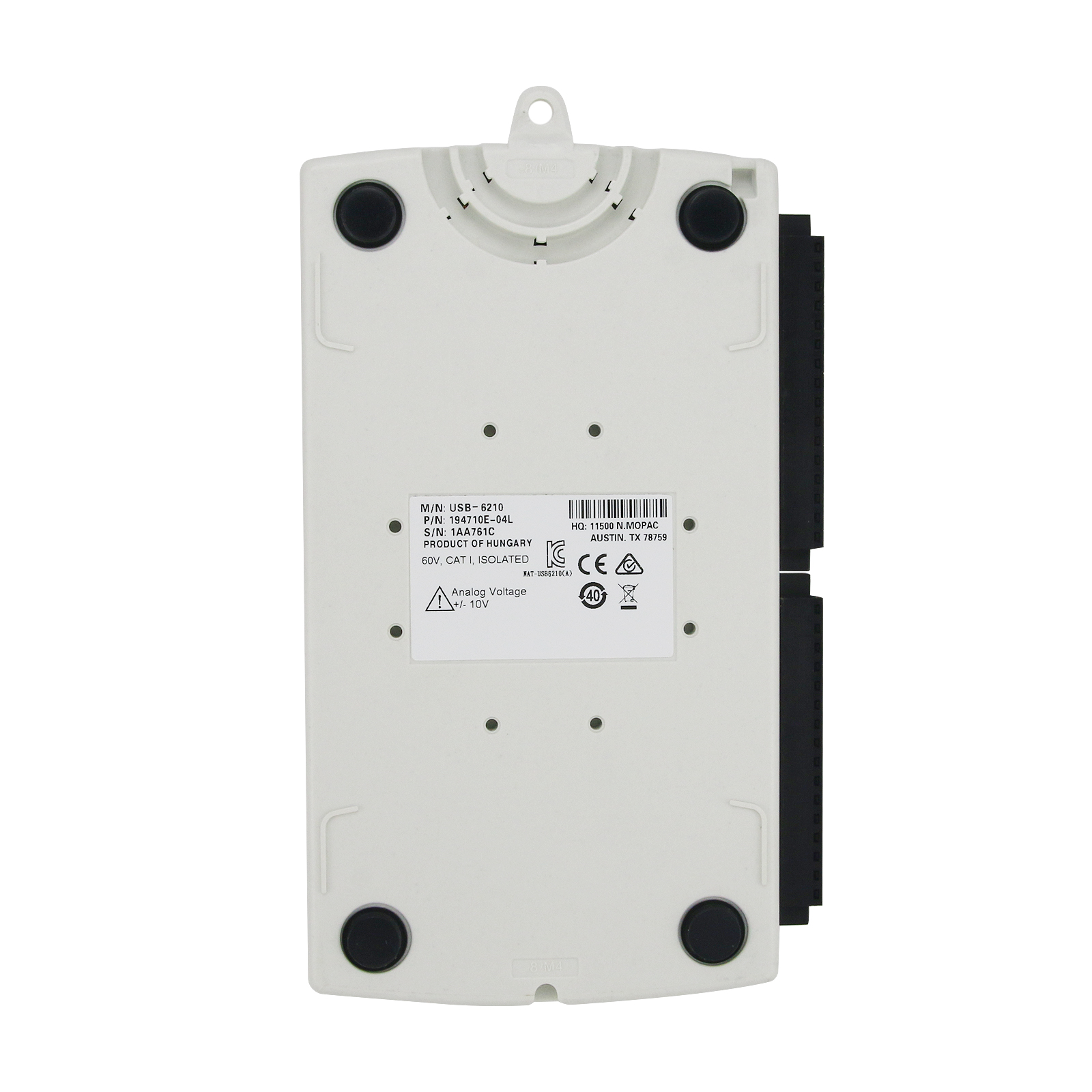

detailed photos
