Global Shutter High Speed 120fps M12 Mounted UVC Plug and Play Driverless Omnivision OV4698 USB Camera Module

Supplier: Shenzhen Brilliant Cmos Technology Co., Ltd.
Region: Guangdong, China
Price: $65.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

port:	Shenzhen	solve:	1920(horizontal) x 1080(vertical)
Supply capacity:	10000000 pieces per month	type:	camera module
Focus type:	focus	model:	CBT-330FF38-01
payment terms:	Western Union, T/T	sensor:	1/3''OV4689
Maximum dynamic range:	64 decibels	Key words:	High Speed 330FPS USB Camera Module
brand:	Spirit	Interface Type:	Hi-Speed USB 2.0
cable length:	1M	FOV (diagonal):	93° (LENS optional)
Origin:	Guangdong, China	aspect:	38mm*38mm

Product Description

product name	330FPS 360P USB 2.0 Monochrome Camera Module
sensor	1/3''OV4689
solve	1920x1080@60FPS, 1280×720@120FPS, 640X360@330FPS

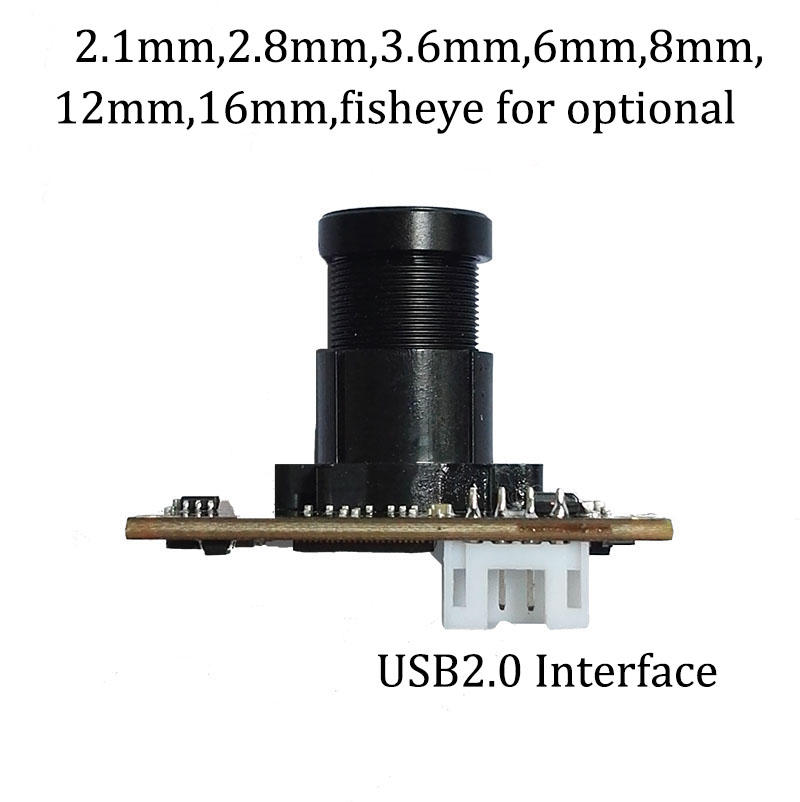

FOV (diagonal)	90° (LENS optional)
focus type	focus
Compression format/Video stream format	MJPEG/YUV2 (YUYV)
shutter type	Electronic rolling door
Maximum dynamic range	64 decibels
SNR	38.3 dB
cable length	1 meter
aspect	38mm*38mm
Compliant with UVC standard	USB Video Class (UVC)
Supported OS	WinXP/Vista/Win7/Win8; Linux with UVC (linux-2.6.26 above; MAC-OS X 10.4.8 or above; Android 4.0 or above, with UVC, Raspberry Pi
Support SDK	No

Main features:

1. High speed 120fps at 1280 x 720p 60fps at 1920X1080p USB camera module 2. High speed USB 2.0 interface 3. High quality image 4. Low power consumption 5. Small form factor for embedded applications 6. UVC compatible for operating systems Windows, Linux , Android, Mac 7.OTG support
