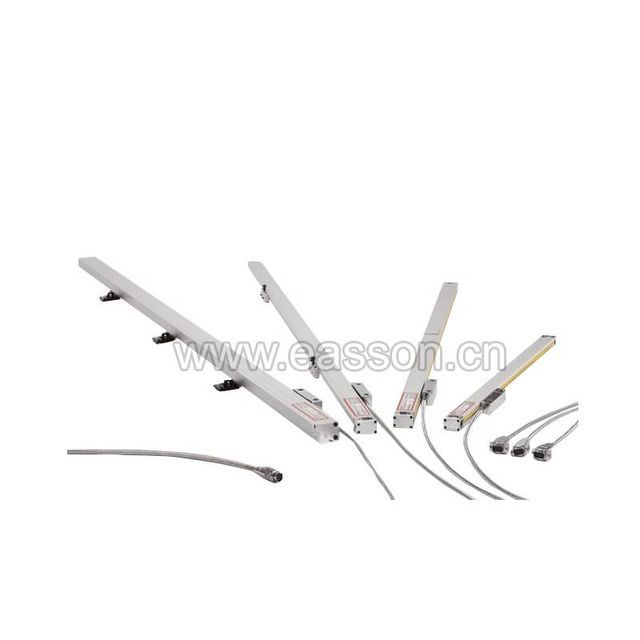

The GS series encoders cover all the most common machine tool and measuring instrument applications. It includes 5 micron and 1 micron scales and two output signals (TTL and RS422A)
[Advanced Optical Measurement System]
The glass slide, grating linear sensor of the GS Series scales features a five-bearing design that has proven to be the most reliable system design on the market today.
The slideway of the glass grating adopts grinding design, adopts JIS standard P5 bearing, the movement is smooth and accurate, and the service life is long.
【Double seal design】
The plastic seals of the GS series scales are made of innovative materials.
Superior oil resistance, high elastic recovery properties and durability. Well-designed lip geometry provides low sliding resistance.
[100% laser alignment]
All glass grating sensors are individually checked and calibrated by our in-house laser calibrator to ensure accuracy 100% to specification.
Specifications:
|

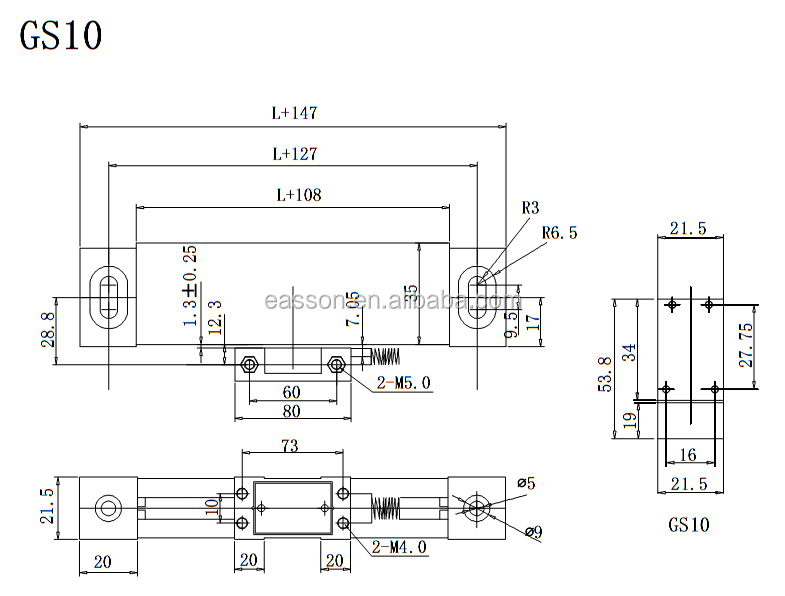

GS10 |
GS11 |
GS12 |
GS13 |
GS20 |
GS21 |
GS22 |
GS23 |
GS30 |
GS31 |
GS32 |
GS33 |
|||||
measurement standard |
Glass ruler - grating period: 20μm (0.020mm) |
||||||||||||||||
Optical Inspection System |
Transmission infrared system, wavelength: 880mm |
||||||||||||||||
Slide rack system |
Vertical five-bearing support system |
Vertical five-bearing support system |
Vertical five-bearing support system |
||||||||||||||
solve |
5μm |
1 micron |
5μm |
1 micron |
5μm |
1 micron |
5μm |
1 micron |
5μm |
1 micron |
5μm |
1 micron |
|||||
measure length |
100-1200mm |
Every 50mm per length specification |
|
Every 50mm and every length specification can reach 500mm |
|||||||||||||
1300-3000mm |
|
Every 100mm per length specification |
|
||||||||||||||
accuracy |
100-450mm |
±6μm |
±4μm |
±6μm |
±4μm |
|
±6μm |
±4μm |
±6μm |
±4μm |
|||||||
500-800mm |
±10μm |
±8μm |
±10μm |
±8μm |
|
|
|||||||||||
1050-1200mm |
±15μm |
±12μm |
±15μm |
±12μm |
|
|
|||||||||||
1300-3000mm |
±25μm |
||||||||||||||||
repeatability |
2μm (0.002mm) |
||||||||||||||||
hysteresis |
3μm (0.003mm) |
||||||||||||||||
Protect |
DIN 40050 IP53 |
||||||||||||||||
power supply |
DC 5V±5% |
||||||||||||||||
output signal |
TTL |
TTL |
ELA-422-AELA-422-A |
TTL |
TTL |
TTL |
ELA-422-AELA-422-A |
TTL |
TTL |
TTL |
ELA-422-AELA-422-A |
TTL |
