Upgraded PortaPack H2 + HackRF one SDR radio receiver assembled with LNA SMA cable

describe:
The official firmware created for PortaPack has several decoders and transmitters built in, but the third-party "Havoc" firmware is really what you'll want to use as it includes more decoders and transfer options.

work progress:
1. Completed program verification prototype.
2. The latest document as of May 2017, on an improved basis.

Capture and playback:
- One of the great things about the PortaPack is that it can capture and replay wireless signals from ISM band remotes very easily.
- Create a catch. You just need to go to the 'Catching' menu, set the frequency of the remote, press the red 'R' Record button, then press the key on the remote.
- Then stop recording to save it to SD card.
- Now you can go to the replay menu, select the file you just recorded and hit play. The exact same signal will be transmitted over the air, effectively replacing your key fob.

Microphone Transmitter:
- Using the 3.5mm audio jack, the Portapack can also be used as a standard push-to-talk or voice-activated walkie-talkie radio. Plug the microphone into the audio
Jack just needs to hold down the right button to make a call.
- If desired, you can also enable multiple CTCSS tones options, as well as tones that appear to be transferred to wireless headphones

Other launchers:
- There are generic OOK transmitters that can be programmed with custom data. This mode might be useful for experimenting with simple key fobs or things like home, automation switches.
- Many transfer modes implemented are buggy in most countries and can cause you huge trouble. These launchers are purely for internal testing of Faraday cages!

receiver:
By connecting speakers to the Portapack's 3.5mm audio jack, you can easily listen to standard NFM and WFM audio signals. ADS-B reception can be easily enabled on the PortaPack by selecting the inductor and lightning symbol in the upper right corner. With the offset tee enabled, you can receive the plane.

Hardware Configuration:
- 3.2 inch TFT240*320 screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4 layers of gold plating
- ROSH process (exported to Europe and America)

The latest version was updated with the latest documentation in May 2017.

Add the PortaPack to your HackRF One software-defined radio and leave your laptop behind! The PortaPack connects to your HackRF and adds a touchscreen LCD, navigation controls,
headphone jack, real time clock, micro SD card slot,

Just add a USB battery and explore the radio spectrum anytime, anywhere. The PortaPack firmware runs on the fast ARM processor in your HackRF. No computer required (except for reprogramming the firmware).

HAVOC features include:
- IQ file playback
- Microphone FM transmission with CTCSS
- CTCSS decoder
- Frequency manager (save and load from SD card with categories and notes)
- file manager
- "Soundboard" wave file player (puts 8-bit mono files in SD card/wav directory)
- ADS-B receiver with map view
- SSTV transmitter
- Fully configurable transmission signals
- POCSAG transmitter
- POCSAG receiver/decoder
- Morse Transmitter (FM Tone and CW)
- OOK transmitter for normal remote control encoders (PT2262, doorbell, remote socket, some garage doors...)
- RDS (Radio Data System) PSN, RadioText and Time Group Transmitters
- Weather Radiosonde Receiver for M10 and M2K2...
- AFSK receiver
- AFSK transmitter (Bell202...)
- Nuoptix DTMF Sync Transmitter
- TouchTunes Jukebox Universal Remote
- LCR (Language de Commande Routier) message generator
- Street Lighting Control Transmitter (CCIR Tone)
- "play dead" in an emergency
- Fully configurable RF signal generator
- RSSI audio output as pitch (for direction finding)

feature:
- 3.2", 240 x 320 RGB LCD with resistive touch panel.
- Four-way arrow keys, spin wheel and selection buttons.
- Coin cell battery for saving settings and date/time.
- Micro SD card slot for data and code storage
- Some of the features shown in the firmware video on 22 February 2016:
- SSB, AM, Narrowband FM, Wideband FM audio reception with Spectral Waterfall.
- Wideband (18MHz) spectrum analysis and waterfall.
- Monitoring Ships (AIS), Vehicles (TPMS) and Utility Meter Transponders (ITRON ERT).
- HackRF mode runs the HackRF firmware for use with the host SDR software.
- PM calibration for more accurate tuning.
- Sleep mode saves power by only turning off the display.
- You may also find the Furrtek HAVOC firmware very interesting!

When you put the PortaPack in "HackRF Mode", your HackRF will continue to use the computer-based SDR software.

PortaPack is only compatible with HackRF One. It is not compatible with earlier HackRF Jawbreaker designs. If an RF shield is installed on your HackRF,
PortaPack should be a good fit. Compatibility with HackRF Blue is experimental. One Blue owner reported good results with little mechanical disturbance
Between the PortaPack audio capacitors and the baseband header. If your HackRF Blue does not have a baseband header installed, there should be no mechanical issues.

The PortaPack requires an external battery. Any battery connected to USB should work, although they vary widely in quality, and a poorly designed battery can inject regulator noise into the radio.

The PortaPack and HackRF One will not replace your handheld ham radio receiver. Reception sensitivity varies by frequency band, but performance is not as good as a true amateur radio receiver.

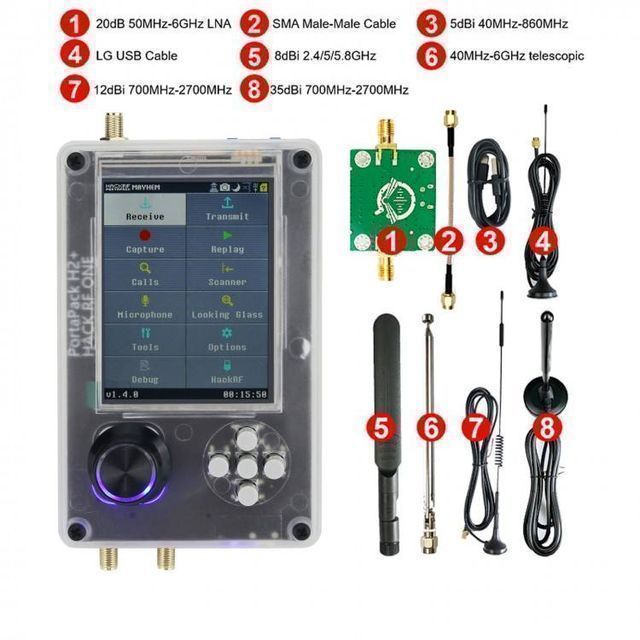

Package Included:
- 1 x SDR Radio (Upgrade PortaPack H2+HackRF One)
- 1 x 2.4/5/5.8GHz Antenna
- 1 x 35DBi GSM/3G/4G Antenna
- 1 x 40MHz-6GHz Telescopic Antenna
- 1 x 40MHz-860GHz Antenna
- 1 x 700MHz-2700MHz
- 1 x USB cable

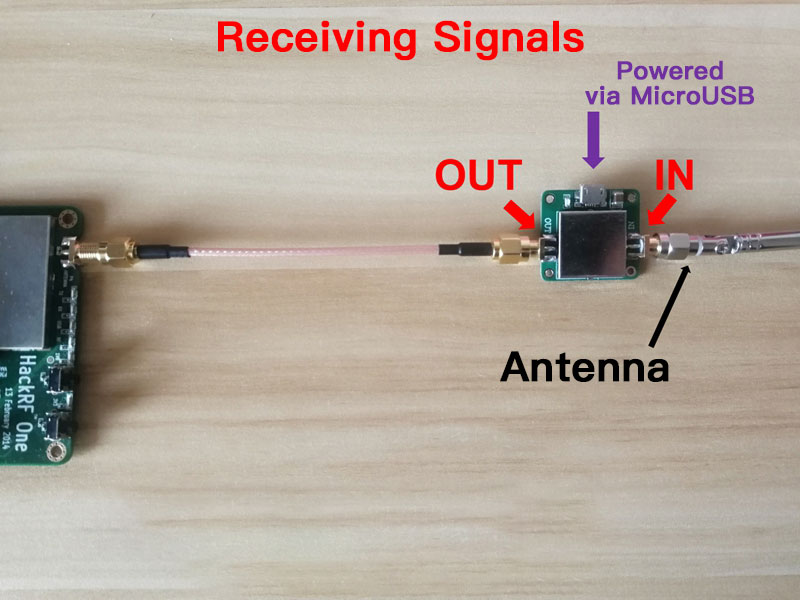

- 1 x LNA board
- 1 x SMA cable

NOTE: It is assembled and ready to use.
