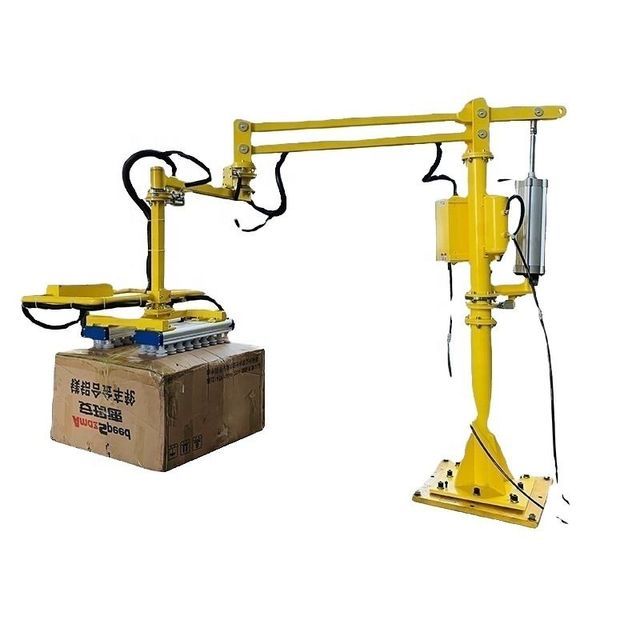

China professional industrial pick and place manipulator arm pneumatic manipulator for blocks and bricks

Supplier: Jiangyin Tongli Industrial Co., Ltd.
Region: Jiangsu, China
Contact: Ms Fenny Wang
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

type:	semi-automatic	Local service location:	not any
Vertical stroke(mm):	1.5-2 meters	Number of control axes:	1~5 axis
weight:	350 kg	Dimensions (LWH):	non-standard
Action type:	multi-joint	After warranty service:	Video technical support, online support
Key words:	Material Handling Equipment	OEMs and Design Manufacturers:	custom manipulator
Core components:	Gearboxes, pressure vessels, pneumatic components	Packaging Details:	Mechanical Arm Vacuum Manipulator Telescopic Small Crane Mini Lifting Crane 1. Packaging Details: Plastic bag inside, standard export carton outside, or according to customer requirements. 2. Delivery: by sea, according to customer's needs.
thing:	small crane	Maximum load:	500 kg
Health status:	new	Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, food and beverage plants, retail, construction, energy and mining, foundry industries
Package preview:		Showroom location:	not any
port:	Shanghai	strength:	220V
Certification:	International Organization for Standardization	Function:	parts transfer
Mechanical test report:	if	Warranty:	1 year
Core component warranty:	1 year	Origin:	Jiangsu, China
Supply capacity:	10 robotic arm vacuum manipulator telescopic small hoist mini lifting per month	Marketing Type:	New Products 2020
Horizontal stroke(mm):	less than 2500mm	After-sales service provided:	online support
Video shipment inspection:	if	product name:	Building block robotic arm pneumatic manipulator
brand:	Tongli	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Material:	Stainless steel

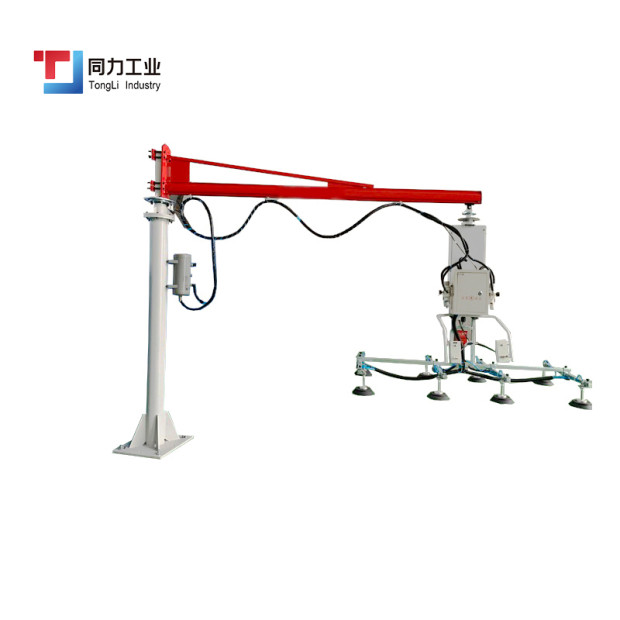

Robotic arm vacuum manipulator telescopic small hoist mini lifting crane

Six reasons why you must choose our manipulator.

Flexible operation, saving time and effort

Reduce staff and lower costs

Durable, energy-saving and efficient

Send Inquiry>>

Click to learn more! ! !

Product Description

With the high development of modern high-tech forces, more and more advanced technologies are applied to logistics activities, and one of the relevant important applications is the transportation manipulator. It has the advantages of simple structure, light weight, fast moving speed, stability and reliability, energy saving and environmental protection.

Handling manipulators usually have the following three characteristics:
1. The pins can be designed with pneumatic or mechanical clamps and vacuum suction cups.
2. Each arm is individually designed for practical use. The metal body of the robot is suitable for various industrial applications.
3. The watch moves, lifts and clamps through the PLC or industrial computer to complete the setting tasks.

Industrial Technical Parametersmanipulator

Model	working pressure (bar)	maximum. action radius (rice) (can be adjusted according to the actual situation)	maximum payload (Kilogram)	Maximum lifting stroke (rice) (can be adjusted according to the actual situation)
TLJXS-50	5	2.5	50	2
TLJXS-75	5	2.5	75	2
TLJXS-100	5	2.5	100	2
TLJXS-125	5	2.5	125	2
TLJXS-150	5	2.5	150	2
TLJXS-175	5	2.5	175	1.5
TLJXS-200	5	2.5	200	1.5
TLJXS-250	5	2.5	250	1.5
TLJXS-300	5	2.5	300	1.5
TLJXS-400	5	2.5	400	1.5
TLJXS-500	5	2.5	500	1.5
The working radius and lifting stroke can be set according to the workpiece size and site requirements

Manipulator application:

The company's products are widely used in glass industry, packaging industry, paper printing industry, construction industry, machinery manufacturing, foundry industry, chemical pharmaceutical industry, auto parts industry, auto assembly and many other industries.

It can handle workpieces and products of various shapes and weights. For example, bags, cartons, chemical drums, oil drums, jumbo plastic rolls, glass, sheets, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, cowls, sunroofs, dashboards, cylinder heads, etc. . The fixture of each manipulator is specially designed and manufactured according to the specific situation of the customer.

supplyclampCustomized services to meet the needs of various industries!
