Function: | Manufacturing of multifunctional plastic products | Plastic Type: | thermoplastic |
Mechanical test report: | if | brand: | China & |
Tie rod spacing (height) (mm): | 810mm | Injection weight (g): | 2200 g |
type: | Preform injection | heating power: | 33kW |
Fuel tank capacity: | 1000L | Ejector stroke (mm): | 210 mm |
Weight (kg): | 23500kg | Machine Dimensions (L*W*H): | 8.4*2.2*2.6m |
Theoretical injection volume (cm³): | 2418 cubic centimeters | Key words: | Plastic product making machine |
model: | SZ-5500A | style: | horizontal |
Injection rate: | 427--541g/s | Packaging Preview: | |
place of origin; place of origin: | Jiangsu, China | Ejection force (kN): | 150kN |

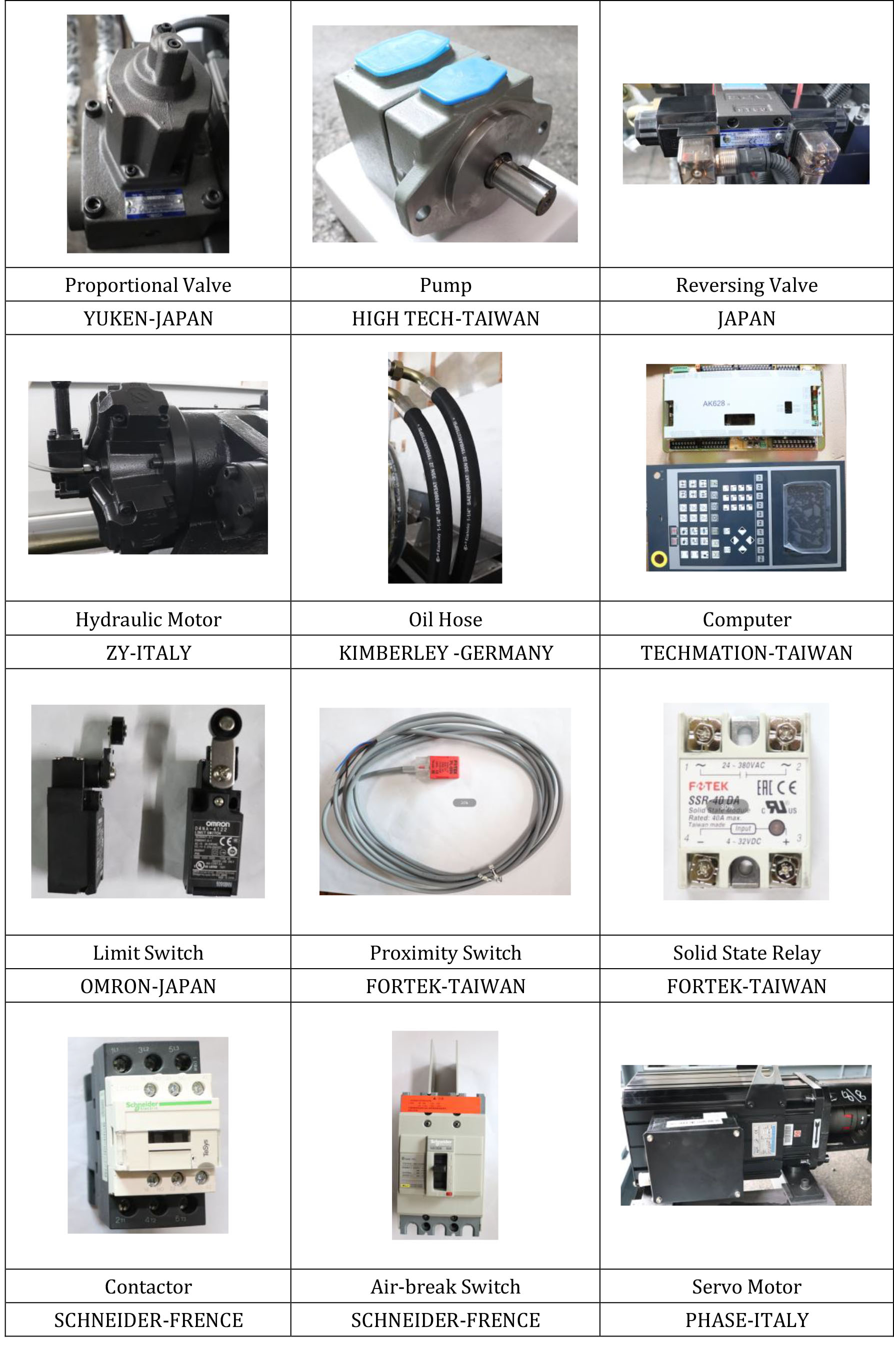

automatic: | Yes | Core components: | Bearings, Motors, Pumps, Gears, PLCs, Others, Pressure Vessels, Engines, Gearboxes, Screws |
Injection rate (g/s): | 482 g/sec | Showroom location: | not any |
Power (kW): | 55 kW | advantage: | Energy saving and high efficiency |
Main selling point: | competitive price | Marketing Type: | Hot Products of 2019 |
Type of machine: | hydraulic | Opening stroke (mm): | 820 mm |
Packaging Details: | Automatic plastic injection molding machine machine fixed on wooden board for sale | Video external inspection: | if |
Warranty: | 1 year | Tie rod spacing (width) (mm): | 810mm |
Supply capacity: | 50 automatic injection molding machines per month | Health status: | new |
Screw diameter (mm): | 85 mm | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
Core Components Warranty: | 1.5 years | product name: | chair tube hanger making injection molding machine price |
Plastic Processing: | PP,PC,ABS,PET,PVC,PPR,PE | Applicable industries: | Hotels, building materials stores, manufacturing plants, food and beverage factories, household, other |
port: | Shanghai |
Injection device | ||||||||
thing | unit | value | ||||||
C screw diameter | mm | 80 | 85 | 90 | ||||
Screw aspect ratio | long/deep | 22.3 | twenty one | 19.8 | ||||
Theoretical shot volume | cm^3 | 2141 | 2418 | 2710 | ||||
Display Weight (PS) | G | 1948 | 2200 | 2466 | ||||
injection pressure | MPa | 188 | 167 | 149 | ||||
Theoretical injection rate (PS) | g/s | 427 | 482 | 541 | ||||
Plasticizing ability | g/s | 80 | 100 | 118 | ||||
screw torque | New Zealand rice | 5170 | ||||||
Maximum screw speed | rpm | 150 | ||||||
Injection stroke | mm | 425 |

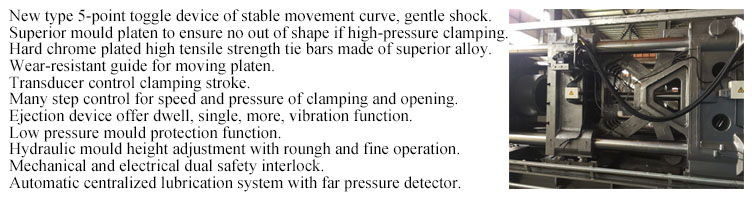

Clamping device | ||||
thing | unit | value | ||
maximum clamping force | KN | 5500 | ||
Maximum opening stroke | mm | 820 | ||
space between tie rods | mm | 810×810 | ||
Mold height | mm | 350~820 | ||
maximum daylight | mm | 1640 | ||
Ejection | kn | 150 | ||
Injector stroke | mm | 210 | ||
Number of injectors | personal computer | 13 |
other | ||||
thing | unit | value | ||
Pump motor power | kilowatt | 55 | ||
pump pressure | MPa | 16 | ||
heating power | kilowatt | 33 | ||
heating zone | 6 | |||
size | Meter | 8.4×2.2×2.6 | ||
net weight | Ton | 23.5 | ||
Fuel tank capacity | large | 1000 | ||
International designation | 5500-4040 |
