Machines For Making Nails And Screws / Nail Making Machine Price Screw

Product details
Model:Z94-1/2/3/4/5.5CMechanical test report:if
Nail length:16-150mmApplicable industries:Building materials stores, manufacturing plants, construction projects
Main selling point:automaticCard:Hongshuo
Power (kW):2.2brand:Hongshuo
Video external inspection:ifType of machine:screw machine
Weight (kg):1150kgHealth status:new
place of origin; place of origin:Henan, Chinapayment terms:L/C,Western Union,T/T,MoneyGram
Production capacity:300 sets per monthShowroom location:not any
color:customer requestWarranty:2 years
Supply capacity:200 sets per monthRaw materials:Low carbon steel wire
Core Components Warranty:2 yearsPackaging Details:Wooden box or sea worth. screw machine
Nail Diameter:0.9-5.5mmPackaging Preview:
product name:screw machineDesign speed:high speed
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpMarketing Type:normal product
Material:Q195 steelport:Qingdao Port

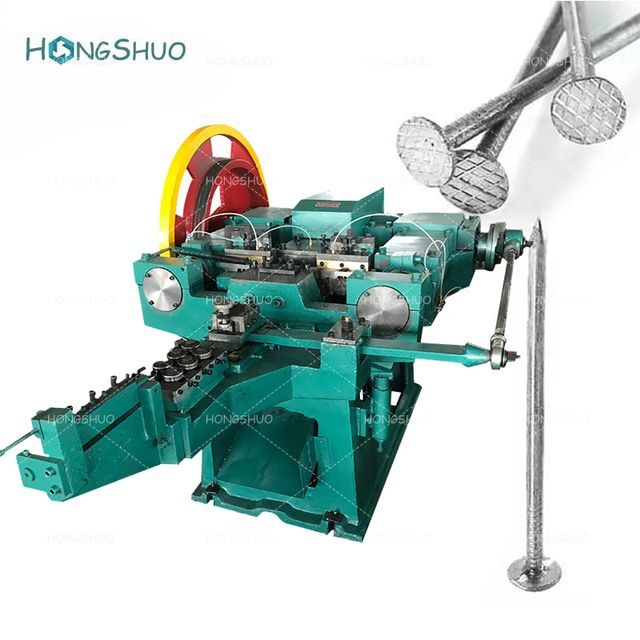

Machines for making nails and screws / nail making machines price screws
Product Description

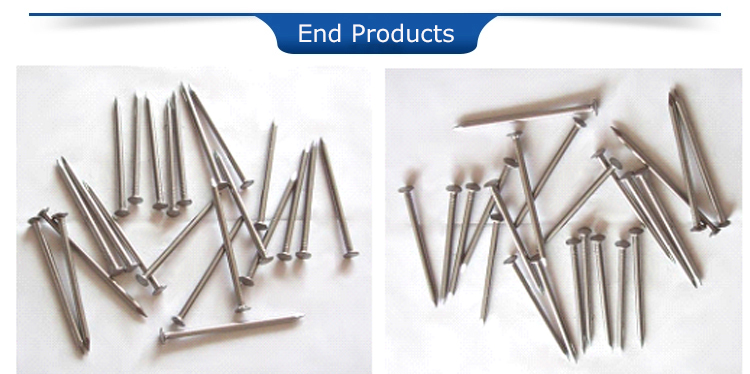

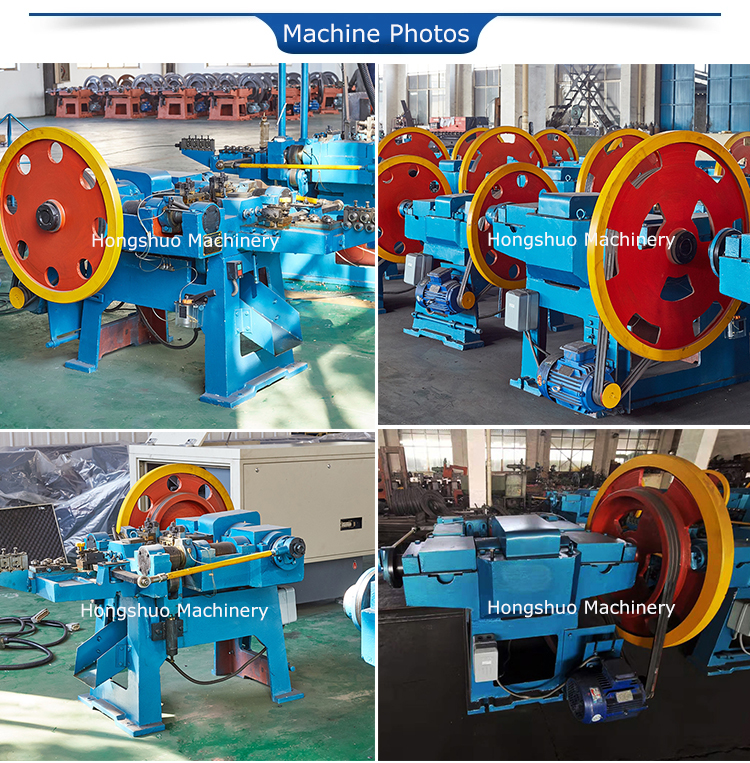

Z94-C series can make ordinary round nails.This machine adopts the piston type structure, which ensures the characteristics of fast working speed, low noise and low impact probability.
Tell us the length and diameter of the nails you want to produce
Model
Z94-1C
Z94-2C
Z94-3C
Z94-4C
Z94-5.5C
maximum. diameter nails
1.6mm
2.8mm
3.5mm
4.5mm
5.5mm
minute. diameter nails
0.9 mm
1.2 mm
1.8 mm
2.8 mm
3.8mm
maximum. nail length
25mm
50mm
75mm
100mm
150mm
minute. nail length
9mm
16mm
30mm
50 mm
80mm
Motor Power
1.5kW
2.2kW
3kW
4kW
5.5kW
Nail making speed
450/min
380/min
320/min
260/min
220/min
length*width*height
1.5*1.3*1.2m
1.7*1.3*1.4m
2.0*1.4*1.4m
2.2*1.6*1.65m
2.5*1.6*1.5m
weight
0.8 tons
1.15 tons
1.5 tons
1.8 tons
2.1 tons
output
80kg/8 hours
500 kg/8 hours
800kg/8 hours
1500kg/8 hours
2000kg/8 hours
Tell us the model of your choice
