Voltage: | 380V | Supply capacity: | 500 sets of jute bag presses per month |
Applicable industries: | printing shop, bag printer | kilowatt: | Non-woven bag printer |
Function: | Non-woven bag printing machine | Core Components Warranty: | 1 year |
Main selling point: | easy to operate | port: | Qingdao/Shanghai/Guangzhou |

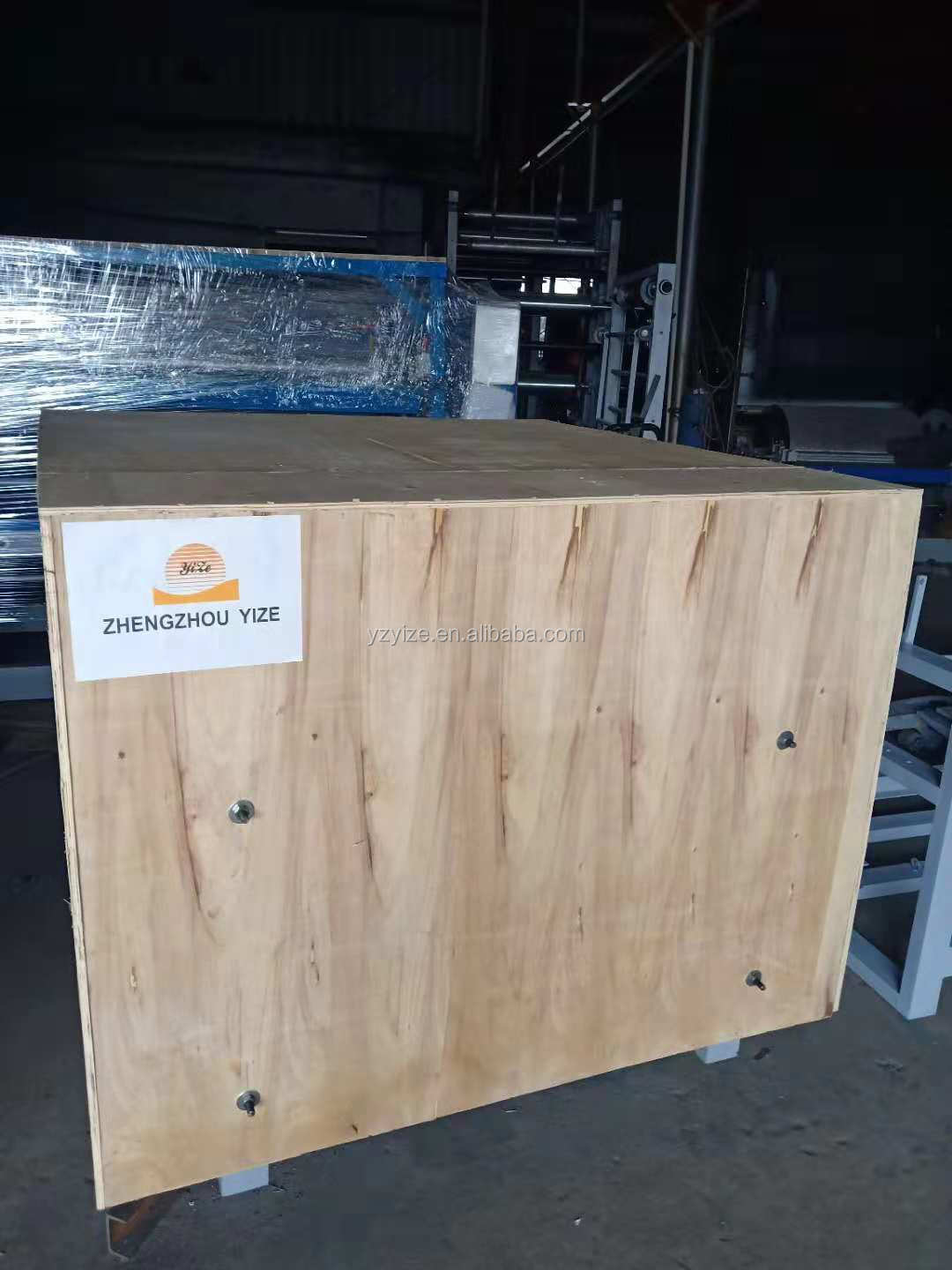

Auto grade: | semi-automatic | Packaging Details: | Nylon 4-color flexo non-woven bag paper printer will be packed in standard export wooden box. |
place of origin; place of origin: | Henan, China | usage: | paper bag printing machine |
Warranty: | 1 year | usage: | paper printer, plastic bag, non-woven bag, paper bag, non-woven printer |
feature: | pp woven bag printing machine | Key words: | rice bag printing machine |
Advantage: | paper bag printer | Mechanical test report: | if |
application: | No woven paper bag | printing speed: | 60m/min |
Printing width: | 650mm | Dimensions (L*W*H): | 1400*1400*1100mm |
Plate type: | Flatbed printer | Print size: | 650mm |
type: | flexo printing press | weight: | 650kg |
product name: | non woven bag printing machine price | Health status: | new |
Video external inspection: | if | Name: | Nylon 4 color flexo printing machine non-woven bag paper printing machine |
structure: | queue | Core components: | motor |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance | Colors and Pages: | Polychromatic |
brand: | YZ |

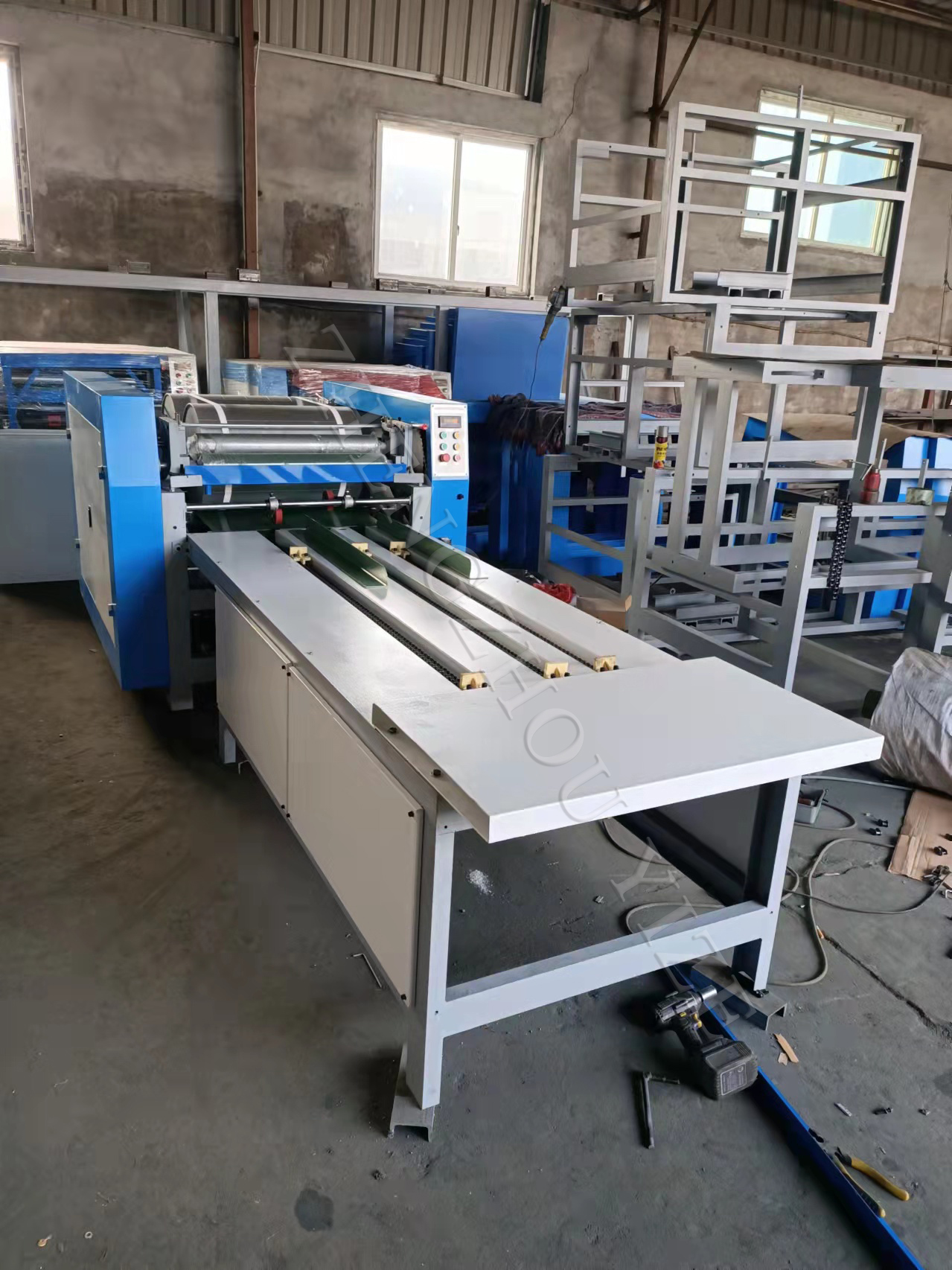

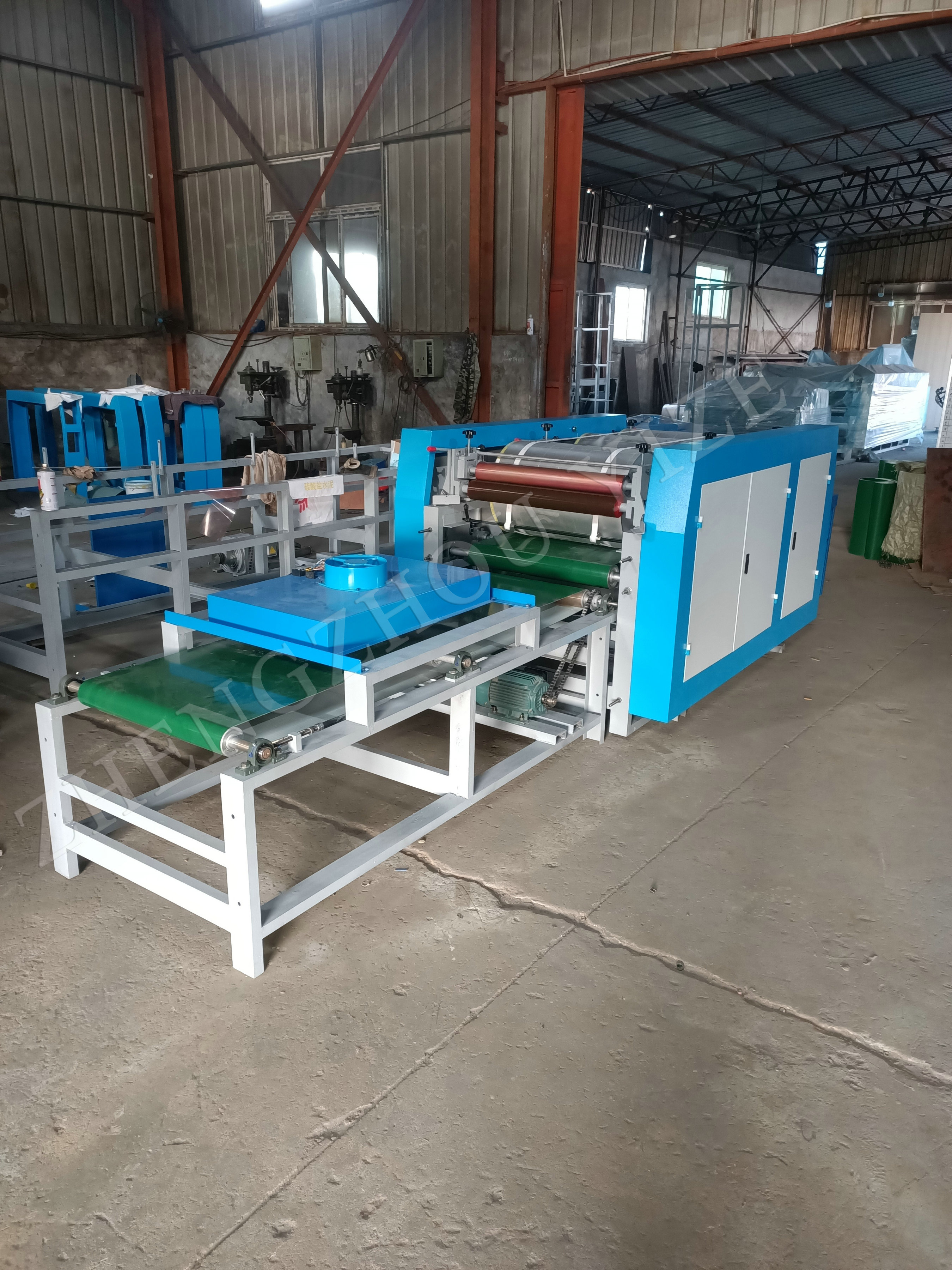

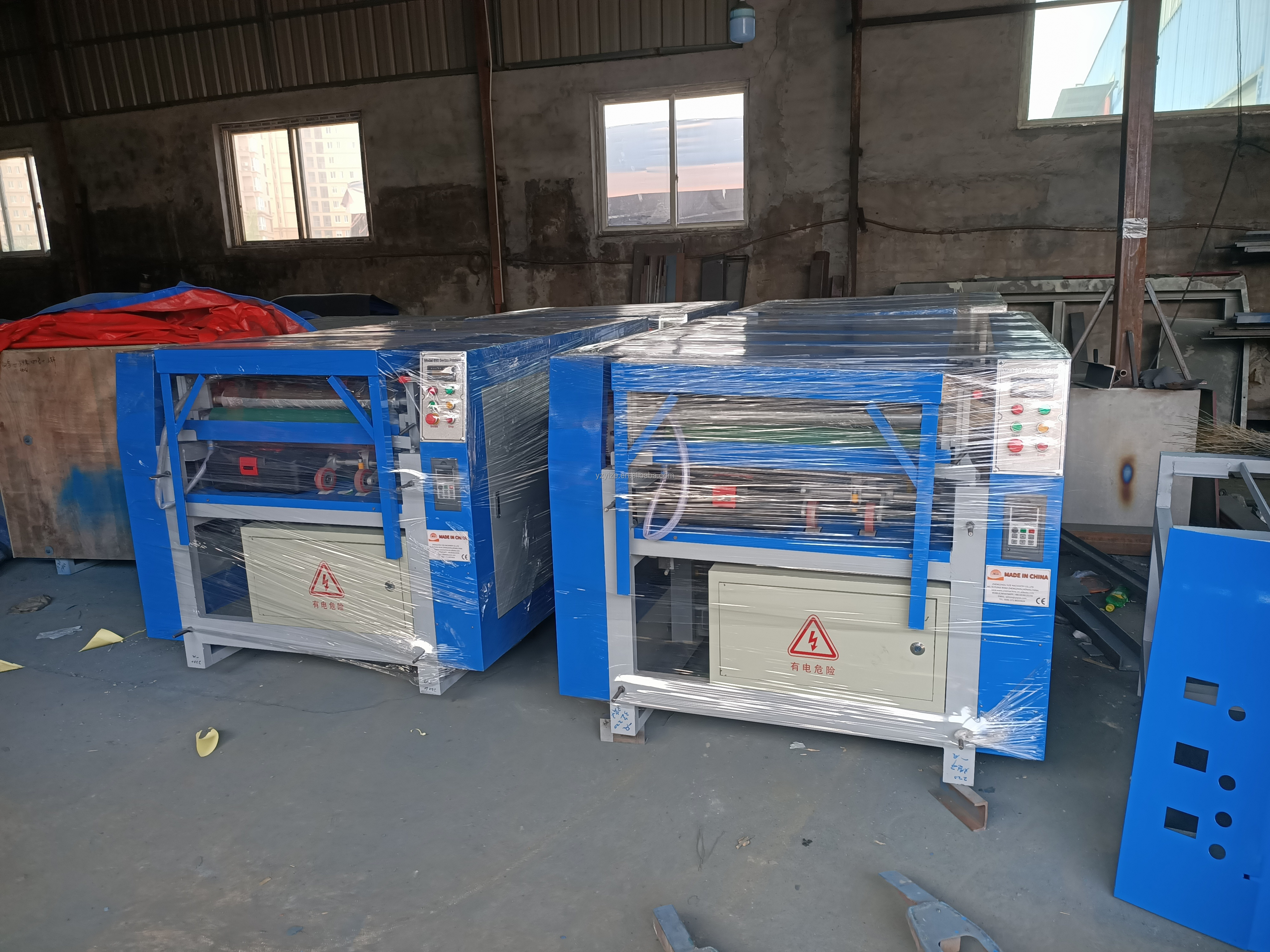

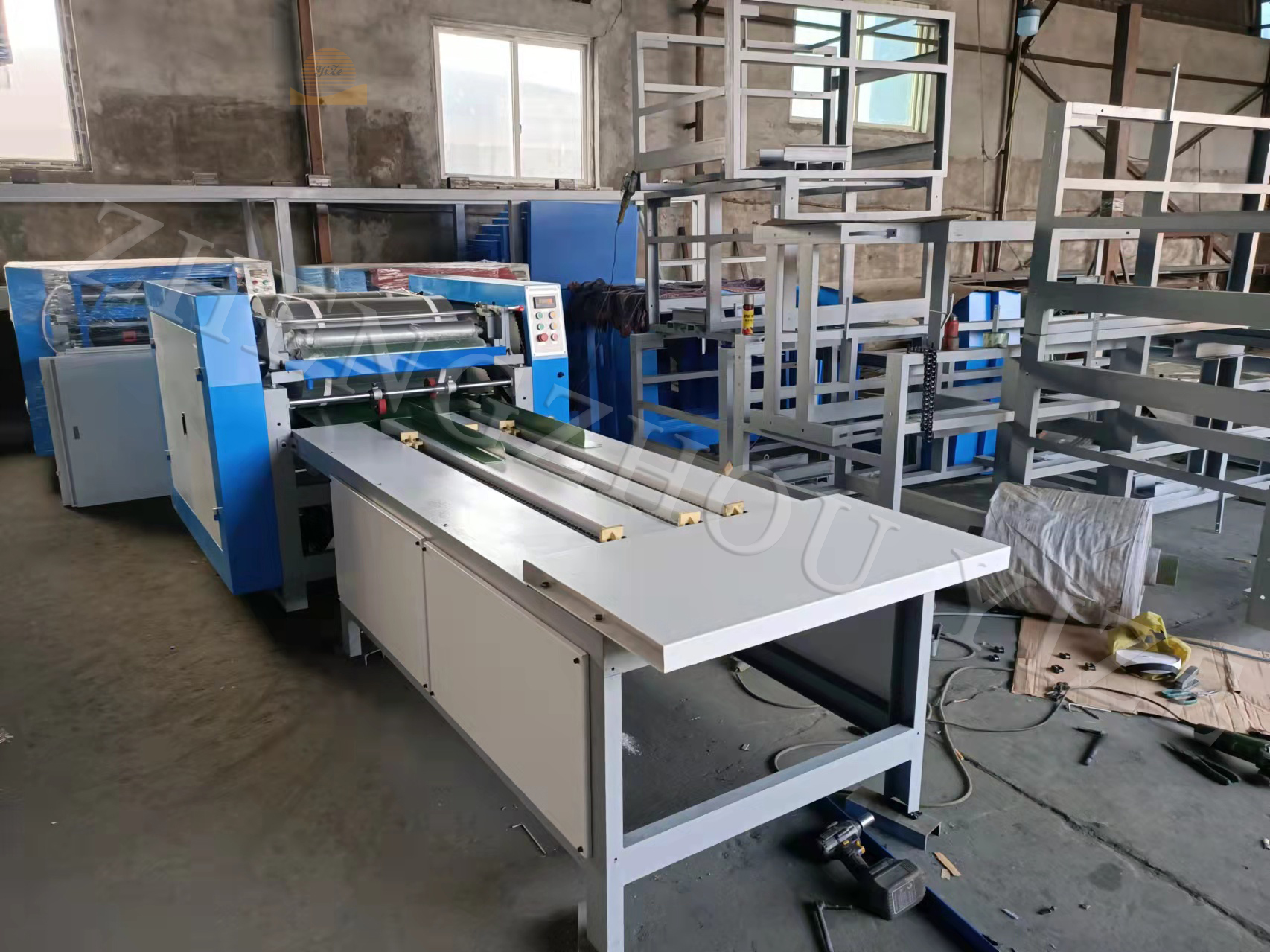

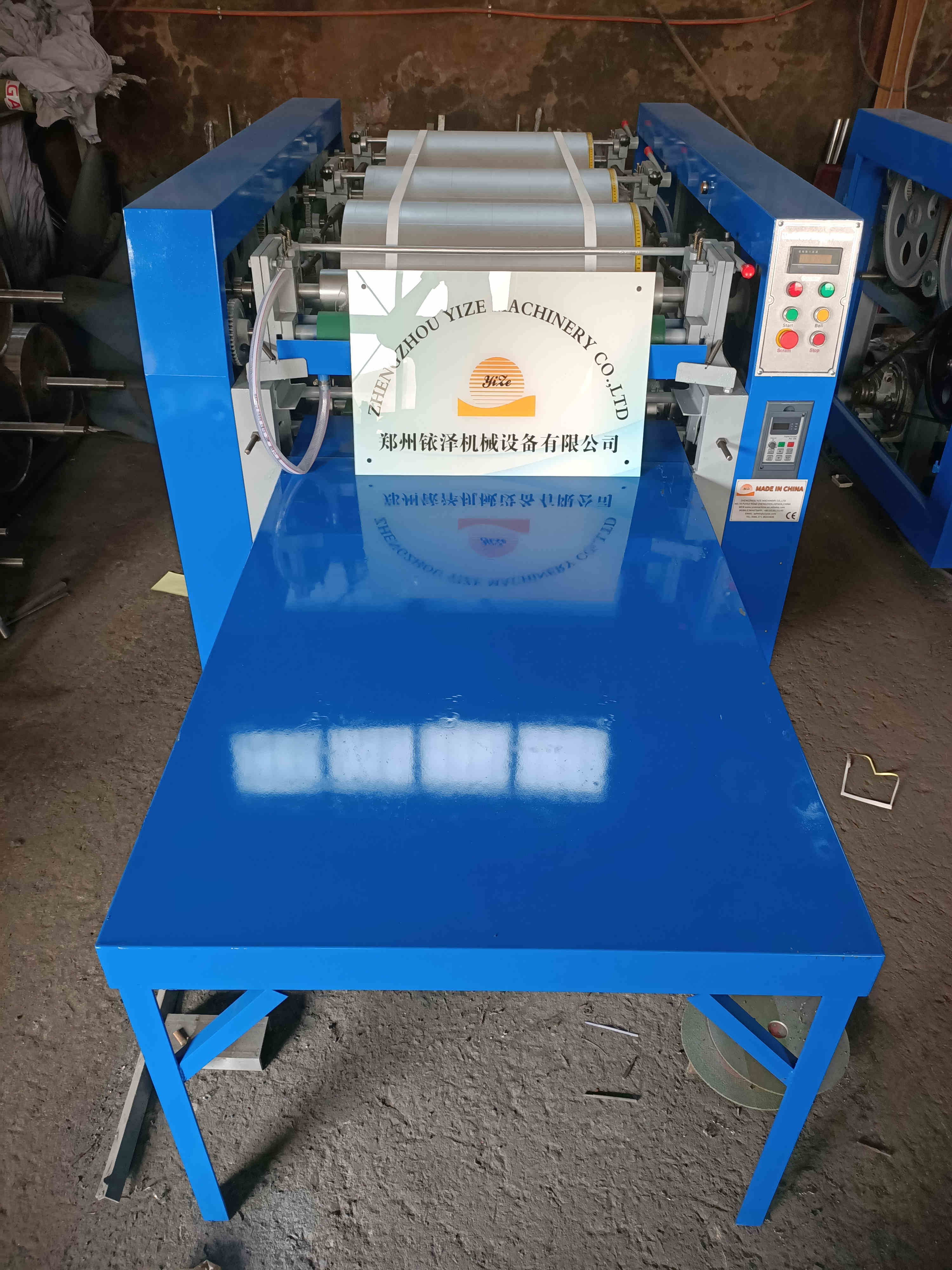

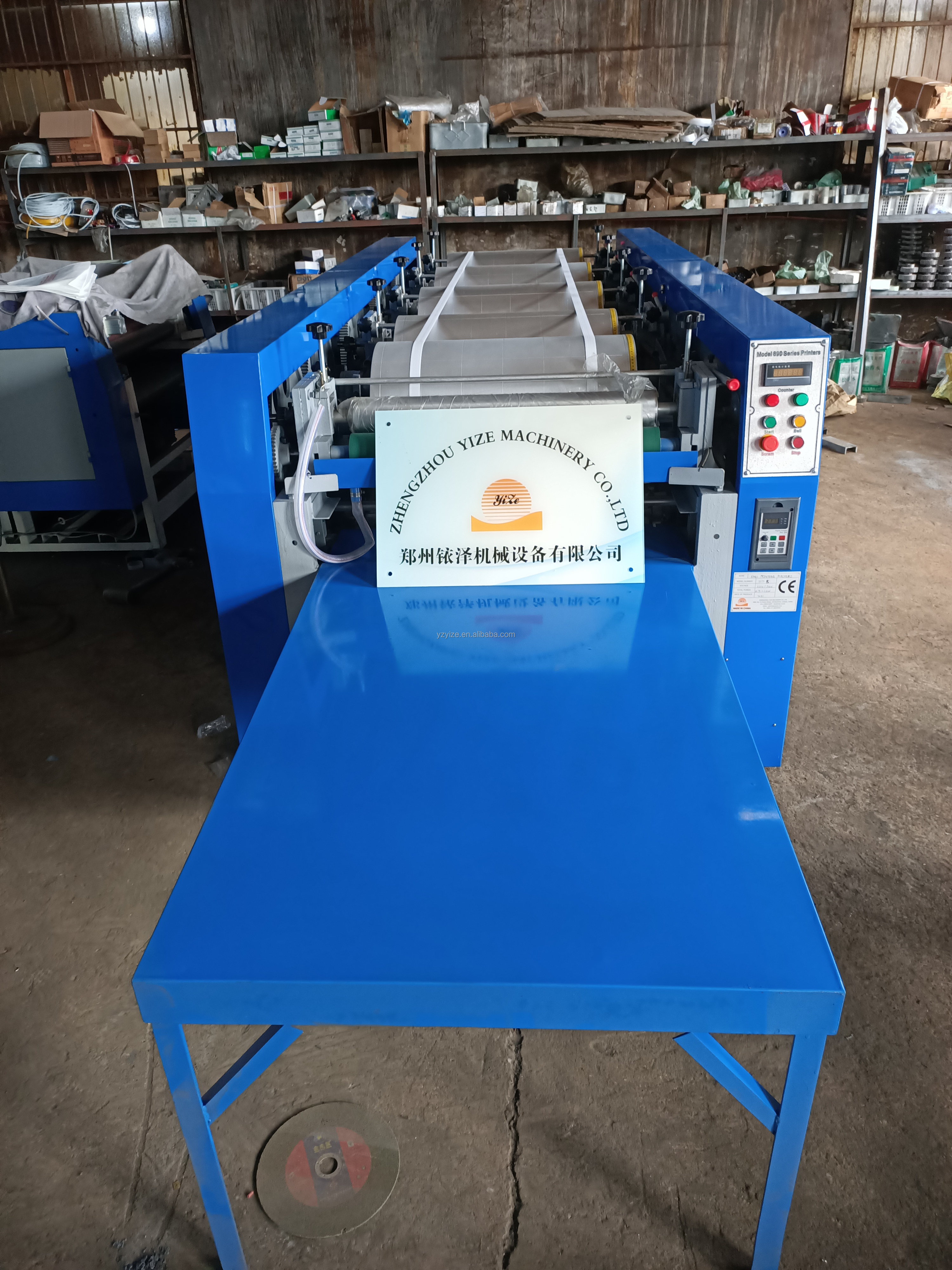

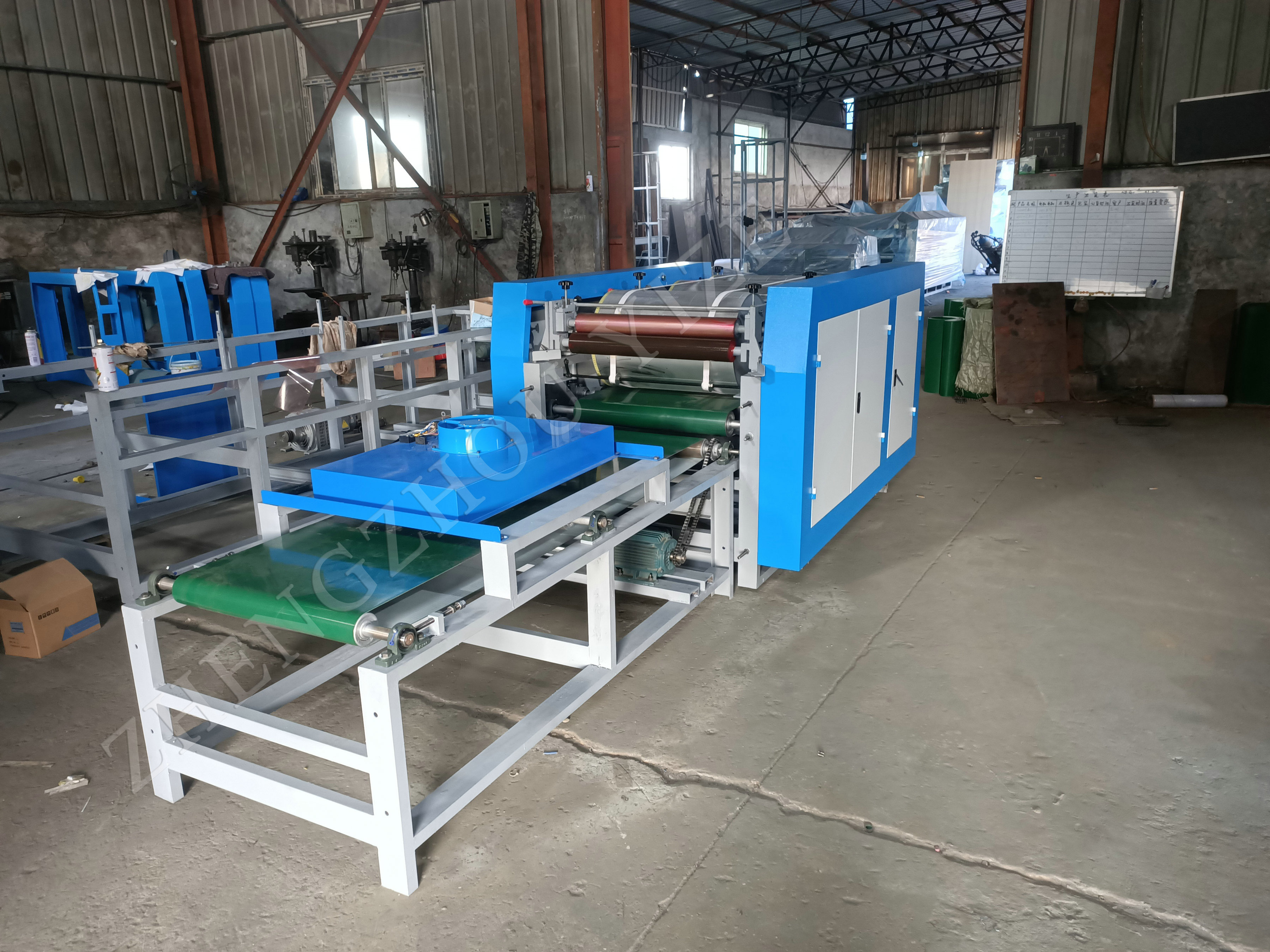

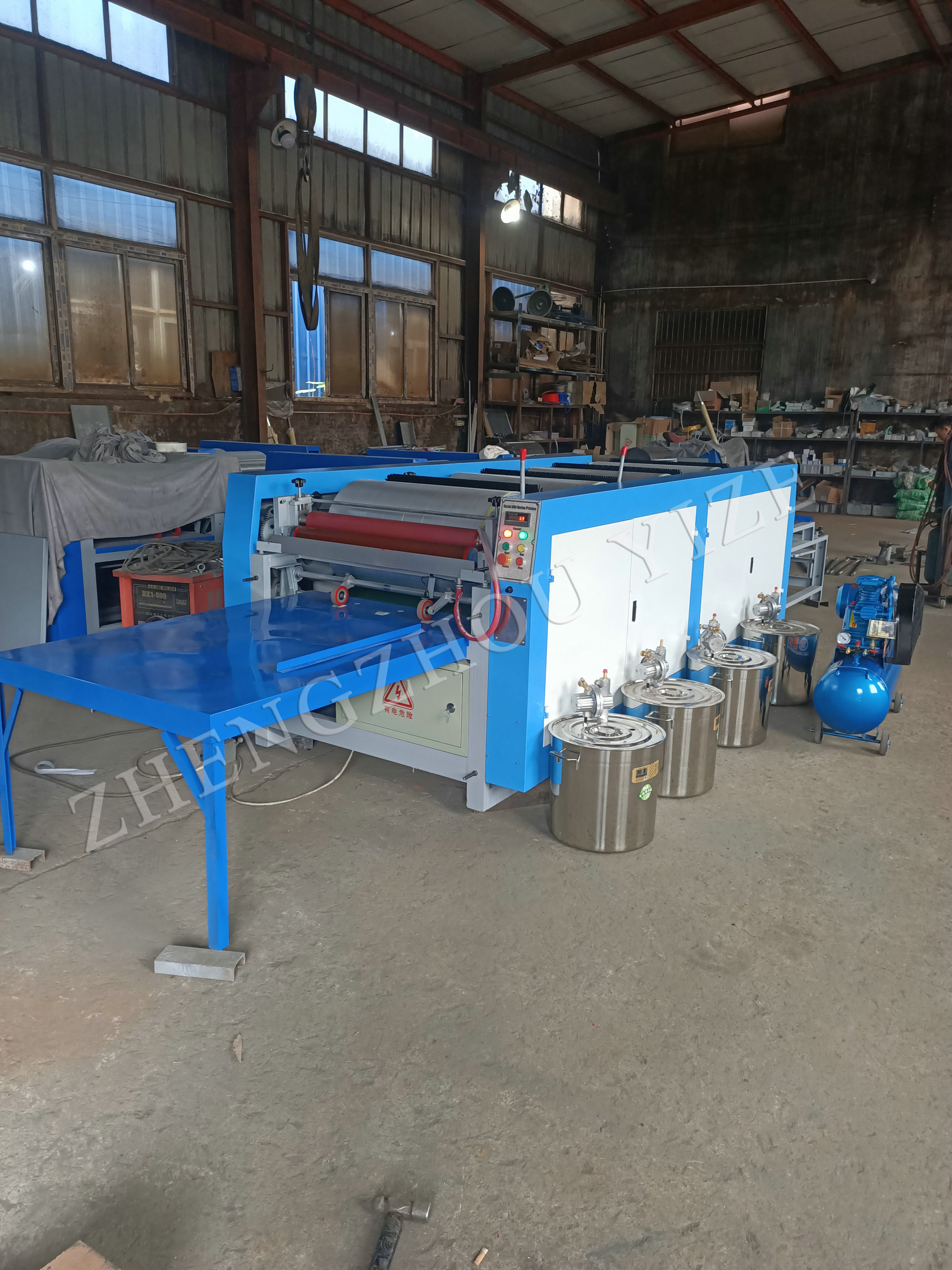

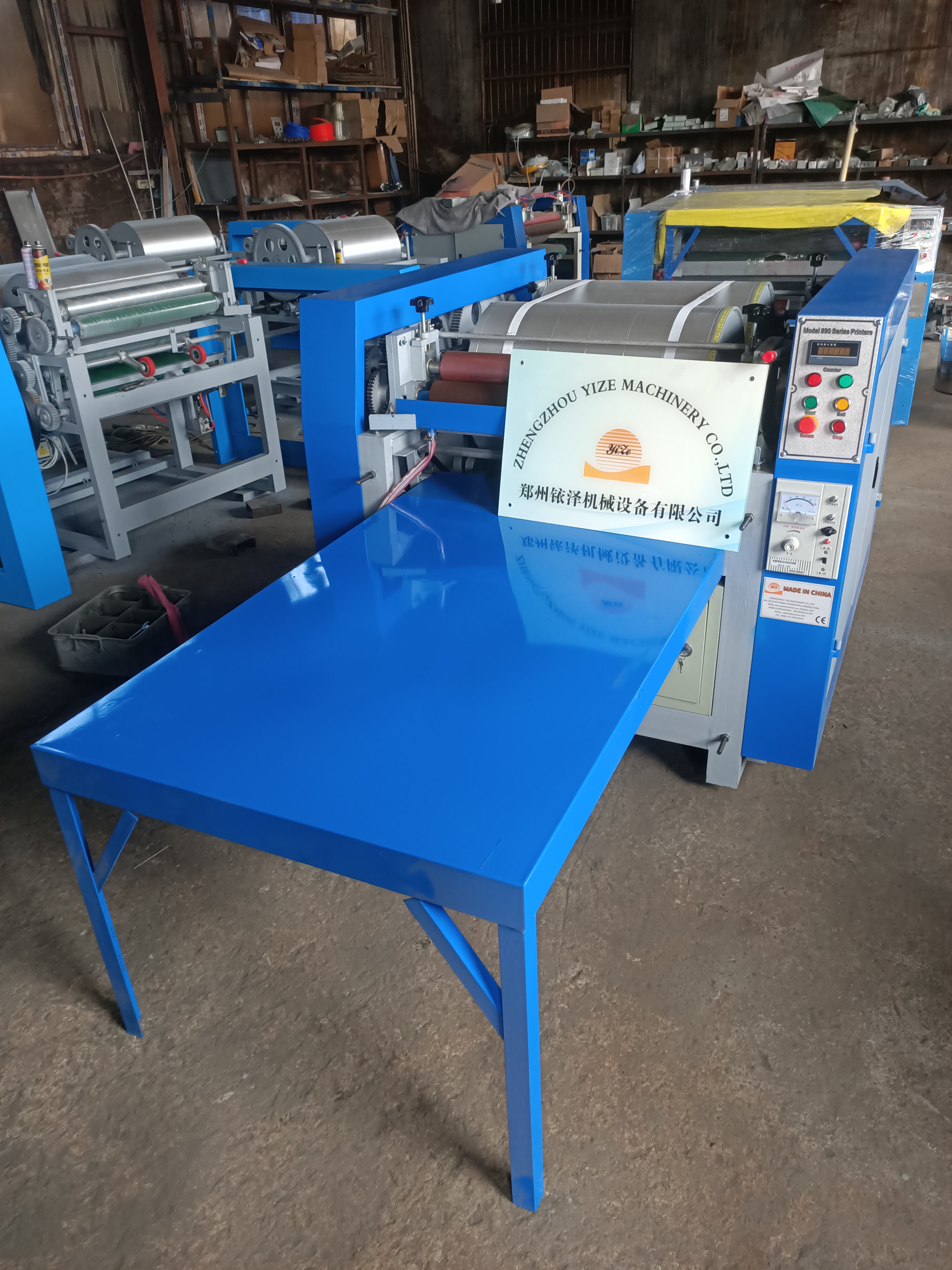

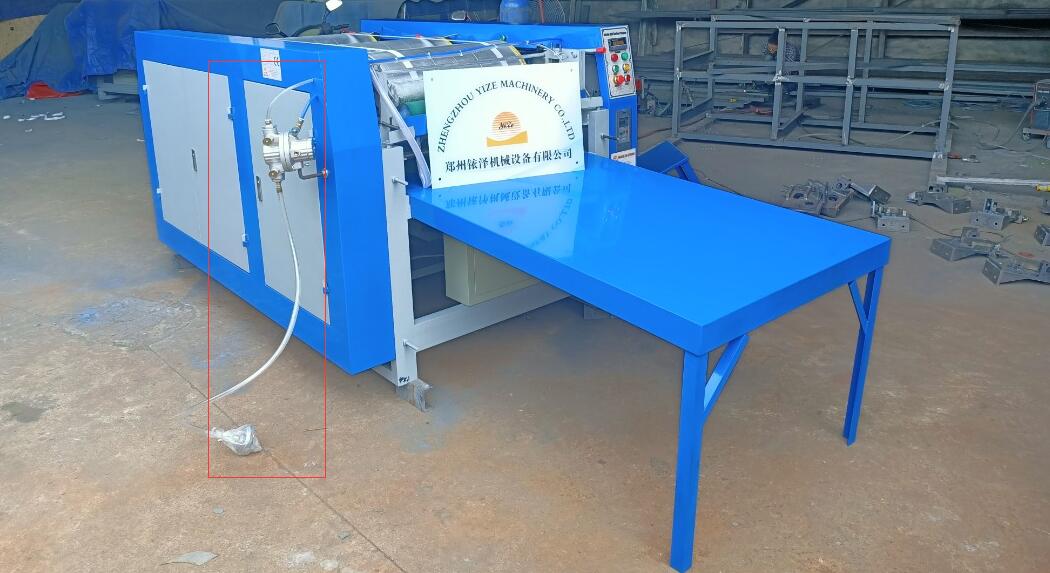

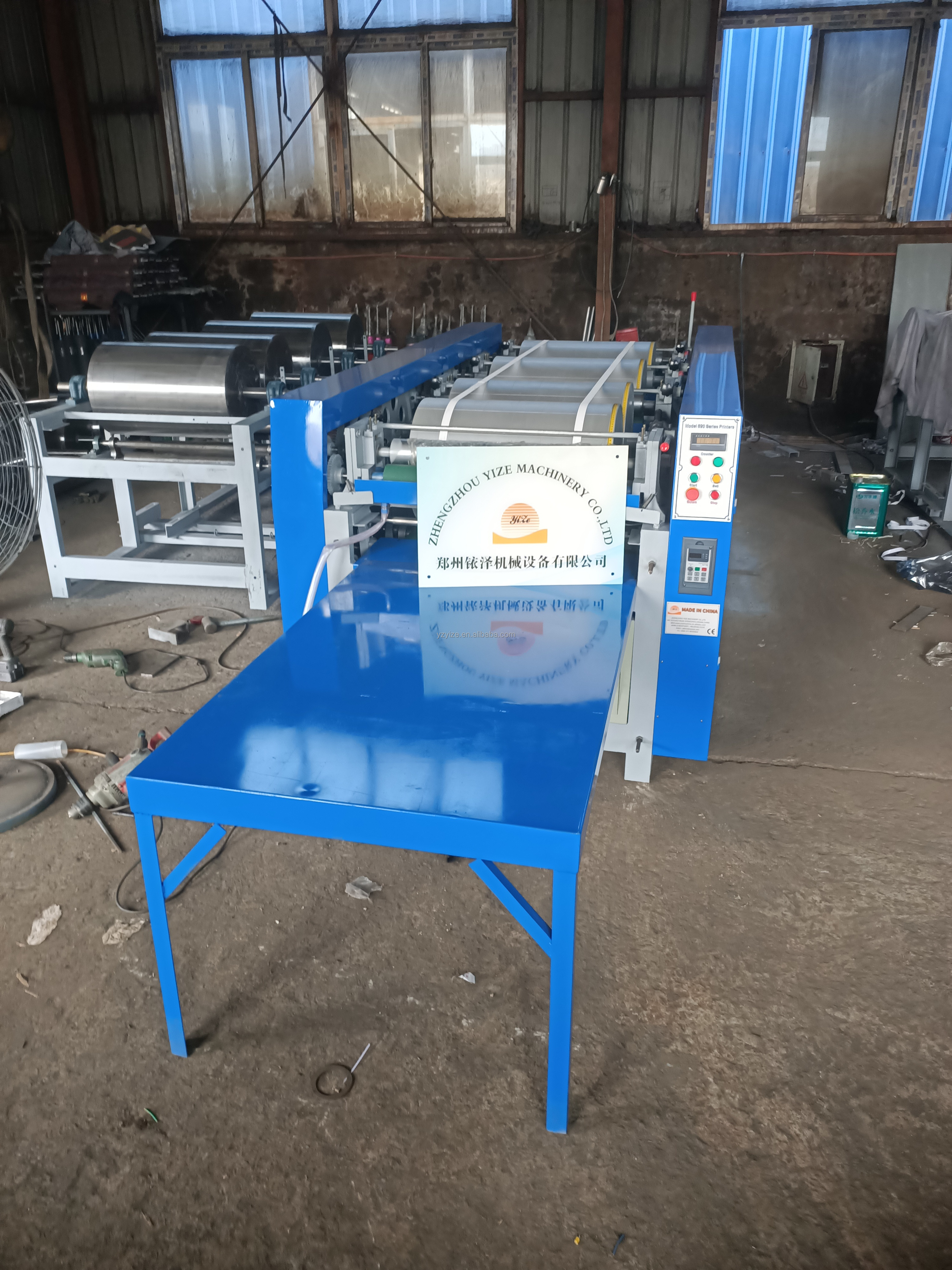

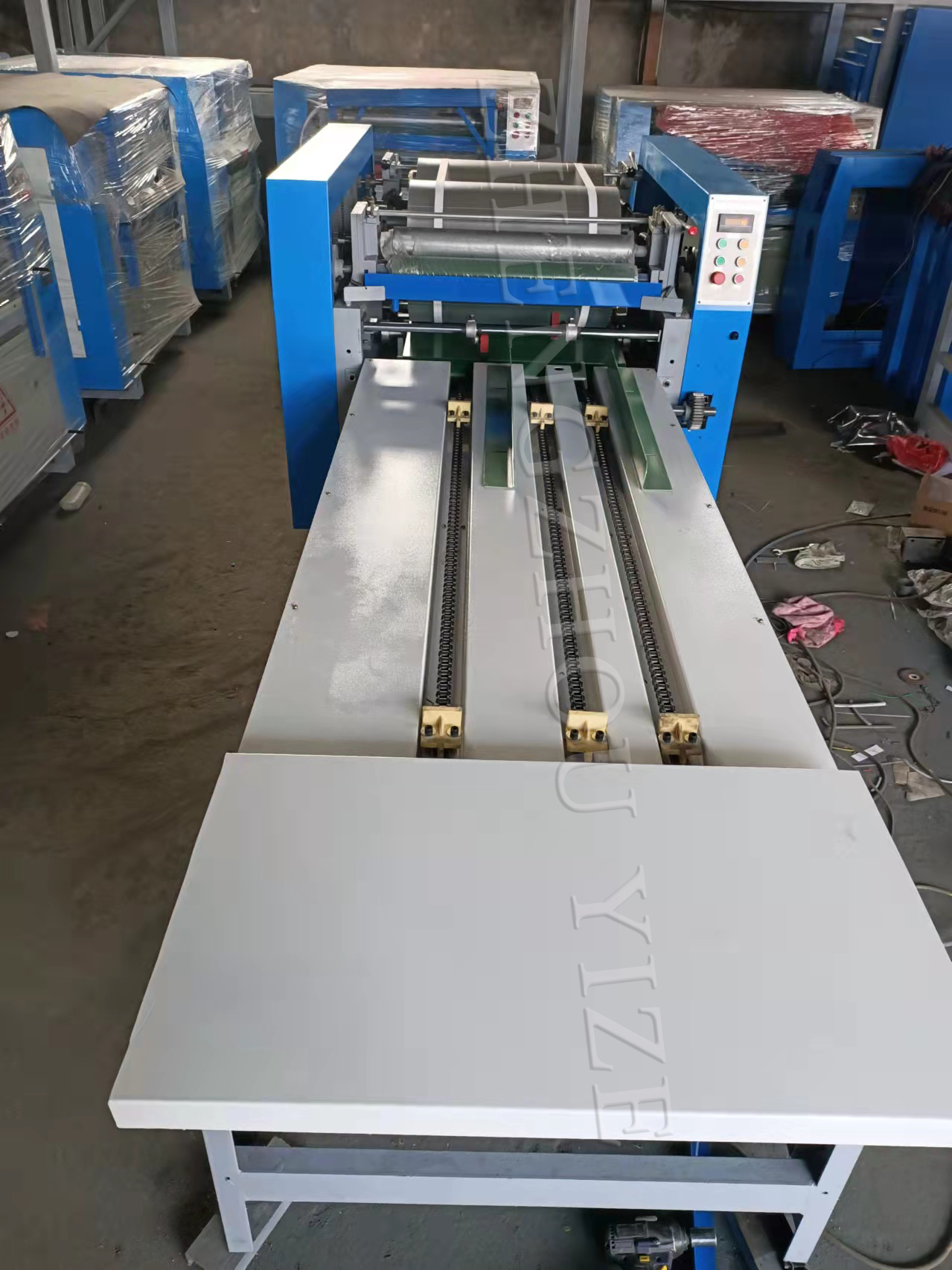

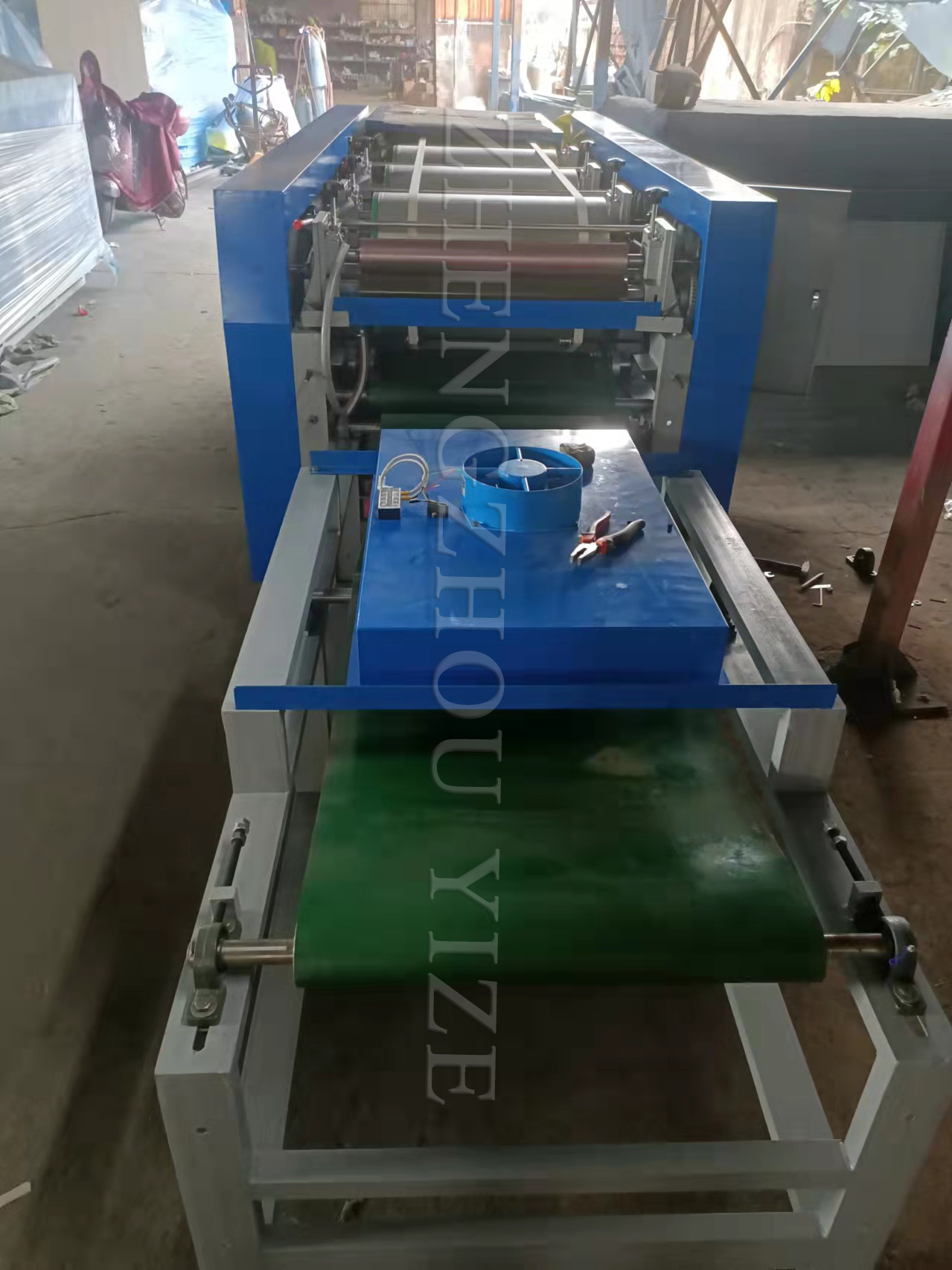

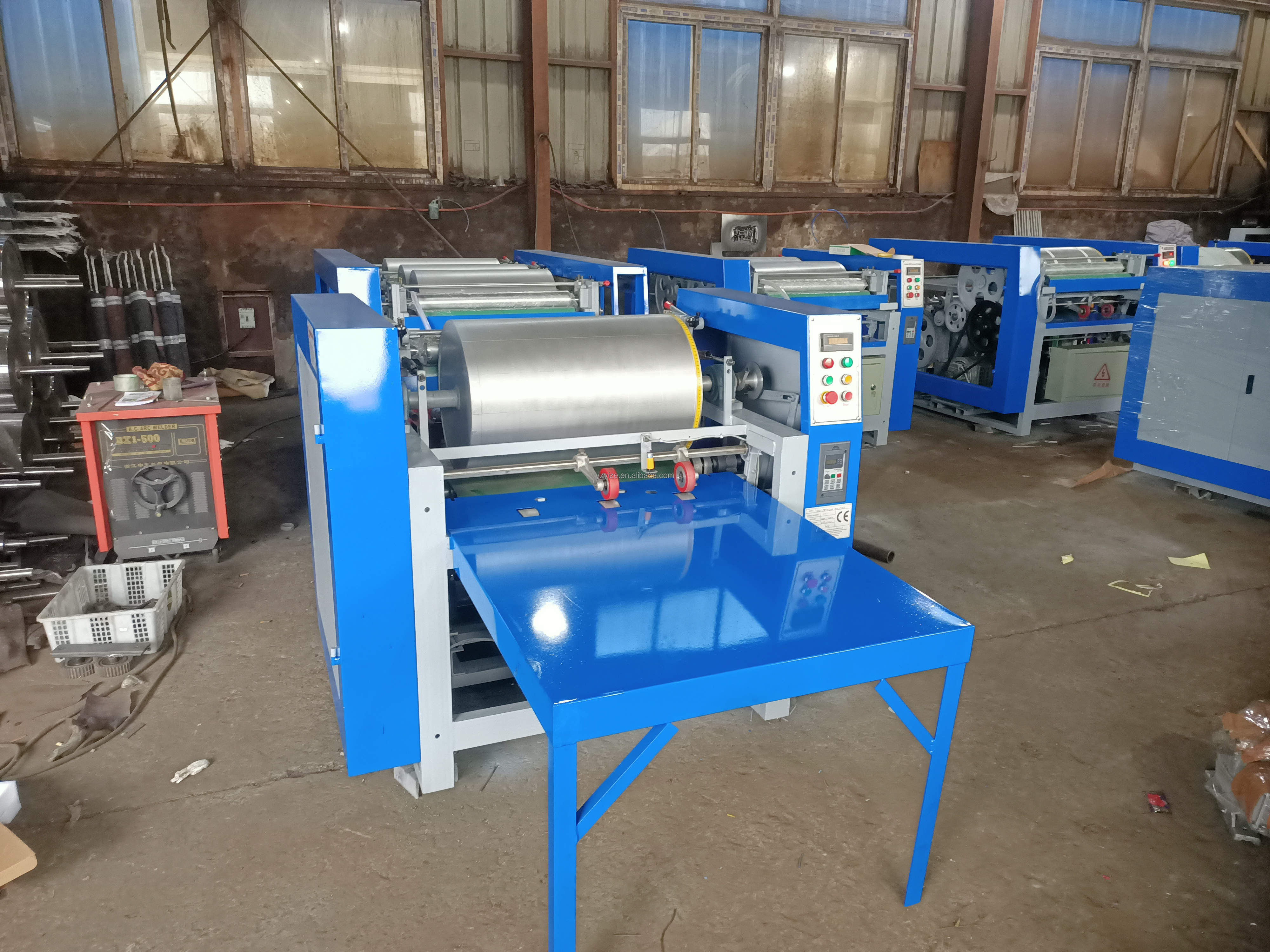

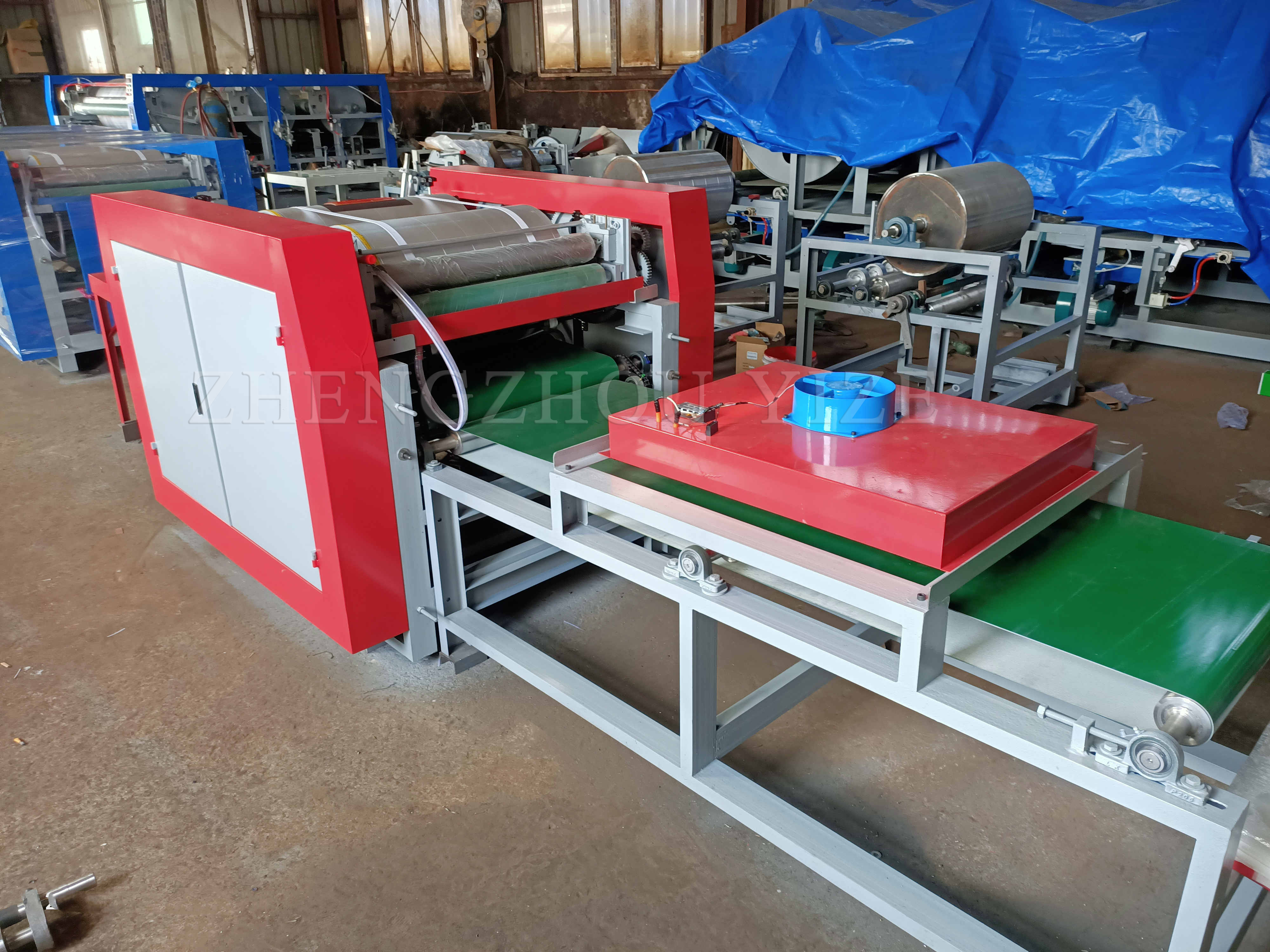

Introduction of flexo printing machine:
Widely used in the printing of chemical, fertilizer, grain, feed, cement and other packaging bags.

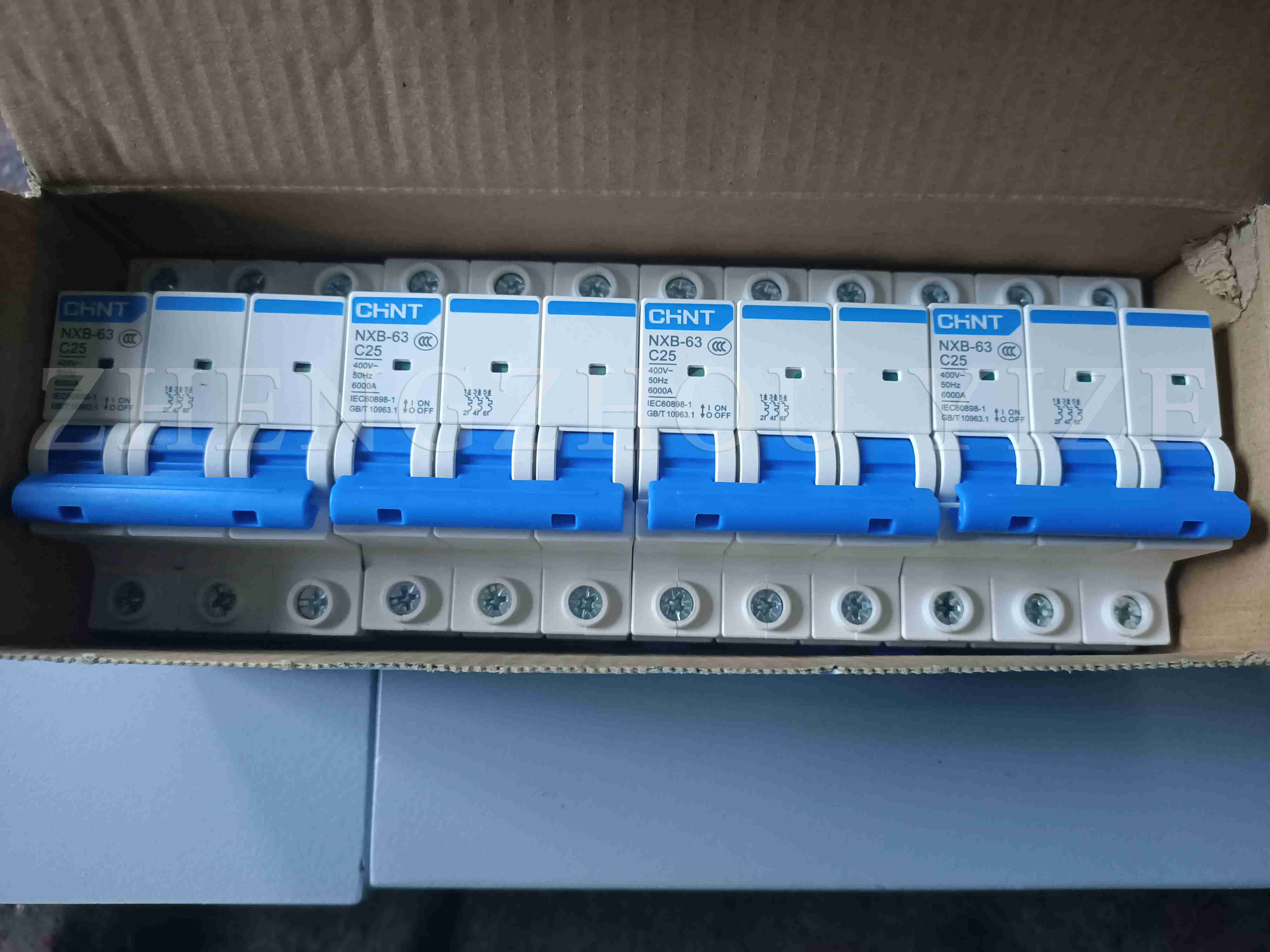

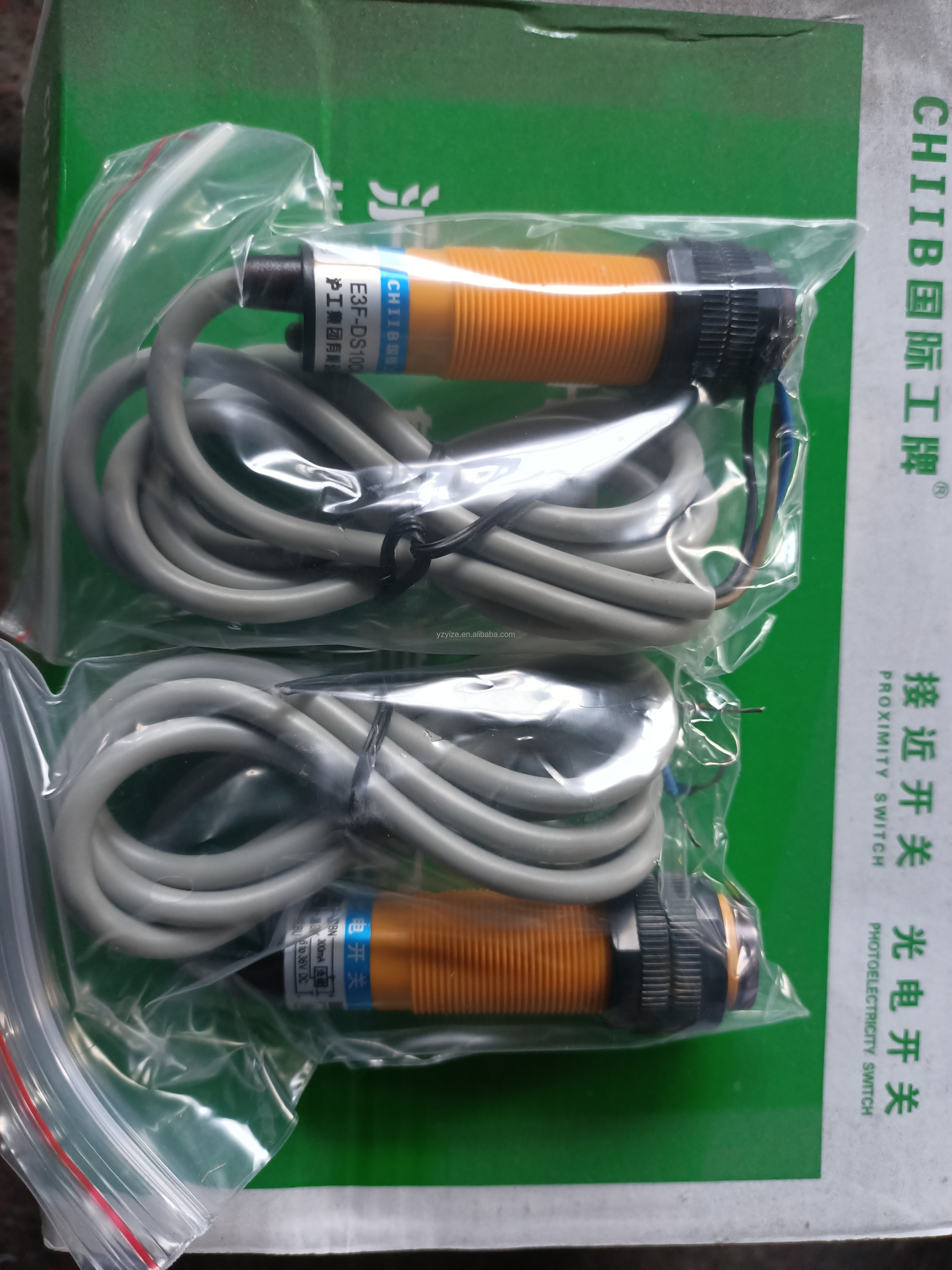

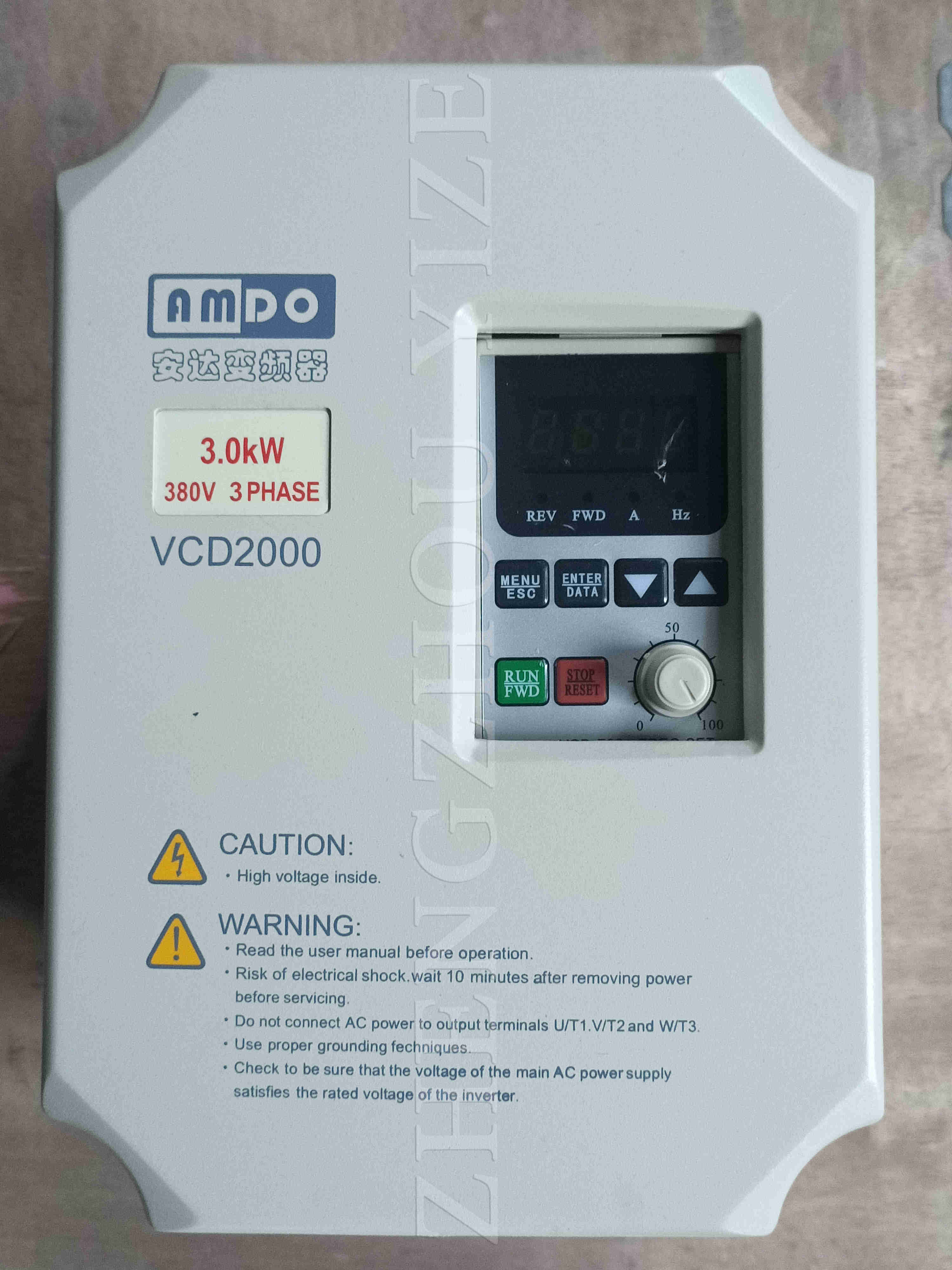

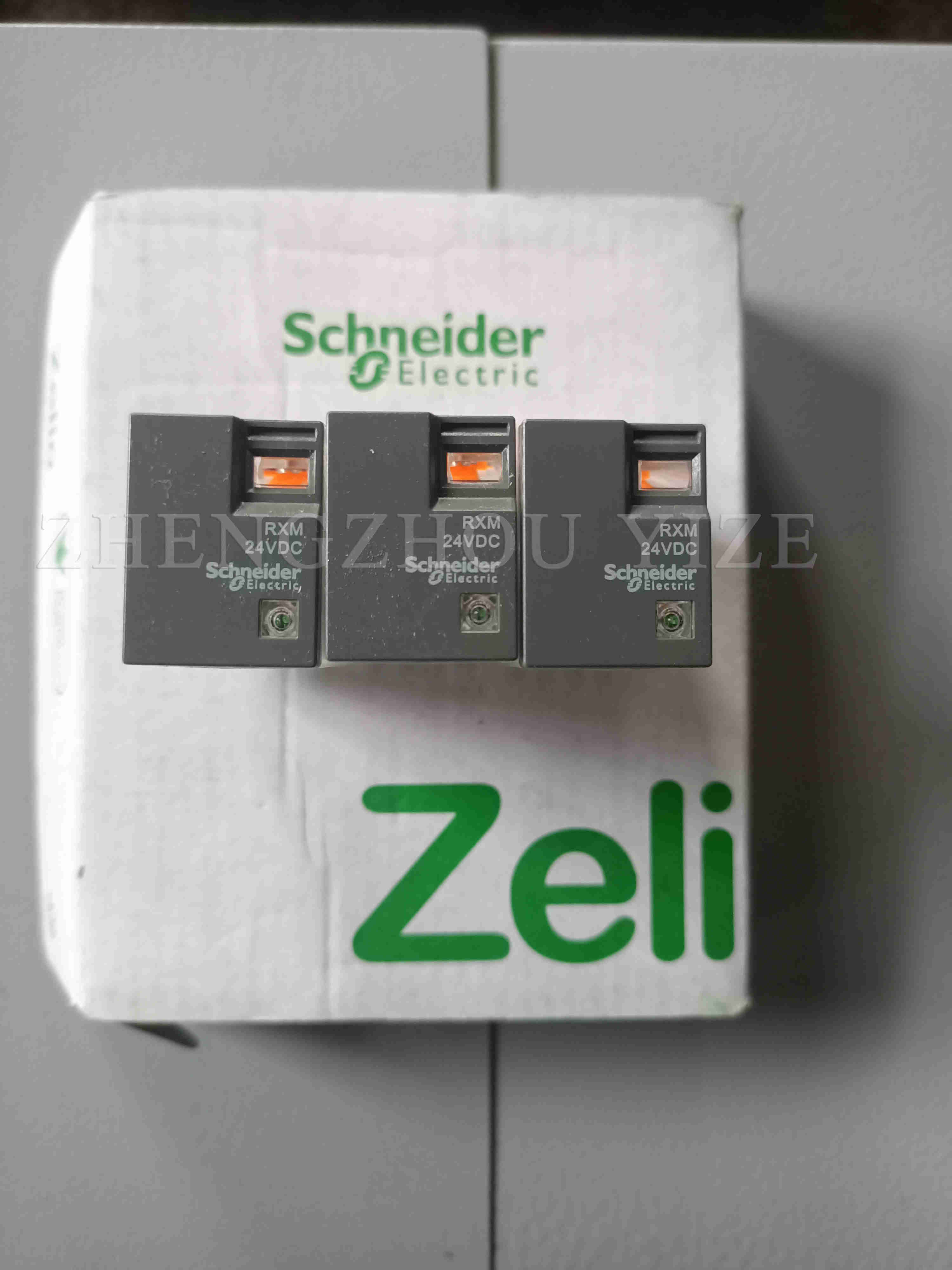

The control part of this machine adapted to photo power control, electromagnettic adjustment, automatic embossing switch device, electronic automatic counting. powerAdopt stepless speed regulation, stable operation and wide speed regulation range. The machine is compact, easy to adjust and operate and maintain.
This machine can print kraft paper/woven/non-woven/nylon/pp plastic/cardboard/corrugated paper.
Model | YZYS-1 | YZYS-2 | YZYS-3 | YZYS-4 | YZYS-5 | ||||
maximum input width | 840mm | ||||||||
Maximum printing width | 650mm | ||||||||
Maximum print length | 1200mm | ||||||||

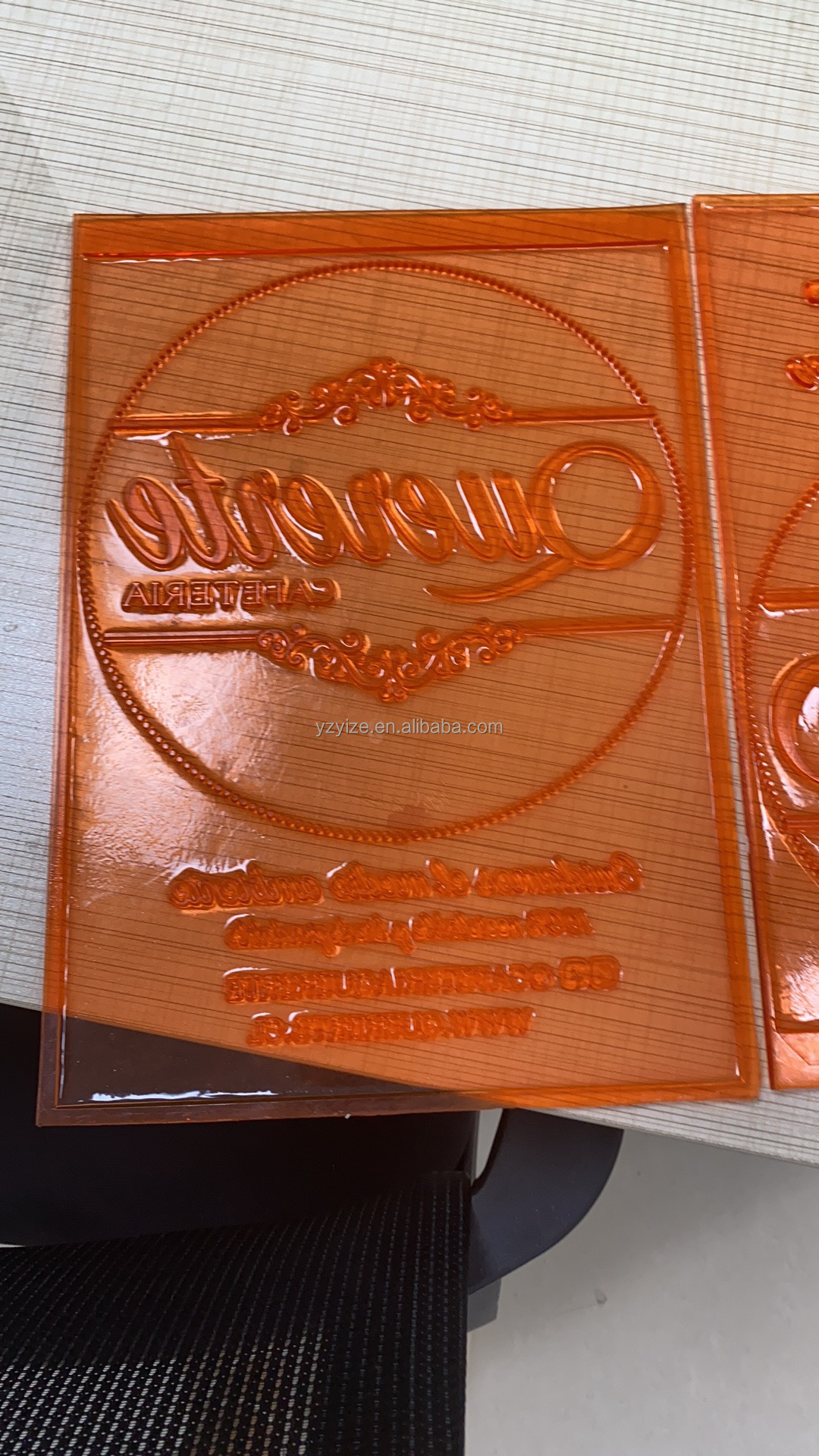

Rubber letterpress thickness | 4-6mm | ||||||||
Printing cylinder diameter | 420mm | ||||||||
Printing speed pcs/h | 1500-3500 | ||||||||
color | 1 | 2 | 3 | 4 | 5 | ||||
Motor Power | 0.75kw | 1.5kW | 2.2kW | 3kW | |||||
Dimensions (mm) | 1400*1400*700 | 1400*1400*1100 | 2100*1400*1100 | 2800*1400*1100 | 3500*1400 *1100 | ||||
weight | 400kg | 650kg | 850kg | 1200kg | 1400kg |
Usually we can provide 1-5 colors, and6 or more colors can be customized.
Please know: 1 color can print 1 color, 2 colors can print 1/2 color. 3 colors can print 1/2/3 colors once, and 4 colors can print 1/2/3/4 colors once. 5 colors can print 1/2/3/4/5 colors at a time. Then you can know how many colors you need based on your printed pattern/logo.
