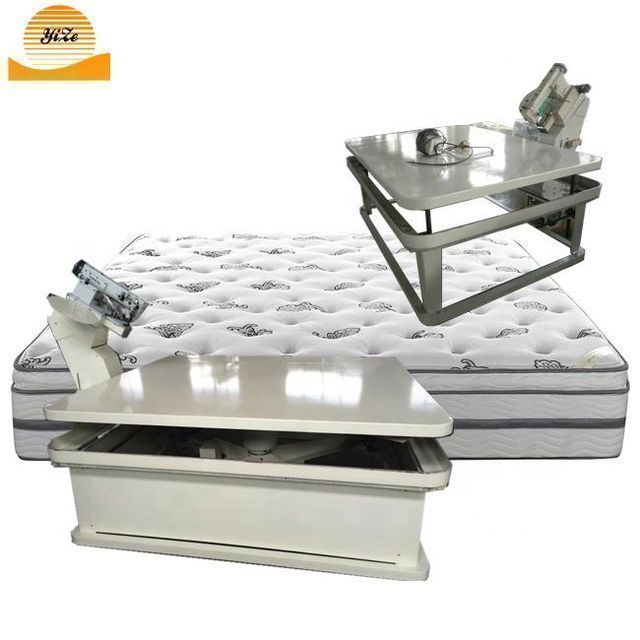

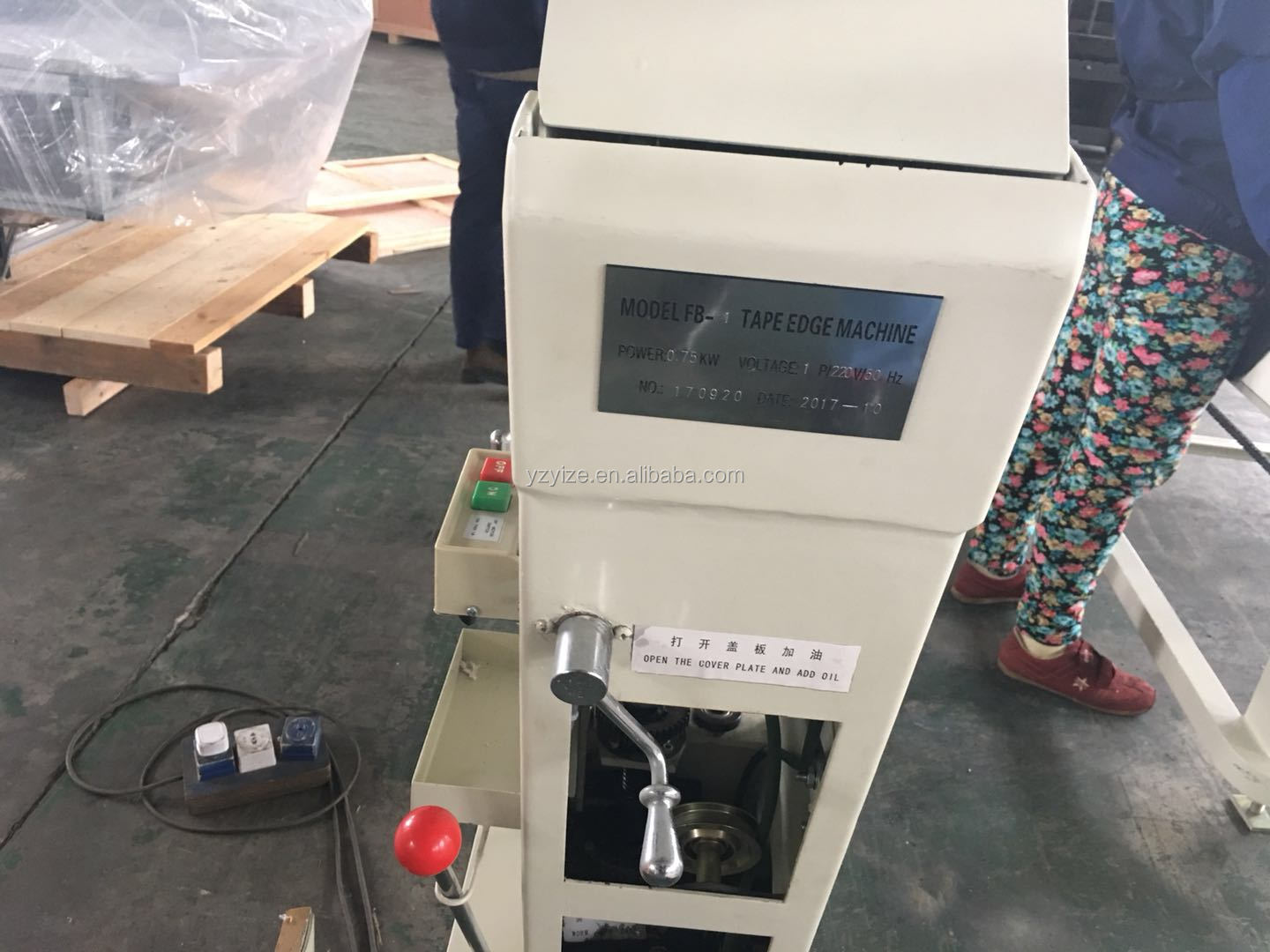

300U Chain Lock Seam Mattress Tape Edge Banding Machine Mattress Sewing Edge Binding Machine

Supplier: Zhengzhou Yize Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Grace Chow
Price: $2699.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance	feature:	Tape Edge Banding Mat Machine
Warranty:	1 year	application:	Mattress
Key words:	Mattress side belt machine	strength:	0.75kw
Mechanical test report:	if	brand:	YZ
Marketing Type:	New Products 2020	Core components:	motor
Name:	Mattress Tape Edge Banding Machine Mattress Edge Banding Machine	place of origin; place of origin:	Henan, China
Seam type:	Lock seam, chain seam	Supply capacity:	500 sets per month Mattress Tape Edge Banding Machine Mattress Edge Banding Machine
Video shipment inspection:	if	kilowatt:	Mattress edger
Core component warranty:	1 year	Showroom location:	not any
Health status:	new	weight:	400
Dimensions (LWH):	1950x1420x1650mm	Voltage:	220V 50hz 1 phase
Speed of work:	5.5-10m/min	Applicable industries:	textile machinery
Packaging Details:	Mattress Edge Sewing Machine Mattress Edge Banding Machine will be packed into standard export wooden boxes.	port:	Shanghai/Qingdao/Guangzhou
Function:	Belt Mattress Sewing Machine	Advantage:	Mattress Quilting Machine
product name:	Side Mattress Machine

Product Description

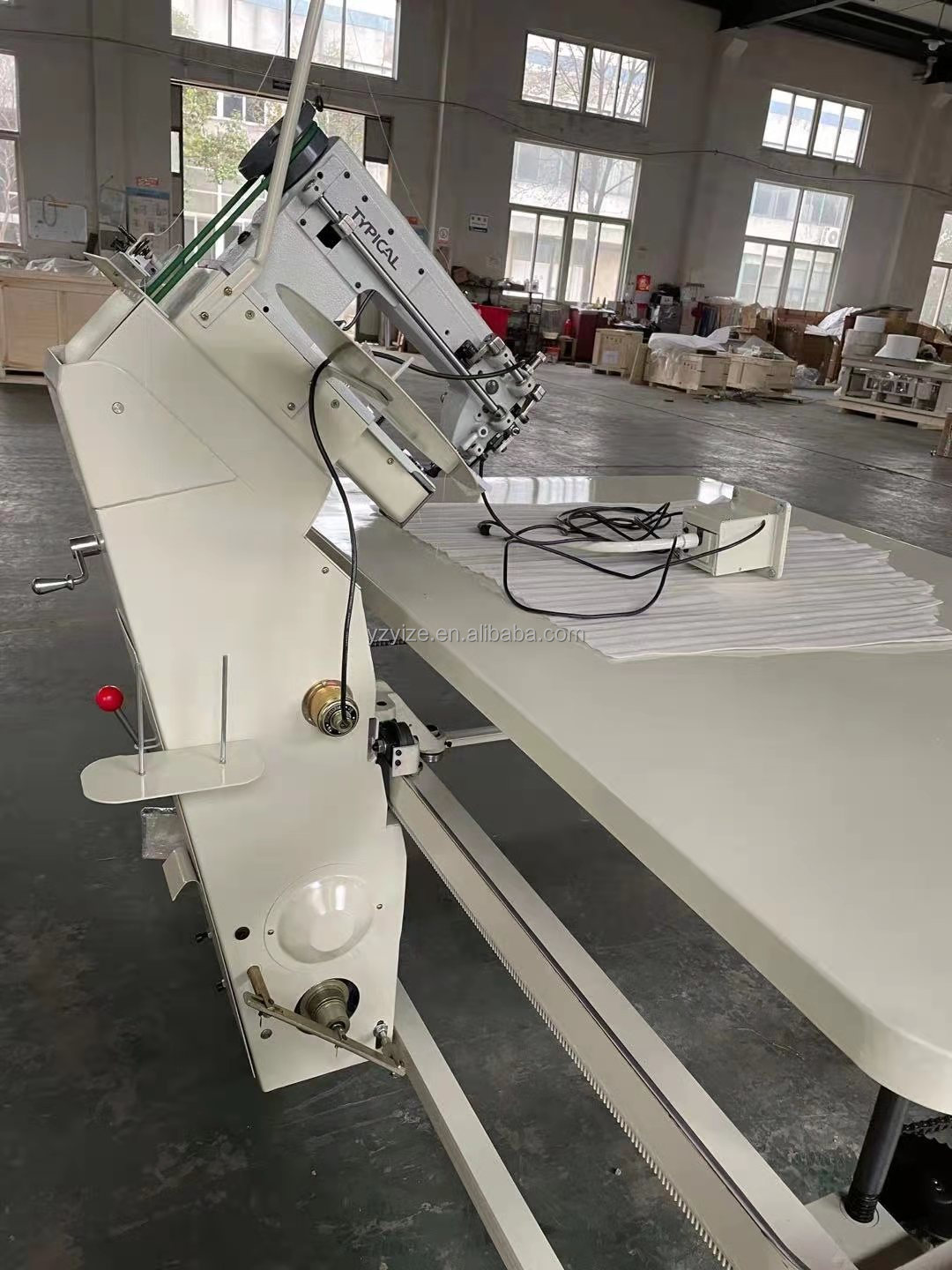

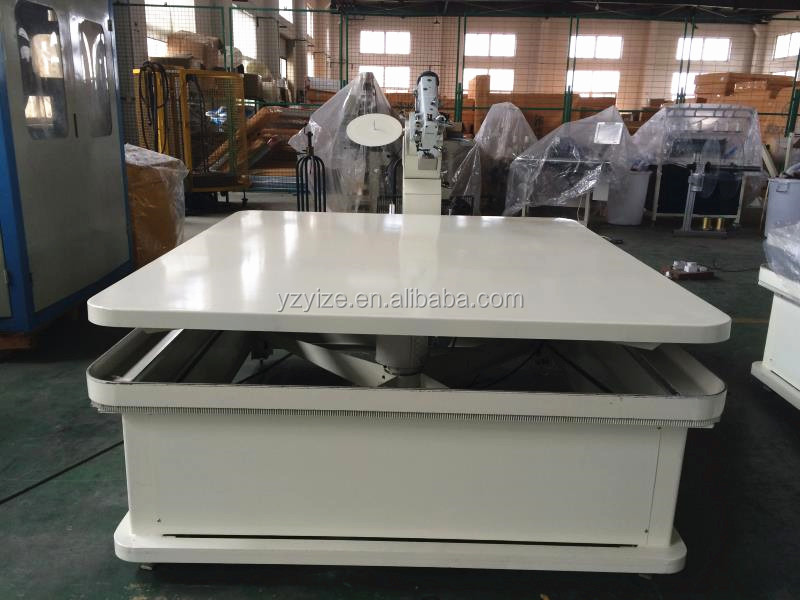

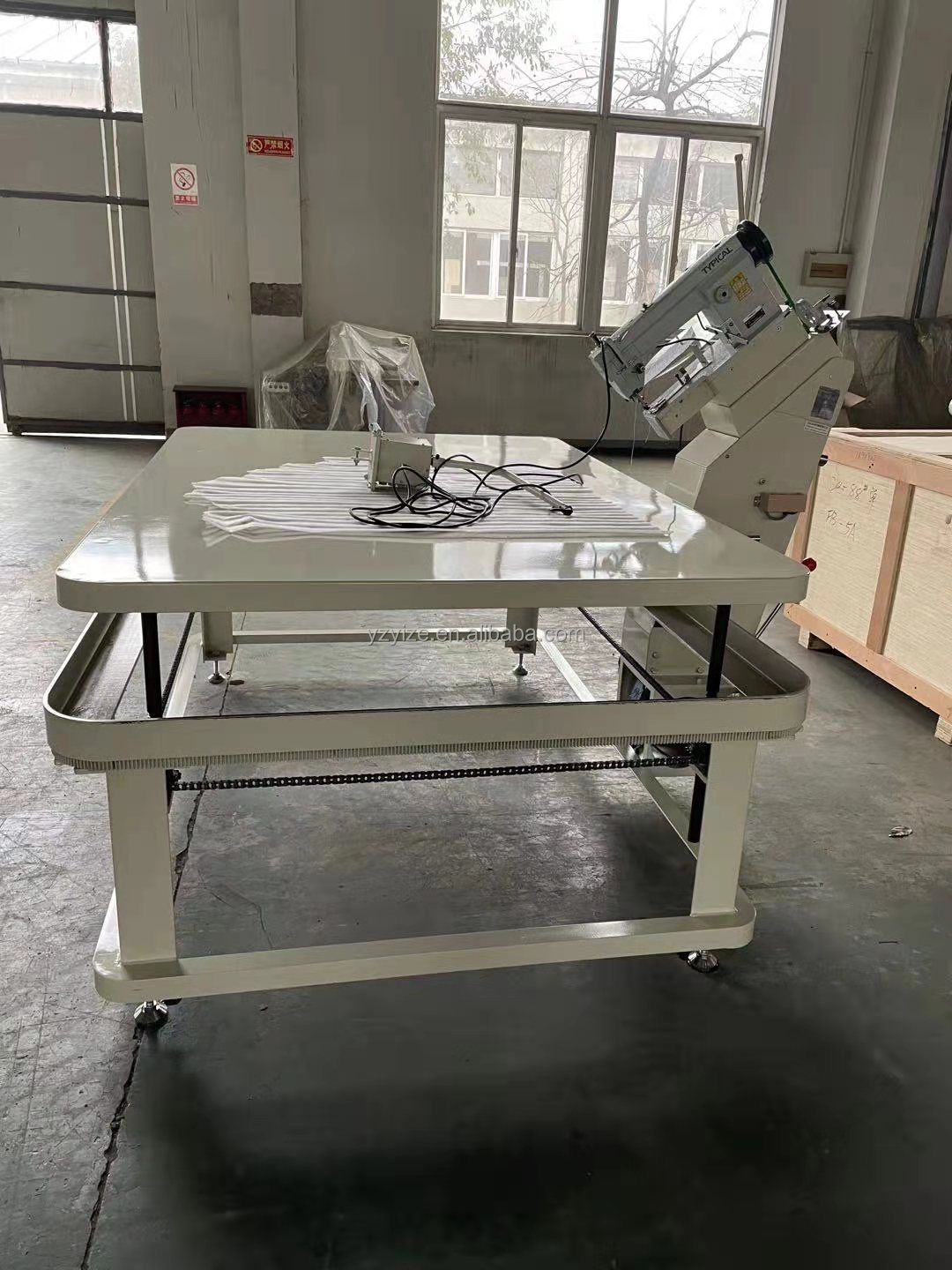

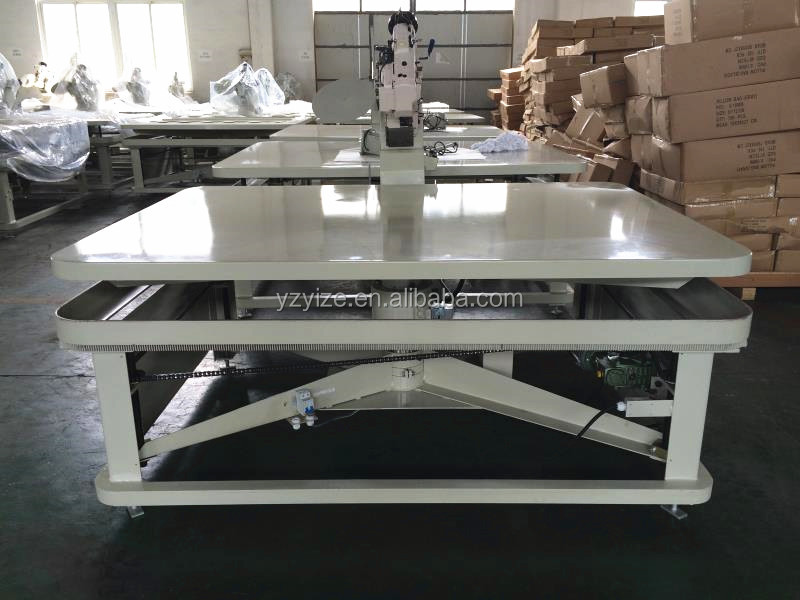

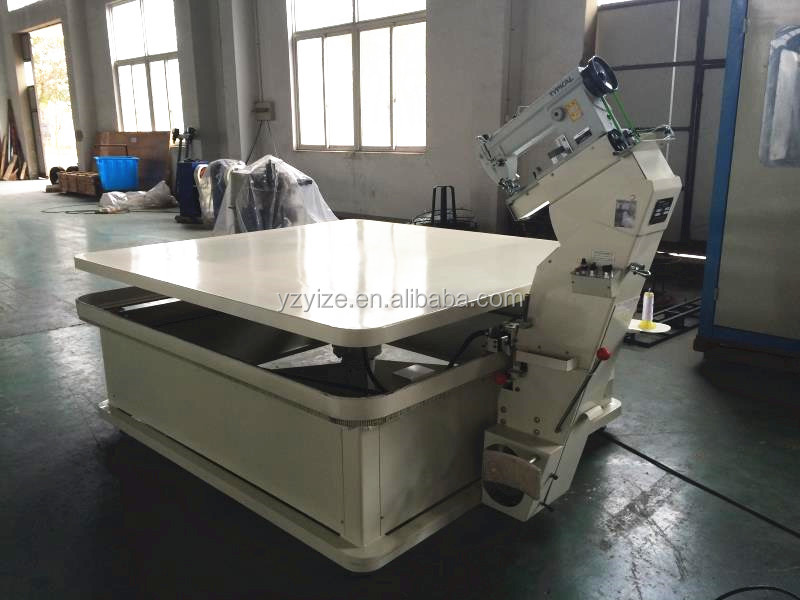

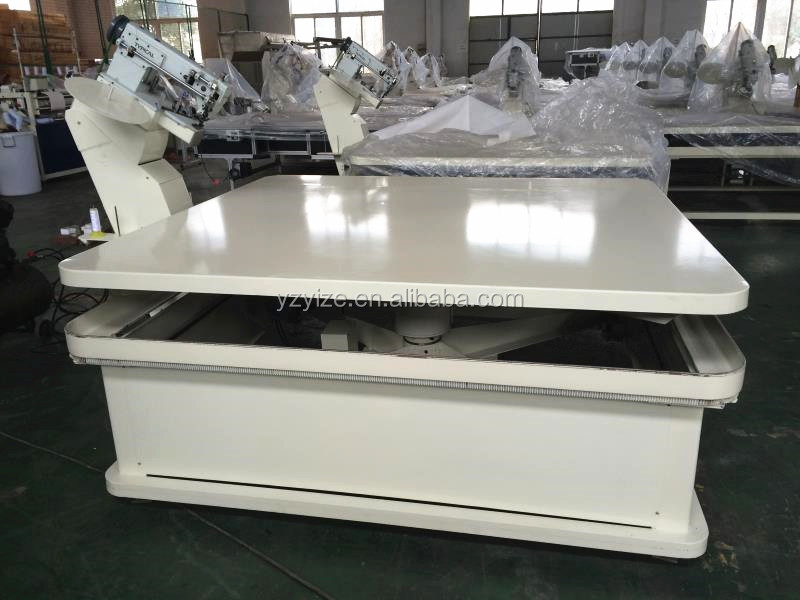

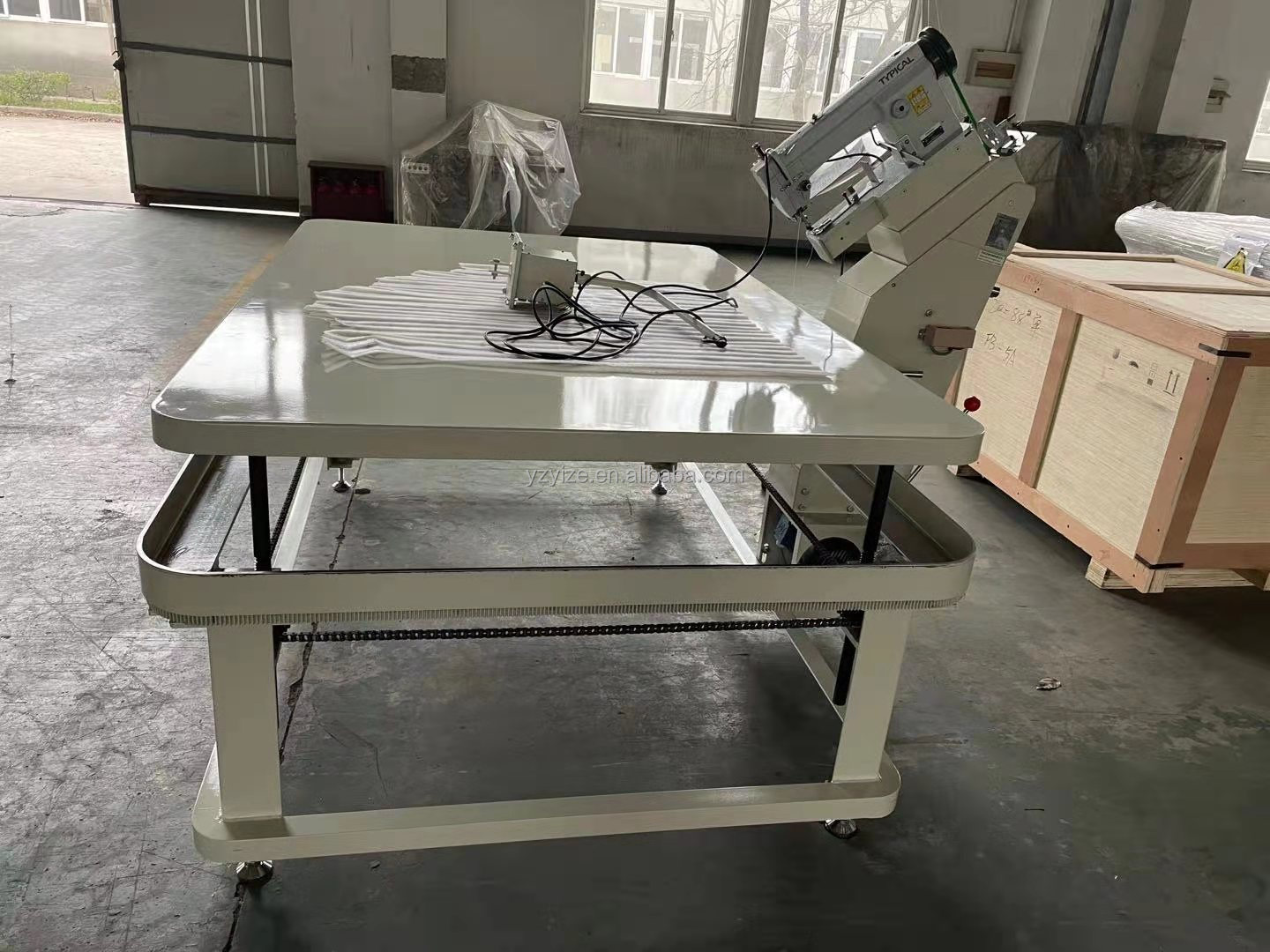

YZFB-E, classic type, continuous sewing, fixed point sewing:

This machine is used to sew the surface cloth and wall cloth of mattress. It can also be used to sew other analogues such as soft
Mattresses, sofa cushions and sleeping bags. Equipped with hanging rotating power supply system. The machine can execute

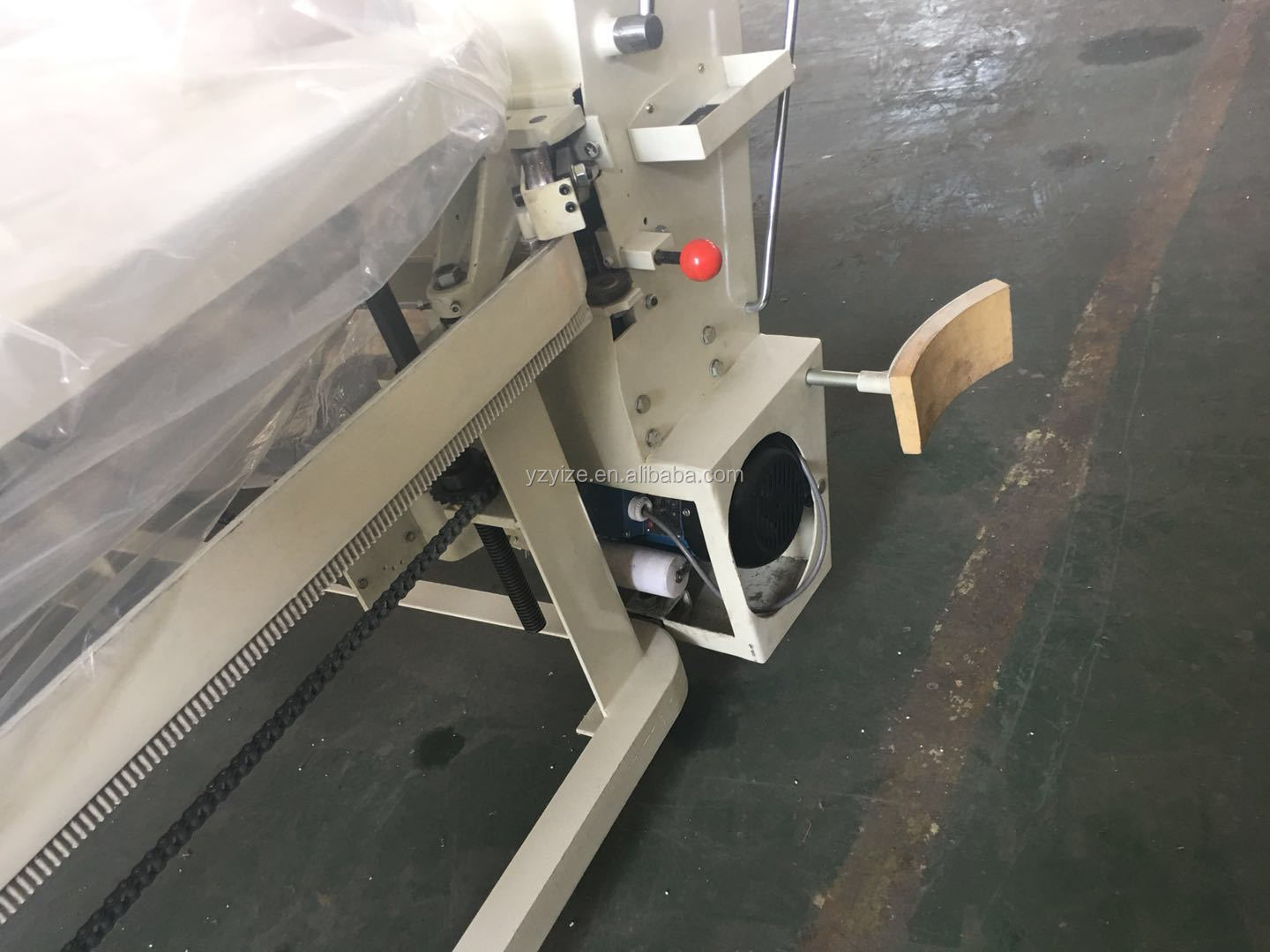

Smooth continuous sewing, or fixed-point sewing within its sewing track, in addition, the sewing speed can be controlled by the knee lever.

YZFB-E technical parameters:

Model	YZFB-E type
Mattress thickness	(30-300)mm
Lifting range of workbench	260mm
Adjust the angle	30°- 55°
tilt angle	40
power supply	Single phase, 220V, 50Hz/Three phase, 380V, 50Hz
table size	19201300mm 19201500mm 1920*1800mm
total power	400W
gross weight	400Kg
sewing speed	6.5m/min (adjustable)
size	1950x1420x1650mm

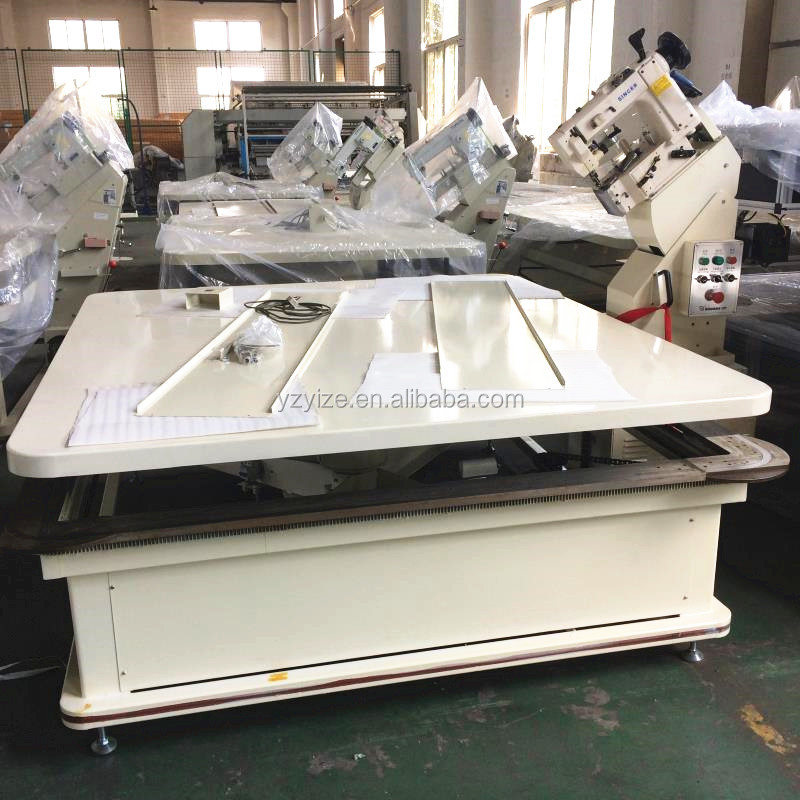

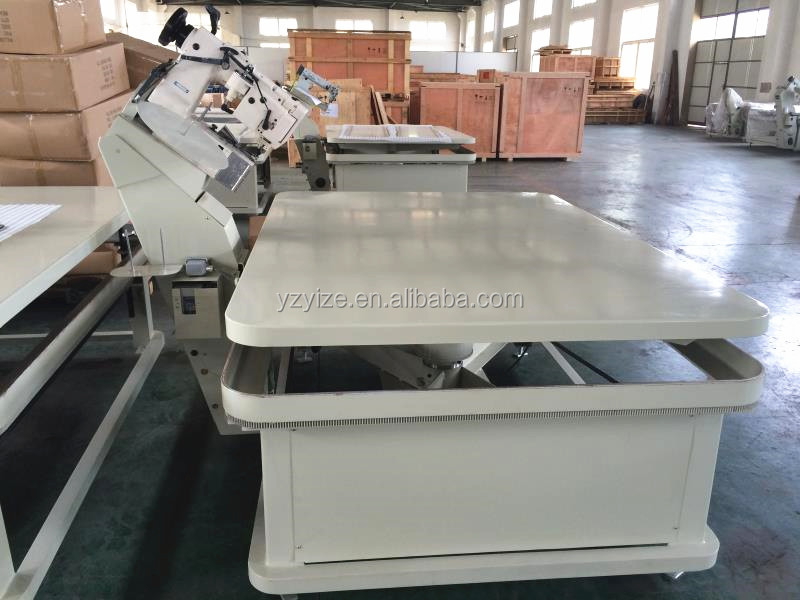

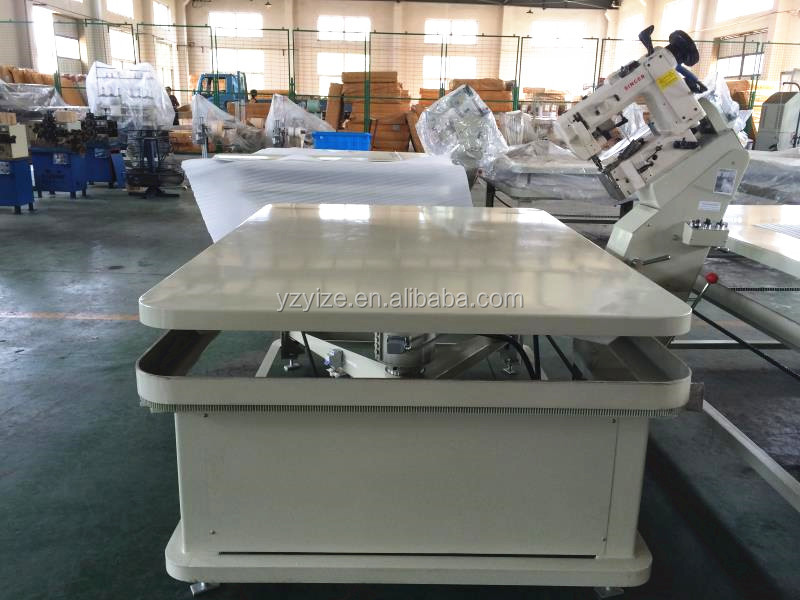

YZFB-3A: electric lifting table and machine head, speed controllable, corner deceleration:

Model	YZFB-3A
Curve speed automatically decelerates	Yes
seam type	Bartack Stitch/Chain Stitch
Working angle of machine head	30°- 55°
Mattress suture thickness range	20-350mm, 20-450mm
Workbench lift	electrical
working desk size	1.42m, 1.62m, 1.8*2m
seam speed	1100-3000rpm select according to the type of head
trolley speed	5.5-10m/m According to different head shape
productivity	10-20pcs/hour
motor type	220v, 50hz / 380v, 50hz
total power	1.12kw

Lock pin type:

Chain Stitch Type: Higher Speed, Longer Seam Life:

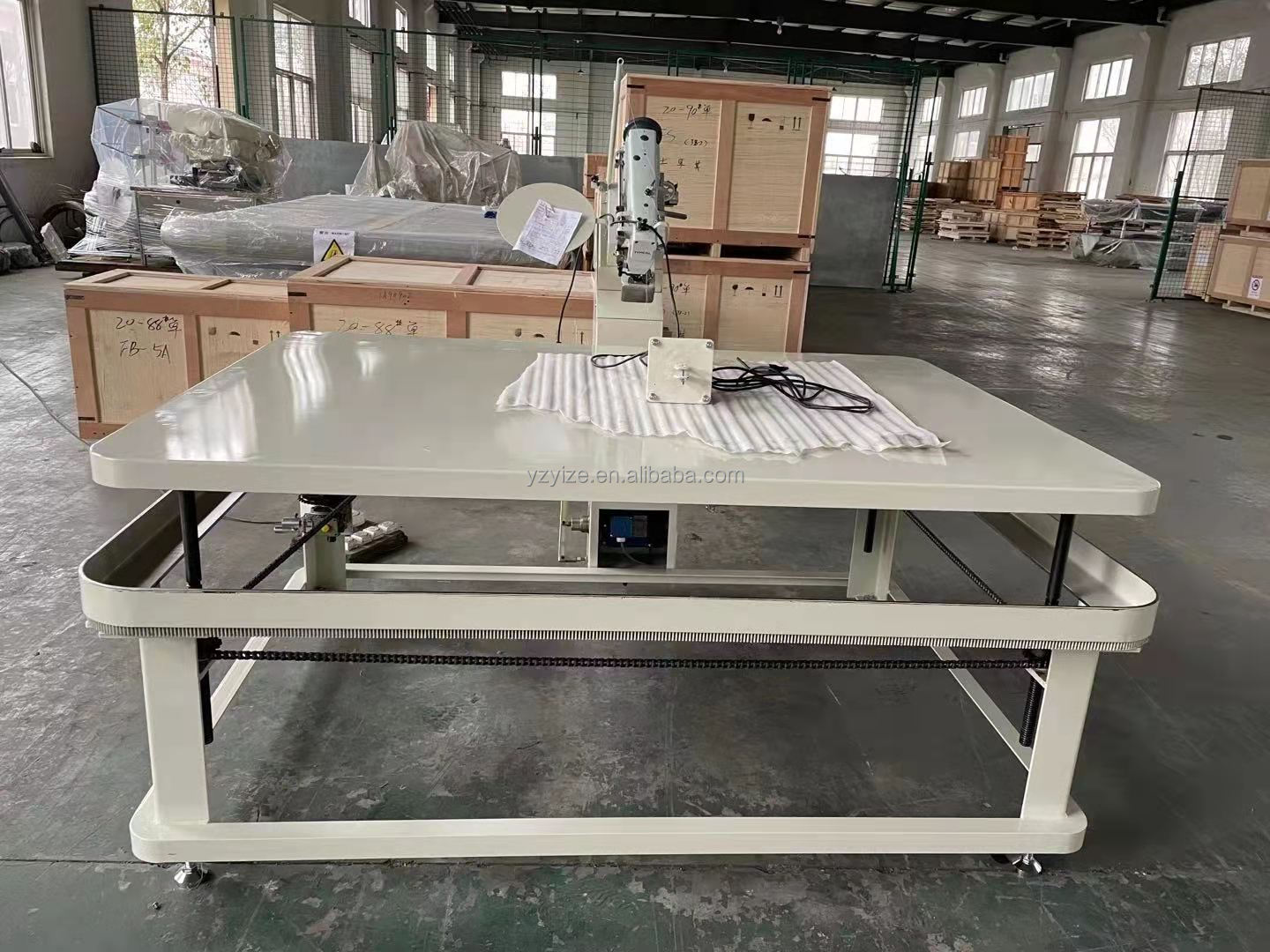

YZFB6: flat track type, better stability, faster speed, the maximum mattress thickness is 50cm:

Model	YZFB6
seam type	chain stitch
Head lift range	0-200mm
Nose Tilt Range	35°- 55°
Mattress thickness	50-500mm
Mattress thickness	1.62m, 1.82m
Sewing head motor speed	Up to 3065rpm
trolley speed	Maximum 13.6m/min
Car clutch mode	Electromagnetic Clutch
productivity	10-20pcs/hour
Motor Power	1.65(1.1+0.55) kW

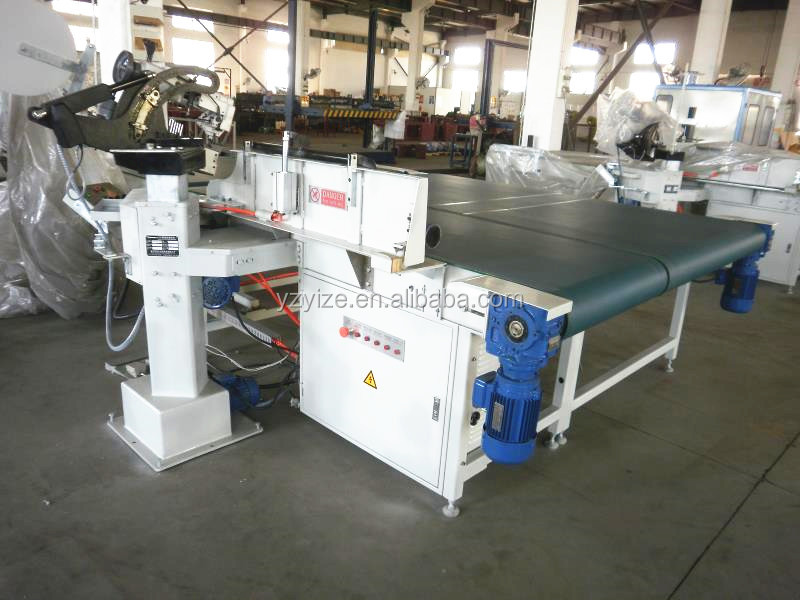

YZFB5, automatic reversing type, higher degree of automation and labor saving.

Model	YZFB5
seam type	chain stitch
Head lift range	0-320mm
Working angle of sewing machine head	25°- 65°
Mattress thickness	50-400mm
seam speed	1640-2740rpm
working desk size	3750*1980mm
trolley speed	10-14m/min
productivity	15-50pcs/hour
air pressure	0.6-0.8Mpa
Motor Power	3.2kw
