Max. Voltage: | 220VAC; | Single package size: | 13X10X10 cm; |
Delivery Detail: | 0 days after payment; | Selling Units: | Single item; |
Supply: | 220V AC; | Single gross weight: | 0.5 KG; |
Application: | Gas, water, oil; | Max. Working Pressure: | 40Bar; |
Interface size: | M20*1.5 G1/4 G1/2 ZG1/4 NPT1/4; | Place of Origin: | Shanghai; |
Accuracy: | 0.5% FS; | Brand Name: | Meokon; |
Case material: | 304 Stainless Steel Case; | Over pressure: | <100Bar 200%; |
work temperature: | -20~80℃; | Product name: | Pressure switch; |
Package Preview: | https://sc01.alicdn.com/kf/HTB1HzcDJAzoK1RjSZFlq6yi4VXab.jpg_640x640.jpg; | Package Type: | Netural box package with english manual; |
Pressure range: | 0~40Bar; | Model Number: | MD - S800E; |
Size: | 80mm; | Max. Current: | 5A; |

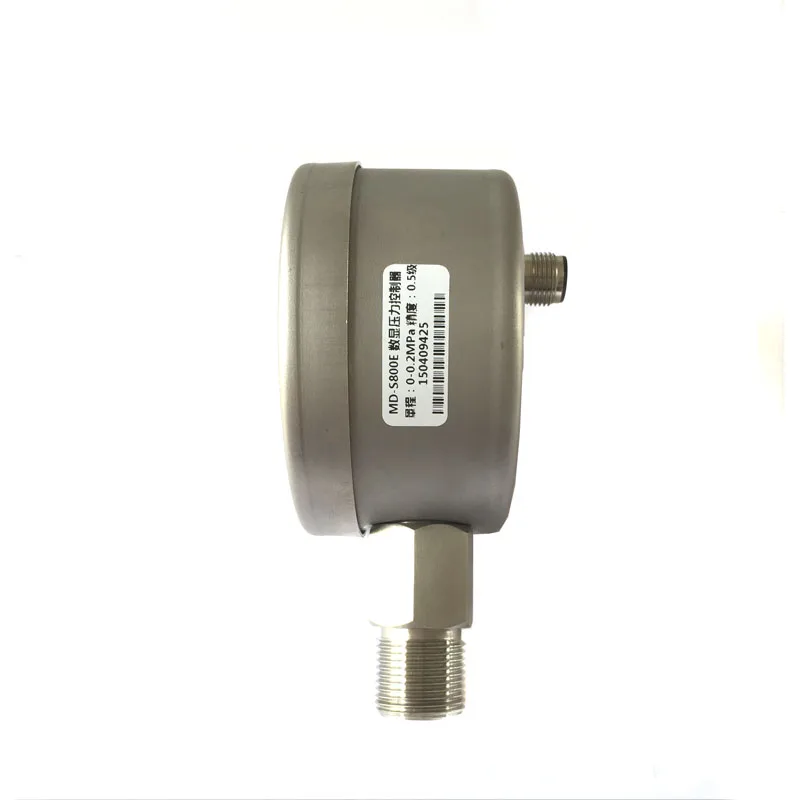

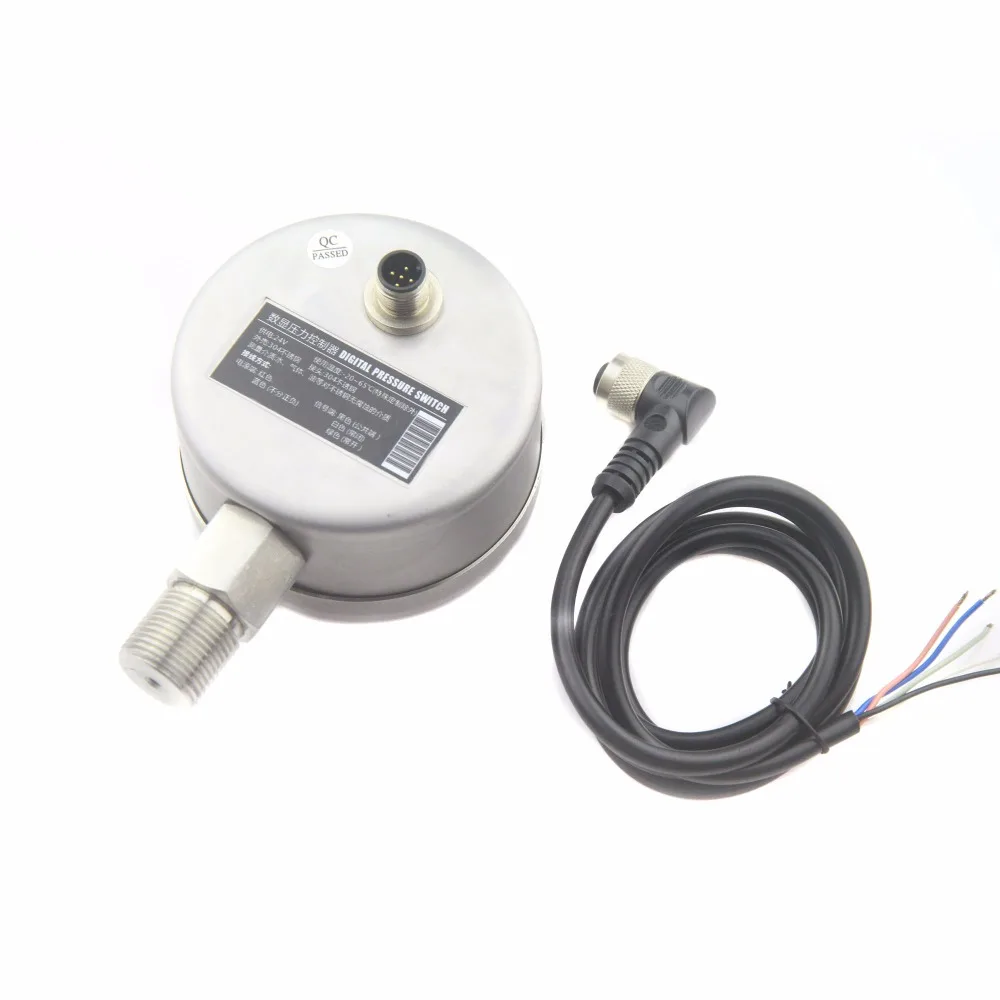

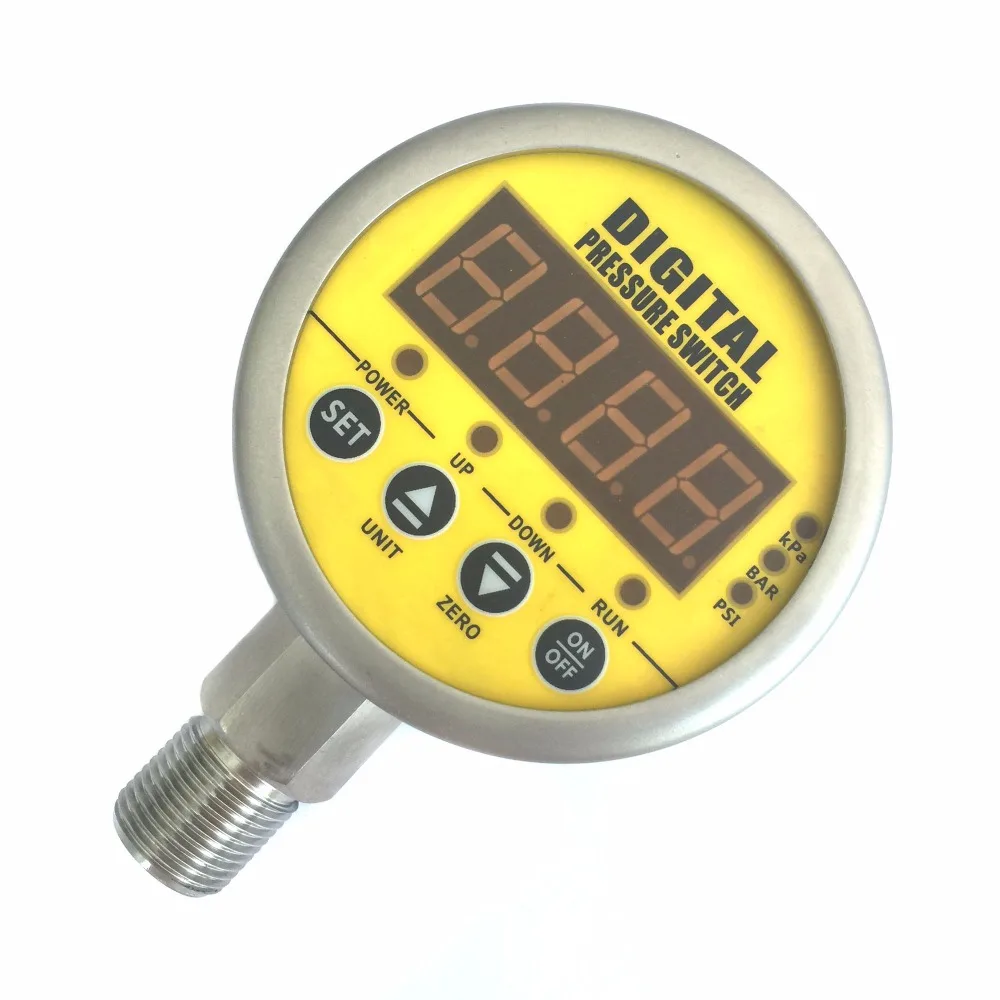

MD - S800E pressure controller is a 80 mm 304 shell of digital display pressure controller, pressure measurement, display, control, high accuracy intelligent controller, mainly used for all kinds of water treatment systems, mechanical and electrical equipment automation, engineering machinery, medical equipment industry such as automatic control operation. It can be measured: water, air, hydraulic oil, etc. The main functions are low voltage closing, high voltage disconnection (or low voltage disconnection, high pressure closing). System function, can set password protection, reverse control, voltage protection, leakage protection, time delay action, and other functions, is a real sense of intelligent pressure controller.
Range | 0~40Bar
|
Output relay capacity | 220V AC 5A |
Power supply | 220V AC |
Dial Size | 80mm |
Accuracy | 0.5% FS |
Long-term Stability | Typical: ±0.2%FS/year |
Use the temperature | - 20 ~ 80℃ |
Measurement Medium | Gas, water, oil |
Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
Connector Material | 304 Stainless Steel |
Shell | 304 Stainless Steel |
Supply | 220V AC |
Relay | one |
Cable | 4 cables |
