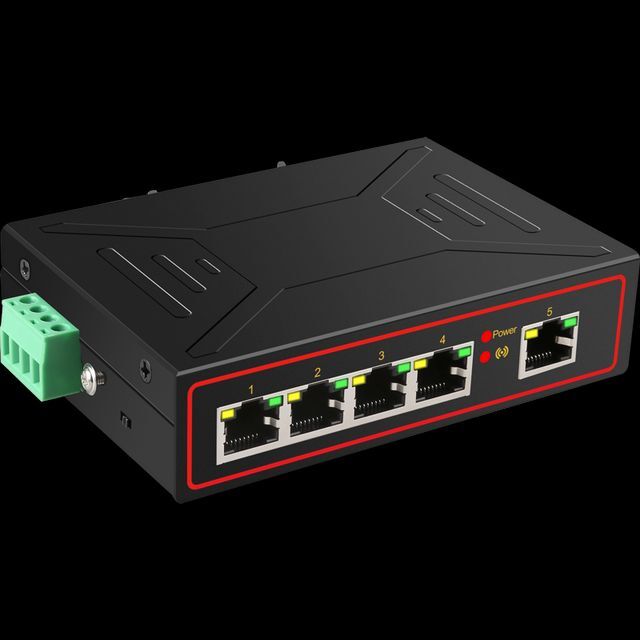

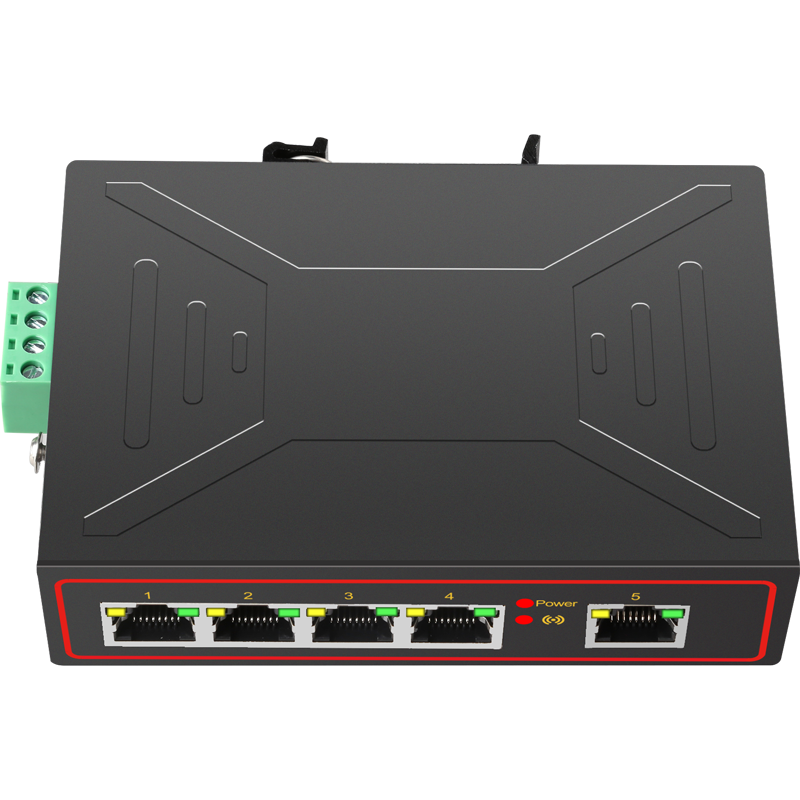

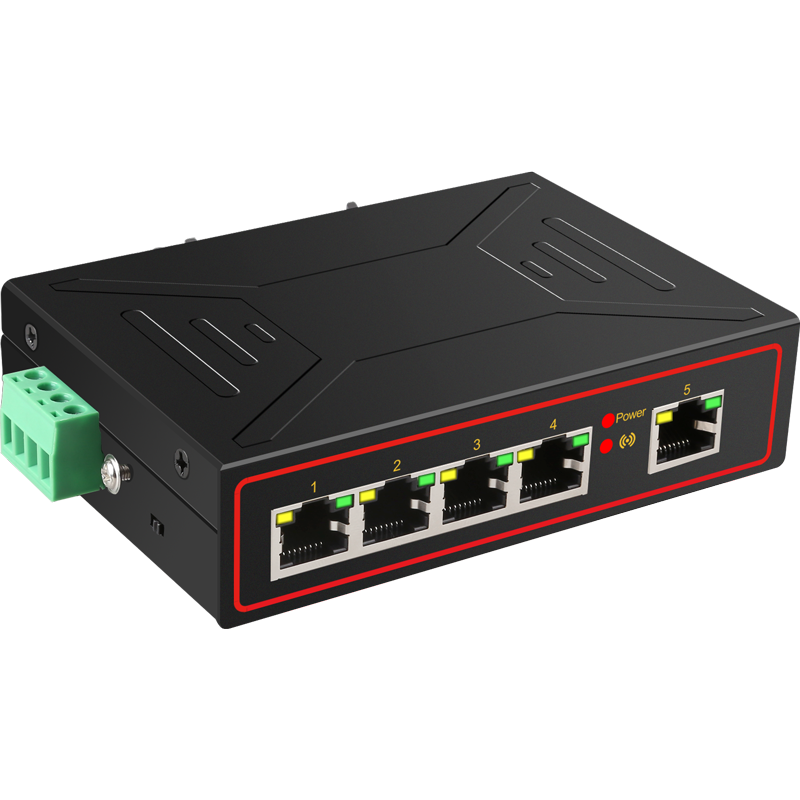

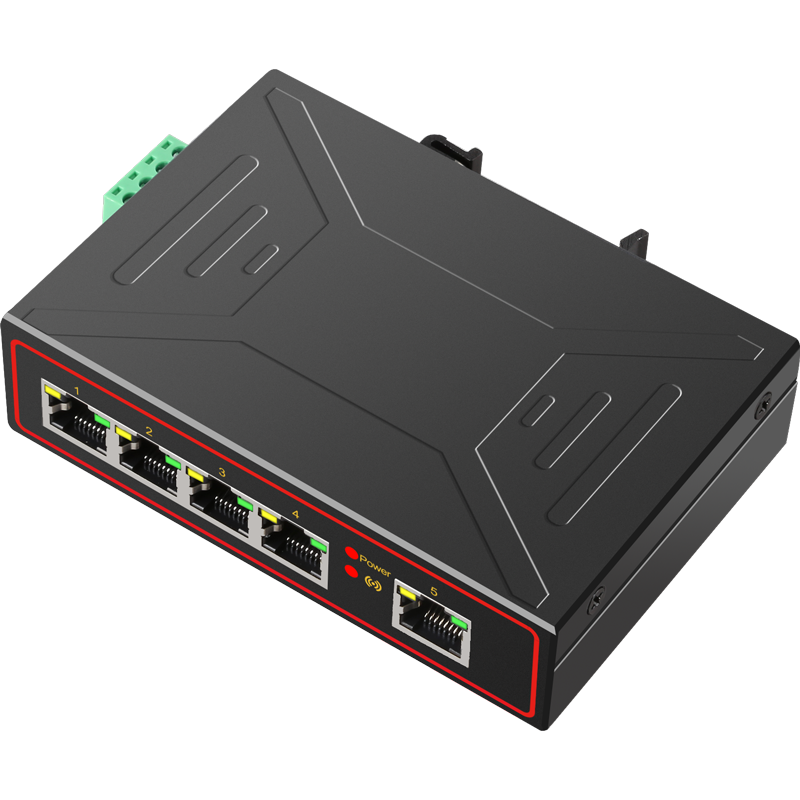

Wholesale Butterfly House 100m 5 Port Industrial Network Switch Iron Shell

  • Supplier: Shenzhen Diewu Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Mr Even Zhou
  • Price: $13.50 / 1 - 99 sets
    $13.40 / 100 - 9999 sets
    $13.20 / >=10000 sets
  • Min. Order: 1 set
Product details
Transmission rate:10/100Mbpscommunication method:Full duplex and half duplex
port:≤ 8Packaging Details:Kraft carton or customized packaging
OEM/ODM:welcomeEquipment type:Industrial Ethernet Switch
Gross weight per piece:0.550 kgbrand:butterfly dance
Sales unit:single productWarranty:3 years
Dimensions (WxDxH):118x80x30mmCertification:CE RoHS FCC
Switching capacity:1Gbpsmodel:TXE173
Single package size:23X21X7 cmproduct status:in stock
place of origin; place of origin:Guangdong, China
Product Description







model

TXE173

chipset

IP175GHI

The port number

5 ports 10/100M automatic MDI-MDIX RJ45

standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az

Internet media

10Base-T, UTP above cat3, 10Base-Tx, cat5 UTP

data rate

10/100M

forwarding rate

10 Mbps / 14,880 pps, 100 Mbps / 148,800 pps

LED indicator

10/100Mbps(Link/Act, speed), power, enhanced indicator

aspect

118*80*30mm

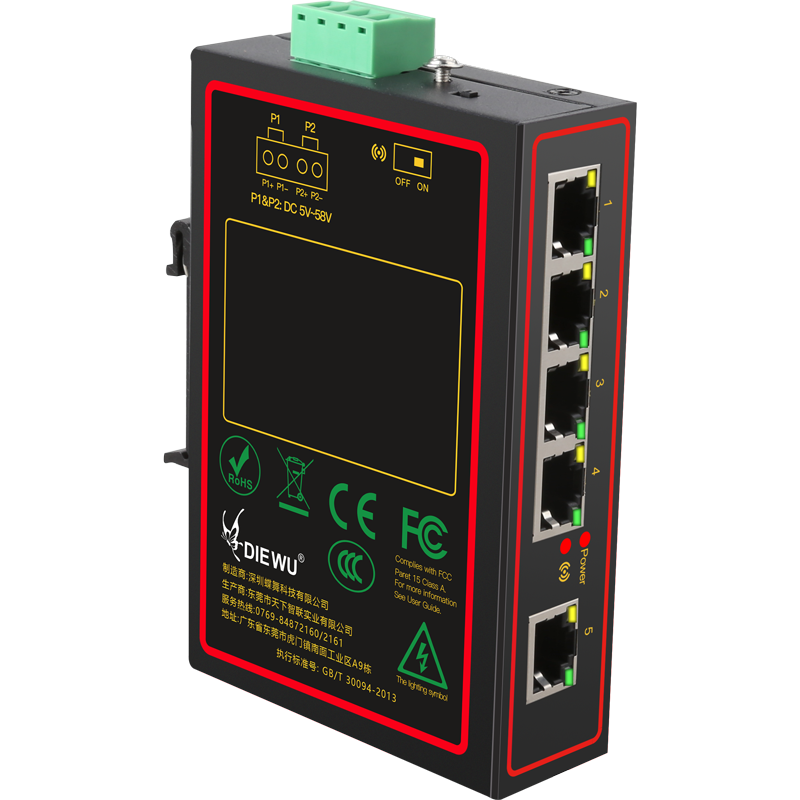

power input

DC5V-58V

energy consumption

1.5W max

surroundings

Working temperature: -40℃-85℃

Relative humidity: 10%-90% (non-condensing)

Storage temperature: -40℃-85℃

Relative humidity: 5%-90% (non-condensing)

Other functions

Enhanced switch





3.1chipset feature:

  • 5-port embedded 10/100 PHY switch controller
  • Support 5 100BaseTX or 4 100Base TX + 1 FX
  • Supports automatic MDI-MDIX function
  • Power Management Tool (PWMT®)
    - APS, automatic power saving when the link is off
    - Power saving and 10Mbps Te for 10Mbps based on IEEE 802.3az protocol
  • - WOL+®, energy saving for light traffic
    - PWD, force shutdown to save power
  • Support automotive factory test (AFT®)
  • Single supply 3.3V power supply
  • Built-in Vcore​​​regulator

· Two priority queues per port

  • Supports 802.1p and DiffServ-based QoS
  • service quality

- Port base
- 802.1p
- IP DiffServ IPV4/IPV6

- TCP/UDP port number

- Pin Configuration Port Priority (VIP Port)

  • Support maximum forwarding packet length 1552/1536 bytes option
  • Support port mirroring function
  • Support 1k MAC address
  • Support broadcast storm protection
  • Port trunking (LACP) supported
  • Supports 16 VLANs (IEEE Std 802.1q)

- Port-based/tag-based VLAN

- Support inserting and removing tags

  • Built-in 50 ohm resistor for simplified BOM
  • 85nm process
  • Package and Operating Temperature
  • IP175G: 48 Pin QFN(6x6), 0~70℃

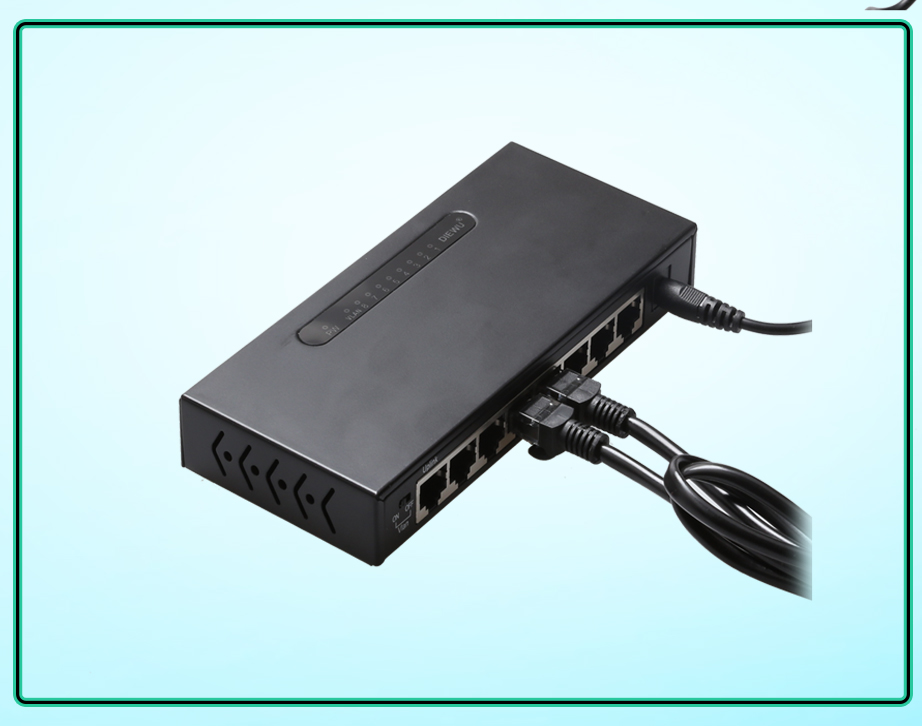

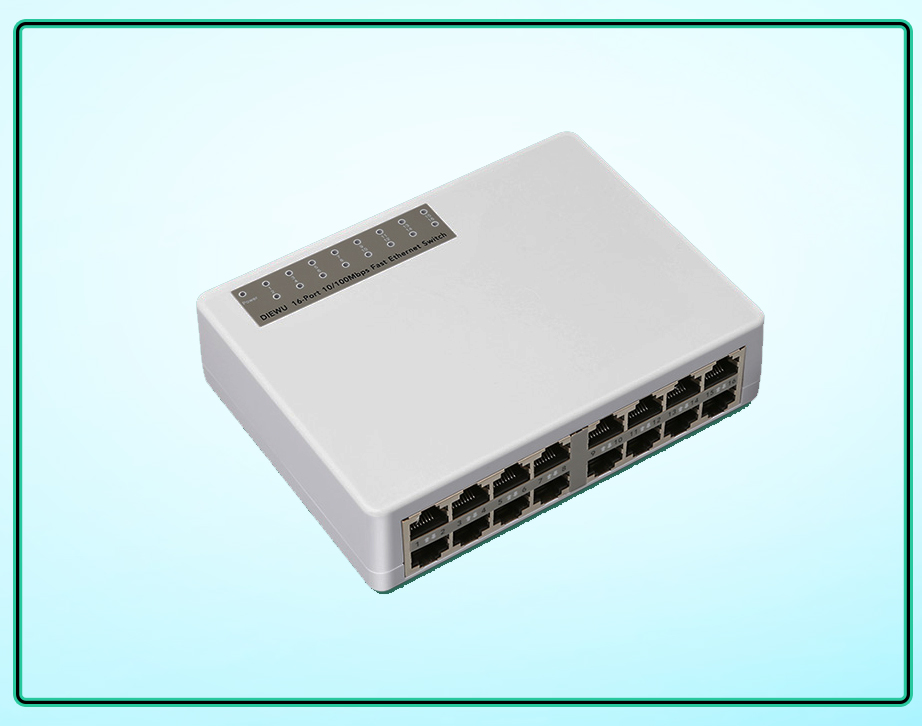

Similar projects for your reference:
