Dimensions (L*W*H): | 7862*4200*19328 | application: | For real estate construction and other fields |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Mechanical test report: | if |
Showroom location: | None, China | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
Minimum order quantity: | 1 | feature: | Strong power, low fuel consumption, high efficiency |
weight: | 53000 kg | Health status: | used |
Marketing Type: | normal product | Unique Selling Points: | long lasting |

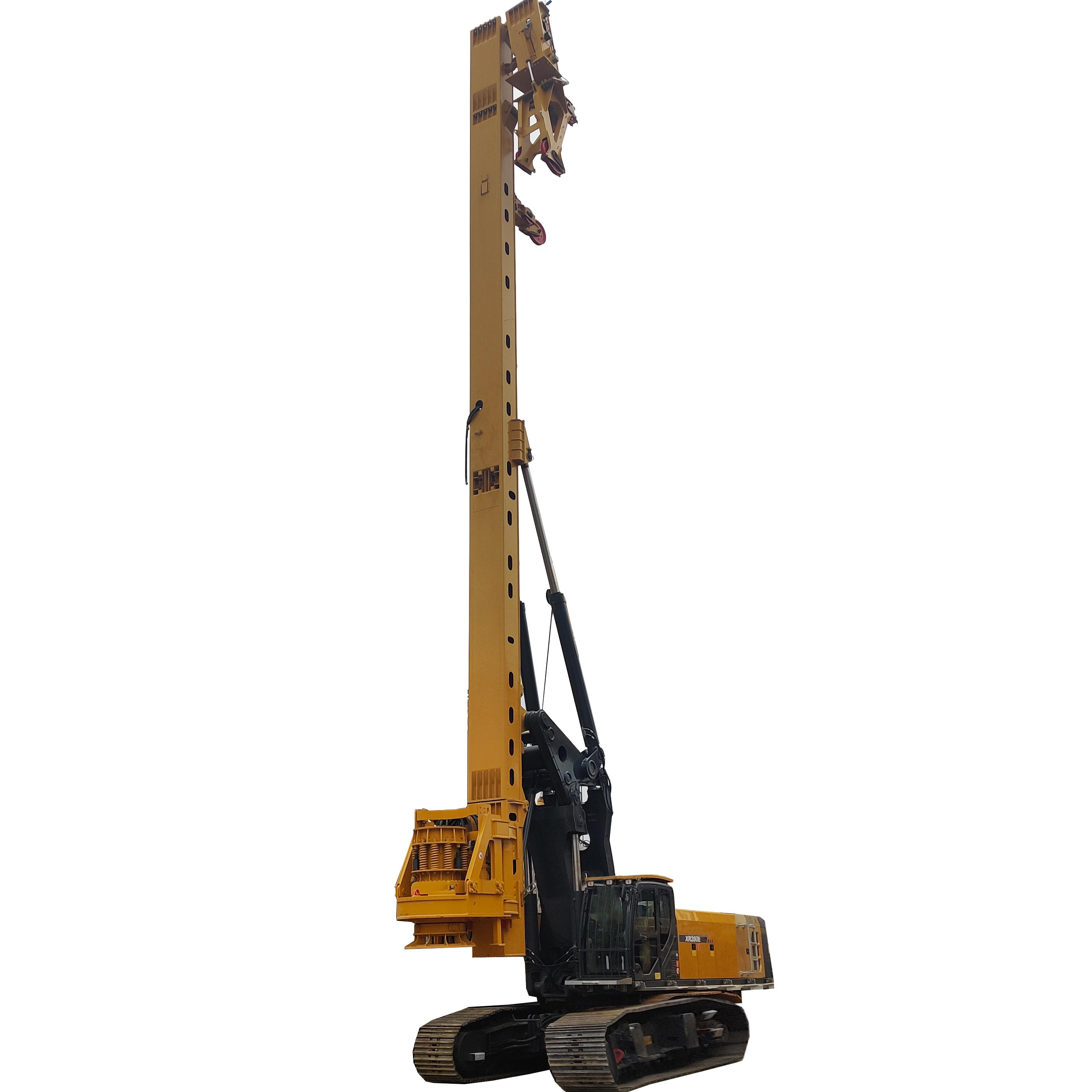

product name: | pile driver | Video external inspection: | if |
Packaging Preview: | efficiency: | 150kW | |
Applicable industries: | Building Materials Store,Manufacturing Plant,Construction Engineering,Energy and Mining,Other | Packaging Details: | Plastic box or steel drum or other seaworthy packaging |
Material: | steel | port: | Qinzhou Port Fangcheng Port |
place of origin; place of origin: | Guangxi, China | Supply capacity: | 1 piece per day |
Core Components Warranty: | 1 year | Warranty: | 6 months |
type | unit | scope | ||
maximum. Drilling diameter | Meter | 1.5 | ||
maximum. Drilling depth | Meter | 56 | ||
engine | Model | / | QSB7-C202 | |
strength | kilowatt | 150 | ||
Rotary drive | maximum. output torque | KNm | 160 | |
Rotating speed | rpm | 5-35 | ||
Cylinder | maximum. Pull down piston push | kN | 160 | |
maximum. Pull down piston | kN | 160 | ||
maximum. Pull-down piston stroke | Meter | 4.2 | ||
crowd winch | maximum. Pull down piston push | kN | 160 | |
maximum. Pull down piston | kN | 180 | ||
maximum. Pull-down piston stroke | Meter | 13 | ||
main winch | maximum. pull | kN | 160 | |
maximum. speed | m/min | 80 | ||
Auxiliary winch | maximum. pull | kN | 60 | |
maximum. speed | m/min | 80 | ||
mast inclination | Landscape/forward/backward | ° | ±4/5/15 | |
landing gear | maximum. Driving speed | km/h | 2.1 | |
maximum. level ability | % | 40 | ||
minute. clear | mm | 384.5 | ||
Track shoe width | mm | 700 | ||
distance between tracks | mm | 2960-4200 | ||
Hydraulic system | work pressure | MPa | 35 | |
gross weight | maximum. The speed of the whole machine | Ton | 53 | |
aspect | working conditions | mm | 7862*4200*19328 | |
Shipping conditions | mm | 13993*2960*3464 |
