Cylinder Head and Block Resurfacing Machine-TSM850

Supplier: Shanghai THL Machine Tool Co., Ltd.
Region: Shanghai, China
Contact: Mr xu li
Price: $6000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Number of axes:	2	Video external inspection:	Not available
model:	TSM850	CNC or not:	normal
Packaging Details:	wooden box	Table travel (mm):	1115
brand:	THL	type:	vertical
Power (kW):	2.25kW	place of origin; place of origin:	CN; SHG, Shanghai, China
payment terms:	wire transfer	Weight (kg):	800
Spindle taper:	ISO40	Main selling point:	high productivity
Power (W):	2250	weight:	800kg
Core Components Warranty:	1 year	Table travel (Y) (mm):	not any
Marketing Type:	Hot Products of 2019	Applicable industries:	manufacturing plant
Processing capacity:	relaxing work	Showroom location:	Ukraine, Russia
Core components:	motor	Mechanical test report:	if
Health status:	new	Spindle speed range (rpm):	400 - 1200 rpm
Supply capacity:	5 units per day	port:	Shanghai
Table travel (Z) (mm):	not any	Warranty:	1 year
Dimensions (LWH):	17208701550mm	Table stroke (X) (mm):	1150

The TSM850 is only produced at the THL factory.
We found some sellers are selling different machines but using the TSM850 model name. Be careful, don't buy fake machines.

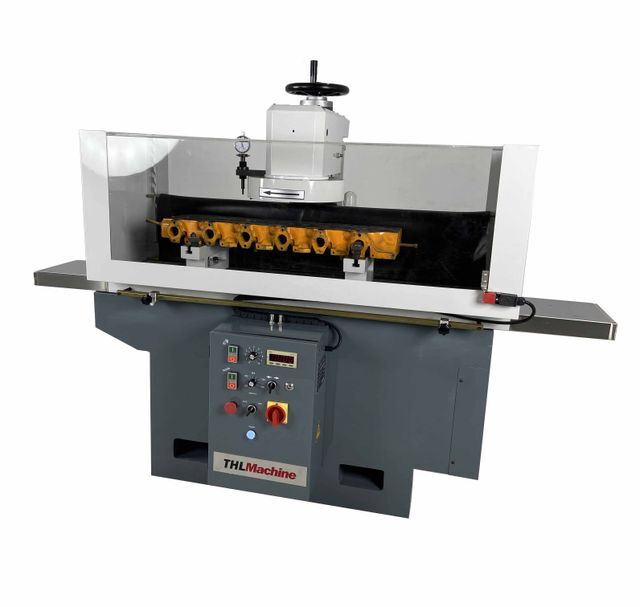

Cylinder Head and Block Surface Finishing Machines

Cylinder head and block surface finisher

TSM850

T--THL machine

S–-surface M–-milling only

850 - maximum workpiece length

After receiving many inquiries from customers who want a small end planer, we made the surface milling machine TSM850.
The maximum length of the workpiece is 850mm and the height is 430mm. The TSM850 can do the work of 6 blocks and heads in a row.

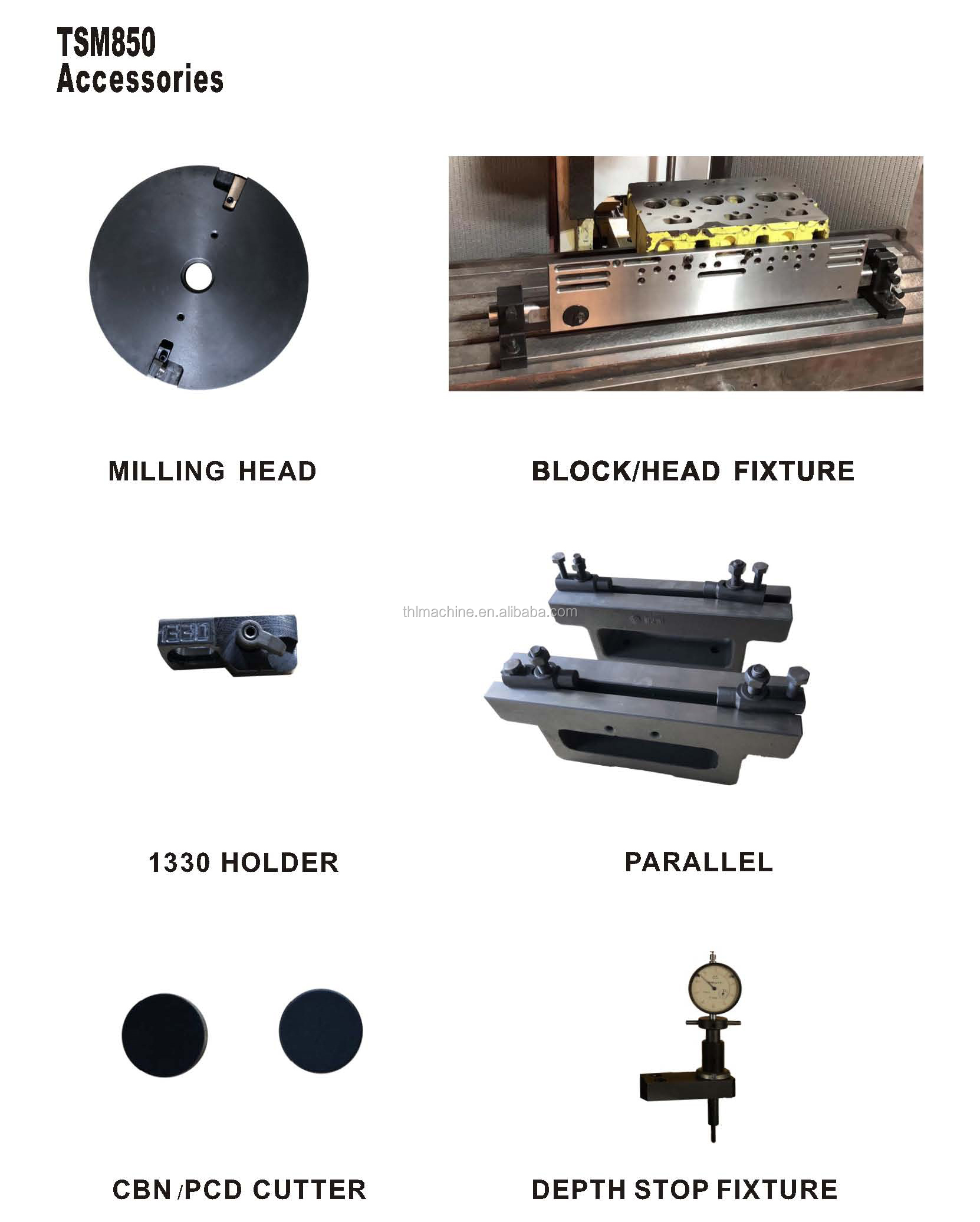

Frequency conversion speed control head, table speed, equipped with CBN, PCD tools, good surfacing effect.
The staggering cost makes it the best machine for a small garage.

Model	TSM850
table travel	1115mm
maximum. Workpiece length	850mm
maximum. Workpiece width	330mm
maximum. Workpiece height	430mm
minute. Workpiece height	160mm
table feed	0÷600mm/min
Milling wheel diameter	330 mm (13 inches)
Tool speed	300÷1200g/min(rpm)
Voltage (+/- 15%)	230V , 400V
stage	1 , 3
Minimum protection level	Intellectual Property 44
main motor power	1.5kW
Gearbox motor power	0.75kw
total power	2.25kW
Environmental conditions: temperature humidity	10÷30℃ 15÷90%RH
weight	800kg
Dimensions LWH	17208701630mm
