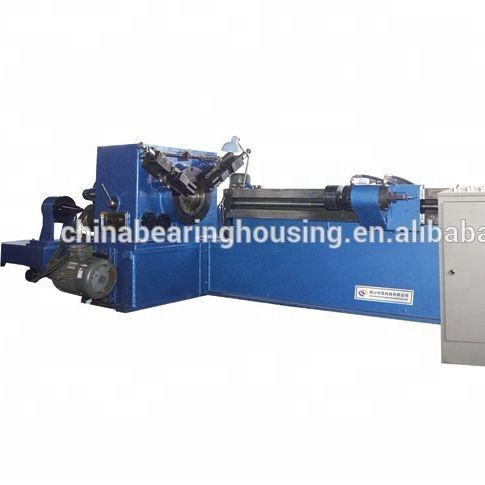

Heavy Duty Conveyor Idler Maker for Pipe Cutting and Chamfering
-
Supplier: China-Techpart Precision Technology Co., Ltd. -
Region: Anhui, China -
Contact: Mr Kinglin Jin -
Price: $33672.00 /set -
Min. Order: 1 set
| Cut pipe length: | 200-2200mm | Health status: | new |
| Certification: | International Organization for Standardization | After-sales service provided: | On-site maintenance and repair services, engineers can repair machinery overseas |
| weight: | 5000kg | Cut pipe diameter: | 89-160 |
| brand: | OEM | model: | QZ11-16-220 |
| Dimensions (L*W*H): | 19090*1640*1330mm | place of origin; place of origin: | Hebei china |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Packaging Details: | wooden box |
| Warranty: | 1 year | port: | Shanghai Negotiable |
| Supply capacity: | 16 sets per month |
Heavy Duty Conveyor Idler Maker for Pipe Cutting and Chamfering
The main parameters
Specification | QZ11-16×220 | QZ11-22×260 |
Spindle center height | 800mm | 800mm |
hydraulic system working pressure | 1.5-4MPa | 1.5-4MPa |
Spindle speed | 150,220 rpm | 100,160,250 rpm |
Feed rate | hydraulic stepless | hydraulic stepless |
Feed rate | 0-8m/min hydraulic stepless | 0-8m/min hydraulic stepless |
Maximum feed length | 12000 mm | 12000 mm |
Spindle motor | 15kW | 22 kW |
Hydraulic system motor | 5.5kW | 5.5kW |
Feeding mechanism | hydraulic motor | Cycloid reducer |
Cut pipe to length | 200-2200 mm | 200-2600 mm |
Cut off the pipe diameter | Φ89-Φ160mm | Φ89-Φ219mm |
Equipment size | 19090×1640×1330 mm (including track) | 20310×2420×1300 mm (including track) |
accurate
Specification | QZ11-16×220 | QZ11-22×260 |
Cut length repeatability | ≤0.5mm | ≤0.5mm |
Cut parallel to the pipe end surface | ≤0.4mm | ≤0.4mm |
Chamfering Surface Roughness Ra | 6.3~12.5μm | 6.3~12.5μm |
We can provide:
1. Engineers can repair machinery overseas.
2. If you choose to do the transaction, you can avoid shipping problems
us.
3. We have many foreign business partners, you can rest assured
The quality will make you satisfied.
4. I can guarantee the price is the most competitive in the same kind of machine
china.if you find this machine cheaper
Other factories in China, tell us and we will refund your money.
5. Integrity is my aim. So please don't worry about doing business with me. I
Will give you a good service and make you never want to change
Chinese suppliers.
-
