capacity: | 600-800 kg/h | strength: | 22kW |
raw material: | sawdust/rice husk/palm husk/rice husk/coconut husk | Minimum order quantity: | 1 set |
life: | 5 years | Health status: | new |
Dimensions (L*W*H): | 10*1.6*3.5m | Sales unit: | single product |
model: | Continuous Charcoal Making Machine | product name: | Charcoal carbonization furnace production line |
After-sales service provided: | Online support | place of origin; place of origin: | Henan, China |
Main selling point: | Famous brand PLC | color: | grey |
After Warranty Service: | Video technical support | brand: | Ethan Honda |
Warranty: | 3 years | Showroom location: | not any |
Voltage: | 380 volts | Gross weight per piece: | 4.000 kg |
application: | carbonized | Video external inspection: | if |
Core components: | programmable logic controller | Packaging Details: | standard packaging |
Single package size: | 30X30X30 cm | Applicable industries: | other |
Serve: | OEM and ODM | Mechanical test report: | if |
Core Components Warranty: | 1 year | weight: | about 10 tons |
Local service location: | not any | Marketing Type: | New Products 2020 |

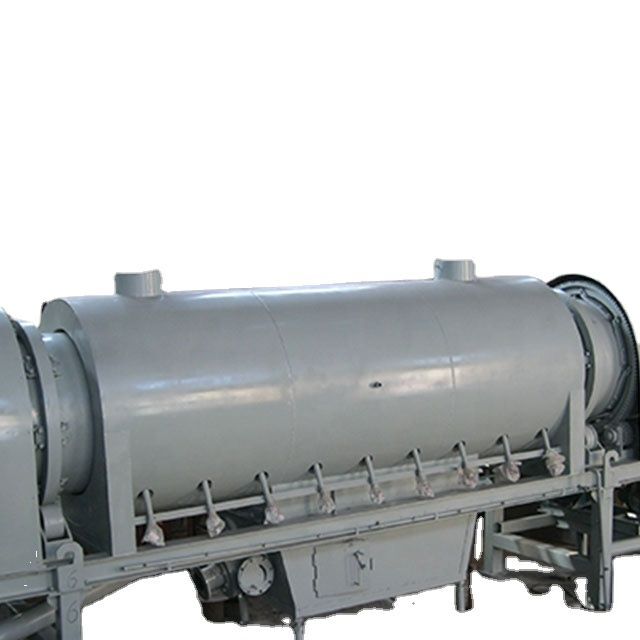

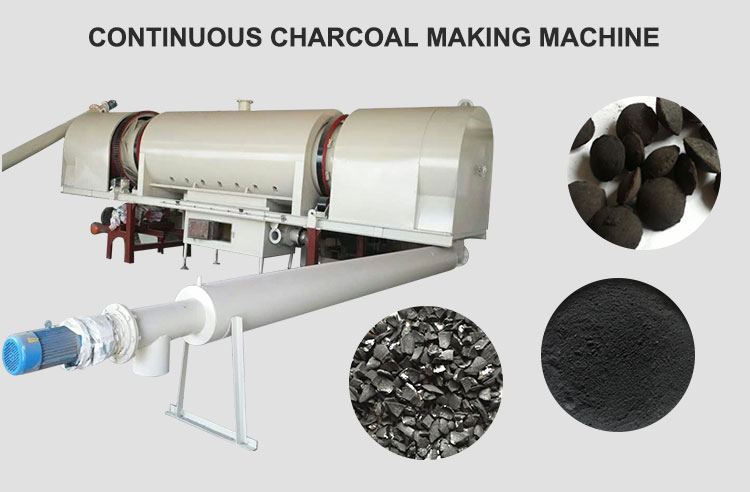

Continuous charcoal carbonization furnace production line
Continuous charcoal machines can turn raw materials (sawdust, rice husks, weeds and shells, straw) into charcoal. When the moisture content of the raw material is greater than 15%, the raw material needs to be dried by a dryer. It is popular for its easy operation, large capacity and good quality.
>>> This furnace is an ideal equipment for anaerobic distillation and carbonization of wood blocks.

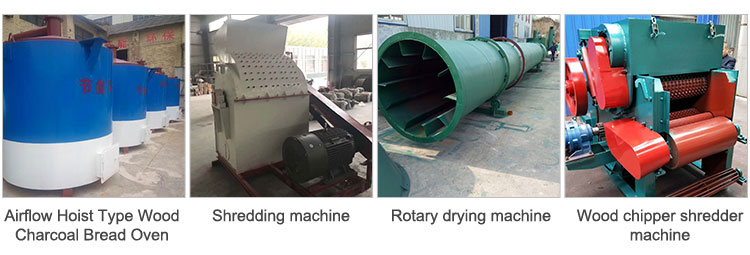

Related Products:
type | Diameter 1200 1200 |
raw materials | Wood flour, rice husk, sawdust, wood, coconut shell, etc. |
Carbonized part of the motor | Sprocket motor: 7.5 kw |
Fan motor: 4 kw | |
Outlet motor: 2×3 kw | |

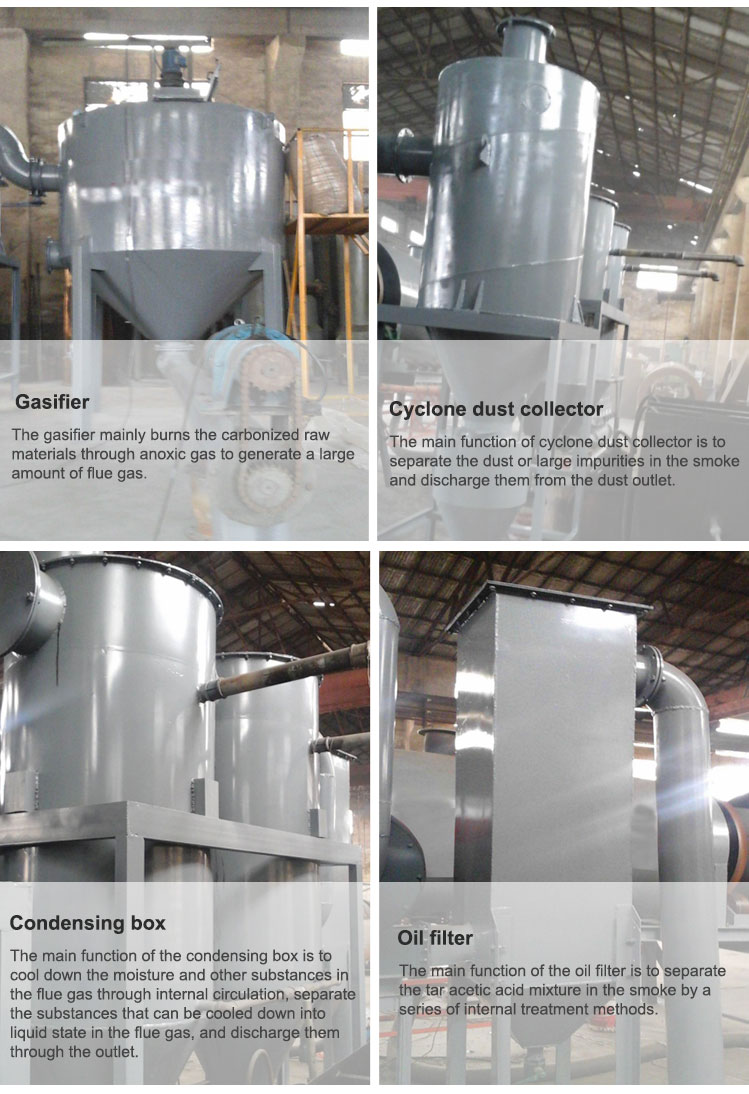

Gasification part motor | Vaporizer motor: 3 kw |
Gasifier outlet: 1.5kw | |
Smoke extractor motor | 4kW |
Air lock valve motor | 0.75 kW |
Feeding part motor | 1.5kW |
Required items | 100-200 square meters |
capacity | 500 kg/h |
machine weight | 16 tons |
Production characteristics of continuous charcoal making machine:
Package:
>>> Standard Packaging
Shipping:
>>> 7-35 days after payment.
