strength: | 20-30KW | Voltage: | Motor customization |
weight: | 8-16 tons | Raw materials: | biomass waste |
port: | Qingdao | After-sales service provided: | Engineers can repair machinery overseas |
usage: | Biochar direct | Main selling point: | high productivity |
Carbonization time: | 20 minutes | Effective volume: | 5-10CMB |
Name: | Continuous carbonization furnace | Local service location: | not any |
capacity: | 300-1200KG/H | Dimensions (L*W*H): | 15*10*4m |
Core components: | Bearings, Gears | Supply capacity: | 200 sets per month |

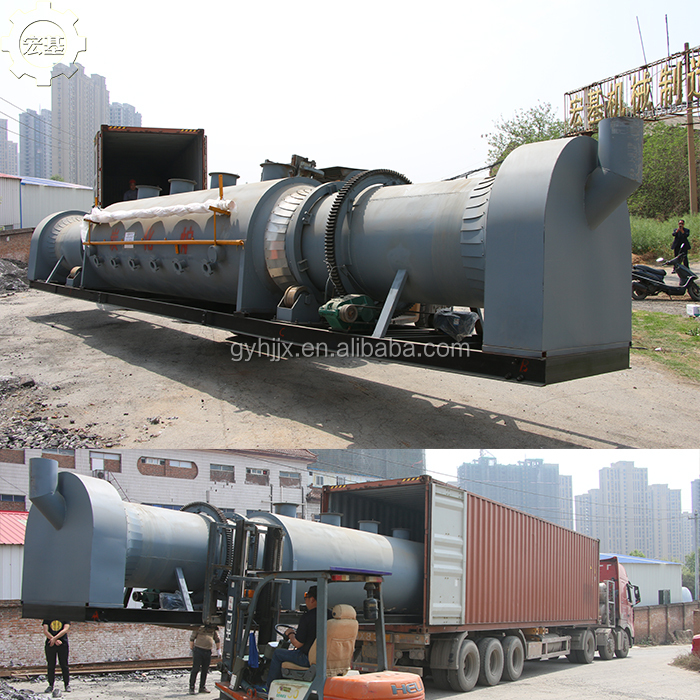

Certification: | CE&ISO | Packaging Details: | a 40' container |
Core Components Warranty: | 1 year | Video external inspection: | if |
Carbonized fuel: | biomass gas | brand: | Acer |
Marketing Type: | New Products 2020 | Mechanical test report: | if |
payment terms: | L/C,Western Union,T/T,MoneyGram | Preheat fuel: | Gas/LPG/Natural Gas/Diesel |
Showroom location: | not any | Health status: | new |
place of origin; place of origin: | Henan, China | feature: | Large capacity, no smoke |
Advantage: | Continuous work environment friendly | Applicable industries: | farm |
Warranty: | 1 year | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |

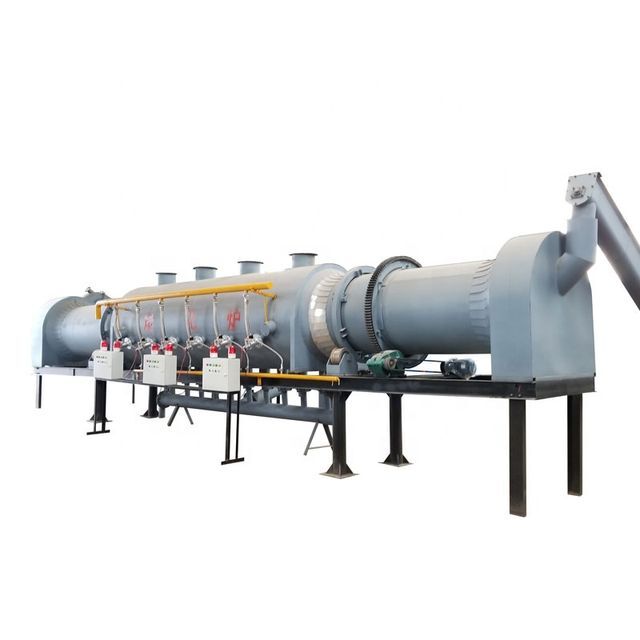

Energy saving and environmental protection horizontal sawdust continuous carbonization furnace
Working principle of horizontal continuous carbonization furnace
Burn raw materials (such as sawdust, shells, palm husks, rice husks, straw, wood chips, etc.) in the gasifier, and the generated flue gas becomes combustible gas (carbon monoxide, methane, ethane, etc.) after being sprayed, cooled and purified in the pipeline. , as early carbonization heat, heating carbonization raw materials (such as machine-made mandrels, discarded logs, bark, coconut shells, domestic waste, etc.) in the carbonization furnace
When the temperature reaches 300 degrees Celsius, the carbonization furnace begins to carbonize the raw materials and generates smoke; the flue gas becomes combustible gas after spraying, and is cooled and purified by the cooling and purification system, and continues to be carbonized, and the gasifier stops working.
Technical Specifications Continuous carbonization furnace
# |
The main technical parameters |
Principales parametros técnicos |
Type A |
Type B |
Model-C |
|
1 |
type |
Tipo |
Dry distillation (La destilación seca) |
|||
2 |
Voltage |
Volta |
380 volts |
|||
3 |
Power (kW) |
Pod |
1.5 +1.5+1.5+5.5+7.5 +2.2 |
3 +3+3+5.5+7.5 +2.2 |
5.5 +4+ 4+5.5+7.5 +2.2 |
|
4 |
Capacity (kg/hour) |
Casida |
300-400 |
500-650 |
800-1000 |
|
5 |
Host weight |
Peso de la Máquina Principal |
2 tons |
3.5 tons |
6 tons |
|
6 |
Whole production line weight |
pesos de la cadena de producción entera |
6 tons |
8.5 metric tons |
12 metric tons |
|
7 |
Raw material diameter |
original material diameter |
≤30mm |
|||
8 |
continuously working |
Trabayondo in continuous form |
24 hours |
|||
9 |
Host size (Dia*L) |
subject dimension |
1.0 x 12m |
1.2 x 12m |
1.5x12m |
|
10 |
furnace temperature |
Temperatura internal del horno |
350-500℃ |
|||
11 |
Carbonized pipe temperature |
Carbonization Temperature Pipe |
500-700℃ |
|||
12 |
effective volume |
volume effect |
5 cubic meters |
7 cubic meters |
10 cubic meters |
Advantages of Continuous Carbonization Furnaces
1. Non-stop, 24-hour work
2. Large capacity, up to 7.2 tons a day
3. Environmentally friendly, burn the furnace smoke itself, so no smoke goes out
4. Energy saving, burning smoke as power.

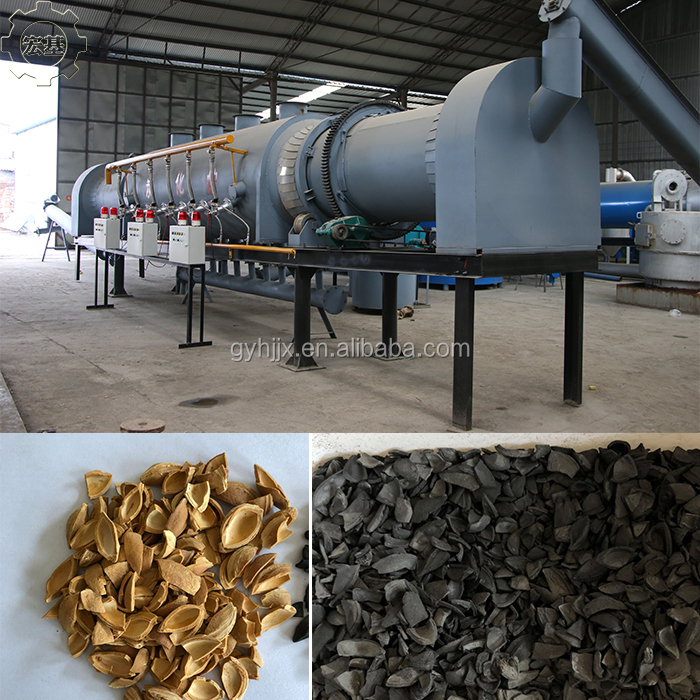

5. The sawdust, rice husks, coconut shells, etc. are made into charcoal in time.
6. Energy recycling of sawdust carbonization furnace.
Raw Materials & Charcoal Powder
Raw materials: sawdust, shells, palm shells, nut shells, straw, sawdust.
The machine is equipped with: automatic feeding conveyor, dust removal device, gas purification system, PLC touch screen manual and automatic dual-purpose electric control cabinet, cold discharge conveyor, carbonization furnace and other equipment.

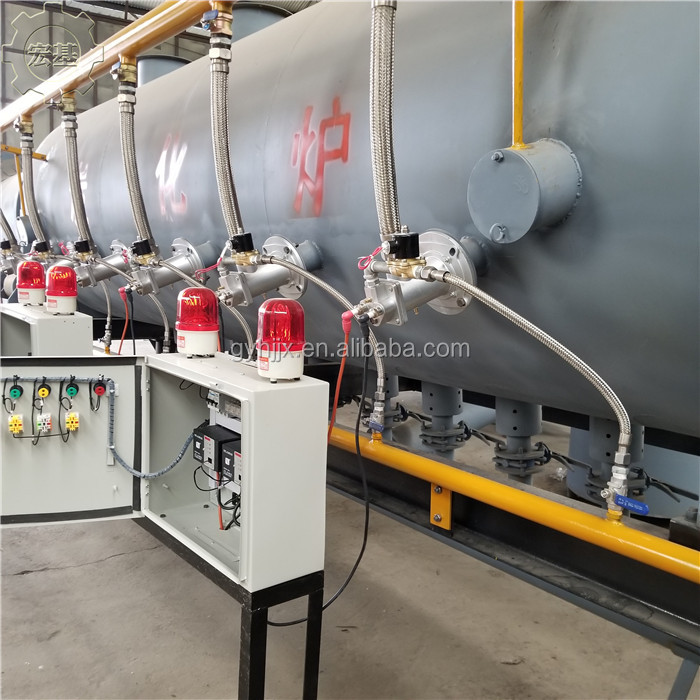

There are three types of burners: LPG/natural gas, gasifier (coal burning), diesel
