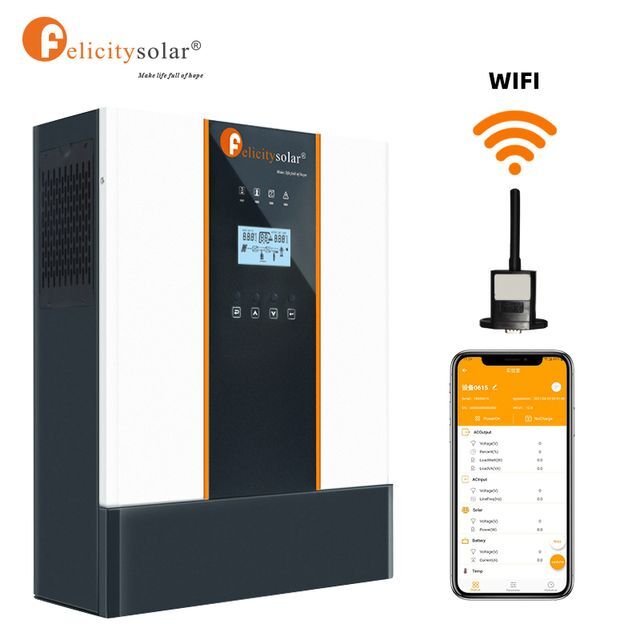

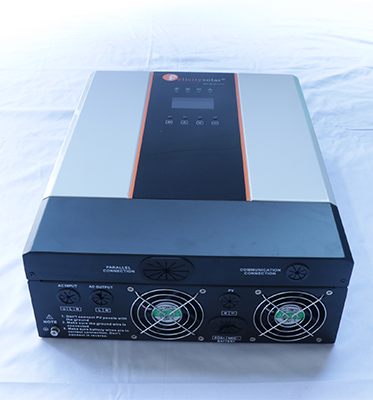

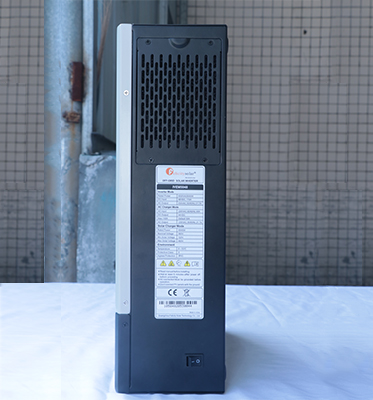

High Quality Hybrid MPPT 3KW 5KW Solar Inverter Built-in MPPT Solar Controller, 100A

Supplier: Guangzhou Felicity Solar Technology Company Limited
Region: Guangdong, China
Contact: Mr Roy Wu
Price: $310.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Controller:	100A MPPT	Protect:	overload
Packaging Preview:		Output waveform:	Pure sine wave output
Single package size:	41.5X32X12.9 cm	exhibit:	LCD+LED display
Original Equipment Manufacturer:	accepted	output type:	single
Warranty:	12 months, 1	size:	420350195mm
The output voltage:	230V	product name:	Hybrid Solar Inverter
Gross weight per piece:	13.000 kg	place of origin; place of origin:	Guangdong, China
Input voltage:	24V	application:	Solar System Home
Packaging Details:	Standard carton	type:	DC/AC inverter
brand:	Happy Solar	model:	FL-IVEM3024
Output current:	30A	color:	white
Certificate:	CE/ISO,CE/ISO	Inverter efficiency:	98%
Sales unit:	single product	weight:	12
Output frequency:	50/60Hz

Product Description

feature

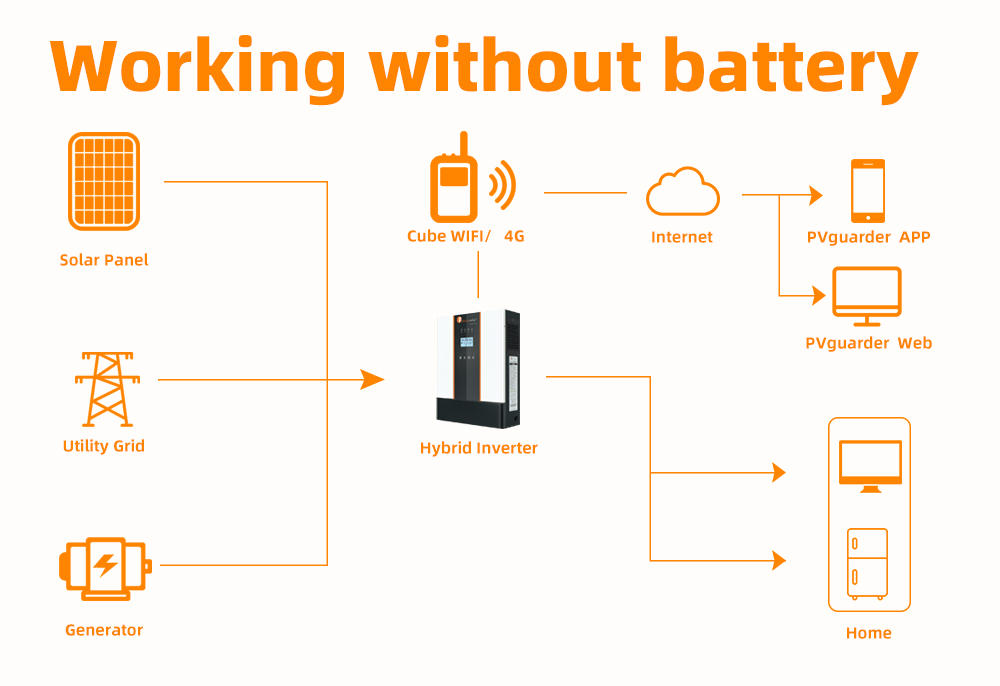

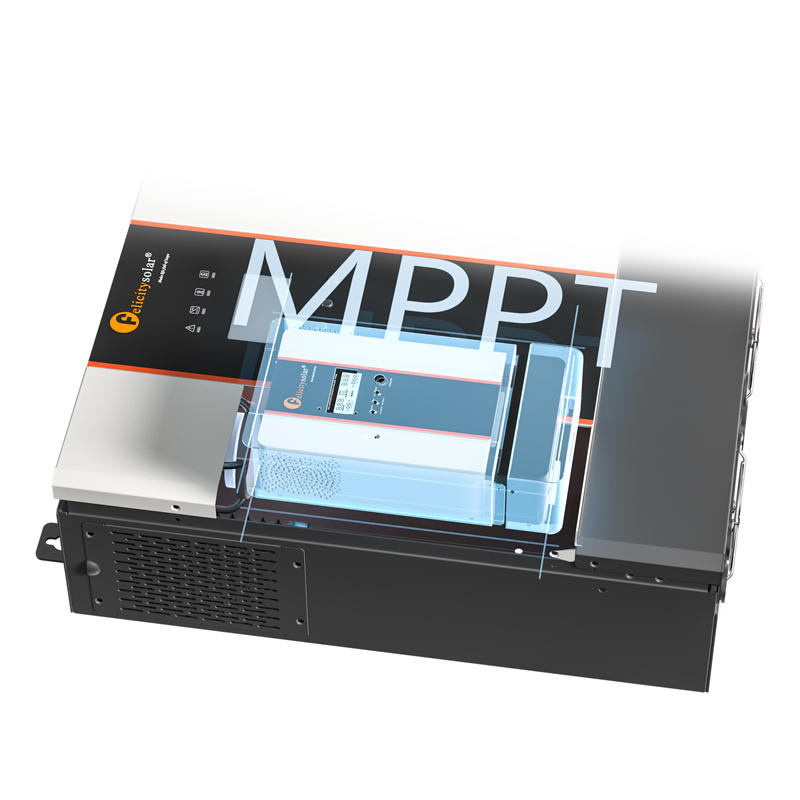

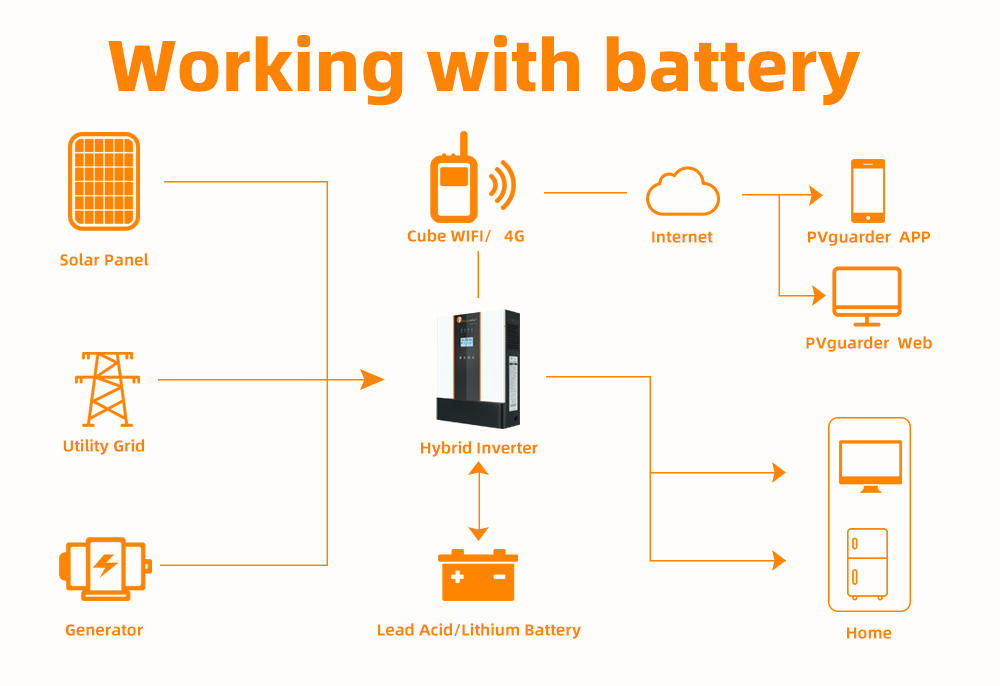

Pure sine wave Built-in MPPT solar charge controller Configurable solar input voltage up to 500V Configurable input voltage range for home appliances and PCs via LCD settings Configurable battery charging current via LCD settings AC/ Solar Charger Priority Compatible with Mains Voltage or Generator Power Auto-restart when AC or Solar is restored Works without connecting a battery Able to power AC output of both solar and mains at the same time Provides AC output with solar input only Overload/Overtemperature/Short circuit Protection cold start function up to 12 units in parallel operation only for 5KVA models

Model	IVEM5048	IVEM3024
DC input voltage	48V	24V
Rated output power (VA)	5000VA	3000VA
Rated output power (W)	5000W	3000W
Input voltage waveform	Sine wave (utility or generator)		170Vac±7(UPS); 90Vac±7Vac(Electrical)
Rated input voltage	230vac	230vac
Grid low voltage	90Vac±7Vac	90Vac±7Vac
Grid low voltage recovery voltage	100Vac±7Vac	100Vac±7Vac
Grid high voltage	280Vac±7Vac	280Vac±7Vac
Grid high voltage recovery voltage	270Vac±7Vac	270Vac±7Vac
Maximum input voltage	280Vrms	280Vrms
Rated input frequency	50Hz/60Hz (automatic detection)		50Hz/60Hz
Grid underfrequency	40±1Hz		40±1Hz
Power grid under-frequency recovery	42±1Hz		42±1Hz
grid overfrequency	65±1Hz		65±1Hz
Power grid over-frequency recovery	43±1Hz		63±1Hz
Nominal input frequency	Sine (utility or generator)		Sine (utility or generator)
output waveform	Synchronized with input voltage
Overload protection	Air switch protection
Output short circuit protection	Air switch protection
Efficiency (Grid)	≥95%
Switching Time (AC TO DC)	15ms typical
Switching Time (DC TO AC)	15ms typical/30ms special
via battery free	Do not
Maximum bypass overload current	40A	30A
Circuit breaker size	Depends on battery type or custom
Overcharge protection	Yes
MPPT charging & grid charging (MPPT built-in controller optional)
Maximum PV open circuit voltage	500V	500V
PV voltage operating range	120V~500V	120V~500V
maximum input power	6000W	4000W
Maximum mains charging current	100A	100A
Maximum charging current (mains + solar)	100A	100A
