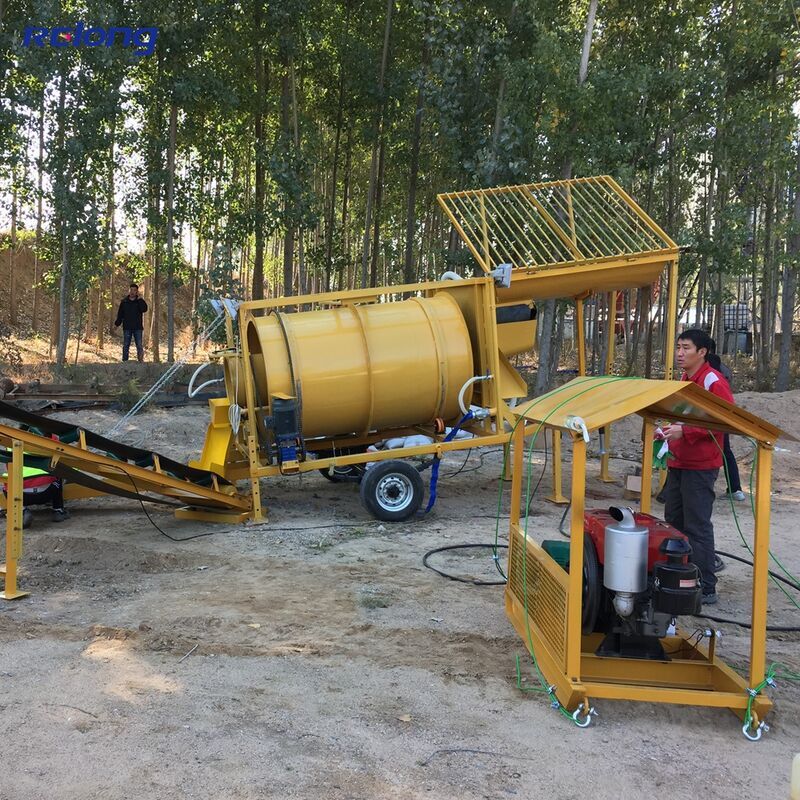

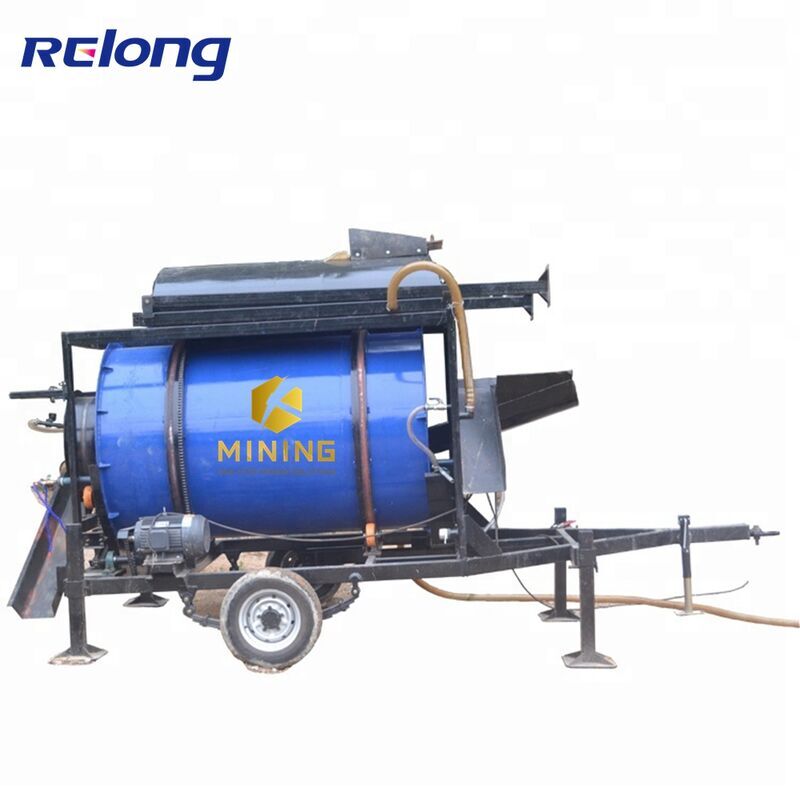

RL-GM10 Gold Trommel Wash Plant Alluivial Gold Mining Machine

Supplier: Relong Technology Co., Ltd
Region: China
Contact: Mr Emily Wang
Price: $10000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

The Model 10 is advanced portable unit. It equipped with a reversible wet material hopper and screen. This machine is perfect for small scale operators or as a testing plant. Little water demand but high efficient enrichment capability, equipped with a 15cm wide sluice box which need clean up just when batch test or after one day work. At the same time can provide you around 98% recovery rate. Recovery fineness can reach 300 mesh. With continuous processing, advanced reverse screw system, help you increase the gold recovery value, lower ability to the operation of the operator.

Advantages and Features
1 Continuous gold mining process can stop at the end of the day, which can get almost pure gold as a result but no need to buy any expensive equipment to do concentration mining.
2 This gold machine is equipped with advanced washing drum screen, which can separate mud and gold directly, then can separate the particles size bigger than 8mm.
3 It's a complete mobile system with simple construction, easy to operate, lower operating cost. Which is more advanced than other systems in the market. You can operate directly without any experience.
4 We have more than 10 years experience in research and development in this field. Whole process service can be provided including pre-exploration, large-scale mining, final recovery .
5 Our machinery are widely used in Africa, Asia, Southeast Asia and South America.
This gold mining machine can greatly increase your gold recovery rate.

GM-10 Helix Trommel Washing Plant
No.	Title	Spec	Remark
1	Overall length	4.9m
	Overall width	2.3m
	Overall height	2.9m
2	Desliming trommel	Diameter 19"	With 2 washing room
3	Washing trommel	Diameter 48"
4	Power	4kw-4p
5	Gasoline & Pump
	Pump	2inch
	Flow/Lift	30m³/30m
	Gasoline engine	6.5HP
	Suction/Scupper pipe	5m/80m
6	Capacity	10t/h
7	Weight	1700kg
8	Gas generating set	Longxin 8000-DC
8	Power	6KW/380V
9	Feed type	Small excavator or Wheel loader
10	Shipping package	1*20ft container
