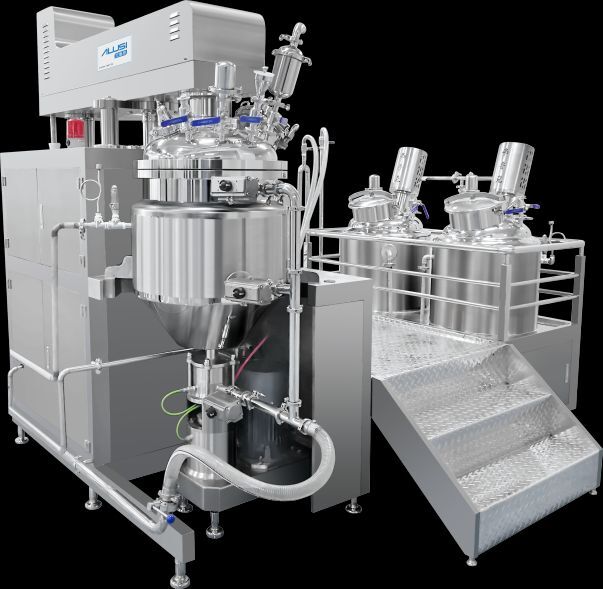

High Shear Emulsifier Toothpaste Production Equipment, Paste, Cosmetic Cream, Body Lotion Emulsifying Mixer

Product details
Lifting:Hydraulic systemCore components:Pressure Vessels, Pumps, Bearings, Motors, PLCs
type:Vacuum emulsifierShowroom location:Thailand
Packaging Details:The high shear emulsifier stirring toothpaste production equipment is covered with a film inside and a plywood shell outside.payment terms:L/C,Western Union,T/T
Function:HomogenizeCertificate:CE ISO9001 GMP
Mixer Type:two-way mixWarranty:1 year
Marketing Type:normal productApplicable industries:manufacturing plant, cosmetic factory
port:Guangzhou, ShenzhenSupply capacity:50 sets per month
Packaging Preview:brand:Elus
Health status:newMain selling point:Famous brand PLC
Homogenizer type:High Shear Bottom HomogenizerMechanical test report:if
Video external inspection:ifWarranty:1 year
Electric cabinet:PLC system/button controlcapacity:50L-5000L
Core Components Warranty:1 yearVoltage:220V/380V/440V/custom
Machine material:SUS304&316L

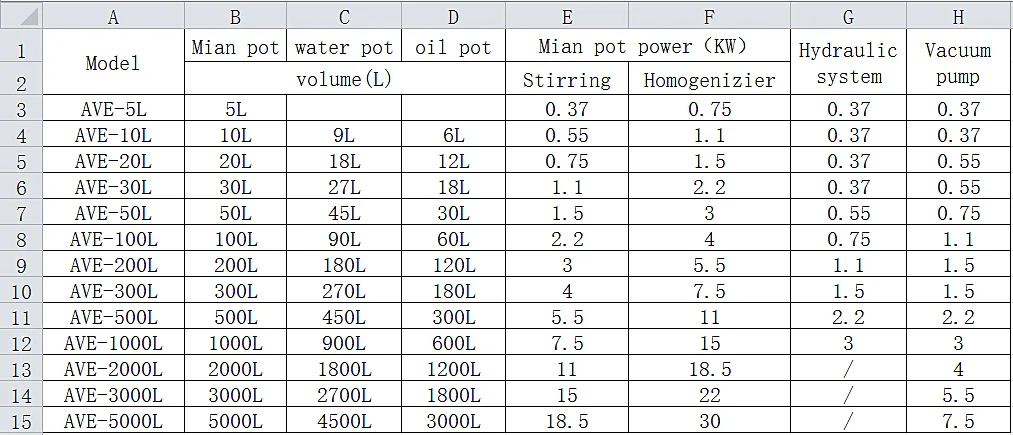

Product Specifications
Do not
Model
AVE-300
1
Ability to work
300L
2
heating method
steam/electric
3

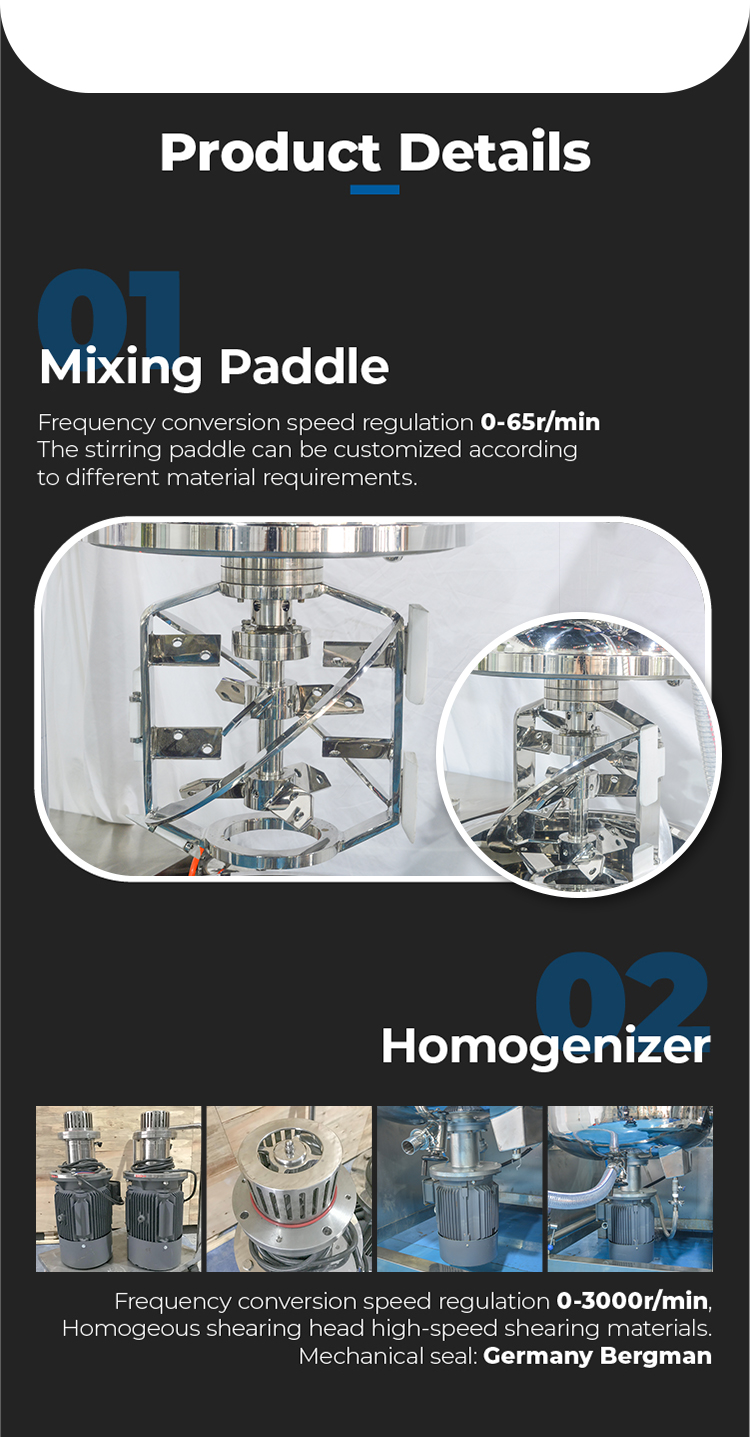

Hybrid
Top rack paddle scraper mixer
4
Stirring motor power
4KW
5
mixing frequency
4KW
6
stirring speed
0-65 rpm
7
Homogenizer
Bottom homogenizer with frequency converter
8
Bottom homogenizer power
7.5KW
9
speed
0-3600rpm (60Hz)
10

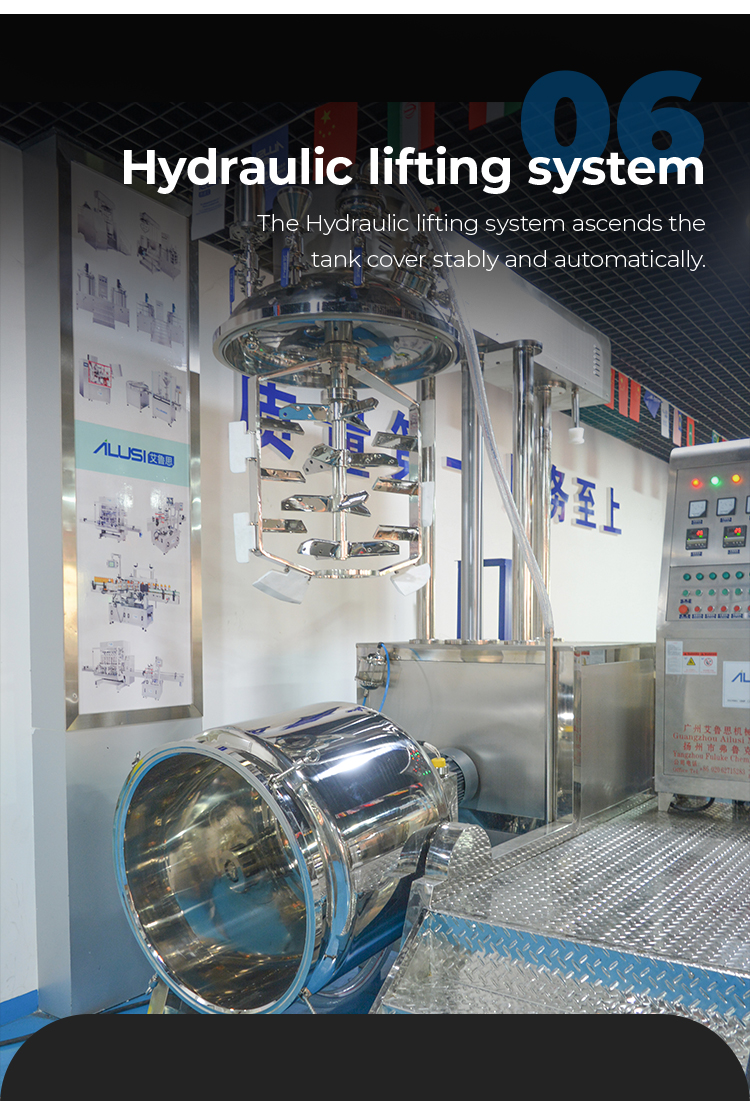

Hydraulic lift system
Dual hydraulic, power: 1.5KW
11

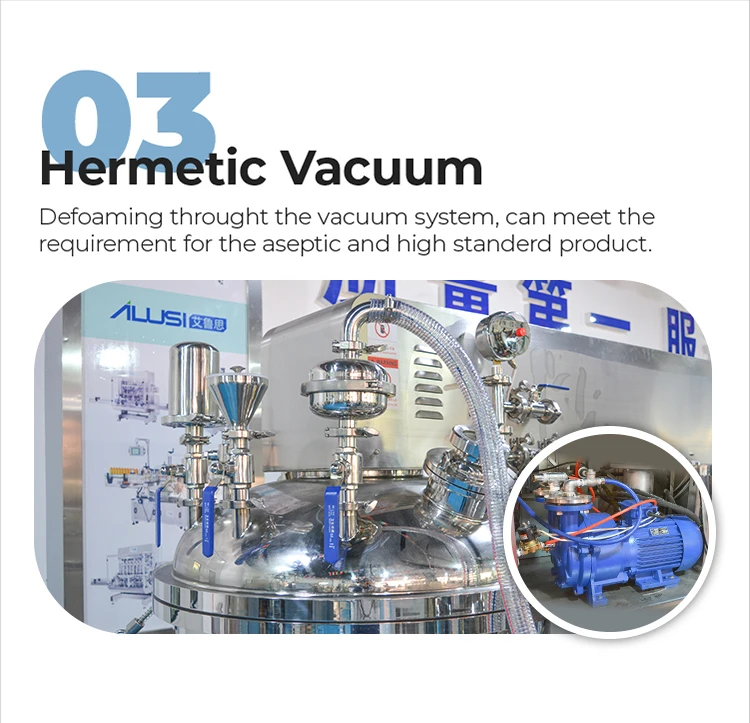

vacuum pump
Water circulation vacuum pump, power: 1.5KW
12

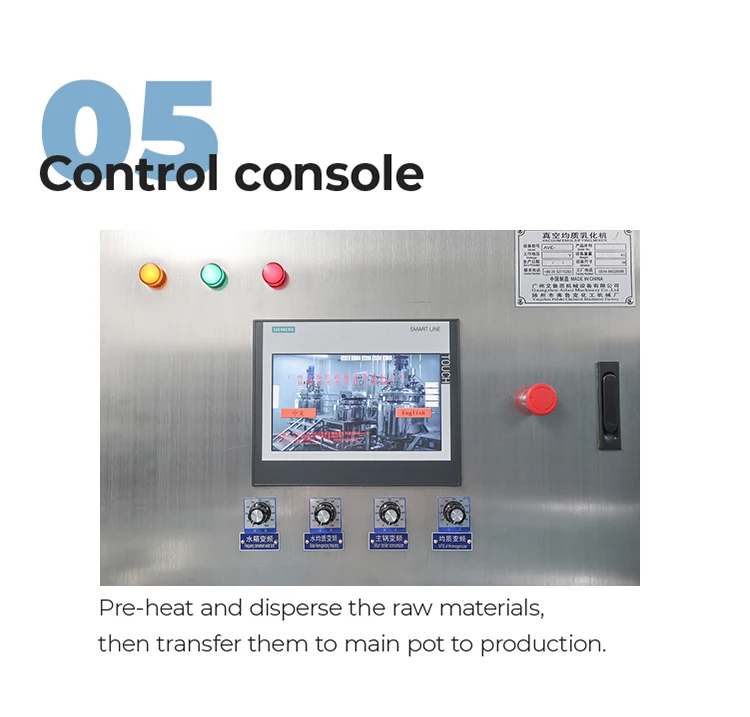

control method
Button Control/Human Machine Interface
13
frequency converter
Delta/Panasonic/Mitsubishi
14
Electrical components
Schneider/Delixi
15
jacket
double jacket, 3 layers
16
Tank material
Inner layer 5mm/SUS316
Intermediate layer 5mm/SUS304
Outer layer 3mm/SUS304
Why is your machine similar to other suppliers?
We have been in the industry for over 10 years and have designed our machines in-house using advanced technology. Appearance is only part of the machine, quality and service are more important than it.
I am new to our industry but I am planning to open a factory, what should I do?
1) Provide turnkey service from A to Z for customers, recommend the most suitable machine according to customer's formula and raw materials. We can also customize the machine according to your requirements.
2) Supporting manufacturing-installation-training-maintenance-technical support.
3) We can introduce you to suppliers of raw materials, bottles, labels, etc. It is also possible to take you to our customers' factories to see how they are produced.
