small trailer atv utv electric winch 3000lb 12v

Supplier: Ningbo Puli Electric Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Rose chen
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

place of origin; place of origin:	Zhejiang, China	capacity:	3000
Packaging Details:	carton, pallet	brand:	Pooley
Energy source:	electrical	application:	ATV/UTV
Supply capacity:	1000 pieces per month	Delivery Details:	30 days
payment terms:	letter of credit, wire transfer	Small winch:	3000 lb trailer winch
port:	Ningbo	model:	PL-V3.0-2

Product Description

Small ATV Trailer Winches 3000 lbs Features:

Electrical load input and output.

This winch includes a free-winding clutch for quick release of the wire rope, has a high efficiency low current traction motor and an all metal planetary gear train that is sufficient for traction requirements. Includes wired control handle. Dynamic braking ensures safety.

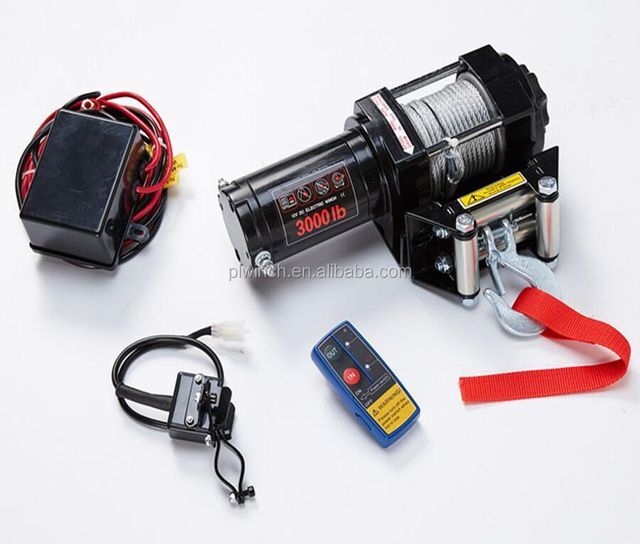

Includes pulley block, hook with harness and roller fairlead.

Rated wire pull:	3000LB (1360kg) single line
motor:	3.0hp/2.2kw 12V, permanent magnet motor
Gear train:	Tier 1 planet
Gear reduction ratio:	153:1
clutch:	Rotate 105°
cable	φ3/16”×42.6” (φ4.76mm×13m)
Drum size:	φ1.3”×2.83”(φ32mm×72mm)

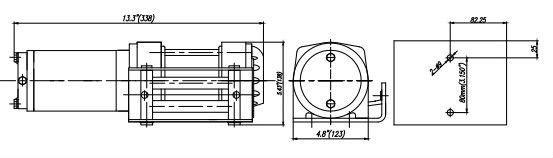

Dimensions:	(L×W×H)12.8”×4.1”×4.1”(325×105×105mm)
gross weight:	21 lbs (9.5 kg)
Duty cycle:	On and off
Fairlead:	4-way roller fairlead
pack:	1/box 410×320×150mm
Mounting Bolt Pattern:	3.15 in (80 mm)
remote control:	include
