maximum. Load (kg): | 120 | rope size: | 6mm |
Warranty: | 1 year | power supply: | 12V/24V |
Maximum linear speed (m/min): | 30m/min | Flow (L/min): | 20-40 |
place of origin; place of origin: | Chongqing, China | application: | ferry |
Packaging Details: | Neutral packing | Energy source: | electrical |
model: | YDW-011F,YDW-012F,YDW-013F | Chain Size: | 5-6mm |
maximum. Pulling force (kg): | 320 | No load absorption: | 30A |
capacity: | 120kg | Supply capacity: | 10000 pieces per month |
product name: | drum winch mini 12v 24v electric winch | port: | Shanghai/Guangzhou/Shenzhen |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Maximum pressure (bar): | 400W |
brand: | Yuvi |

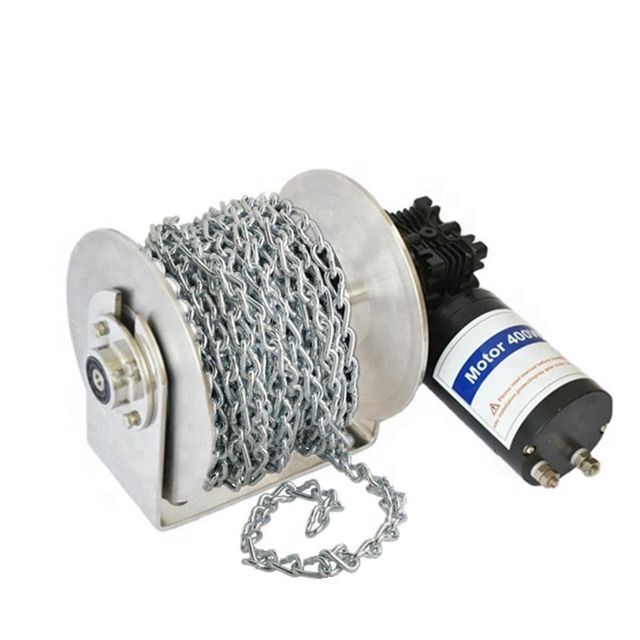

400W 600W 1000W Reel Winch Mini 12V 24V Electric Winch
Model |
net weight (Kilogram) |
strength supply |
motor |
no load absorb |
maximum. load (Kilogram) |
maximum. pull (Kilogram) |
Line speed | rope size | chain size |
JVW-010 | 9 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
JVW-011 | 16 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
JVW-012 | 20 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
JVW-013 | 30 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
JVW-014 | 43 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm | |
JVW-015 | 115 | 24V/48V | 2500W | 105A | 980 | 1800 | 20m/min | 24-30mm | 10-13mm |
JVW-010S | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
JVW-011S | 17.5 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
JVW-012S | twenty two | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
JVW-013S | 35 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
JVW-014S | 44 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm | |
JVW-015S | 119 | 24V/48V | 2500W | 105A | 980 | 1800 | 20m/min | 24-30mm | 10-13mm |
Features
1. The anchorage does not need a tether.
2. The retrieval speed increases with each revolution.
3. All ropes and chains are wound on reels at 80 and 90 feet per minute.
4. Ropes and chains are not twisted and tangled to cause unit failure.
5. The anchor can be raised and lowered with the flick of a switch. Free fall speeds of up to 600 ft/min are a real advantage when you are fishing at depths above 20 meters.
6. The reel can only be released when the heavy object is pulled down, so once the anchor hits the seabed, the reel will automatically stop, completely eliminating the risk of overloading due to too much rope being rolled out when anchoring.
