DDSY168-S

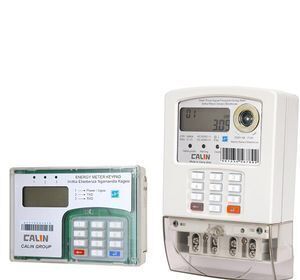

Single Phase Prepayment Keypad Electricity Meter

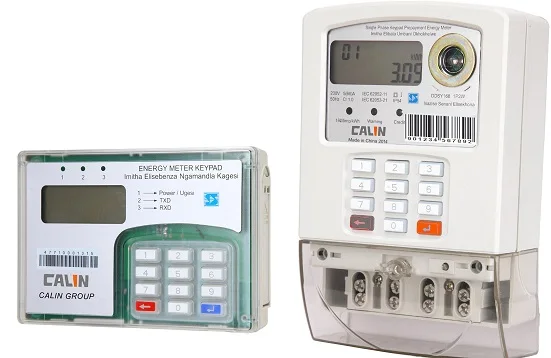

The DDSY168-S is a dual powder source measuring, split type prepayment electricity meter, completed in BS footprint housing working with a separate display and keypad unit(UIU/CIU). it is an ideal revenue protection metering tool that can measure grid components. In dual prepaid mode, the meter can auto decrypt the recharge code from different source and top up into separate balance.
Main Features
* 20 digit (Standard Transfer Specification) STS encryption
* Detection of significant reverse energy (SRE)
* IEC62056-21 compliant optical & RS485 port allowing for easy data interrogation
* Disconnects on overload and no credit
* Operate in both prepayment and credit
* Programmable load limit and low credit warning
* Detection and record tamper event such as opening cover, reverse connection, black-out
Split Configuration for Increased Revenue Protection
The meter consists of two parts, the MCU (Metering&Control Unit) and UIU(User interface Unit). The MCU and UIU is linked via galvanically-isolated 2-wire communication cable powder line carrier(PLC) and Radio Frequen-cy (RF) communication module is also available on request.
The UIU is installed within consumer's home, while MCU is installed in a meter cabinet away from consumers.
User Benefit
* Easy connection to User interface Unit (UIU) for split type applications
* PLC/RF/GPRS communication with a head-end AMR/AMI server
* Time of Use (TOU), Muti-tariff, holiday setting.
* Advanced load control and disconnection features
Electricity Parameters: | |
Voltage | |
Nominal Voltage Un | 230V |
Limited Voltage | 70%~120%Un |
Frequency | |
Nominal frequency fn | 50~60Hz |
tolerance | 5% |
Current | |
Basic Current(Ib) | 5A |
Maximum current(Imax) | 80A |
Starting Current(Ist) | 20mA |
Active energy constant | 1600imp/kWh |
Measurement Accuracy | |
Active energy to IEC62053-21 | Class1.0 |
Burden | |
Voltage circuit | <2W <8VA |
Current circuit | <1VA |
Temperature range | |
Operation meter | -25℃ to +75℃ |
Storage | -40℃ to +85 ℃ |
Insulation | |
Insulation Level | 4KV rms 1 min |
Voltage impulse withstand | 8KV 1.2/50 μs |
Insulation System Classification | Protective Class Ⅱ |
Electro Magnetic Compatibility | |
Electrostatic discharge | |
Contact discharge | 8 kV |
Air discharge | 16 kV |
Electromagnetic RF fields | |
27 MHz to 500 MHz typical | 10V/m |
100 kHz to 1GHz typical 30V/m | 30V/m |
Fast transient burst test | 4kV |
Mechanical requirements | |
Meter shell Protection Rate | IP54 |
Insulation System Classification | Protective Class Ⅱ |
Maximum cable size | 8 mm |
CALIN Tech Park
R&D Office and Show Room

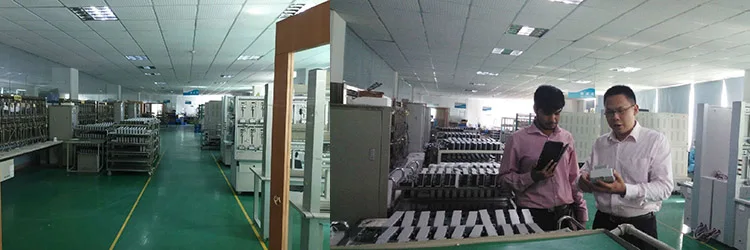

SMT Line and Assembly Line
