Packaging Detail: | 1 piece / 1 box; | Model Number: | CA568-K; |
Type: | Dry-dial; | Port: | Shenzhen; |
Color: | Blue+Gray; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
Place of Origin: | Guangdong China; | Type: | Multi-jet meters; |
Brand Name: | CALIN; | Certificate: | STS, ISO; |
Standard: | ISO4064, STS; | Battery Life: | up to 8 years; |
Body Material: | Brass/Plastic on request; | Supply Ability: | 70000 Piece/Pieces per Month; |
Product name: | Keypad Prepaid Water Meter; | Feature: | Digital Water Meter Display; |
Prepaid medium: | Keypad; | Keyword: | Keypad Prepaid Water Meter; |

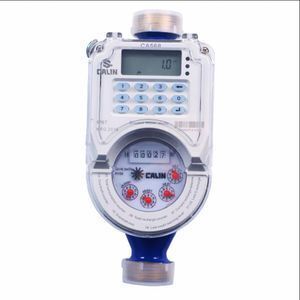

Remotely Reading RF Communication Keypad
Prepaid Water Meter
CA568-K
The new design of CA568-K come out with IP67 protection and a transparent cover for protecting the keypad and LCD. The CA568-K water meter is an advanced STS keypad prepaid water meter, R80/R100 accuracy on client's request. Bulit-in RF-Lora wireless module, can remotely reading water meter, remotely switches valve based on CALIN's management system.
Main Feature
Metrological Parameters
DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | |
Size | Inch | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Q4 permanent flow | m³/h | 3.125 | 5 | 7.875 | 12.5 | 20 | 31.25 | |
Q3 Overload flow | m³/h | 2.5 | 4 | 6.3 | 10 | 16 | 25 | |
R80 Q3/Q1
| Q2 | m³/h | 0.05 | 0.08 | 0.126 | 0.2 | 0.32 | 0.5 |
Q1 | m³/h | 0.031 | 0.05 | 0.079 | 0.125 | 0.2 | 0.312 | |
R100 Q3/Q1 | Q2 | m³/h | 0.04 | 0.064 | 0.1 | 0.16 | 0.256 | 0.4 |
Q1 | m³/h | 0.025 | 0.04 | 0.063 | 0.1 | 0.16 | 0.25 | |
R125 Q3/Q1 | Q2 | m³/h | 0.032 | 0.051 | 0.081 | 0.128 | 0.2 | 0.32 |
Q1 | m³/h | 0.02 | 0.032 | 0.05 | 0.08 | 0.128 | 0.2 | |
Max.Pressure | Bar | 16 | ||||||
Pressure loss | Bar | 0.63 (as complete unit) | ||||||
Max temperature | ℃ | 50 | ||||||
Max reading | m³ | 99999 | ||||||
Max Permissible Error (MPE)
| % | Q1≤Q≤Q2: MPE = ±5% Q2≤Q≤Q4:MPE = ±2% |
Dimension
Size mm DN in | 15 1/2" | 20 3/4" | 25 1" | 32 1-1/4" | 40 1-1/2" | 50 2" | |
Length(L) | 165/190 | 190 | 225/260 | 230/260 | 245/300 | 280/300 | |
Width(W) | 99 | 99 | 103 | 104 | 124 | 125 | |
Height (H) | 104 | 106 | 114 | 117 | 147 | 172 | |
Connecting Thread | G3/4B | G1B | G1-1/4B | G1-1/2B | G2B | G2-1/2B | Flange ISO7005 |

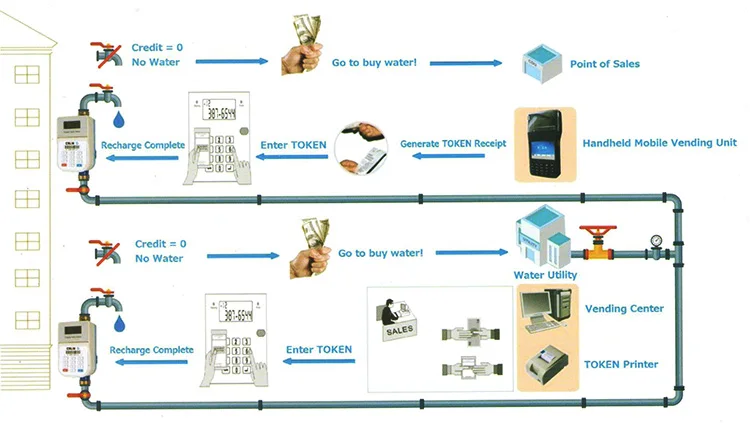

Water Vending Process
Q: Are you a trade company or a manufacturer?
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD1000, 100% In advance. payment>USD1000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
