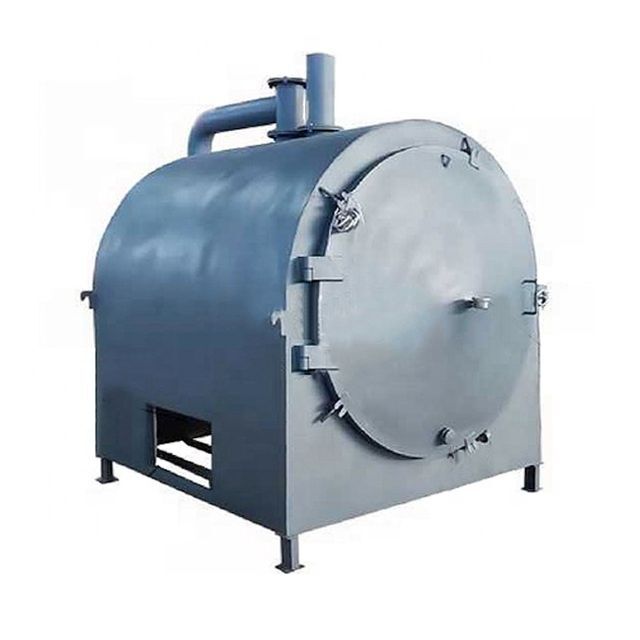

Smokeless charcoal machine biochar kiln carbonization furnace to make log coconut shell charcoal

Supplier: Gongyi City Jingying Machinery Manufacturing Factory
Region: Henan, China
Contact: Ms Karen Li
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Advantage:	High efficiency, energy saving and low cost
Equipped with:	flue gas purifier	Weight (kg):	300
Core components:	motor	place of origin; place of origin:	Henan, China
Name:	charcoal stove charcoal making	brand:	Crystal Coconut Shell Carbonization Furnace
Applicable industries:	Manufacturing, Energy & Mining	Finished goods:	bio-charcoal
usage:	How to Make Charcoal from Wood	Single package size:	1800X1000X1400 cm
Health status:	new	Marketing Type:	normal product
Packaging Preview:		Raw materials:	Coconut shells, bamboo, logs, branches, wood waste, etc.
Showroom location:	not any	Dimensions (LWH):	1.8m0.8m1.5m
Carbonization time:	6-8 hours/batch	Gross weight per piece:	350.000 kg
Sales unit:	single product	Core Components Warranty:	1 year
Packaging Details:	charbon machine charcoal carbonization furnace packing details: wooden case	feature:	Charcoal Charcoal Furnace Smokeless
Operation:	Simple automatic operation	Main selling point:	long lasting
Video external inspection:	if	Mechanical test report:	if
capacity:	100-6000kg/24h

Product Description

Charcoal stove

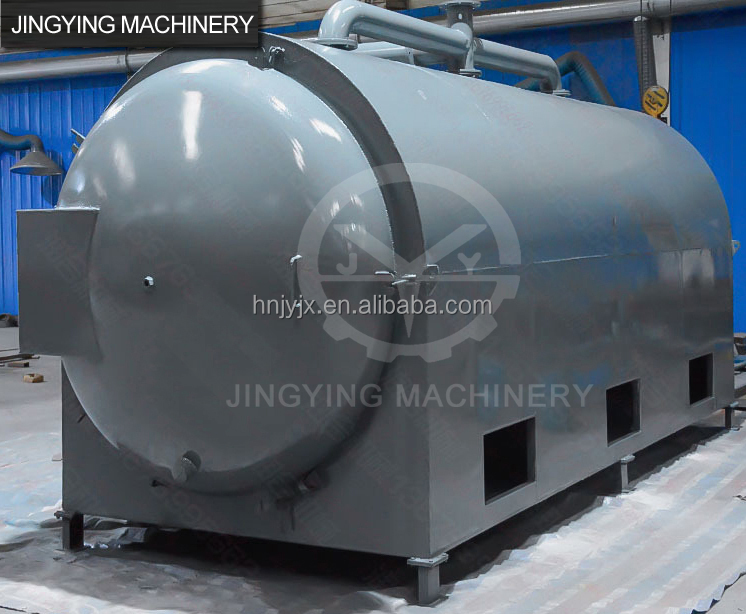

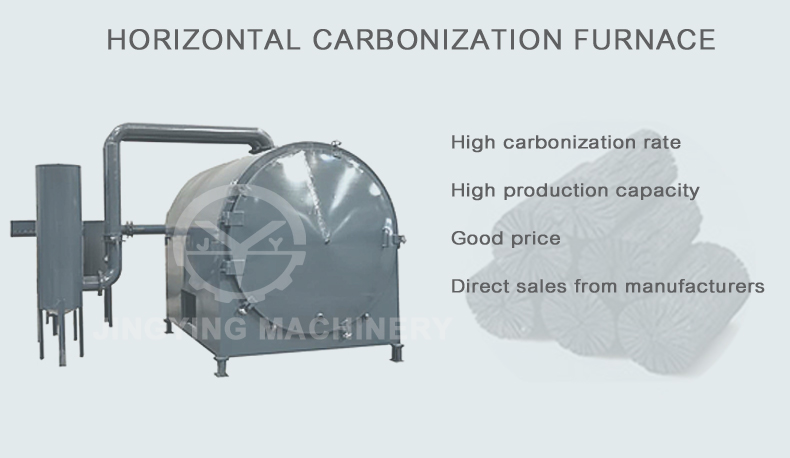

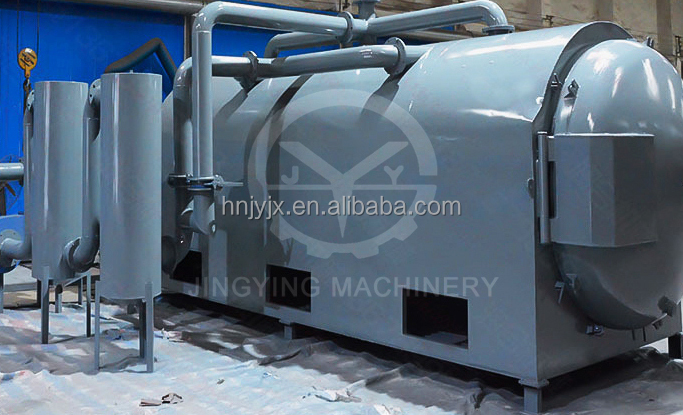

▶Jingying series horizontal carbonization furnace is a new type of air flow carbonization furnace, also known as charcoal kiln, charcoal making machine and charcoal furnace. It is used to make charcoal from wood and various biomass.

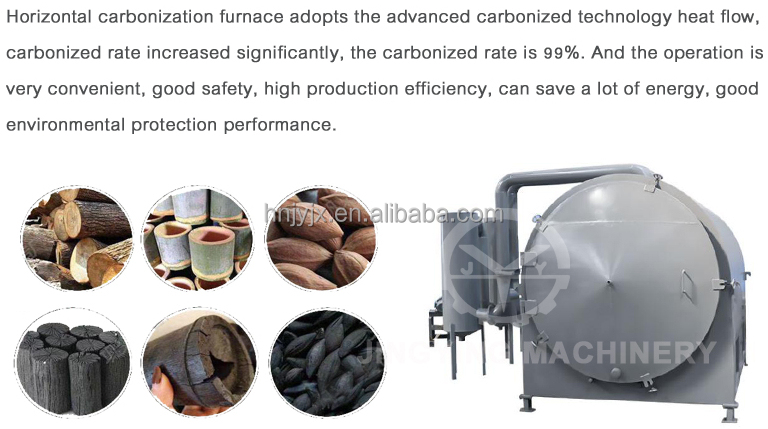

▶Suitable for a variety of biomass raw materials, such as wood, logs, branches, sticks, wood waste, wood blocks, coconut shells, bamboo, olive shells, palm kernel shells, cashew nut shells, etc.

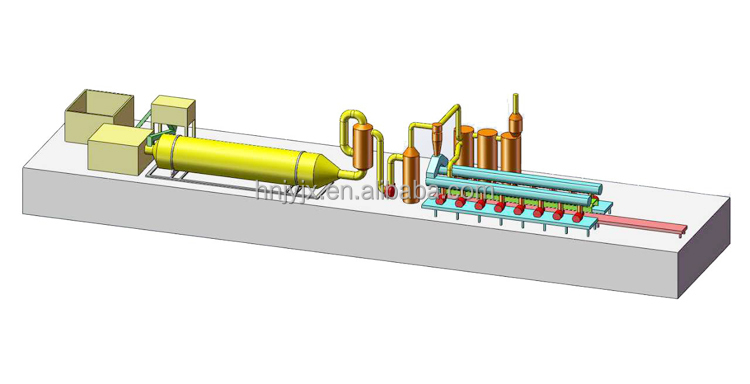

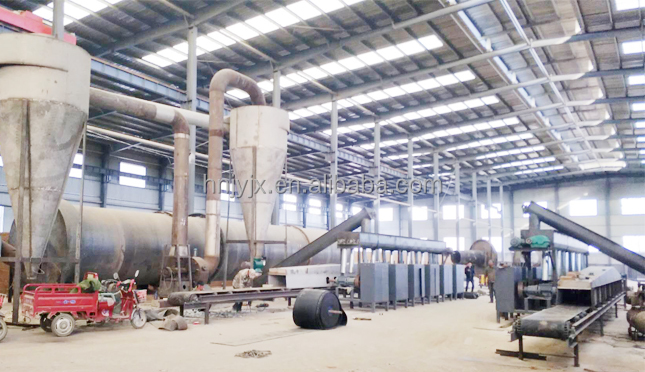

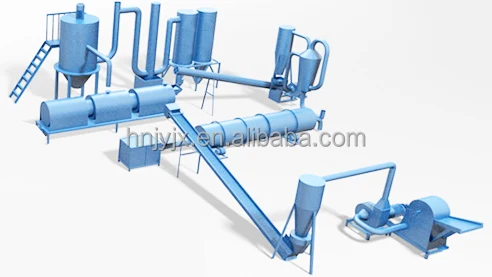

▶ EIt is easy to operate, safe, environmentally friendly and has high production efficiency.It is the main ideal equipment for charcoal production line.

Product parameters

Model	Inner dimension	capacity	aspect	weight
JYH-1	0.5m*1.2m	100kg	1.8m0.8m1.5m	300kg
JYH-2	1.5m*1.5m	500kg	2.1m1.8m2.3m	1200kg
JYH-3	1.5m*3m	1000kg	3.5m1.8m2.4m	2500kg
JYH-4	1.5m*4.5m	2000kg	5.2m1.9m2.4m	3500kg
JYH-5	1.9m*4.5m	3000kg	5.2m3.1m2.4m	5000kg
Other sizes can be customized according to your requirements.

Features

1. Three-layer structure of furnace body.The inner layer is a high heat transfer wear-resistant steel that increases the carbonization temperature. The middle layer is asbestos for insulation. The outer layer is painted steel.
2. Various heating methods.The heat source can be firewood, coal, natural gas, liquefied gas, burner, electricity, etc.

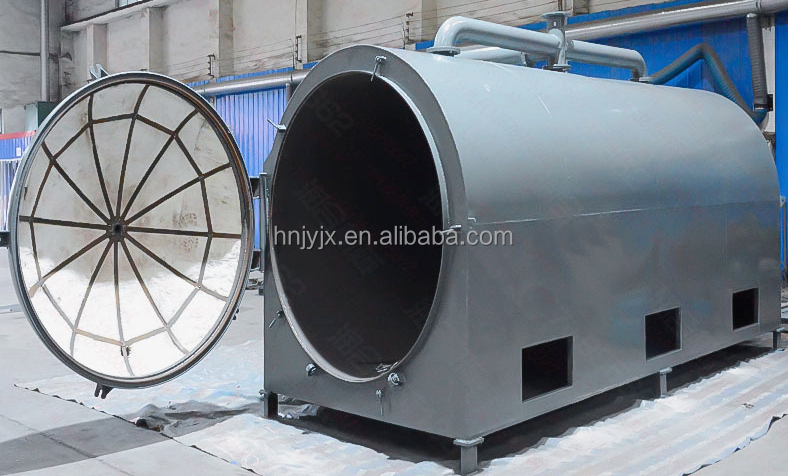

3. The furnace door is sealed with graphite packing.This prevents air from entering the hearth and increases charcoal production.
4. Green energy saving.The scavenger tank removes the fumes produced during the carbonization process. The purified gas enters the combustion chamber through pipes, and is then ignited to heat the furnace. In this process, no harmful gas is emitted, and the consumption of heating such as wood, coal, liquefied petroleum gas, etc. is reduced.
5. Guide rails and loading baskets.They are unique equipment for horizontal carbonizers. Workers can load wood or briquettes into steel baskets and push them into the carbonization chamber. This design greatly saves labor costs and makes the operation easier.
