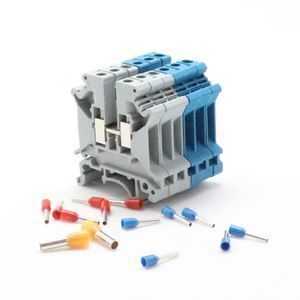

CNBX Factory Price UK waterproof plastic din rail electric terminal block

Supplier: Yueqing Baoxing Electrical Factory
Region: Zhejiang, China
Contact: Ms Anna Dai
Price: $0.115 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Certificate:	ISO9001/CE/ROHS;	Model Number:	UK;
Brand Name:	CNBX;	Conductor Size:	11 - 20 AWG;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Wire Range:	0.2-2.5 sqmm;
Place of Origin:	Zhejiang China (Mainland);	Application:	Wire Connecting;
Type:	Screw;	Port:	Ningbo or Shanghai;
Material:	PA66;	OEM/ODM/Sample:	Offer;
Color:	Gray / Customized;	Number of Contacts:	1 - 10;
Supply Ability:	10000 Piece/Pieces per Week;	Voltage:	800V;
Contact:	Ada;	Current:	24A;
Product name:	terminal block;	Packaging Detail:	1.Normal Package: inner box +carton 2.Specific packaging can be made to order.;

CNBX Factory Price UK waterproof plastic din rail electric terminal block

Banner

Product Description

UK series terminals block

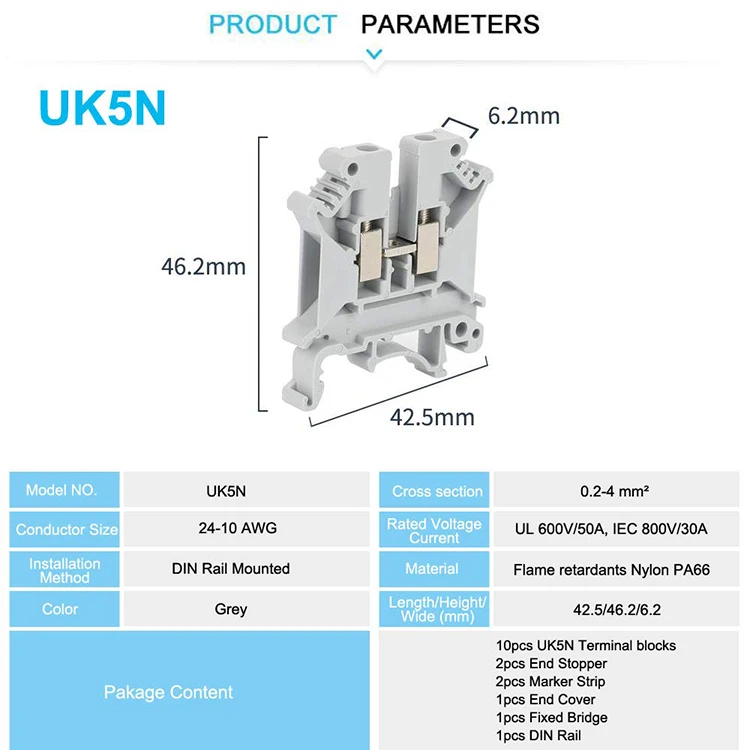

Specifications

1. Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.

2. Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.

3. Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal or inserting a side adaptor to the cone jack.

4. General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal with multiple sections.

5. The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high mechanical intensity, good electic property, and super flexibility.

6. Two ends on the top with white marking system to realize uniformed sign.

7. 15 years lifetime.

8. OEM acceptable.

Product name	UK Terminal BlocksUK Terminal Blocks
Plastic material:	made from PA
Certification	ISO9001,CE and ROHS
Metal material:	brass and steel
Color	GREY BASIC,OTHER COLOUR CAN SERVE ACCORDING CUSTOMER'S REQUEST
Feature:	Durable screw type
