Double Row Screw Barrier Feed Through Terminal Block KT8-10 600V 115A 21mm Pitch

Supplier: Beijing Tiandi Nayuan Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Guoqian Xiong
Price: $0.70 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Packaging Detail:	Standard Export Package/ According to customers requirements;	Delivery Detail:	Shipped in 10 days after payment;
Pitch:	21MM;	Payment Terms:	L/C,T/T,Western Union;
Port:	Ningbo;	Number of Contacts:	11 - 20;
Voltage:	600V;	Place of Origin:	Zhejiang China (Mainland);
Terminal:	Tin Plated Brass;	Color:	Black;
Supply Ability:	10000 Piece/Pieces per Week;	Material:	PBT,G15;
Conductor Size:	11 - 20 AWG;	Wire Range:	10-2AWG;
Current:	115A;	Type:	Feed Through;
Brand Name:	XIONGSHI;	Model Number:	KT8-10;
Torque:	6 N-m;

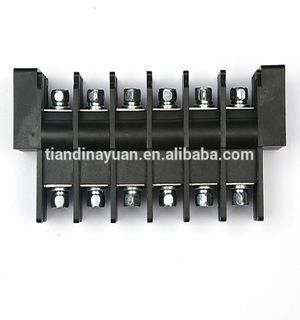

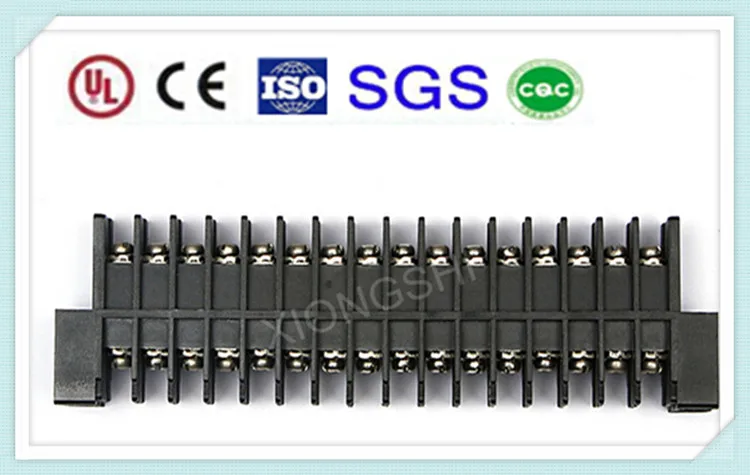

Double Row Screw Barrier Feed Through Terminal Block

KT8-10 600V 115A 21mm Pitch

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-10

600V 115A 21mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

Product Description

KT8-10

Voltage: 600V

Current: 115A

Wire Range: 8-2AWG

Withstand Voltage: AC2500V for 1 Minute

Plastic Housing: PBT, G15, Black

Tem: -40-130c

Terminal: Tin Plated Brass

Screw: Steel, M6, Ni-Plated

Torque Value: 3N-m

Terminal Block Specifications

Model: KT8-10
Approval	UL
Electrical
Rated voltage	600V
Rated current	115A
Wire range	8-2AWG
Withstand Voltage	AC2500V for 1 minute
Insulation Resistance	1000 mΩ / DC 500V
Materials
Plastic Housing	PBT,G15, Black
Operation Temperature	-40℃- +130℃
Terminal	Copper, Tin Plated
Screw	Steel, M6, Ni Plated
Torque Value	3 N-m

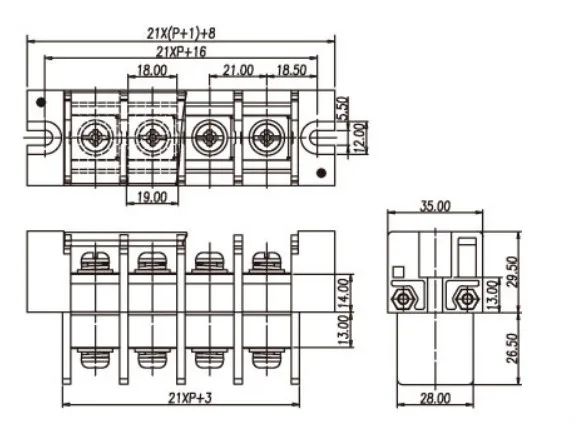

Double Row Screw Barrier Feed Through Terminal Block KT8-10 Drawing

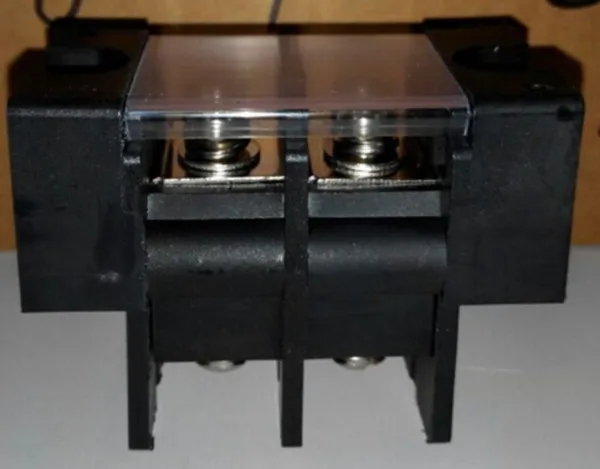

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-10

600V 115A 21mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

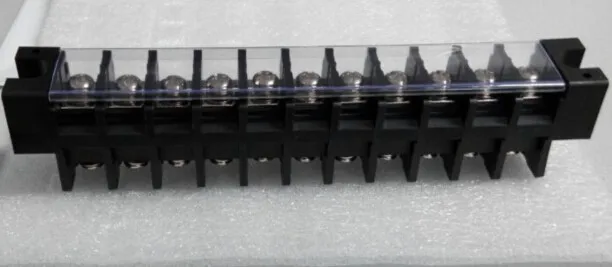

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-10

600V 115A 21mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

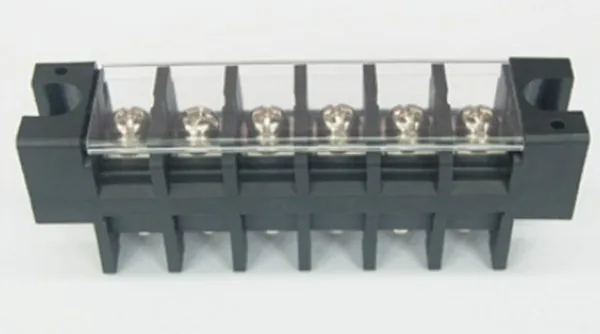

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-10

600V 115A 21mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

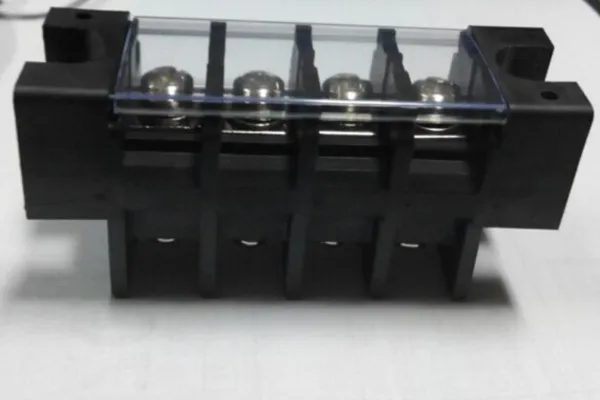

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-6

300V 20A 8.5mm Pitch, Current Plate: Copper, Tin Plated,

Ni Plated Screw

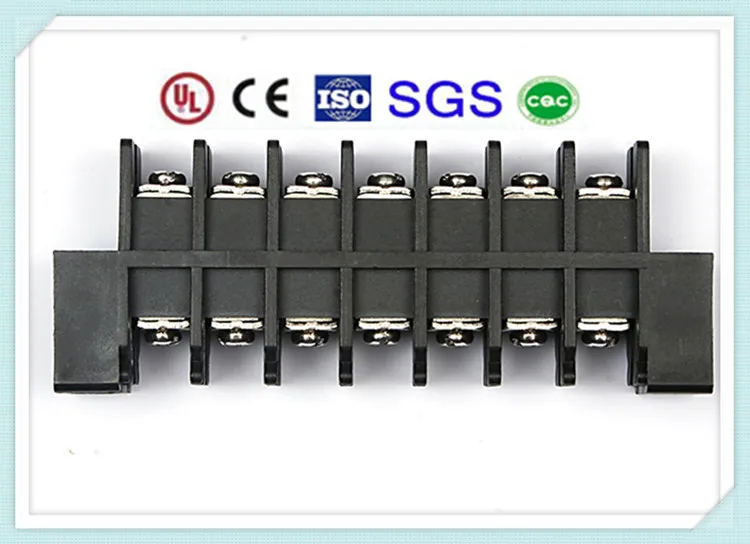

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-8

600V 50A 13mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

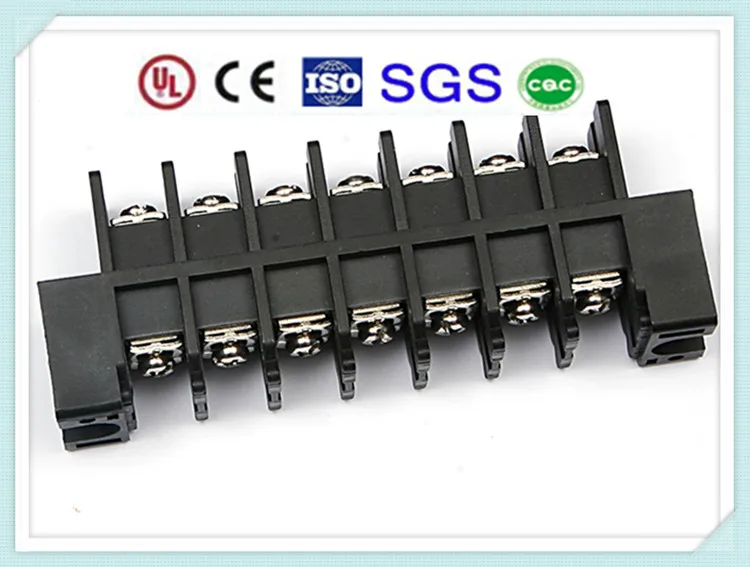

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-9

600V 65A 16mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

UL CE Approved High Current Power Barrier Screw Terminal Block KT8-11

600V 170A 27mm Pitch, Current Plate: Copper, Tin Plated, Ni Plated Screw

Certificate: CE, UL, ISO9001-2008, SGS, CQC

Application:

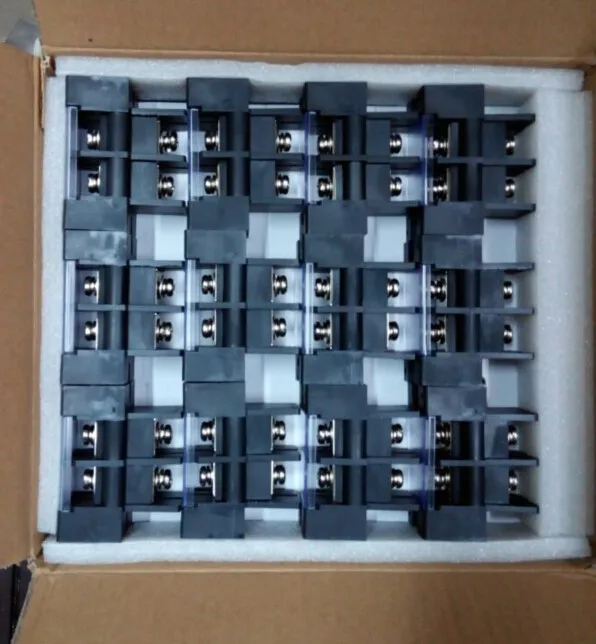

Packaging & Shipping

Company Information

Beijing Tiandi Nayuan Technology Co., Ltd. was established in 2003, is a professional manufacturer of terminal blocks. The company has passed the SGS, CQC, CE, UL, ISO9001: 2008 quality system certification for the purpose of "quality first, reputation first" committed "to meet customer demand" production and operation mode.

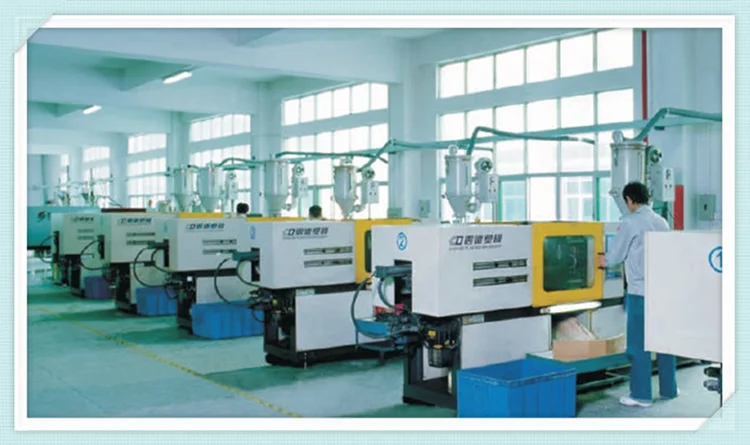

Over the years, in order to improve product quality, our company was established by the professional and technical personnel, research and development institutions, plastic mold, punching mold, metal processing, injection molding, assembly of finished products and a series of specialized production plant. At present, our products have been widely sold at home and abroad.
Meet the needs of our customers, we also established a sales company, available quantities, sufficient supply, range, price. In order to better customer service, I also undertake a variety of products customized business models.
We warmly welcome your visit, visit!

Dear valued clients, thank you for your interests to our products. We have more than 10 years professional experience in terminal blocks fields. For more details, pls feel free to contact us.
