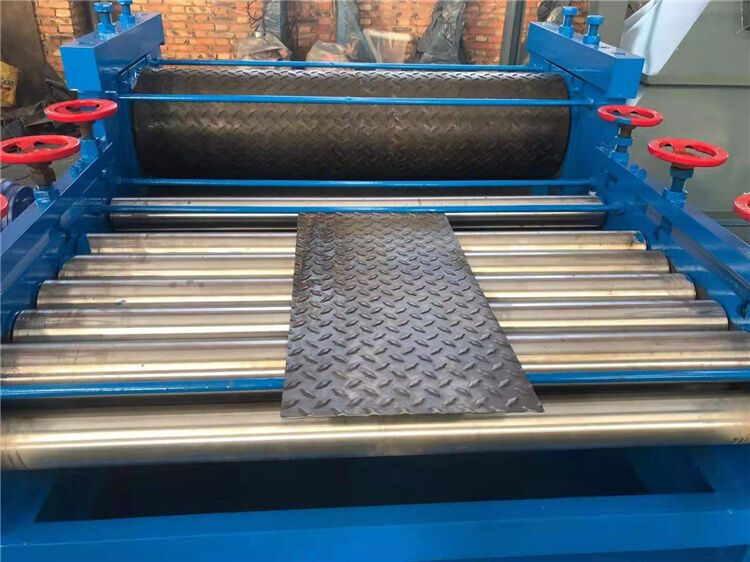

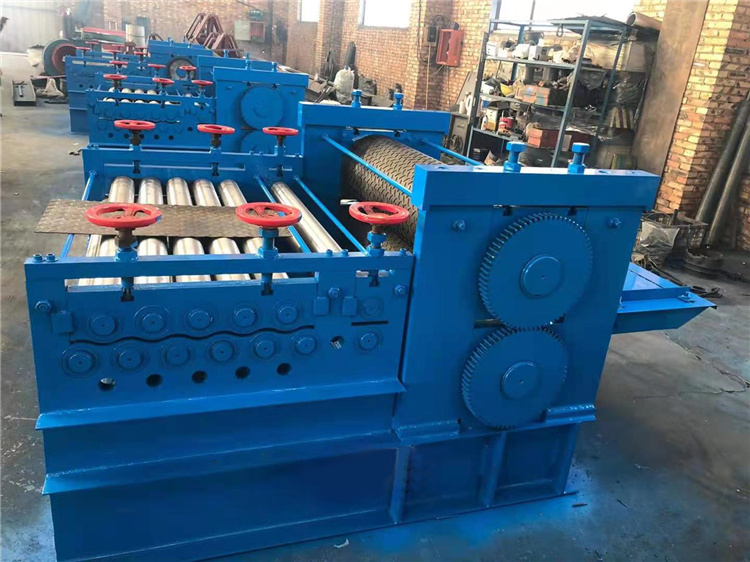

1m 1.5m Metal steel sheets steel plate diamond checker pattern leveling embossing machine for flattening metal

Supplier: Henan Wadjay Machinery Co., Ltd.
Region: China
Contact: Mr dong peng
Price: $6590.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Description

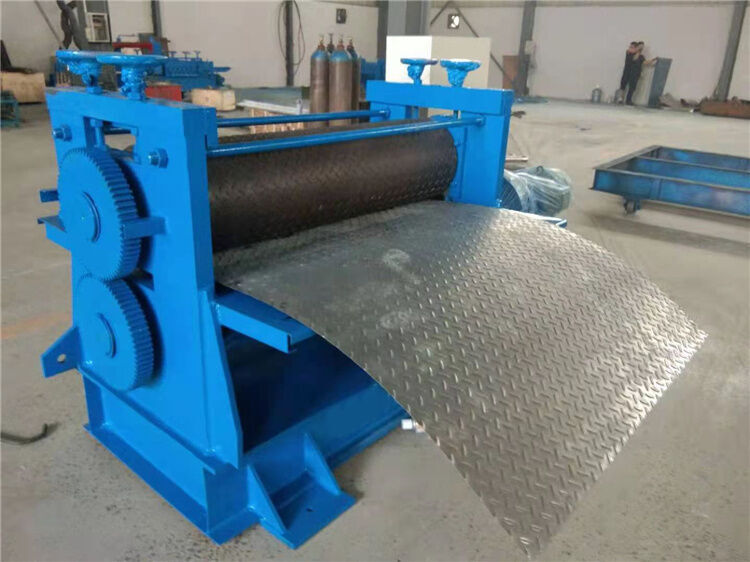

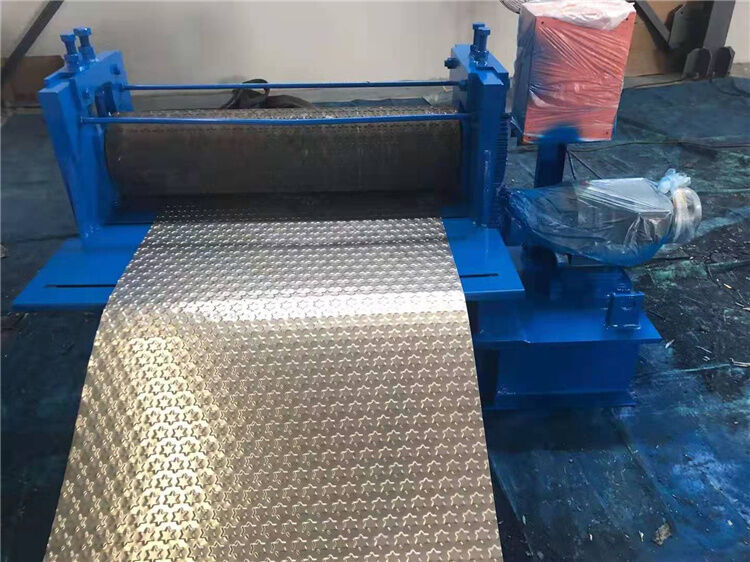

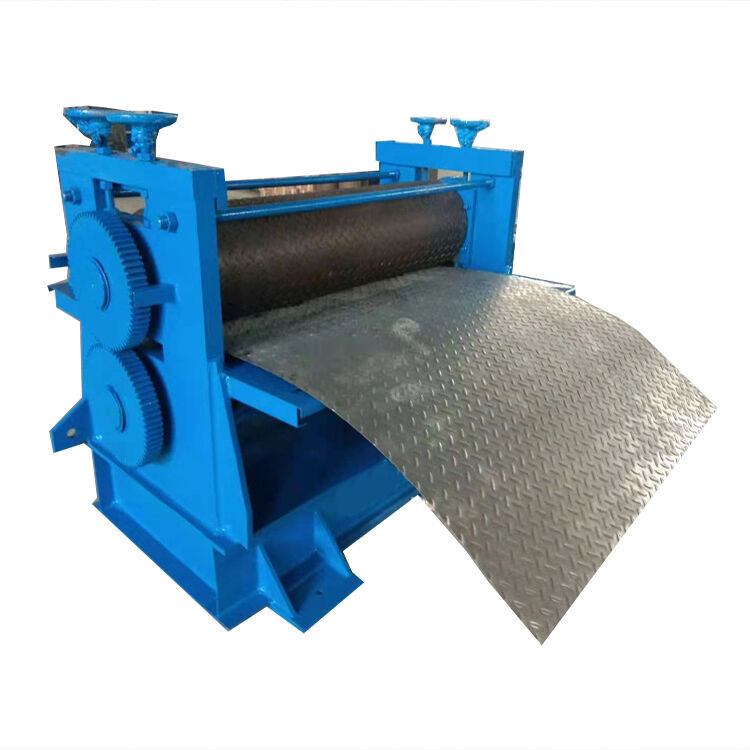

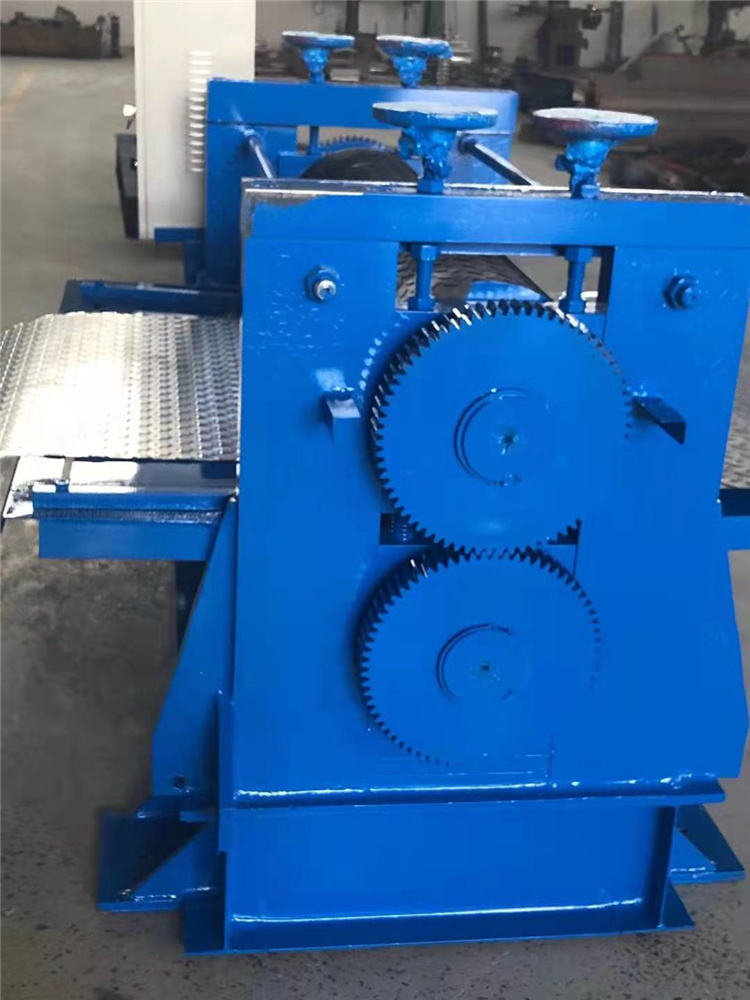

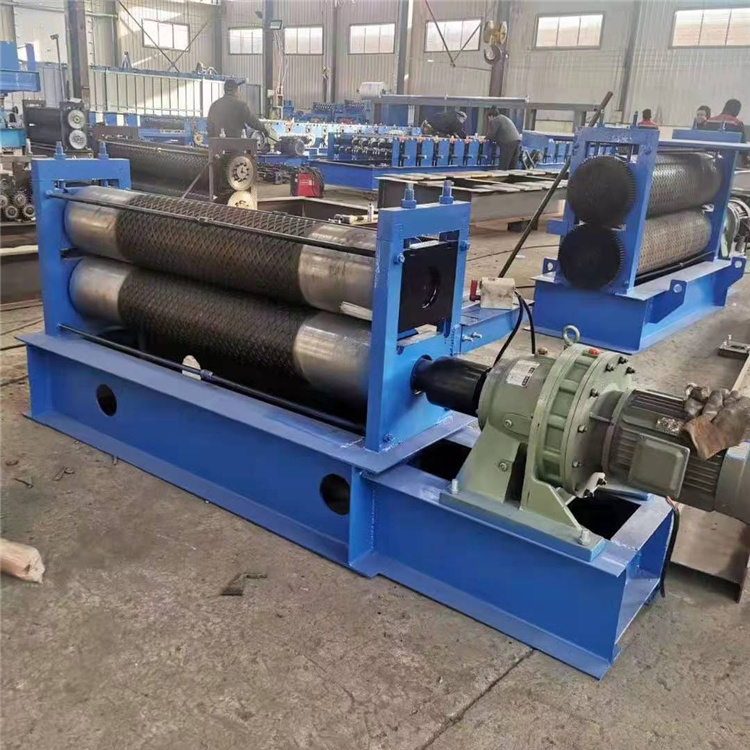

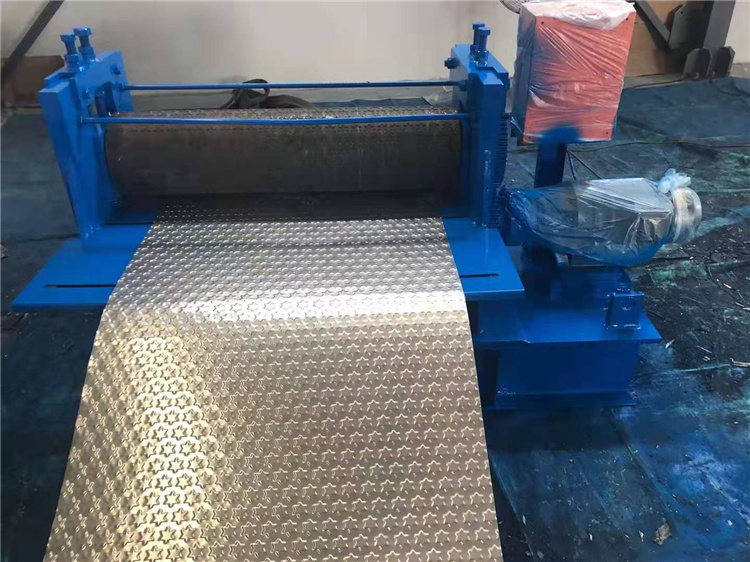

Steel Metal sheet metal plate embossing machine embossing line

Instruction for metal embossing machine

Material of aluminum sheet, color steel sheet, heat zinc plated sheet, copper sheet, cold rolling steel sheet and stainless steel sheet, etc. The finished embossing coils are applicable for home appliances, freezer, ice house, building outer walls, corrugated roof, elevator, platform floor, garage gates, safe doors, stair anti-skidding, machinery manufacturing, etc. Embossed coil can make the substrate coil more beautiful and strength

Features for metal embossing machine

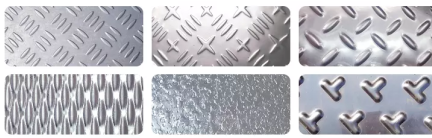

Its embossing has distinct layers, specific image, strong three-dimensional sense, and also has the advantages of diverse patterns and not easy to decolorize.

Working flow

Specification

Model	WADJAY 1000	WADJAY 1400	WADJAY 1600	WADJAY 1900
Overall size(mm)	290012001500	330012001500	350012001500	380012001500
Roller size	φ350*1000mm	φ380*1400mm	φ400*1600mm	φ450*1900mm
Material of roller	42CrMo	42CrMo	42CrMo	42CrMo
Roller hardness	HRC55-58	HRC55-58	HRC55-58	HRC55-58
Way of embossing	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same	Both up and down rollers embossing at same
Embossing regulation	By screw	By screw	By screw	By screw
Motor power(KW)	7.5	11	15	15
Line speed	0-18m/min	0-30m/min	0-40m/min	0-45m/min

Parameters of metal sheets steel plate diamond checker pattern embossing machine

Coil Width: 1500mm maximum;
·Coil Thickness: 3mm maximum;
·Working Speed: 15m/min;
·Material of Rollers: 42CrMO alloy steel;
·Hardness of Roller: HRC58-60;
·Roller Size: 440mmx1600mm (subject to final designing);
·Main Power: 11KW;
·Depth of Patterns: Adjustable;
·PLC Control: Mitsubishi of Japan;
Electricity: 380V/50HZ/3ph
