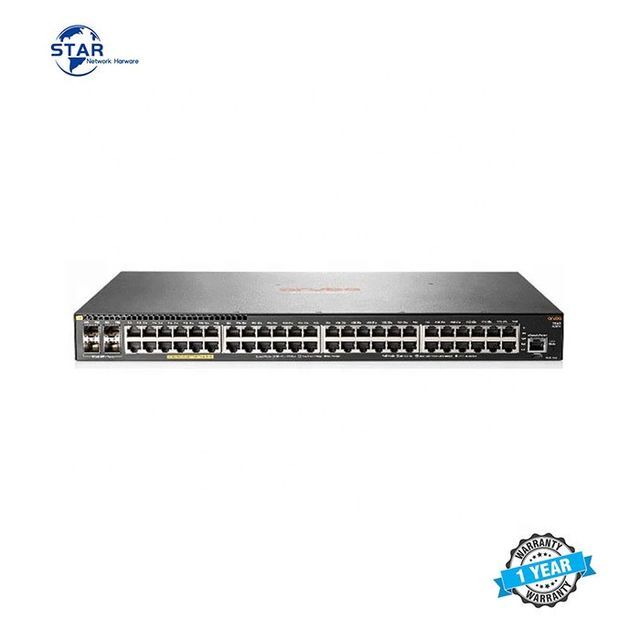

Aruba 2930F 48G PoE+ 4SFP+ Swch. JL256A

Product details
Warranty:1 yearPackaging Details:1pcs/box,2box-3box/carton
Function:Ethernetport:48,≥48
product status:in stockSwitching capacity:176Gbps
model:JL256A, JL256ASwitching capacity:176 Gb/s
communication method:Full duplex and half duplexPoE Power:370 watts
Throughput:Up to 112.0 Mp/sCertificate:CE FCC RoHS ISO etc.
brand:StarDimensions (WxDxH):4.39 x 44.25 x 30.42 cm
Health status:100% original brandplace of origin; place of origin:china, melon
weight:1 kg (2.2 lbs)Transmission rate:10/100/1000Mbps
payment terms:Western Union, T/T, MoneyGram, PAYPAL
Product Description
HP JL256A.
The Aruba 2930F switch series is designed for mobile users using an integrated wired and wireless approach to create a digital workplace. Easy to deploy and manage using advanced security and network management tools such as Aruba ClearPass Policy Manager and Aruba AirWave, these basic Layer 3 access switches are ideal for the enterprise edge, SMBs and branch offices. Powerful Aruba ProVision ASICs deliver the performance and value to support the latest SDN applications with future-proof programmability. The 2930F supports 10GbE uplinks, PoE+, robust QoS, RIP routing, access to OSPF, ACLs, tunnel nodes and IPv6. The JL256A features 48 10/100/1000 PoE+ ports and 4 1000/10G SFP+ transceiver slots for high-speed connectivity. PoE+ is supported with a power budget of 370 watts.
Specification
Product Code
JL256A
type
Aruba 2930F 48G PoE+ 4SFP+ Switch
I/O ports and slots
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: Half or full 1000BASE-T: Full only
4 SFP+ 1/10GbE ports; no physical layer
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Throughput
Up to 112.0 Mp/s
Switching capacity
176 Gb/s
PoE available power
370 watts
aspect
4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
1U height
product status
prepare for shipment
